Vare nr.: F032112680

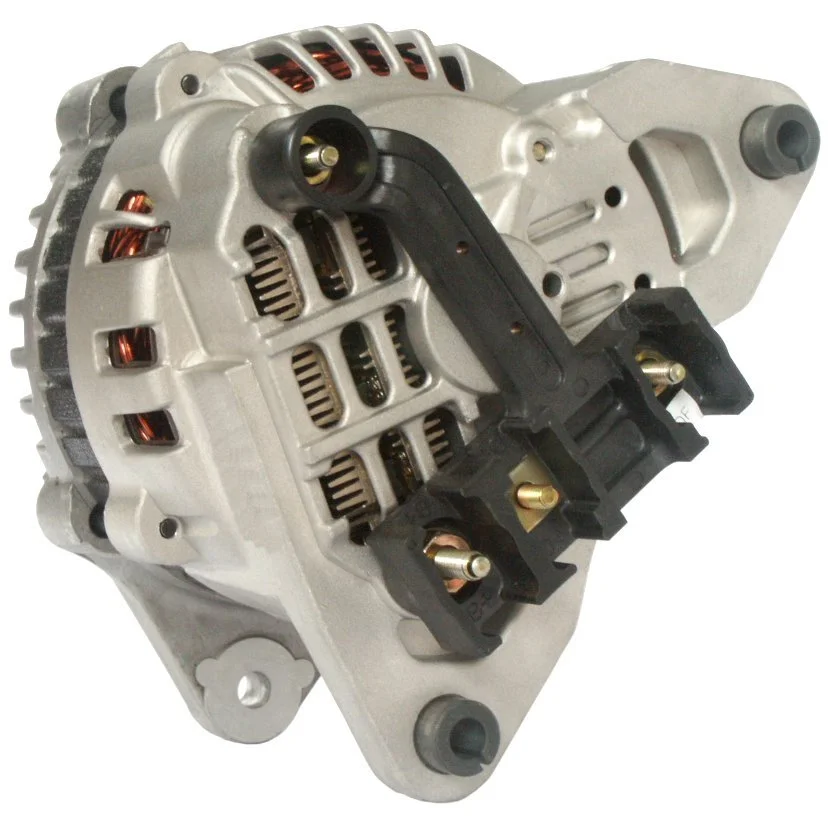

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 70, Rotation: CW, Monteringsbeslag afstand: 80,00

Beskrivelse

Spænding: 14
Amp: 70
Terminal: W
Drevskive udstødning: 33,50
Bredde/holder arm: 14,00
Monteringsbeslag afstand: 80,00
Beslaghul: 8,50
Bæltejustering beslags hul position: 50
Bæltejustering beslags hul 1: 8,50
Drevskive dia.: 55,00
Riller/drevskive: 6
Radius: 86,00
Radius 2: 86,00
B+: M6
Position/B+ i min.: 44
D+ Størrelse: M5
Rotation: CW
W stiktype: M5
Total længde mm: 173,00
Drevskive: SP
Regulator type: IR
Producentinfo: BN
Servicering: Ford

Filer

Specifikation

B+ M6
Mount. bracket dist. 80.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 50
Bracket hole 8.50
Position/B+ in min. 44
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 33.50
Radius 86.00
D+ Size M5
Radius 2 86.00
Regulator type IR
Rotation CW
Servicing Ford
Grooves/pulley 6
Terminal W
Voltage 14
W plug type M5
Total length 173.00 mm
Width/holder arm 14.00
Amp 70

  • OEM
    b120411528, F032112680, r95ab10300db, 95ab10300da, 95ab10300db, 95ab10300dc, 95AB10300DI, 1037ir, 1135453, 1406071, 5030656, 7355509, 0123310029, 0123310053

  • Konkurrentreferens
    A0153, ALT-H117, ALT10187, BAO3094, CAL10201, dra8990, F042A0H117, FRA794, lrb00223, QA2123, 8EL012427-071, 8el732709-001, 28-2863, 219.138.702, 4533, 5011, 21222N, 56504, 118853, 210253, 210253A, 437387, 443190, 746126, 746926, 9038990, 9212634, 12038990, 20110223, 32038990, 35215290, 0986038990, 0986038993, 063533100530, 943355005010, 944390389900

  • NormaliseratArtNr
    a0153, alt10187, alth117, b120411528, bao3094, cal10201, dra8990, f032112680, f042a0h117, fra794, lrb00223, qa2123, r95ab10300db, 8el012427071, 8el732709001, 95ab10300da, 95ab10300db, 95ab10300dc, 95ab10300di, 1037ir, 4533, 5011, 21222n, 56504, 118853, 210253, 210253a, 282863, 437387, 443190, 746126, 746926, 1135453, 1406071, 5030656, 7355509, 9038990, 9212634, 12038990, 20110223, 32038990, 35215290, 0123310029, 0123310053, 219138702, 0986038990, 0986038993, 063533100530, 943355005010, 944390389900

  • Passar modeller
    Ford Model: Escort Model series: Escort Coupe Size of motor: 1.8 Brand of engine: RDA Body: Coupe From date: 01-10-1995 To date: 01-08-2002 Fuel: Petrol Approved: Yes
    Ford Model: Escort Model series: Escort Model type: 4x4 Type of engine: 16V Size of motor: 1.6 Brand of engine: L1E Body: Hatchback From date: 01-01-1995 To date: 01-10-1998 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Model type: Express Size of motor: 1.4 Brand of engine: F4B Body: Van From date: 01-01-1995 To date: 01-08-2000 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Model type: XR3i Type of engine: 16V Size of motor: 1.6 Brand of engine: L1E Body: Convertible From date: 01-02-1995 To date: 01-09-1999 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Model type: XR3i Type of engine: 16V Size of motor: 1.6 Brand of engine: L1H Type description: ALL Body: Convertible From date: 01-02-1995 To date: 01-12-1996 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Model type: XR3i Type of engine: 16V Size of motor: 1.8 Brand of engine: RDA Type description: ALL Body: Convertible From date: 01-02-1995 To date: 01-08-1998 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Model type: XR3i Type of engine: 16V Size of motor: 1.8 Brand of engine: RKC Type description: ALL Body: Convertible From date: 01-10-1995 To date: 01-08-1998 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Model type: XR3i Type of engine: 16V Size of motor: 1.8 Brand of engine: RQB Type description: ALL Body: Convertible From date: 01-02-1995 To date: 01-08-2000 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Size of motor: 1.4 Brand of engine: F4B Type description: ALL Body: Convertible From date: 01-02-1995 To date: 01-08-1998 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Size of motor: 1.4 Brand of engine: F4B Type description: GAL, AAL, ABL Body: Hatchback From date: 01-01-1995 To date: 01-12-1999 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Size of motor: 1.4 Brand of engine: F4B Type description: GAL,AAL,ABL Body: Hatchback From date: 01-01-1995 To date: 01-10-1998 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Size of motor: 1.4 Brand of engine: FUH Type description: GAL,AAL,ABL Body: Hatchback From date: 01-01-1995 To date: 01-10-1998 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Size of motor: 1.4 Brand of engine: FUH Type description: GAL,AFL From date: 01-01-1995 To date: 01-02-1999 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Size of motor: 1.4 Brand of engine: FUH Type description: GAL,ANL Body: Estate From date: 01-01-1995 To date: 01-02-1999 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
    Ford Model: Escort Model series: Escort Size of motor: 1.8 Brand of engine: RDA Type description: GAL, AAL, ABL Body: Hatchback From date: 01-02-2000 To date: 01-11-2001 Fuel: Petrol Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: 16V Size of motor: 1.6 Brand of engine: L1E Body: Estate From date: 01-02-1999 To date: 01-07-2000 Fuel: Gasoline Approved: Yes Manufacture type: classic
    Ford Model: Escort Model series: Escort Type of engine: 16V Size of motor: 1.6 Brand of engine: L1E Body: Hatchback From date: 01-10-1998 To date: 01-07-2000 Fuel: Gasoline Approved: Yes Manufacture type: classic
    Ford Model: Escort Model series: Escort Type of engine: 16V Size of motor: 1.6 Brand of engine: L1E Type description: GAL,AAL,ABL Body: Hatchback From date: 01-01-1995 To date: 01-10-1998 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: 16V Size of motor: 1.6 Brand of engine: L1E Type description: GAL,ANL Body: Estate From date: 01-01-1995 To date: 01-02-1999 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: 16V Size of motor: 1.8 Brand of engine: RDA Type description: GAL,AAL,ABL Body: Hatchback From date: 01-01-1995 To date: 01-08-1995 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: 16V Size of motor: 1.8 Brand of engine: RDA Type description: GAL,AFL From date: 01-01-1995 To date: 01-08-1995 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: 16V Size of motor: 1.8 Brand of engine: RDA Type description: GAL,ANL Body: Estate From date: 01-01-1995 To date: 01-08-1995 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: 16V Size of motor: 1.8 Brand of engine: RKC Type description: GAL,AAL,ABL Body: Hatchback From date: 01-01-1995 To date: 01-10-1998 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: 16V Size of motor: 1.8 Brand of engine: RKC Type description: GAL,AFL From date: 01-01-1995 To date: 01-02-1999 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: 16V Size of motor: 1.8 Brand of engine: RKC Type description: GAL,ANL Body: Estate From date: 01-01-1995 To date: 01-02-1999 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: i 16V Size of motor: 1.6 Brand of engine: L1H Type description: GAL,AAL,ABL Body: Hatchback From date: 01-01-1995 To date: 01-08-1995 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: i 16V Size of motor: 1.6 Brand of engine: L1H Type description: GAL,AFL From date: 01-01-1995 To date: 01-08-1995 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: i 16V Size of motor: 1.6 Brand of engine: L1H Type description: GAL,ANL Body: Estate From date: 01-01-1995 To date: 01-08-1995 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: i Size of motor: 1.6 Brand of engine: L1E Type description: GAL From date: 01-08-1993 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: i Size of motor: 1.6 Brand of engine: L1E Type description: GAL,AFL From date: 01-01-1995 To date: 01-02-1999 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: i Size of motor: 1.6 Brand of engine: L1K Type description: GAL From date: 01-08-1993 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: i Size of motor: 1.6 Brand of engine: L1K Type description: GAL,AFL From date: 01-01-1995 To date: 01-02-1999 Fuel: Gasoline Approved: Yes
    1 / 7
  • Beskrivelse
    Spænding: 14
    Amp: 70
    Terminal: W
    Drevskive udstødning: 33,50
    Bredde/holder arm: 14,00
    Monteringsbeslag afstand: 80,00
    Beslaghul: 8,50
    Bæltejustering beslags hul position: 50
    Bæltejustering beslags hul 1: 8,50
    Drevskive dia.: 55,00
    Riller/drevskive: 6
    Radius: 86,00
    Radius 2: 86,00
    B+: M6
    Position/B+ i min.: 44
    D+ Størrelse: M5
    Rotation: CW
    W stiktype: M5
    Total længde mm: 173,00
    Drevskive: SP
    Regulator type: IR
    Producentinfo: BN
    Servicering: Ford

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 80.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 50
    Bracket hole 8.50
    Position/B+ in min. 44
    Prod. info BN
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 33.50
    Radius 86.00
    D+ Size M5
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Servicing Ford
    Grooves/pulley 6
    Terminal W
    Voltage 14
    W plug type M5
    Total length 173.00 mm
    Width/holder arm 14.00
    Amp 70
  • Køretøjsmatchning

    • OEM
      b120411528, F032112680, r95ab10300db, 95ab10300da, 95ab10300db, 95ab10300dc, 95AB10300DI, 1037ir, 1135453, 1406071, 5030656, 7355509, 0123310029, 0123310053

    • Konkurrentreferens
      A0153, ALT-H117, ALT10187, BAO3094, CAL10201, dra8990, F042A0H117, FRA794, lrb00223, QA2123, 8EL012427-071, 8el732709-001, 28-2863, 219.138.702, 4533, 5011, 21222N, 56504, 118853, 210253, 210253A, 437387, 443190, 746126, 746926, 9038990, 9212634, 12038990, 20110223, 32038990, 35215290, 0986038990, 0986038993, 063533100530, 943355005010, 944390389900

    • NormaliseratArtNr
      a0153, alt10187, alth117, b120411528, bao3094, cal10201, dra8990, f032112680, f042a0h117, fra794, lrb00223, qa2123, r95ab10300db, 8el012427071, 8el732709001, 95ab10300da, 95ab10300db, 95ab10300dc, 95ab10300di, 1037ir, 4533, 5011, 21222n, 56504, 118853, 210253, 210253a, 282863, 437387, 443190, 746126, 746926, 1135453, 1406071, 5030656, 7355509, 9038990, 9212634, 12038990, 20110223, 32038990, 35215290, 0123310029, 0123310053, 219138702, 0986038990, 0986038993, 063533100530, 943355005010, 944390389900

    • Passar modeller
      Ford Model: Escort Model series: Escort Coupe Size of motor: 1.8 Brand of engine: RDA Body: Coupe From date: 01-10-1995 To date: 01-08-2002 Fuel: Petrol Approved: Yes
      Ford Model: Escort Model series: Escort Model type: 4x4 Type of engine: 16V Size of motor: 1.6 Brand of engine: L1E Body: Hatchback From date: 01-01-1995 To date: 01-10-1998 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Model type: Express Size of motor: 1.4 Brand of engine: F4B Body: Van From date: 01-01-1995 To date: 01-08-2000 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Model type: XR3i Type of engine: 16V Size of motor: 1.6 Brand of engine: L1E Body: Convertible From date: 01-02-1995 To date: 01-09-1999 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Model type: XR3i Type of engine: 16V Size of motor: 1.6 Brand of engine: L1H Type description: ALL Body: Convertible From date: 01-02-1995 To date: 01-12-1996 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Model type: XR3i Type of engine: 16V Size of motor: 1.8 Brand of engine: RDA Type description: ALL Body: Convertible From date: 01-02-1995 To date: 01-08-1998 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Model type: XR3i Type of engine: 16V Size of motor: 1.8 Brand of engine: RKC Type description: ALL Body: Convertible From date: 01-10-1995 To date: 01-08-1998 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Model type: XR3i Type of engine: 16V Size of motor: 1.8 Brand of engine: RQB Type description: ALL Body: Convertible From date: 01-02-1995 To date: 01-08-2000 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Size of motor: 1.4 Brand of engine: F4B Type description: ALL Body: Convertible From date: 01-02-1995 To date: 01-08-1998 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Size of motor: 1.4 Brand of engine: F4B Type description: GAL, AAL, ABL Body: Hatchback From date: 01-01-1995 To date: 01-12-1999 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Size of motor: 1.4 Brand of engine: F4B Type description: GAL,AAL,ABL Body: Hatchback From date: 01-01-1995 To date: 01-10-1998 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Size of motor: 1.4 Brand of engine: FUH Type description: GAL,AAL,ABL Body: Hatchback From date: 01-01-1995 To date: 01-10-1998 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Size of motor: 1.4 Brand of engine: FUH Type description: GAL,AFL From date: 01-01-1995 To date: 01-02-1999 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Size of motor: 1.4 Brand of engine: FUH Type description: GAL,ANL Body: Estate From date: 01-01-1995 To date: 01-02-1999 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
      Ford Model: Escort Model series: Escort Size of motor: 1.8 Brand of engine: RDA Type description: GAL, AAL, ABL Body: Hatchback From date: 01-02-2000 To date: 01-11-2001 Fuel: Petrol Approved: Yes
      Ford Model: Escort Model series: Escort Type of engine: 16V Size of motor: 1.6 Brand of engine: L1E Body: Estate From date: 01-02-1999 To date: 01-07-2000 Fuel: Gasoline Approved: Yes Manufacture type: classic
      Ford Model: Escort Model series: Escort Type of engine: 16V Size of motor: 1.6 Brand of engine: L1E Body: Hatchback From date: 01-10-1998 To date: 01-07-2000 Fuel: Gasoline Approved: Yes Manufacture type: classic
      Ford Model: Escort Model series: Escort Type of engine: 16V Size of motor: 1.6 Brand of engine: L1E Type description: GAL,AAL,ABL Body: Hatchback From date: 01-01-1995 To date: 01-10-1998 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Type of engine: 16V Size of motor: 1.6 Brand of engine: L1E Type description: GAL,ANL Body: Estate From date: 01-01-1995 To date: 01-02-1999 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Type of engine: 16V Size of motor: 1.8 Brand of engine: RDA Type description: GAL,AAL,ABL Body: Hatchback From date: 01-01-1995 To date: 01-08-1995 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Type of engine: 16V Size of motor: 1.8 Brand of engine: RDA Type description: GAL,AFL From date: 01-01-1995 To date: 01-08-1995 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Type of engine: 16V Size of motor: 1.8 Brand of engine: RDA Type description: GAL,ANL Body: Estate From date: 01-01-1995 To date: 01-08-1995 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Type of engine: 16V Size of motor: 1.8 Brand of engine: RKC Type description: GAL,AAL,ABL Body: Hatchback From date: 01-01-1995 To date: 01-10-1998 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Type of engine: 16V Size of motor: 1.8 Brand of engine: RKC Type description: GAL,AFL From date: 01-01-1995 To date: 01-02-1999 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Type of engine: 16V Size of motor: 1.8 Brand of engine: RKC Type description: GAL,ANL Body: Estate From date: 01-01-1995 To date: 01-02-1999 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Type of engine: i 16V Size of motor: 1.6 Brand of engine: L1H Type description: GAL,AAL,ABL Body: Hatchback From date: 01-01-1995 To date: 01-08-1995 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Type of engine: i 16V Size of motor: 1.6 Brand of engine: L1H Type description: GAL,AFL From date: 01-01-1995 To date: 01-08-1995 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Type of engine: i 16V Size of motor: 1.6 Brand of engine: L1H Type description: GAL,ANL Body: Estate From date: 01-01-1995 To date: 01-08-1995 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Type of engine: i Size of motor: 1.6 Brand of engine: L1E Type description: GAL From date: 01-08-1993 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Type of engine: i Size of motor: 1.6 Brand of engine: L1E Type description: GAL,AFL From date: 01-01-1995 To date: 01-02-1999 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Type of engine: i Size of motor: 1.6 Brand of engine: L1K Type description: GAL From date: 01-08-1993 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
      Ford Model: Escort Model series: Escort Type of engine: i Size of motor: 1.6 Brand of engine: L1K Type description: GAL,AFL From date: 01-01-1995 To date: 01-02-1999 Fuel: Gasoline Approved: Yes
