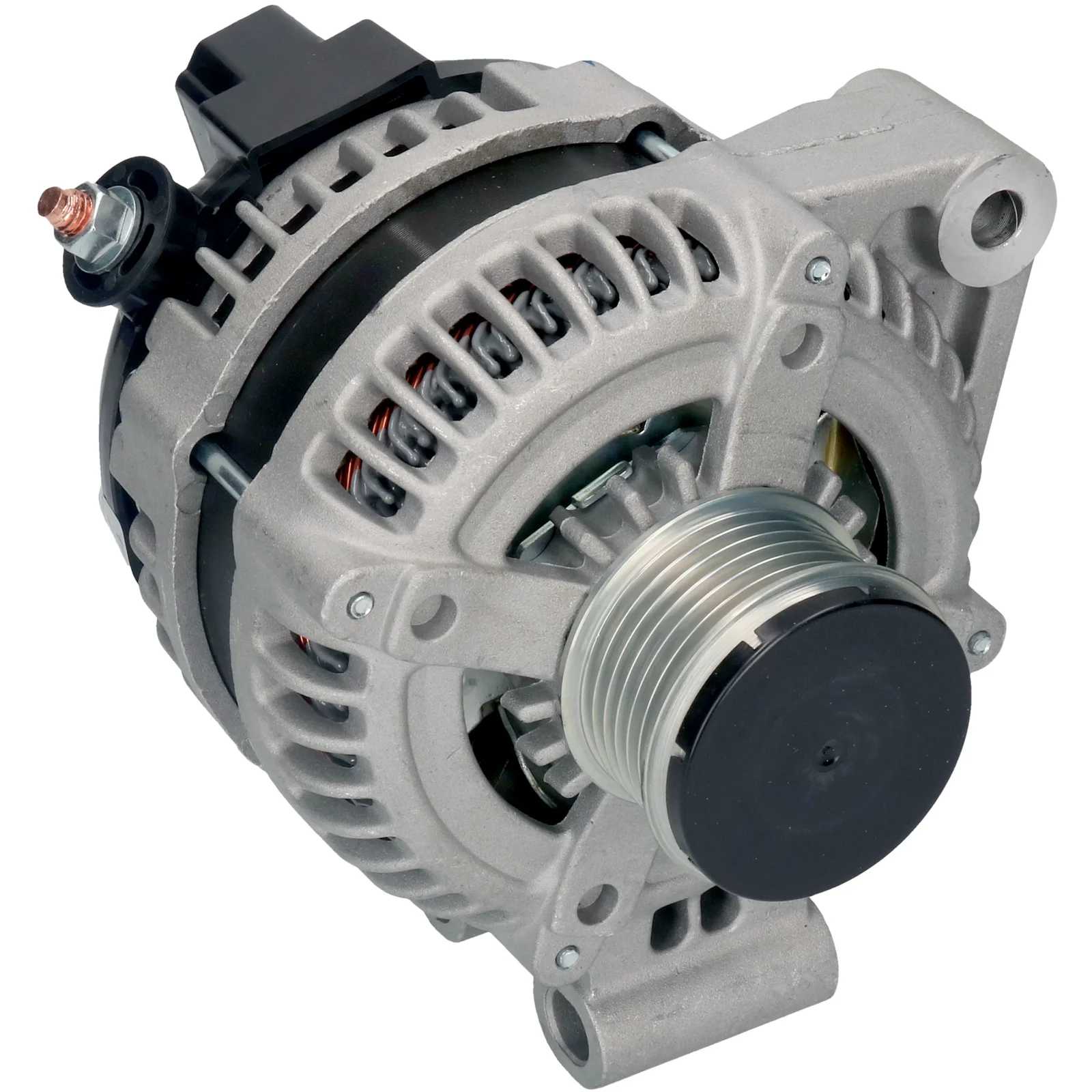

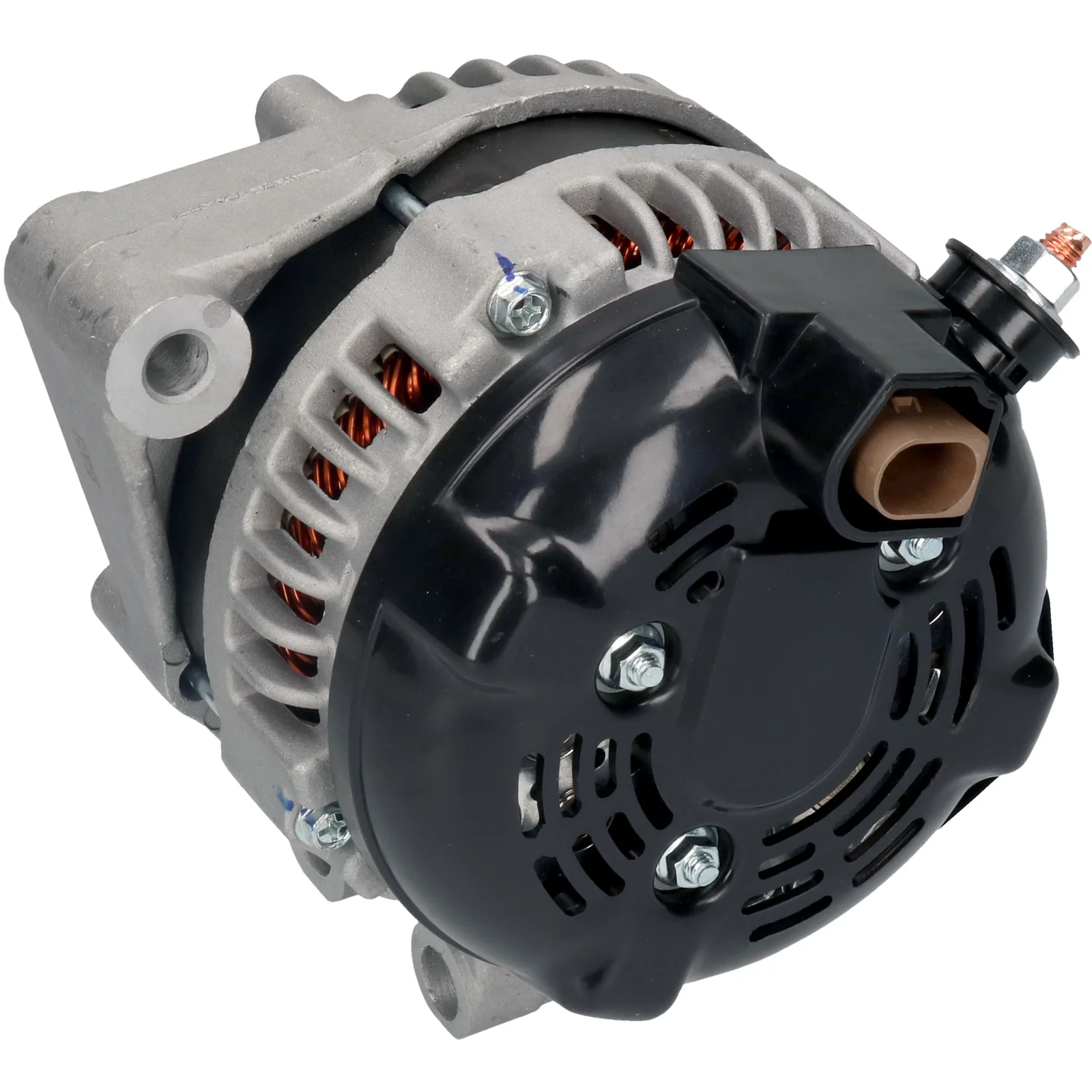

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116007

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbeslag tændrelæ: 47,50

Beskrivelse

Spænding: 14
Amp: 150
Bøsning dist.: 22,50
Bredde/holderarms: 49,30
Monteringsbeslag dist.: 47,50
Beslagshul: 11,50x14,00
Bæltejusteringsbeslagshul pos.: 10
Bæltejusteringsbeslagshul 1: 10,30
Bøsningsdia.: 54,00
Riller/bæltehjul: 6
Radius: 84,50
Radius 2: 86,00
B+: M8
Position/B+ i min.: 9
Rotation: CW
Stikket nummer: PL174
Samlet længde mm: 178,00
Terminaltype: COM
Kommunikation: LIN
Bæltehjul: SP/FW
Ventilator: IF
Regulator type: IR
Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret for at tjekke egnethed, før der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 47.50
Belt. adj. bracket hole 1 10.30
Belt. adj. brackethole pos. 10
Plug no. PL174
Bracket hole 11.50x14.00
Position/B+ in min. 9
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 22.50
Radius 84.50
Radius 2 86.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 178.00 mm
Width/holder arm 49.30
Amp 150

  • OEM
    AH2210300AB, F032116007, LR013847, LR072756, LR124836, 021080-1360, 104210-2420, 104210-2421, 104210-2422

  • Konkurrentreferens
    A6248, A6248(DENSO), CAL40389, DAN1105, DRA1437, LRA03666, 8EL015630-701, 28-6806, 214.182.1502, 455.525.150, 20491, 20491R, 209331, 209331A, 444253, 12061105, 32085230, 0986085230

  • NormaliseratArtNr
    a6248, a6248denso, ah2210300ab, cal40389, dan1105, dra1437, f032116007, lr013847, lr072756, lr124836, lra03666, 8el015630701, 20491, 20491r, 209331, 209331a, 286806, 444253, 12061105, 32085230, 0210801360, 455525150, 0986085230, 1042102420, 1042102421, 1042102422, 2141821502

  • Passar modeller
    Land Rover Model: Discovery Model series: Discovery Model type: 4x4 Type of engine: TDI Size of motor: 3.0 Brand of engine: 306DT Type description: L319 Body: Van From date: 01-01-2011 To date: 01-12-2017 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Model type: TDV6 Type of engine: TD Size of motor: 3.0 Brand of engine: 306DT Type description: LR4 From date: 01-05-2010 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Model type: TDV6 Type of engine: TD Size of motor: 3.0 Brand of engine: 30DDTX Type description: LR4 From date: 01-05-2010 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Type of engine: SDV6 Size of motor: 3.0 Brand of engine: 30DDTX Type description: LA From date: 01-11-2009 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Type of engine: TD Size of motor: 3.0 Brand of engine: 306DT Type description: LA From date: 01-07-2012 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Type of engine: TD Size of motor: 3.0 Brand of engine: 306DT Type description: TAA Body: SUV From date: 01-09-2009 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Sport Type of engine: TD Size of motor: 3.0 Brand of engine: 306DT Type description: LS From date: 01-08-2012 To date: 01-03-2013 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD Size of motor: 3.0 Brand of engine: 30DDTX Type description: LS Body: SUV From date: 01-09-2009 To date: 01-03-2013 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD V6 Size of motor: 3.0 Brand of engine: 30DDTX Type description: LS From date: 01-05-2010 To date: 01-03-2013 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Sport Model series: Range Rover Sport Type of engine: TD Size of motor: 3.0 Brand of engine: 30DDTX Type description: LS From date: 01-06-2011 To date: 01-03-2013 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 150
    Bøsning dist.: 22,50
    Bredde/holderarms: 49,30
    Monteringsbeslag dist.: 47,50
    Beslagshul: 11,50x14,00
    Bæltejusteringsbeslagshul pos.: 10
    Bæltejusteringsbeslagshul 1: 10,30
    Bøsningsdia.: 54,00
    Riller/bæltehjul: 6
    Radius: 84,50
    Radius 2: 86,00
    B+: M8
    Position/B+ i min.: 9
    Rotation: CW
    Stikket nummer: PL174
    Samlet længde mm: 178,00
    Terminaltype: COM
    Kommunikation: LIN
    Bæltehjul: SP/FW
    Ventilator: IF
    Regulator type: IR
    Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret for at tjekke egnethed, før der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 47.50
    Belt. adj. bracket hole 1 10.30
    Belt. adj. brackethole pos. 10
    Plug no. PL174
    Bracket hole 11.50x14.00
    Position/B+ in min. 9
    Pulley SP/FW
    Pulley dia. 54.00
    Pulley dist. 22.50
    Radius 84.50
    Radius 2 86.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 178.00 mm
    Width/holder arm 49.30
    Amp 150
  • Køretøjsmatchning

    • OEM
      AH2210300AB, F032116007, LR013847, LR072756, LR124836, 021080-1360, 104210-2420, 104210-2421, 104210-2422

    • Konkurrentreferens
      A6248, A6248(DENSO), CAL40389, DAN1105, DRA1437, LRA03666, 8EL015630-701, 28-6806, 214.182.1502, 455.525.150, 20491, 20491R, 209331, 209331A, 444253, 12061105, 32085230, 0986085230

    • NormaliseratArtNr
      a6248, a6248denso, ah2210300ab, cal40389, dan1105, dra1437, f032116007, lr013847, lr072756, lr124836, lra03666, 8el015630701, 20491, 20491r, 209331, 209331a, 286806, 444253, 12061105, 32085230, 0210801360, 455525150, 0986085230, 1042102420, 1042102421, 1042102422, 2141821502

    • Passar modeller
      Land Rover Model: Discovery Model series: Discovery Model type: 4x4 Type of engine: TDI Size of motor: 3.0 Brand of engine: 306DT Type description: L319 Body: Van From date: 01-01-2011 To date: 01-12-2017 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery Model series: Discovery Model type: TDV6 Type of engine: TD Size of motor: 3.0 Brand of engine: 306DT Type description: LR4 From date: 01-05-2010 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery Model series: Discovery Model type: TDV6 Type of engine: TD Size of motor: 3.0 Brand of engine: 30DDTX Type description: LR4 From date: 01-05-2010 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery Model series: Discovery Type of engine: SDV6 Size of motor: 3.0 Brand of engine: 30DDTX Type description: LA From date: 01-11-2009 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery Model series: Discovery Type of engine: TD Size of motor: 3.0 Brand of engine: 306DT Type description: LA From date: 01-07-2012 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery Model series: Discovery Type of engine: TD Size of motor: 3.0 Brand of engine: 306DT Type description: TAA Body: SUV From date: 01-09-2009 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Sport Type of engine: TD Size of motor: 3.0 Brand of engine: 306DT Type description: LS From date: 01-08-2012 To date: 01-03-2013 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD Size of motor: 3.0 Brand of engine: 30DDTX Type description: LS Body: SUV From date: 01-09-2009 To date: 01-03-2013 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD V6 Size of motor: 3.0 Brand of engine: 30DDTX Type description: LS From date: 01-05-2010 To date: 01-03-2013 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Sport Model series: Range Rover Sport Type of engine: TD Size of motor: 3.0 Brand of engine: 30DDTX Type description: LS From date: 01-06-2011 To date: 01-03-2013 Fuel: Diesel Approved: Yes
      1 / 2
