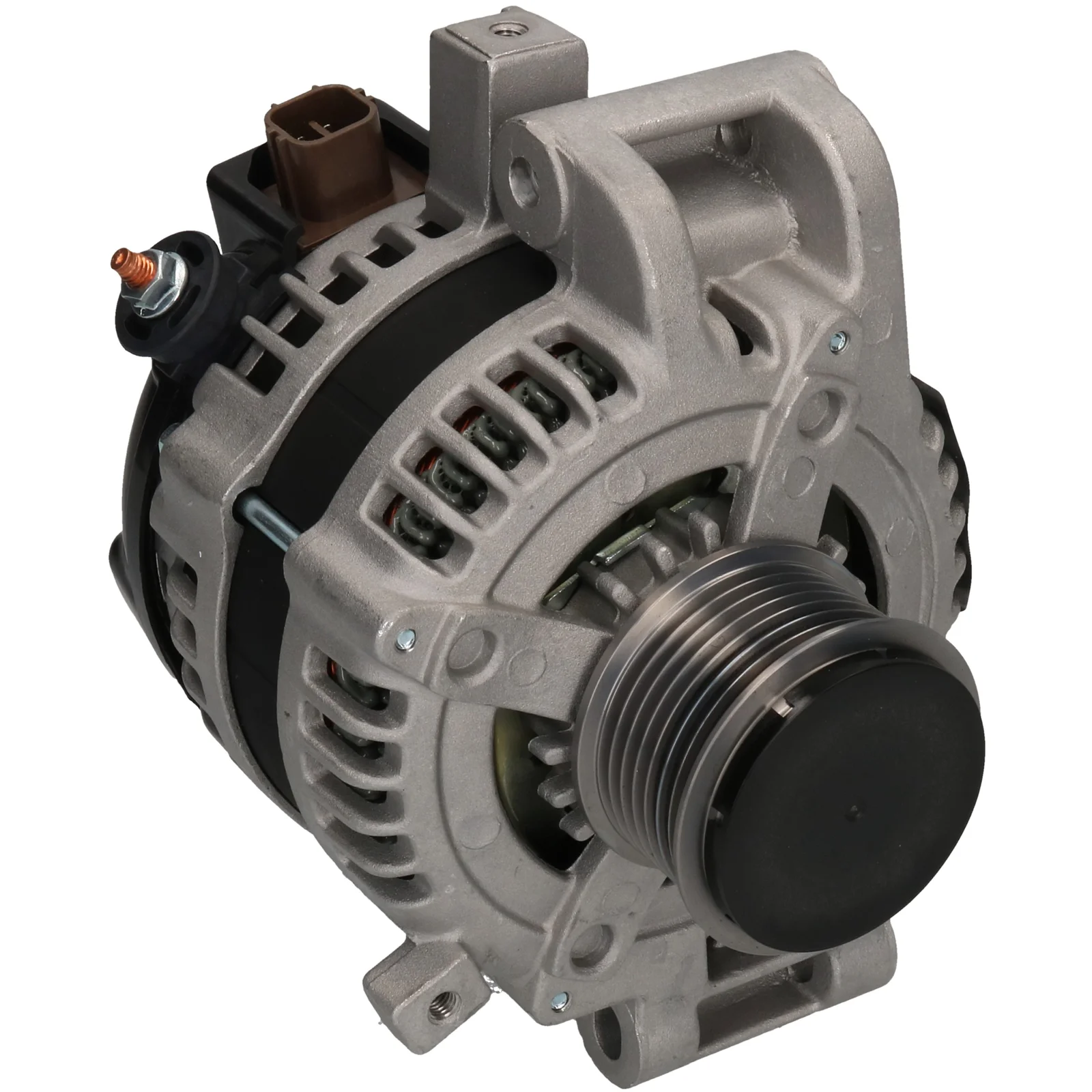

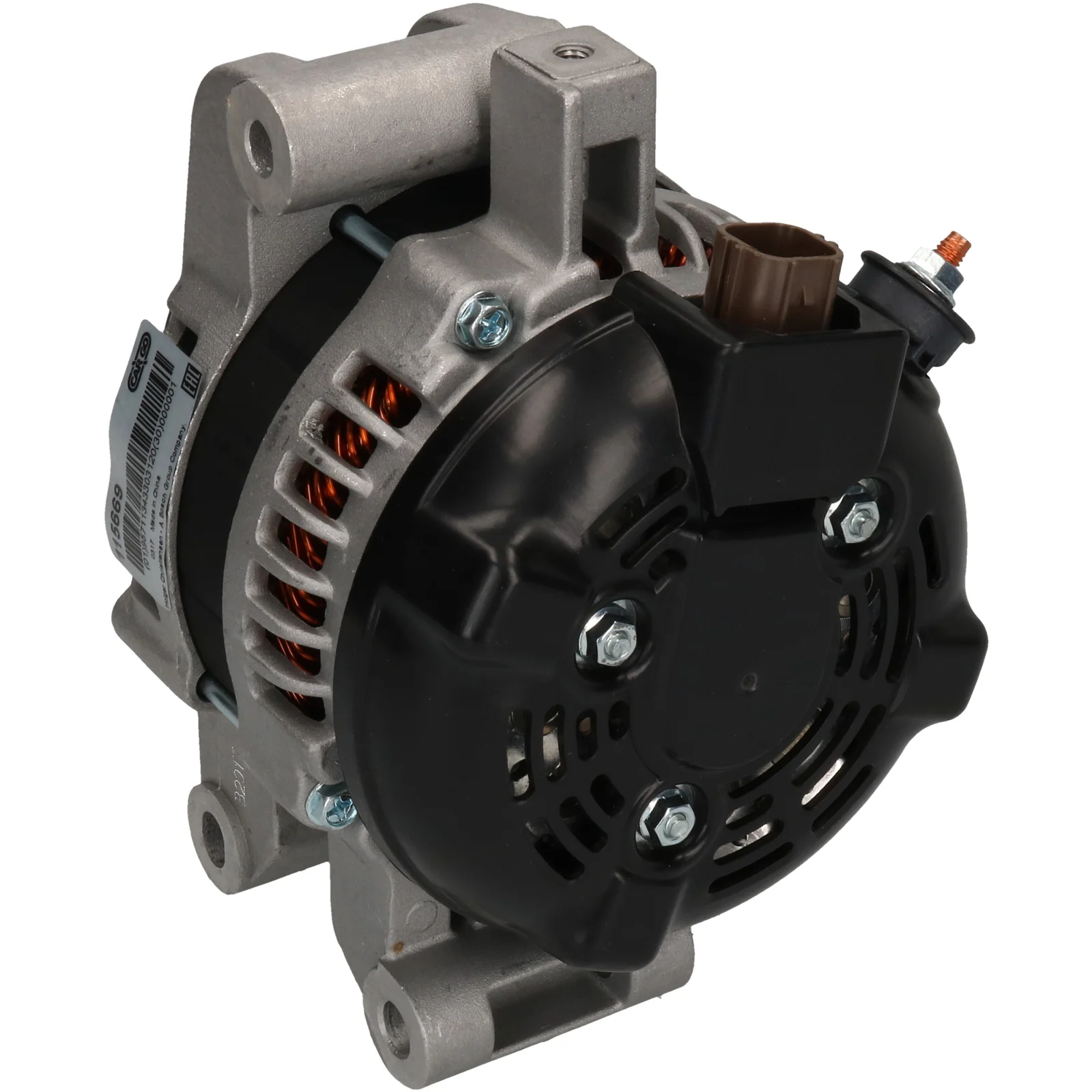

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115669

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbøsning for fordeling: 71,00

Beskrivelse

Toyota RAV4 Generator 150A 12V - 150A, 7gr.frg, (IG, RLO, L, M) for Yourex produktbestilling 90-555-2606

Spænding: 14
Amp.: 150
Skrueafstand: 23.50
Bredde/beslagarm: 60.00
Monteringsbeslag afstand: 71.00
Beslagshul: 9.50x12.00
Beslagshul 2: 10.20
Bånd. justering af beslaghul position: 57
Bånd. justering af beslagshul 1: 9.00
Skruehjulsdiameter: 58.00
Riller/spejl: 7
Radius: 79.00
Radius 2: 82.00
B+: M6
Position/B+ i min.: 8
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL146
Total længde mm: 165.00
Skruehjul: SP/FW
Regulator type: IR
Produktoplysninger: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 71.00
Belt. adj. bracket hole 1 9.00
Belt. adj. brackethole pos. 57
Plug no. PL146
Bracket hole 9.50x12.00
Bracket hole 2 10.20
Position/B+ in min. 8
Prod. info BN
Pulley SP/FW
Pulley dia. 58.00
Pulley dist. 23.50
Radius 79.00
D+ Size Plug
Radius 2 82.00
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Total length 165.00 mm
Width/holder arm 60.00
Amp 150

  • OEM
    F032115669, 1986A00639, 021080-2470, 27060-26060, 27060-26081, 104210-2370, 104210-2371, 104211-8120, 104211-8121, 115669

  • Konkurrentreferens
    A6371, A6371(DENSO), CAL40422, DAN1350, DRA1145, J5112158, LRA03378, 28-5990, 195.568.150, 235.318.1502, 554263RI, 12061019, 0986085110

  • Bilmärken
    Toyota

  • NormaliseratArtNr
    a6371, a6371denso, cal40422, dan1350, dra1145, f032115669, j5112158, lra03378, 1986a00639, 115669, 285990, 554263ri, 12061019, 195568150, 0210802470, 0986085110, 1042102370, 1042102371, 1042118120, 1042118121, 2353181502, 2706026060, 2706026081

  • Passar modeller
    Toyota Model: Rav 4 Model series: Rav 4 Model type: 4WD Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FTV Type description: _A4_ Body: Box Body / Estate From date: 01-12-2012 To date: 01-11-2018 Fuel: Diesel Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Model type: CAT Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: ALA30 From date: 01-02-2006 To date: 01-06-2013 Fuel: Diesel Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: ACA_, ACE_ From date: 01-12-2008 To date: 01-06-2013 Fuel: Diesel Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: ACA_, ACE_, ALA_ From date: 01-12-2008 To date: 01-06-2013 Fuel: Diesel Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FTV Type description: ACA_, ACE_ From date: 01-12-2008 To date: 01-06-2013 Fuel: Diesel Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FTV Type description: ACA_, ACE_, ALA_ From date: 01-12-2008 To date: 01-06-2013 Fuel: Diesel Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FTV Type description: ALA30 From date: 01-02-2006 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Toyota Series: RAV 4 III (ACA_) Model: 2.2 D-4D Engine volume: 2.2 Engine type: 2AD-FHV / FTV Year: 12.08-11.12
    Toyota Series: RAV 4 III (ACA_) Model: 2.2 D-4D Engine volume: 2.2 Engine type: 2AD-FTV Year: 12.08-
    1 / 2
  • Beskrivelse
    Toyota RAV4 Generator 150A 12V - 150A, 7gr.frg, (IG, RLO, L, M) for Yourex produktbestilling 90-555-2606

    Spænding: 14
    Amp.: 150
    Skrueafstand: 23.50
    Bredde/beslagarm: 60.00
    Monteringsbeslag afstand: 71.00
    Beslagshul: 9.50x12.00
    Beslagshul 2: 10.20
    Bånd. justering af beslaghul position: 57
    Bånd. justering af beslagshul 1: 9.00
    Skruehjulsdiameter: 58.00
    Riller/spejl: 7
    Radius: 79.00
    Radius 2: 82.00
    B+: M6
    Position/B+ i min.: 8
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL146
    Total længde mm: 165.00
    Skruehjul: SP/FW
    Regulator type: IR
    Produktoplysninger: BN

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 71.00
    Belt. adj. bracket hole 1 9.00
    Belt. adj. brackethole pos. 57
    Plug no. PL146
    Bracket hole 9.50x12.00
    Bracket hole 2 10.20
    Position/B+ in min. 8
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 58.00
    Pulley dist. 23.50
    Radius 79.00
    D+ Size Plug
    Radius 2 82.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 7
    Voltage 14
    Total length 165.00 mm
    Width/holder arm 60.00
    Amp 150
  • Køretøjsmatchning

    • OEM
      F032115669, 1986A00639, 021080-2470, 27060-26060, 27060-26081, 104210-2370, 104210-2371, 104211-8120, 104211-8121, 115669

    • Konkurrentreferens
      A6371, A6371(DENSO), CAL40422, DAN1350, DRA1145, J5112158, LRA03378, 28-5990, 195.568.150, 235.318.1502, 554263RI, 12061019, 0986085110

    • Bilmärken
      Toyota

    • NormaliseratArtNr
      a6371, a6371denso, cal40422, dan1350, dra1145, f032115669, j5112158, lra03378, 1986a00639, 115669, 285990, 554263ri, 12061019, 195568150, 0210802470, 0986085110, 1042102370, 1042102371, 1042118120, 1042118121, 2353181502, 2706026060, 2706026081

    • Passar modeller
      Toyota Model: Rav 4 Model series: Rav 4 Model type: 4WD Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FTV Type description: _A4_ Body: Box Body / Estate From date: 01-12-2012 To date: 01-11-2018 Fuel: Diesel Approved: Yes
      Toyota Model: RAV 4 Model series: RAV 4 Model type: CAT Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: ALA30 From date: 01-02-2006 To date: 01-06-2013 Fuel: Diesel Approved: Yes
      Toyota Model: RAV 4 Model series: RAV 4 Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: ACA_, ACE_ From date: 01-12-2008 To date: 01-06-2013 Fuel: Diesel Approved: Yes
      Toyota Model: RAV 4 Model series: RAV 4 Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: ACA_, ACE_, ALA_ From date: 01-12-2008 To date: 01-06-2013 Fuel: Diesel Approved: Yes
      Toyota Model: RAV 4 Model series: RAV 4 Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FTV Type description: ACA_, ACE_ From date: 01-12-2008 To date: 01-06-2013 Fuel: Diesel Approved: Yes
      Toyota Model: RAV 4 Model series: RAV 4 Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FTV Type description: ACA_, ACE_, ALA_ From date: 01-12-2008 To date: 01-06-2013 Fuel: Diesel Approved: Yes
      Toyota Model: RAV 4 Model series: RAV 4 Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FTV Type description: ALA30 From date: 01-02-2006 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Toyota Series: RAV 4 III (ACA_) Model: 2.2 D-4D Engine volume: 2.2 Engine type: 2AD-FHV / FTV Year: 12.08-11.12
      Toyota Series: RAV 4 III (ACA_) Model: 2.2 D-4D Engine volume: 2.2 Engine type: 2AD-FTV Year: 12.08-
