- Generator
-

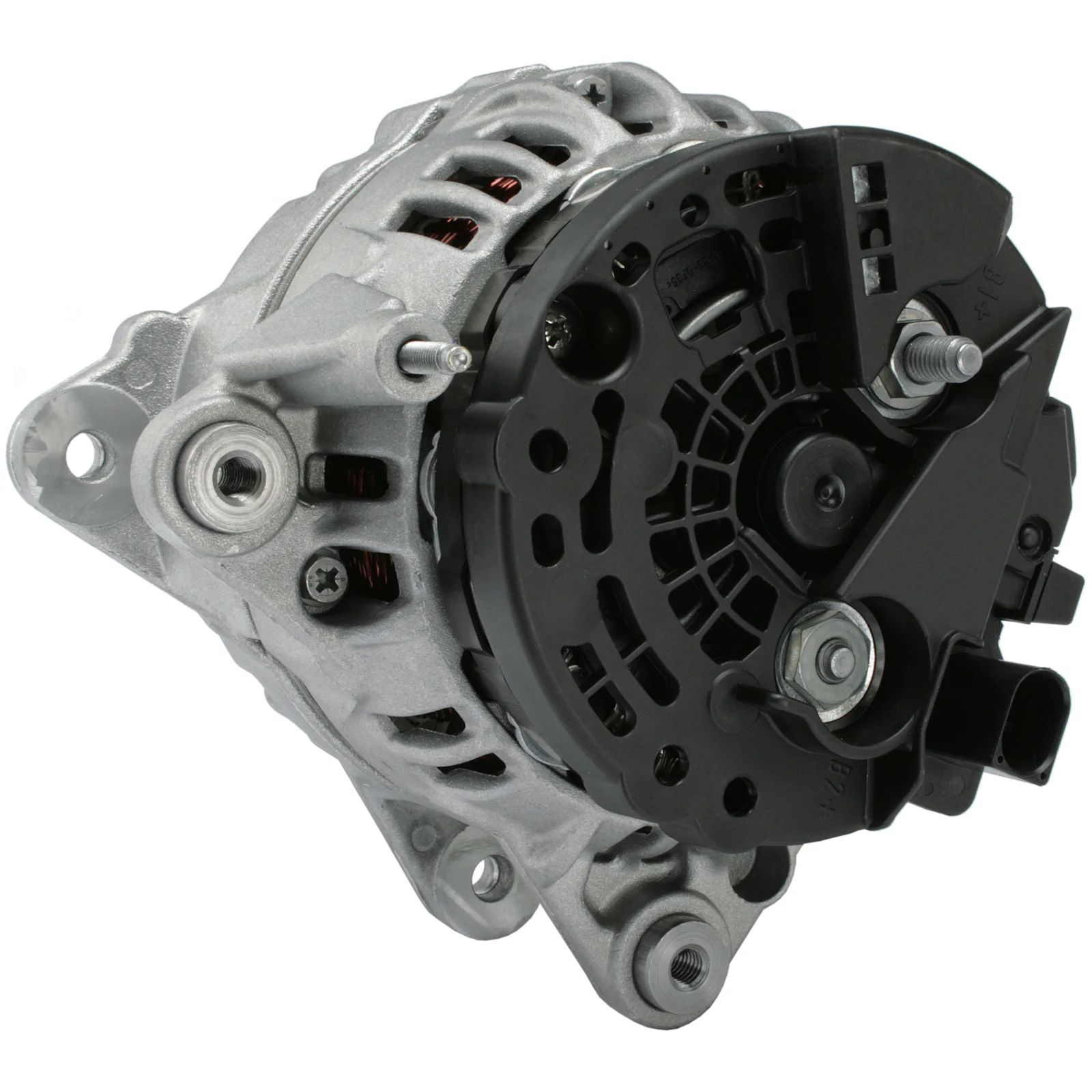

HC-Cargo Generator
- Generator
-
HC-Cargo Generator
Vare nr.: F032113754
HC-Cargo Generator
Spænding: 14, Amp: 120, Rotation: CW, Monteringsbeslag for distribution: 61,00
Beskrivelse
Generator 12V-120A passer til Volvo 12V - 120A, 6 Ruthkevælger, (L, DFM) Også benzin, visse modeller. 6 Ruthkevælger, (L, DFM) Til Yourex produktordre 90-600-4114
Spænding: 14
Ampere: 120
Ruthkevælger afstand: 39,00
Bredde/holderarm: 14,00
Monteringsbeslag afstand: 61,00
Beslagshul: 8,60
Bæltejusteringsbeslaghul position: 45
Bæltejusteringsbeslaghul 1: 8,60
Ruthke-diameter: 68,00
Rækker/ruthke: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 48
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL61
Samlet længde mm: 193,00
Ruthke: SP
Regulator type: IR
Produktinfo: BN
Service: Volvo
Spænding: 14
Ampere: 120
Ruthkevælger afstand: 39,00
Bredde/holderarm: 14,00
Monteringsbeslag afstand: 61,00
Beslagshul: 8,60
Bæltejusteringsbeslaghul position: 45
Bæltejusteringsbeslaghul 1: 8,60
Ruthke-diameter: 68,00
Rækker/ruthke: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 48
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL61
Samlet længde mm: 193,00
Ruthke: SP
Regulator type: IR
Produktinfo: BN
Service: Volvo
Filer
Specifikation
| B+ | M8 |
|---|---|
| Mount. bracket dist. | 61.00 |
| Belt. adj. bracket hole 1 | 8.60 |
| Belt. adj. brackethole pos. | 45 |
| Plug no. | PL61 |
| Bracket hole | 8.60 |
| Position/B+ in min. | 48 |
| Prod. info | BN |
| Pulley | SP |
| Pulley dia. | 68.00 |
| Pulley dist. | 39.00 |
| Radius | 90.00 |
| D+ Size | Plug |
| Radius 2 | 90.00 |
| Regulator type | IR |
| Rotation | CW |
| Servicing | Volvo |
| Grooves/pulley | 6 |
| Voltage | 14 |
| Total length | 193.00 mm |
| Width/holder arm | 14.00 |
| Amp | 120 |
-
OEM
B120516076, F032113754, 074 903 025J, 074 903 025Q, 074 903 025R, 0124 515 013, 0124 515 020, 0124 515 021, 0124 515 068, 0986 041 140, 0986 041 890, 1445ir, 1986A00837, 113754, 1516471R, 8111119, 8111122, 8602322, 9442130, 9459093, 074903025j, 074903025Q, 074903025R, 0124515013, 0124515020, 0124515021, 0124515038, 0124515068, 0124515209 -
Konkurrentreferens
A0036, A0036PR, ALT-H154, CAL10263, DRB1890, F042A0H154, LRA01812, 8EL012427-541, 8el737643-001, 28-3630, 28-3842, 238.134.1202, 238.142.1202, 5748, 22812R, 111357, 119795, 210605, 210605A, 301445RI, 440821, 746153, 746953, 9212262, 12041140, 12041890, 32041890, 0986041140, 0986041143, 0986041890, 943355141010, 944390411400 -
Bilmärken
Volvo, VW Trucks & Vans -
NormaliseratArtNr
a0036, a0036pr, alth154, b120516076, cal10263, drb1890, f032113754, f042a0h154, lra01812, 8el012427541, 8el737643001, 1445ir, 1986a00837, 5748, 22812r, 111357, 113754, 119795, 210605, 210605a, 283630, 283842, 301445ri, 440821, 746153, 746953, 1516471r, 8111119, 8111122, 8602322, 9212262, 9442130, 9459093, 12041140, 12041890, 32041890, 074903025j, 074903025q, 074903025r, 0124515013, 0124515020, 0124515021, 0124515038, 0124515068, 0124515209, 0986041140, 0986041143, 0986041890, 2381341202, 2381421202, 943355141010, 944390411400 -
Passar modeller
Volvo Model: S60 Model series: S60 Type of engine: CDi Size of motor: 2.4 Brand of engine: D5244T3 From date: 01-10-2003 To date: 01-12-2005 Fuel: Diesel Approved: Yes Volvo Model: S60 Model series: S60 Type of engine: Diesel Size of motor: 2.4 Brand of engine: D5244T From date: 01-01-2001 To date: 01-04-2010 Fuel: Diesel Approved: Yes Volvo Model: S60 Model series: S60 Type of engine: Diesel Size of motor: 2.4 Brand of engine: D5244T2 From date: 01-05-2001 To date: 01-04-2010 Fuel: Diesel Approved: Yes Volvo Model: S70 Model series: S70 Type of engine: TDi Size of motor: 2.5 Brand of engine: D5252T Type description: P80_ From date: 01-01-1997 To date: 01-11-2000 Fuel: Diesel Approved: Yes Volvo Model: S80 Model series: S80 Type of engine: Diesel Size of motor: 2.4 Brand of engine: D5244T2 Type description: TS, XY From date: 01-10-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes Volvo Model: S80 Model series: S80 Type of engine: TDi Size of motor: 2.5 Brand of engine: D5252T Type description: TS, XY From date: 01-01-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes Volvo Model: V70 Model series: V70 Model type: D5 Type of engine: Diesel Size of motor: 2.4 Brand of engine: D5244T Type description: P80_ Body: Estate From date: 01-01-2001 To date: 01-12-2008 Fuel: Diesel Approved: Yes Volvo Model: XC90 Model series: XC90 Type of engine: Diesel Size of motor: 2.4 Brand of engine: D5244T5 Body: SUV From date: 01-10-2002 To date: 01-12-2006 Fuel: Diesel Approved: Yes Volvo Series: S60 Model: 2.4 D Engine volume: 2.4 Year: 08.02- Volvo Series: S60 Model: 2.4 D5 Engine volume: 2.4 Year: 08.01- Volvo Series: S80 Model: 2.4 D Engine volume: 2.4 Engine type: D 5244 T2 Year: 10.01- Volvo Series: S80 Model: 2.4 D5 Engine volume: 2.4 Engine type: D 5244 T Year: 08.01- Volvo Series: S80 Model: 2.5 TDI Engine volume: 2.5 Engine type: D 5252 T Year: 01.97-07.00 Volvo Series: V70 I Model: 2.5 TDI Engine volume: 2.5 Engine type: D 5252 T Year: 01.97-03.00 Volvo Series: V70 II Model: 2.4 D Engine volume: 2.4 Engine type: D 5244 T2 Year: 12.01- Volvo Series: V70 II Model: 2.4 D5 AWD Engine volume: 2.4 Engine type: D 5244 T2 Year: 03.03-07.04 Volvo Series: V70 II Model: 2.4 D5 Engine volume: 2.4 Engine type: D 5244 T Year: 08.01- Volvo Series: V70 II Model: 2.5 TDI Engine volume: 2.5 Engine type: D 5252 T Year: 03.00-07.01 Volvo Series: XC 70 Cross Country Model: D5 Engine volume: 2.4 Engine type: D 5244 T Year: 09.02-07.04 VW Model: California Model series: California T4 Camper Size of motor: 2.5 Brand of engine: AEU Type description: 7DJ, 7DK, 70J Body: Bus From date: 01-05-1998 To date: 01-04-2002 Fuel: Petrol Approved: Yes VW Model: California Model series: California T4 Camper Size of motor: 2.5 Brand of engine: APL, AVT Type description: 7DJ, 7DK, 70J Body: Bus From date: 01-05-1999 To date: 01-04-2003 Fuel: Petrol Approved: Yes VW Model: California Model series: California T4 Camper Type of engine: TDI Size of motor: 2.5 Brand of engine: AJT, AYY Type description: 7DJ, 7DK, 70J Body: Bus From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: California Model series: California T4 Camper Type of engine: TDI Size of motor: 2.5 Brand of engine: AXG, AHY Type description: 7DJ, 7DK, 70J Body: Bus From date: 01-07-1999 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: California Model series: California T4 Camper Type of engine: TDI Size of motor: 2.5 Brand of engine: AYC Type description: 7DJ, 7DK, 70J Body: Bus From date: 01-04-2001 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: SDi Size of motor: 2.5 Brand of engine: AGX Body: Bus From date: 01-07-1996 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: SDi Size of motor: 2.5 Brand of engine: AGX Body: Platform / Chassis From date: 01-09-1996 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: SDi Size of motor: 2.5 Brand of engine: AGX Body: Van From date: 01-09-1996 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AHD Body: Bus From date: 01-05-1996 To date: 01-08-1999 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AHD Body: Platform / Chassis From date: 01-06-1996 To date: 01-08-1999 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AHD Body: Van From date: 01-05-1996 To date: 01-08-1999 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Bus From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Van From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: APA Body: Bus From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: APA Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: APA Body: Van From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AVR Body: Bus From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AVR Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AVR Body: Van From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBE Body: Bus From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBE Type description: 2DX0AE Body: Van From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBE Type description: 2DX0FE Body: Platform / Chassis From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBF Body: Bus From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBF Type description: 2DX0AE Body: Van From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBF Type description: 2DX0FE Body: Platform / Chassis From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 40-55 Type of engine: SDi Size of motor: 2.5 Brand of engine: AGX Body: Platform / Chassis From date: 01-09-1996 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 40-55 Type of engine: SDi Size of motor: 2.5 Brand of engine: AGX Body: Van From date: 01-09-1996 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Van From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: APA Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: AVR Body: Van From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBE Type description: 2DX0AE Body: Van From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBE Type description: 2DX0FE Body: Platform / Chassis From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBF Type description: 2DX0AE Body: Van From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBF Type description: 2DX0FE Body: Platform / Chassis From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Size of motor: 2.5 Brand of engine: AET Body: Bus From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Multivan Model series: Multivan Size of motor: 2.5 Brand of engine: APL Body: Bus From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Multivan Model series: Multivan Size of motor: 2.5 Brand of engine: AVT Body: Bus From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AAF Body: Platform / Chassis From date: 01-11-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AAF Body: Van From date: 01-11-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: ACU Body: Platform / Chassis From date: 01-11-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: ACU Body: Van From date: 01-11-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AEN Body: Platform / Chassis From date: 01-11-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AEN Body: Van From date: 01-11-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AET Body: Platform / Chassis From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AET Body: Van From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AEU Body: Bus From date: 01-09-1990 To date: 01-06-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AEU Body: Platform / Chassis From date: 01-11-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AEU Body: Van From date: 01-11-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: APL Body: Platform / Chassis From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: APL Body: Van From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AVT Body: Platform / Chassis From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AVT Body: Van From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: AAF Body: Van From date: 01-01-1996 To date: 01-11-2001 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: ACU Body: Bus From date: 01-08-1992 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: ACU Body: Van From date: 01-01-1996 To date: 01-11-2001 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: AEN Type description: 70 Body: Bus From date: 01-08-1992 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: AEN Type description: 70 Body: Van From date: 01-01-1996 To date: 01-11-2001 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: AET Body: Bus From date: 01-07-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: AET Body: Van From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: AEU Body: Bus From date: 01-08-1992 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: AEU Body: Van From date: 01-01-1996 To date: 01-11-2001 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: APL Body: Bus From date: 01-07-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: APL Body: Van From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: AVT Body: Bus From date: 01-07-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: AVT Body: Van From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: TDi Size of motor: 2.5 Brand of engine: ACV Body: Bus From date: 01-01-1996 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: TDi Size of motor: 2.5 Brand of engine: ACV Body: Van From date: 01-09-1995 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: TDi Size of motor: 2.5 Brand of engine: ACV Type description: 70XD Body: Platform / Chassis From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: TDi Size of motor: 2.5 Brand of engine: AXL Body: Bus From date: 01-01-1996 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: TDi Size of motor: 2.5 Brand of engine: AXL Body: Van From date: 01-09-1995 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: TDi Size of motor: 2.5 Brand of engine: AXL Type description: 70XD Body: Platform / Chassis From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TD Size of motor: 2.5 Brand of engine: AJT Body: Platform / Chassis From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TD Size of motor: 2.5 Brand of engine: AYY Body: Platform / Chassis From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: ACV Body: Bus From date: 01-09-1995 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: ACV Body: Platform / Chassis From date: 01-09-1995 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: ACV Body: Van From date: 01-09-1995 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AHY Body: Bus From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AJT Body: Bus From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AJT Body: Van From date: 01-12-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AUF Body: Bus From date: 01-09-1995 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AUF Body: Platform / Chassis From date: 01-09-1995 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AUF Body: Van From date: 01-09-1995 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AXG Body: Bus From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AXG Type description: 70XA Body: Van From date: 01-09-2000 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AYC Body: Bus From date: 01-09-1995 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AYC Body: Platform / Chassis From date: 01-09-1995 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AYC Body: Van From date: 01-09-1995 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AYY Body: Bus From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AYY Body: Van From date: 01-12-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Trucks & Vans Series: LT 28-35 II Buss Model: 2.5 SDI Engine volume: 2.5 Engine type: AGX Year: 08.98-04.01 VW Trucks & Vans Series: LT 28-46 II Skåp Model: 2.5 TDI Engine volume: 2.5 Engine type: ANJ / AVR Year: 05.99-04.06 VW Trucks & Vans Series: LT 28-46 II Model: 2.5 SDI Engine volume: 2.5 Engine type: AGX Year: 08.98-04.01 VW Trucks & Vans Series: LT 28-46 II Model: 2.5 TDI Engine volume: 2.5 Engine type: AHD/ANJ/APA/AVR Year: 08.98- VW Trucks & Vans Series: Transporter IV Buss Model: 2.5 TDI Engine volume: 2.5 Engine type: ACV/AUF/AXL/AYC Year: 09.95-04.03 VW Trucks & Vans Series: Transporter IV Model: 2.5 Engine volume: 2.5 Engine type: AET/AEU/APL/AVT Year: 08.96-06.03 VW Trucks & Vans Series: Transporter IV Model: 2.5 Syncro Engine volume: 2.5 Engine type: AET/AEU/APL/AVT Year: 08.96-06.03 VW Trucks & Vans Series: Transporter IV Model: 2.5 TDI Engine volume: 2.5 Engine type: AJT / AYY Year: 12.98-04.03 VW Trucks & Vans Series: Transporter IV Model: 2.5 TDI Engine volume: 2.5 Year: 05.98-06.03 VW Trucks & Vans Series: Transporter IV Flak Model: 2.5 Engine volume: 2.5 Engine type: AET Year: 08.96-04.03 VW Trucks & Vans Series: Transporter IV Flak Model: 2.5 Engine volume: 2.5 Engine type: AEU Year: 08.96-04.03 VW Trucks & Vans Series: Transporter IV Flak Model: 2.5 Engine volume: 2.5 Engine type: APL / AVT Year: 05.99-04.03 VW Trucks & Vans Series: Transporter IV Flak Model: 2.5 TDI Engine volume: 2.5 Engine type: ACV/AUF/AYC Year: 09.95-04.03 VW Trucks & Vans Series: Transporter IV Flak Model: 2.5 TDI Syncro Engine volume: 2.5 Engine type: ACV / AXL Year: 05.98-04.03 VW Trucks & Vans Series: Transporter IV Skåp Model: 2.5 Engine volume: 2.5 Engine type: AET Year: 08.96-04.03 VW Trucks & Vans Series: Transporter IV Skåp Model: 2.5 Engine volume: 2.5 Engine type: APL / AVT Year: 05.99-04.03 VW Trucks & Vans Series: Transporter IV Skåp Model: 2.5 TDI Engine volume: 2.5 Engine type: ACV/AUF/AYC Year: 09.95-04.03 1 / 26
-
Beskrivelse
Generator 12V-120A passer til Volvo 12V - 120A, 6 Ruthkevælger, (L, DFM) Også benzin, visse modeller. 6 Ruthkevælger, (L, DFM) Til Yourex produktordre 90-600-4114
Spænding: 14
Ampere: 120
Ruthkevælger afstand: 39,00
Bredde/holderarm: 14,00
Monteringsbeslag afstand: 61,00
Beslagshul: 8,60
Bæltejusteringsbeslaghul position: 45
Bæltejusteringsbeslaghul 1: 8,60
Ruthke-diameter: 68,00
Rækker/ruthke: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 48
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL61
Samlet længde mm: 193,00
Ruthke: SP
Regulator type: IR
Produktinfo: BN
Service: VolvoFiler
-
Specifikation
B+ M8 Mount. bracket dist. 61.00 Belt. adj. bracket hole 1 8.60 Belt. adj. brackethole pos. 45 Plug no. PL61 Bracket hole 8.60 Position/B+ in min. 48 Prod. info BN Pulley SP Pulley dia. 68.00 Pulley dist. 39.00 Radius 90.00 D+ Size Plug Radius 2 90.00 Regulator type IR Rotation CW Servicing Volvo Grooves/pulley 6 Voltage 14 Total length 193.00 mm Width/holder arm 14.00 Amp 120 -
Køretøjsmatchning
-
OEM
B120516076, F032113754, 074 903 025J, 074 903 025Q, 074 903 025R, 0124 515 013, 0124 515 020, 0124 515 021, 0124 515 068, 0986 041 140, 0986 041 890, 1445ir, 1986A00837, 113754, 1516471R, 8111119, 8111122, 8602322, 9442130, 9459093, 074903025j, 074903025Q, 074903025R, 0124515013, 0124515020, 0124515021, 0124515038, 0124515068, 0124515209 -
Konkurrentreferens
A0036, A0036PR, ALT-H154, CAL10263, DRB1890, F042A0H154, LRA01812, 8EL012427-541, 8el737643-001, 28-3630, 28-3842, 238.134.1202, 238.142.1202, 5748, 22812R, 111357, 119795, 210605, 210605A, 301445RI, 440821, 746153, 746953, 9212262, 12041140, 12041890, 32041890, 0986041140, 0986041143, 0986041890, 943355141010, 944390411400 -
Bilmärken
Volvo, VW Trucks & Vans -
NormaliseratArtNr
a0036, a0036pr, alth154, b120516076, cal10263, drb1890, f032113754, f042a0h154, lra01812, 8el012427541, 8el737643001, 1445ir, 1986a00837, 5748, 22812r, 111357, 113754, 119795, 210605, 210605a, 283630, 283842, 301445ri, 440821, 746153, 746953, 1516471r, 8111119, 8111122, 8602322, 9212262, 9442130, 9459093, 12041140, 12041890, 32041890, 074903025j, 074903025q, 074903025r, 0124515013, 0124515020, 0124515021, 0124515038, 0124515068, 0124515209, 0986041140, 0986041143, 0986041890, 2381341202, 2381421202, 943355141010, 944390411400 -
Passar modeller
Volvo Model: S60 Model series: S60 Type of engine: CDi Size of motor: 2.4 Brand of engine: D5244T3 From date: 01-10-2003 To date: 01-12-2005 Fuel: Diesel Approved: Yes Volvo Model: S60 Model series: S60 Type of engine: Diesel Size of motor: 2.4 Brand of engine: D5244T From date: 01-01-2001 To date: 01-04-2010 Fuel: Diesel Approved: Yes Volvo Model: S60 Model series: S60 Type of engine: Diesel Size of motor: 2.4 Brand of engine: D5244T2 From date: 01-05-2001 To date: 01-04-2010 Fuel: Diesel Approved: Yes Volvo Model: S70 Model series: S70 Type of engine: TDi Size of motor: 2.5 Brand of engine: D5252T Type description: P80_ From date: 01-01-1997 To date: 01-11-2000 Fuel: Diesel Approved: Yes Volvo Model: S80 Model series: S80 Type of engine: Diesel Size of motor: 2.4 Brand of engine: D5244T2 Type description: TS, XY From date: 01-10-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes Volvo Model: S80 Model series: S80 Type of engine: TDi Size of motor: 2.5 Brand of engine: D5252T Type description: TS, XY From date: 01-01-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes Volvo Model: V70 Model series: V70 Model type: D5 Type of engine: Diesel Size of motor: 2.4 Brand of engine: D5244T Type description: P80_ Body: Estate From date: 01-01-2001 To date: 01-12-2008 Fuel: Diesel Approved: Yes Volvo Model: XC90 Model series: XC90 Type of engine: Diesel Size of motor: 2.4 Brand of engine: D5244T5 Body: SUV From date: 01-10-2002 To date: 01-12-2006 Fuel: Diesel Approved: Yes Volvo Series: S60 Model: 2.4 D Engine volume: 2.4 Year: 08.02- Volvo Series: S60 Model: 2.4 D5 Engine volume: 2.4 Year: 08.01- Volvo Series: S80 Model: 2.4 D Engine volume: 2.4 Engine type: D 5244 T2 Year: 10.01- Volvo Series: S80 Model: 2.4 D5 Engine volume: 2.4 Engine type: D 5244 T Year: 08.01- Volvo Series: S80 Model: 2.5 TDI Engine volume: 2.5 Engine type: D 5252 T Year: 01.97-07.00 Volvo Series: V70 I Model: 2.5 TDI Engine volume: 2.5 Engine type: D 5252 T Year: 01.97-03.00 Volvo Series: V70 II Model: 2.4 D Engine volume: 2.4 Engine type: D 5244 T2 Year: 12.01- Volvo Series: V70 II Model: 2.4 D5 AWD Engine volume: 2.4 Engine type: D 5244 T2 Year: 03.03-07.04 Volvo Series: V70 II Model: 2.4 D5 Engine volume: 2.4 Engine type: D 5244 T Year: 08.01- Volvo Series: V70 II Model: 2.5 TDI Engine volume: 2.5 Engine type: D 5252 T Year: 03.00-07.01 Volvo Series: XC 70 Cross Country Model: D5 Engine volume: 2.4 Engine type: D 5244 T Year: 09.02-07.04 VW Model: California Model series: California T4 Camper Size of motor: 2.5 Brand of engine: AEU Type description: 7DJ, 7DK, 70J Body: Bus From date: 01-05-1998 To date: 01-04-2002 Fuel: Petrol Approved: Yes VW Model: California Model series: California T4 Camper Size of motor: 2.5 Brand of engine: APL, AVT Type description: 7DJ, 7DK, 70J Body: Bus From date: 01-05-1999 To date: 01-04-2003 Fuel: Petrol Approved: Yes VW Model: California Model series: California T4 Camper Type of engine: TDI Size of motor: 2.5 Brand of engine: AJT, AYY Type description: 7DJ, 7DK, 70J Body: Bus From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: California Model series: California T4 Camper Type of engine: TDI Size of motor: 2.5 Brand of engine: AXG, AHY Type description: 7DJ, 7DK, 70J Body: Bus From date: 01-07-1999 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: California Model series: California T4 Camper Type of engine: TDI Size of motor: 2.5 Brand of engine: AYC Type description: 7DJ, 7DK, 70J Body: Bus From date: 01-04-2001 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: SDi Size of motor: 2.5 Brand of engine: AGX Body: Bus From date: 01-07-1996 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: SDi Size of motor: 2.5 Brand of engine: AGX Body: Platform / Chassis From date: 01-09-1996 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: SDi Size of motor: 2.5 Brand of engine: AGX Body: Van From date: 01-09-1996 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AHD Body: Bus From date: 01-05-1996 To date: 01-08-1999 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AHD Body: Platform / Chassis From date: 01-06-1996 To date: 01-08-1999 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AHD Body: Van From date: 01-05-1996 To date: 01-08-1999 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Bus From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Van From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: APA Body: Bus From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: APA Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: APA Body: Van From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AVR Body: Bus From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AVR Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AVR Body: Van From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBE Body: Bus From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBE Type description: 2DX0AE Body: Van From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBE Type description: 2DX0FE Body: Platform / Chassis From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBF Body: Bus From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBF Type description: 2DX0AE Body: Van From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBF Type description: 2DX0FE Body: Platform / Chassis From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 40-55 Type of engine: SDi Size of motor: 2.5 Brand of engine: AGX Body: Platform / Chassis From date: 01-09-1996 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 40-55 Type of engine: SDi Size of motor: 2.5 Brand of engine: AGX Body: Van From date: 01-09-1996 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Van From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: APA Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: AVR Body: Van From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBE Type description: 2DX0AE Body: Van From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBE Type description: 2DX0FE Body: Platform / Chassis From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBF Type description: 2DX0AE Body: Van From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: BBF Type description: 2DX0FE Body: Platform / Chassis From date: 01-05-2001 To date: 01-07-2006 Fuel: Diesel Approved: Yes VW Model: Multivan Model series: Multivan Size of motor: 2.5 Brand of engine: AET Body: Bus From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Multivan Model series: Multivan Size of motor: 2.5 Brand of engine: APL Body: Bus From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Multivan Model series: Multivan Size of motor: 2.5 Brand of engine: AVT Body: Bus From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AAF Body: Platform / Chassis From date: 01-11-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AAF Body: Van From date: 01-11-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: ACU Body: Platform / Chassis From date: 01-11-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: ACU Body: Van From date: 01-11-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AEN Body: Platform / Chassis From date: 01-11-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AEN Body: Van From date: 01-11-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AET Body: Platform / Chassis From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AET Body: Van From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AEU Body: Bus From date: 01-09-1990 To date: 01-06-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AEU Body: Platform / Chassis From date: 01-11-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AEU Body: Van From date: 01-11-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: APL Body: Platform / Chassis From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: APL Body: Van From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AVT Body: Platform / Chassis From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AVT Body: Van From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: AAF Body: Van From date: 01-01-1996 To date: 01-11-2001 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: ACU Body: Bus From date: 01-08-1992 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: ACU Body: Van From date: 01-01-1996 To date: 01-11-2001 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: AEN Type description: 70 Body: Bus From date: 01-08-1992 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: AEN Type description: 70 Body: Van From date: 01-01-1996 To date: 01-11-2001 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: AET Body: Bus From date: 01-07-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: AET Body: Van From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: AEU Body: Bus From date: 01-08-1992 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: AEU Body: Van From date: 01-01-1996 To date: 01-11-2001 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: APL Body: Bus From date: 01-07-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: APL Body: Van From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: AVT Body: Bus From date: 01-07-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: AVT Body: Van From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: TDi Size of motor: 2.5 Brand of engine: ACV Body: Bus From date: 01-01-1996 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: TDi Size of motor: 2.5 Brand of engine: ACV Body: Van From date: 01-09-1995 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: TDi Size of motor: 2.5 Brand of engine: ACV Type description: 70XD Body: Platform / Chassis From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: TDi Size of motor: 2.5 Brand of engine: AXL Body: Bus From date: 01-01-1996 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: TDi Size of motor: 2.5 Brand of engine: AXL Body: Van From date: 01-09-1995 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: TDi Size of motor: 2.5 Brand of engine: AXL Type description: 70XD Body: Platform / Chassis From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TD Size of motor: 2.5 Brand of engine: AJT Body: Platform / Chassis From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TD Size of motor: 2.5 Brand of engine: AYY Body: Platform / Chassis From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: ACV Body: Bus From date: 01-09-1995 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: ACV Body: Platform / Chassis From date: 01-09-1995 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: ACV Body: Van From date: 01-09-1995 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AHY Body: Bus From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AJT Body: Bus From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AJT Body: Van From date: 01-12-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AUF Body: Bus From date: 01-09-1995 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AUF Body: Platform / Chassis From date: 01-09-1995 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AUF Body: Van From date: 01-09-1995 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AXG Body: Bus From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AXG Type description: 70XA Body: Van From date: 01-09-2000 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AYC Body: Bus From date: 01-09-1995 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AYC Body: Platform / Chassis From date: 01-09-1995 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AYC Body: Van From date: 01-09-1995 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AYY Body: Bus From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AYY Body: Van From date: 01-12-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes VW Trucks & Vans Series: LT 28-35 II Buss Model: 2.5 SDI Engine volume: 2.5 Engine type: AGX Year: 08.98-04.01 VW Trucks & Vans Series: LT 28-46 II Skåp Model: 2.5 TDI Engine volume: 2.5 Engine type: ANJ / AVR Year: 05.99-04.06 VW Trucks & Vans Series: LT 28-46 II Model: 2.5 SDI Engine volume: 2.5 Engine type: AGX Year: 08.98-04.01 VW Trucks & Vans Series: LT 28-46 II Model: 2.5 TDI Engine volume: 2.5 Engine type: AHD/ANJ/APA/AVR Year: 08.98- VW Trucks & Vans Series: Transporter IV Buss Model: 2.5 TDI Engine volume: 2.5 Engine type: ACV/AUF/AXL/AYC Year: 09.95-04.03 VW Trucks & Vans Series: Transporter IV Model: 2.5 Engine volume: 2.5 Engine type: AET/AEU/APL/AVT Year: 08.96-06.03 VW Trucks & Vans Series: Transporter IV Model: 2.5 Syncro Engine volume: 2.5 Engine type: AET/AEU/APL/AVT Year: 08.96-06.03 VW Trucks & Vans Series: Transporter IV Model: 2.5 TDI Engine volume: 2.5 Engine type: AJT / AYY Year: 12.98-04.03 VW Trucks & Vans Series: Transporter IV Model: 2.5 TDI Engine volume: 2.5 Year: 05.98-06.03 VW Trucks & Vans Series: Transporter IV Flak Model: 2.5 Engine volume: 2.5 Engine type: AET Year: 08.96-04.03 VW Trucks & Vans Series: Transporter IV Flak Model: 2.5 Engine volume: 2.5 Engine type: AEU Year: 08.96-04.03 VW Trucks & Vans Series: Transporter IV Flak Model: 2.5 Engine volume: 2.5 Engine type: APL / AVT Year: 05.99-04.03 VW Trucks & Vans Series: Transporter IV Flak Model: 2.5 TDI Engine volume: 2.5 Engine type: ACV/AUF/AYC Year: 09.95-04.03 VW Trucks & Vans Series: Transporter IV Flak Model: 2.5 TDI Syncro Engine volume: 2.5 Engine type: ACV / AXL Year: 05.98-04.03 VW Trucks & Vans Series: Transporter IV Skåp Model: 2.5 Engine volume: 2.5 Engine type: AET Year: 08.96-04.03 VW Trucks & Vans Series: Transporter IV Skåp Model: 2.5 Engine volume: 2.5 Engine type: APL / AVT Year: 05.99-04.03 VW Trucks & Vans Series: Transporter IV Skåp Model: 2.5 TDI Engine volume: 2.5 Engine type: ACV/AUF/AYC Year: 09.95-04.03 1 / 26
-
