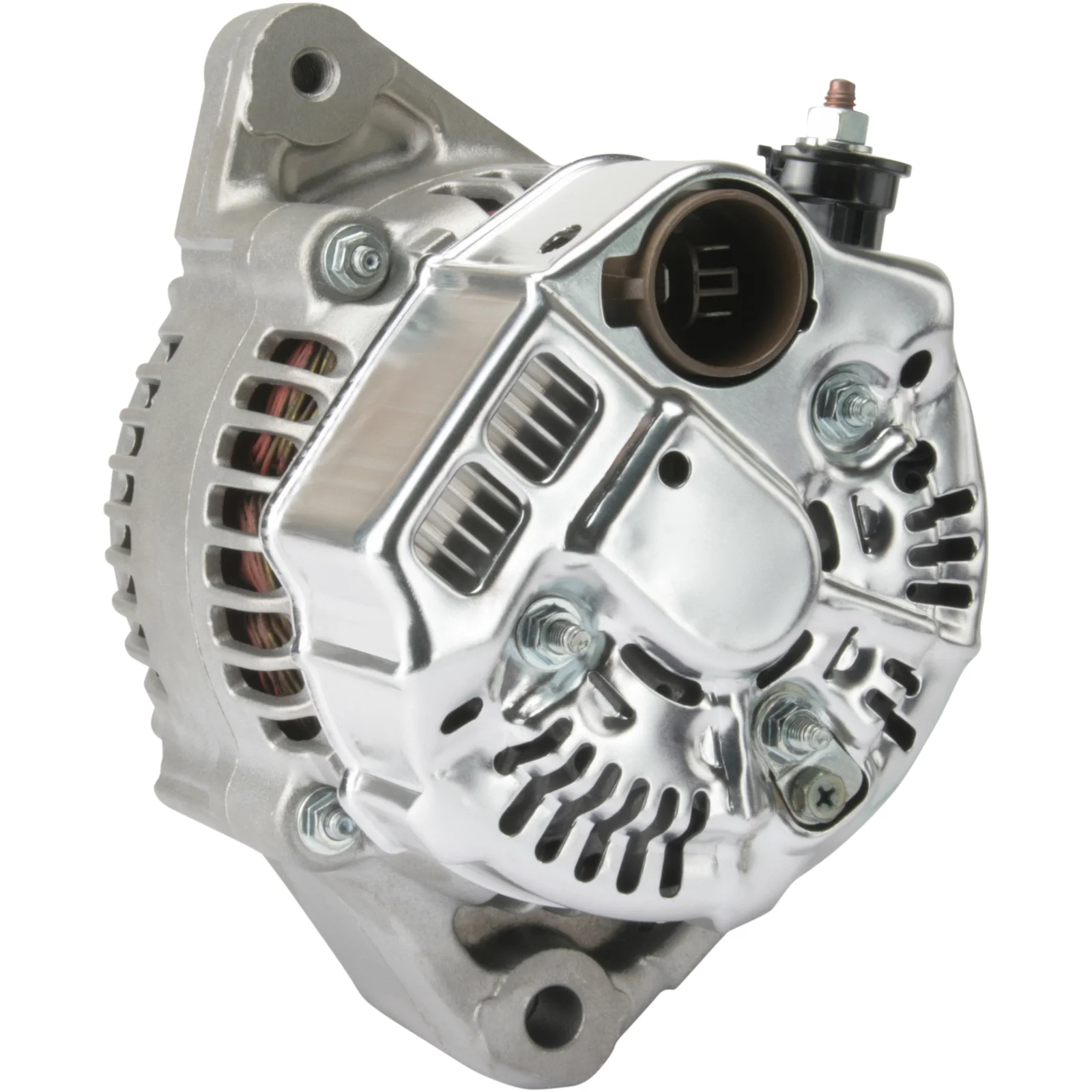

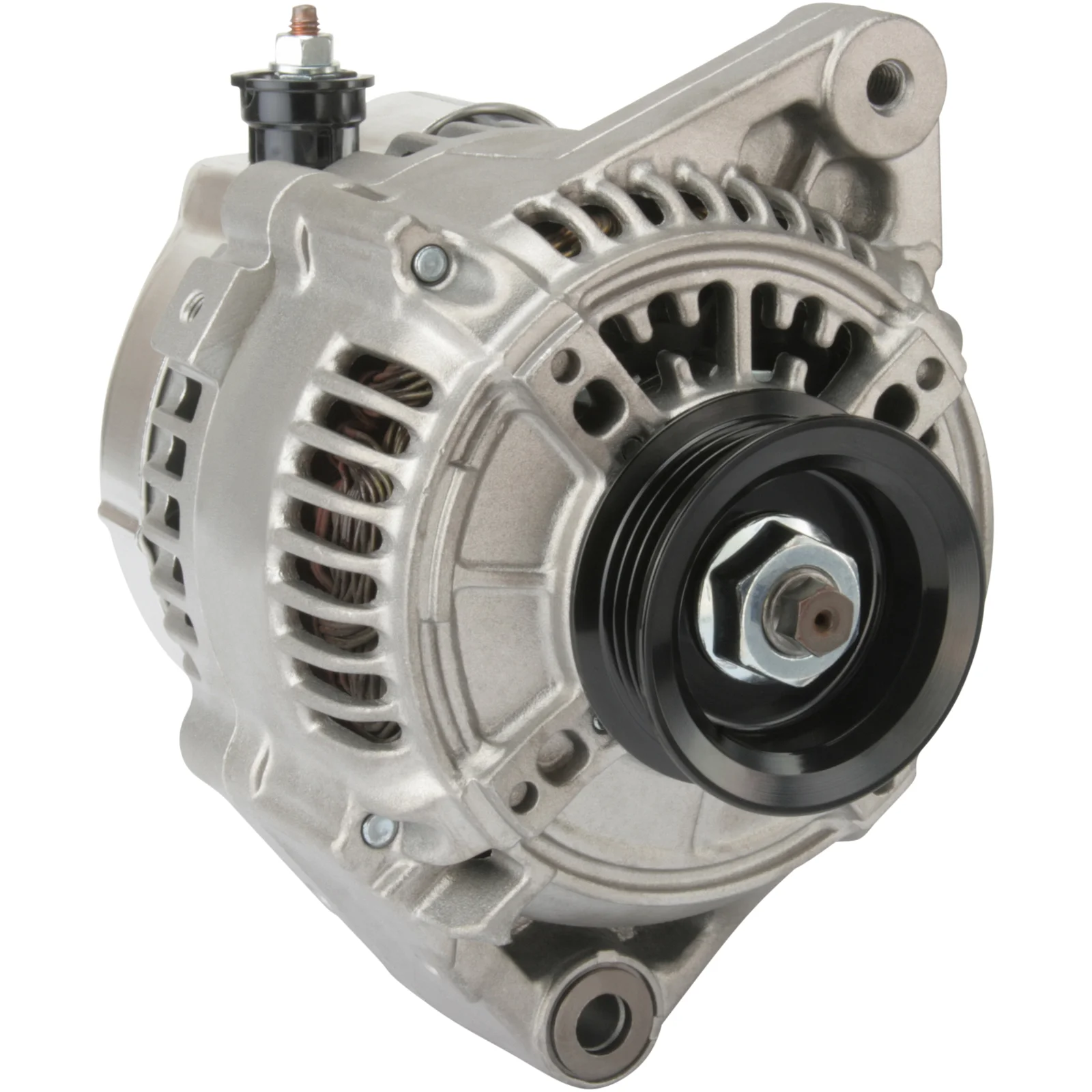

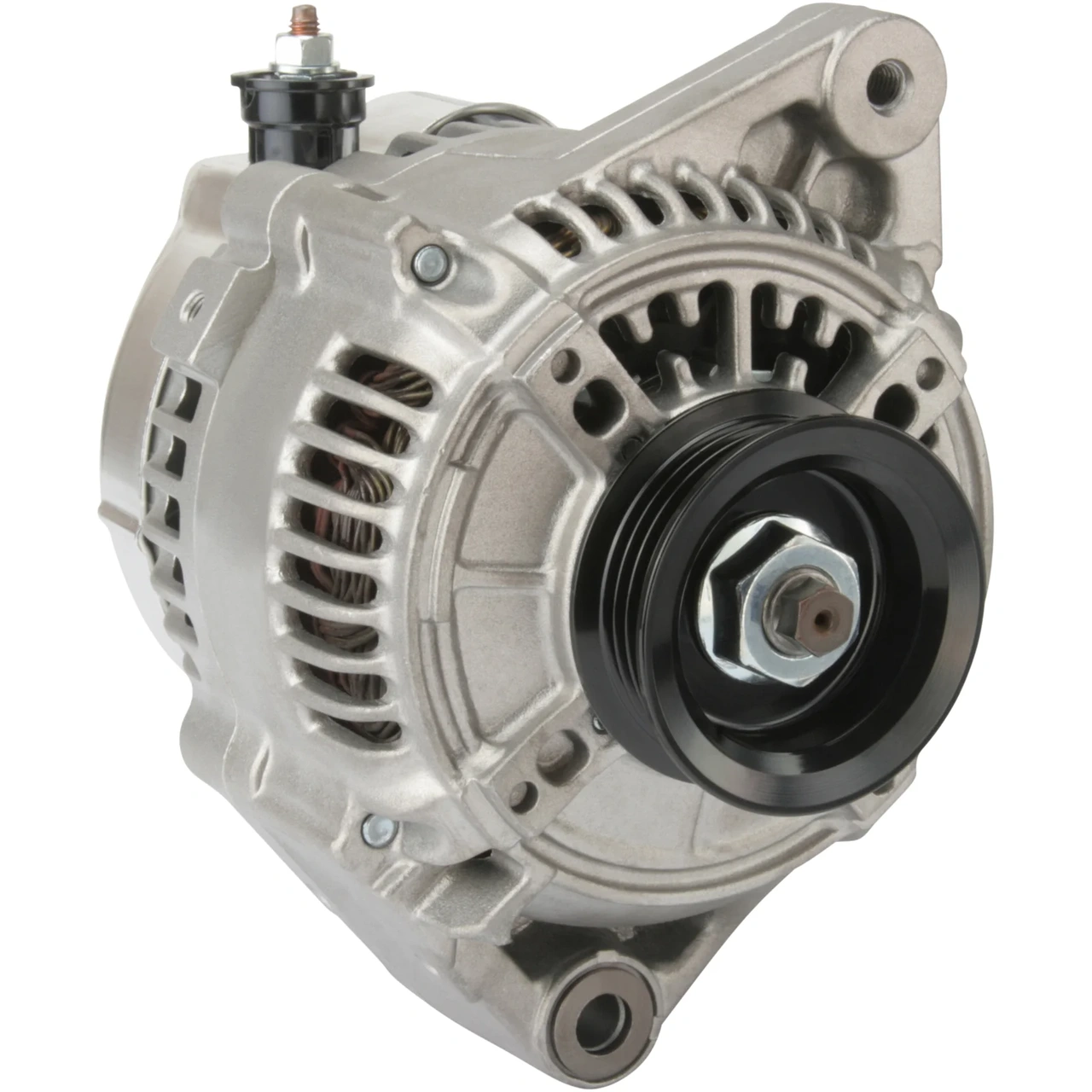

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032111538

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 80, Rotation: CW, Remskive diameter: 59.00

Beskrivelse

Generator 12V-80A 12V - 80A, 4gr, (S, IG, L) (B+) M6 Alternativ : 90-555-7418, 90A, (B+) M8 Til Yourex produktordre 90-555-8380

Svær: 14
Amp: 80
Impuls dist.: 90.50
Bredde/holderarm: 58.00
BESLAG hul: 10.30
Bælte. juster. beslagen hul position: 5
Bælte. juster. beslagen hul 1: M8
Impuls dia.: 59.00
Riller/impuls: 4
Radius: 79.00
Radius 2: 84.00
B+: M6
Position/B+ i min.: 5
D+ størrelse: Stik
Rotation: UHV
Stik nr.: PL12
W stik type: Stik
Total længde mm: 161.00
Impuls: SP
Spændingsregulator type: IR
Produktinfo: Reman
Service: Toyota

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL12
Bracket hole 10.30
Position/B+ in min. 5
Prod. info Reman
Pulley SP
Pulley dia. 59.00
Pulley dist. 90.50
Radius 79.00
D+ Size Plug
Radius 2 84.00
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 4
Voltage 14
W plug type Plug
Total length 161.00 mm
Width/holder arm 58.00
Amp 80

  • OEM
    F032111538, ja882ir, 27060-74160, 27060-74170, 27060-74250, 27060-74320, 100211-7820, 100211-8060, 100211-8380, 100211-8381, 100211-8440, 111538

  • Konkurrentreferens
    A6101, A6113, CAL40186, dra3749, lra00555, LRA01407, 1-1418-01ND, 1-1419-01ND, 8el732728-001, 28-1868, 28-3834, 195.533.080, 235.106.702, 235.150.802, 235.153.902, 5565, 13393N, 13393R, 13455, 13455N, 13455R, 119539, 436536, 12060370, 12060410, 0986035501

  • Bilmärken
    Toyota

  • NormaliseratArtNr
    a6101, a6113, cal40186, dra3749, f032111538, ja882ir, lra00555, lra01407, 8el732728001, 5565, 13393n, 13393r, 13455, 13455n, 13455r, 111538, 119539, 281868, 283834, 436536, 1141801nd, 1141901nd, 12060370, 12060410, 195533080, 235106702, 235150802, 235153902, 0986035501, 1002117820, 1002118060, 1002118380, 1002118381, 1002118440, 2706074160, 2706074170, 2706074250, 2706074320

  • Passar modeller
    Toyota Model: Corolla Model series: Corolla Type of engine: 12V Size of motor: 1.3 Brand of engine: 2E Type description: EE100 From date: 01-07-1992 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: i Size of motor: 1.3 Brand of engine: 2E Type description: EE90 Body: Hatchback From date: 01-08-1987 To date: 01-04-1992 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: i Size of motor: 1.3 Brand of engine: 2E Type description: EE90 From date: 01-08-1989 To date: 01-04-1992 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: i Size of motor: 1.3 Brand of engine: 2E-E Type description: EE90 Body: Hatchback From date: 01-08-1987 To date: 01-04-1992 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: i Size of motor: 1.3 Brand of engine: 2E-E Type description: EE90 From date: 01-08-1989 To date: 01-04-1992 Fuel: Gasoline Approved: Yes
    Toyota Model: MR2 Model series: MR2 Size of motor: 2.2 Brand of engine: 5S-FE Type description: SW2_ Body: Coupe From date: 01-01-1992 To date: 01-05-1995 Fuel: Petrol Approved: Yes
    Toyota Model: MR2 Model series: MR2 Type of engine: 16V Size of motor: 2.0 Brand of engine: 3S-GE Body: Coupe From date: 01-12-1989 To date: 01-05-2000 Fuel: Gasoline Approved: Yes
    Toyota Model: MR2 Model series: MR2 Type of engine: 16V Size of motor: 2.0 Brand of engine: 3S-GE Type description: SV20 Body: Coupe From date: 01-12-1989 To date: 01-09-1999 Fuel: Gasoline Approved: Yes
    Toyota Model: MR2 Model series: MR2 Type of engine: 16V Size of motor: 2.0 Brand of engine: 3S-GE Type description: SW20 Body: Coupe From date: 01-12-1989 To date: 01-07-1999 Fuel: Gasoline Approved: Yes
    Toyota Series: MR 2 (_W2_) Model: 2.0 16V Engine volume: 2.0 Engine type: 3S-GE Year: 12.89-10.93
    Toyota Series: MR 2 (_W2_) Model: 2.0 Engine volume: 2.0 Engine type: 3S-FE Year: 12.89-07.92
    Toyota Series: MR 2 (_W2_) Model: 2.2 Engine volume: 2.2 Engine type: 5S-FE Year: 01.90-10.93
    1 / 3
  • Beskrivelse
    Generator 12V-80A 12V - 80A, 4gr, (S, IG, L) (B+) M6 Alternativ : 90-555-7418, 90A, (B+) M8 Til Yourex produktordre 90-555-8380

    Svær: 14
    Amp: 80
    Impuls dist.: 90.50
    Bredde/holderarm: 58.00
    BESLAG hul: 10.30
    Bælte. juster. beslagen hul position: 5
    Bælte. juster. beslagen hul 1: M8
    Impuls dia.: 59.00
    Riller/impuls: 4
    Radius: 79.00
    Radius 2: 84.00
    B+: M6
    Position/B+ i min.: 5
    D+ størrelse: Stik
    Rotation: UHV
    Stik nr.: PL12
    W stik type: Stik
    Total længde mm: 161.00
    Impuls: SP
    Spændingsregulator type: IR
    Produktinfo: Reman
    Service: Toyota

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 5
    Plug no. PL12
    Bracket hole 10.30
    Position/B+ in min. 5
    Prod. info Reman
    Pulley SP
    Pulley dia. 59.00
    Pulley dist. 90.50
    Radius 79.00
    D+ Size Plug
    Radius 2 84.00
    Regulator type IR
    Rotation CW
    Servicing Toyota
    Grooves/pulley 4
    Voltage 14
    W plug type Plug
    Total length 161.00 mm
    Width/holder arm 58.00
    Amp 80
  • Køretøjsmatchning

    • OEM
      F032111538, ja882ir, 27060-74160, 27060-74170, 27060-74250, 27060-74320, 100211-7820, 100211-8060, 100211-8380, 100211-8381, 100211-8440, 111538

    • Konkurrentreferens
      A6101, A6113, CAL40186, dra3749, lra00555, LRA01407, 1-1418-01ND, 1-1419-01ND, 8el732728-001, 28-1868, 28-3834, 195.533.080, 235.106.702, 235.150.802, 235.153.902, 5565, 13393N, 13393R, 13455, 13455N, 13455R, 119539, 436536, 12060370, 12060410, 0986035501

    • Bilmärken
      Toyota

    • NormaliseratArtNr
      a6101, a6113, cal40186, dra3749, f032111538, ja882ir, lra00555, lra01407, 8el732728001, 5565, 13393n, 13393r, 13455, 13455n, 13455r, 111538, 119539, 281868, 283834, 436536, 1141801nd, 1141901nd, 12060370, 12060410, 195533080, 235106702, 235150802, 235153902, 0986035501, 1002117820, 1002118060, 1002118380, 1002118381, 1002118440, 2706074160, 2706074170, 2706074250, 2706074320

    • Passar modeller
      Toyota Model: Corolla Model series: Corolla Type of engine: 12V Size of motor: 1.3 Brand of engine: 2E Type description: EE100 From date: 01-07-1992 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: i Size of motor: 1.3 Brand of engine: 2E Type description: EE90 Body: Hatchback From date: 01-08-1987 To date: 01-04-1992 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: i Size of motor: 1.3 Brand of engine: 2E Type description: EE90 From date: 01-08-1989 To date: 01-04-1992 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: i Size of motor: 1.3 Brand of engine: 2E-E Type description: EE90 Body: Hatchback From date: 01-08-1987 To date: 01-04-1992 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: i Size of motor: 1.3 Brand of engine: 2E-E Type description: EE90 From date: 01-08-1989 To date: 01-04-1992 Fuel: Gasoline Approved: Yes
      Toyota Model: MR2 Model series: MR2 Size of motor: 2.2 Brand of engine: 5S-FE Type description: SW2_ Body: Coupe From date: 01-01-1992 To date: 01-05-1995 Fuel: Petrol Approved: Yes
      Toyota Model: MR2 Model series: MR2 Type of engine: 16V Size of motor: 2.0 Brand of engine: 3S-GE Body: Coupe From date: 01-12-1989 To date: 01-05-2000 Fuel: Gasoline Approved: Yes
      Toyota Model: MR2 Model series: MR2 Type of engine: 16V Size of motor: 2.0 Brand of engine: 3S-GE Type description: SV20 Body: Coupe From date: 01-12-1989 To date: 01-09-1999 Fuel: Gasoline Approved: Yes
      Toyota Model: MR2 Model series: MR2 Type of engine: 16V Size of motor: 2.0 Brand of engine: 3S-GE Type description: SW20 Body: Coupe From date: 01-12-1989 To date: 01-07-1999 Fuel: Gasoline Approved: Yes
      Toyota Series: MR 2 (_W2_) Model: 2.0 16V Engine volume: 2.0 Engine type: 3S-GE Year: 12.89-10.93
      Toyota Series: MR 2 (_W2_) Model: 2.0 Engine volume: 2.0 Engine type: 3S-FE Year: 12.89-07.92
      Toyota Series: MR 2 (_W2_) Model: 2.2 Engine volume: 2.2 Engine type: 5S-FE Year: 01.90-10.93
