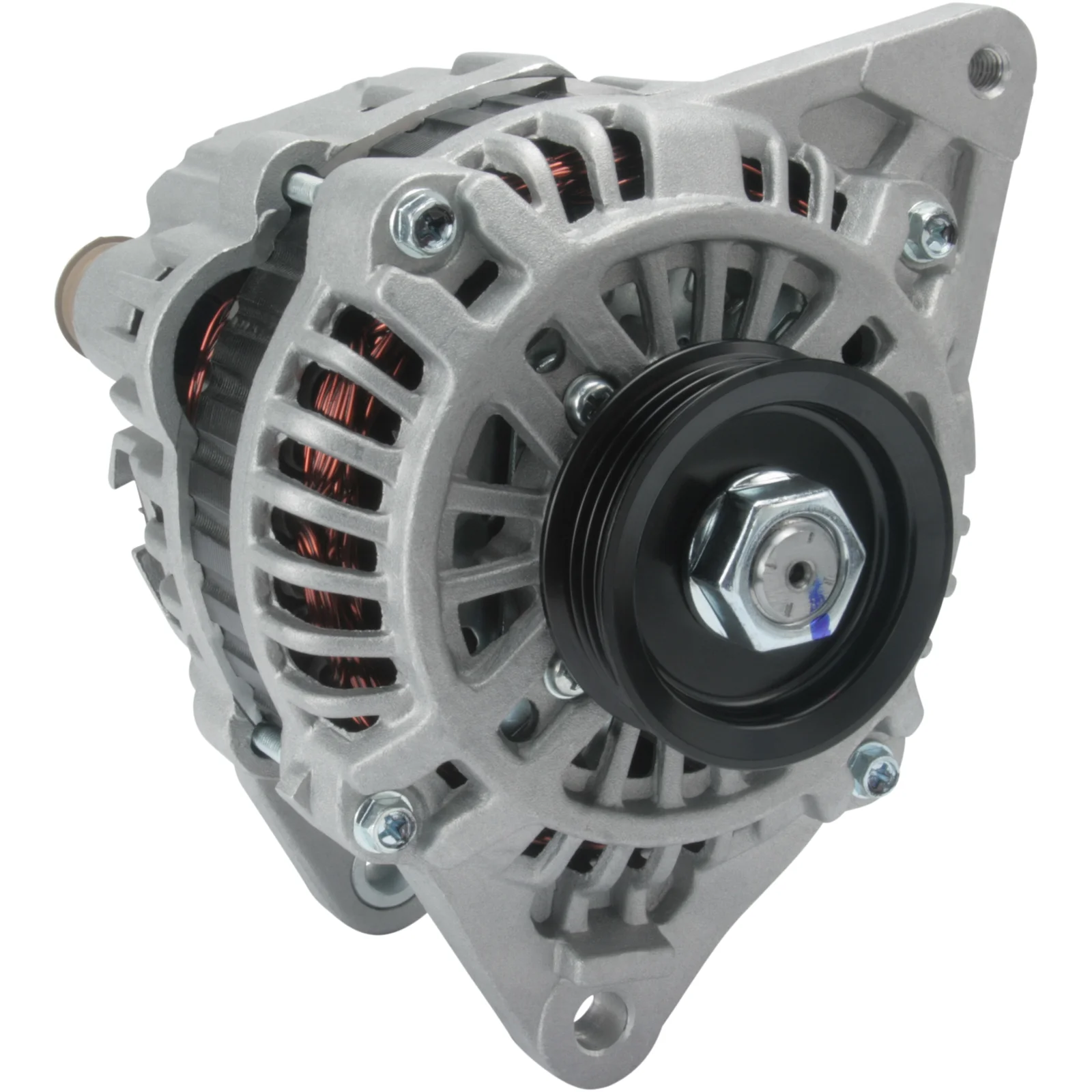

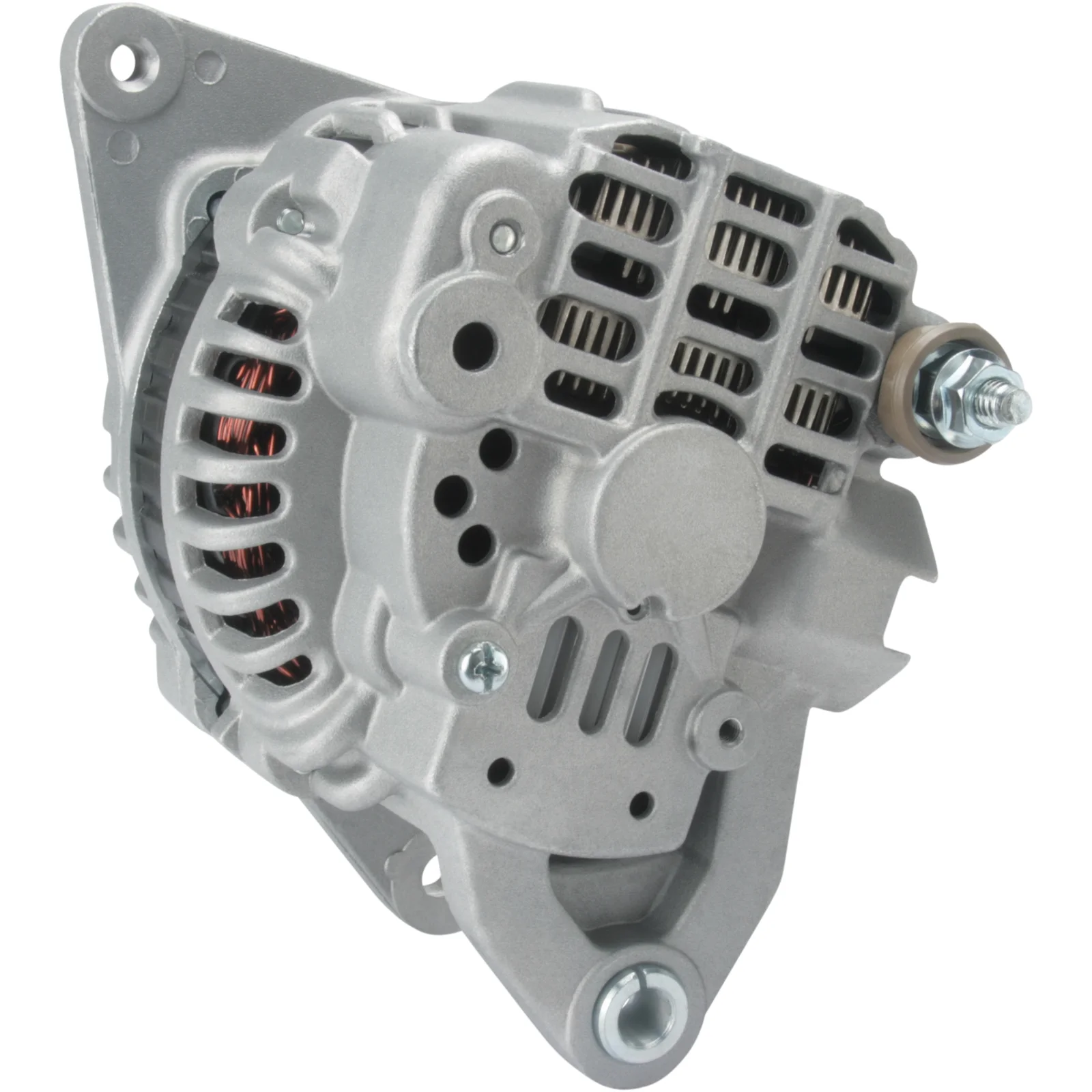

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032112328

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 85, Rotation: CW, Monteringsbeslag fordybelse: 66,50

Beskrivelse

Spænding: 14
Amp.: 85
Drevskive dist.: 38,00
Bredde/holderarm: 13,00
Monteringsbeslag dist.: 66,50
Beslags hul: 10,50
Remspændingsbeslags hulpos.: 6
Remspændingsbeslags hul 1: M8
Drevskive dia.: 60,50
Riller/drevskive: 4
Radius: 90,00
Radius 2: 96,00
B+: M8
Position/B+ i min.: 10
D+ Størrelse: Propel
Rotation: CW
Propel nr.: PL68
Samlet længde mm: 170,00
Terminal type: G-S-L-F
Drevskive: SP
Regulator type: IR
Produktinfo: BN
Service: Mitsubishi

Filer

Specifikation

B+ M8
Mount. bracket dist. 66.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 6
Plug no. PL68
Bracket hole 10.50
Position/B+ in min. 10
Prod. info BN
Pulley SP
Pulley dia. 60.50
Pulley dist. 38.00
Radius 90.00
D+ Size Plug
Radius 2 96.00
Regulator type IR
Rotation CW
Servicing Mitsubishi
Grooves/pulley 4
Terminal type G-S-L-F
Voltage 14
Total length 170.00 mm
Width/holder arm 13.00
Amp 85

  • OEM
    A002TA4991, A002TA5391, A002TA5391ZT, A002TB0892, A002TB5791ZC, a2ta4991, a2ta5391, A2TA5391ZT, a2tb0892, A2TB5791ZC, F032112328, ja1523ir, md317860, md317862, md343562, MD360394, md368519

  • Konkurrentreferens
    A5010, A5304PR, ALT-3047, ALT3047, CAL35124, CAL35168, DRA0736, DRA4094, F042303016, F042303123, F042A03016, J5115062, LRA01676, LRA02079, 1-2118-01MI, 1-2204-01MI, 28-2900, 28-4516, 155.942.090, 226.150.802, 226.150.902, 11053N, 13751, 13751N, 13787, 13787N, 13840N, 13898N, 13898R, 119856, 119933, 210624, 210624A, 401523RI, 440118, 440121, 9045581, 9051552, 9213554, 12060754, 0986045581

  • NormaliseratArtNr
    a002ta4991, a002ta5391, a002ta5391zt, a002tb0892, a002tb5791zc, a2ta4991, a2ta5391, a2ta5391zt, a2tb0892, a2tb5791zc, a5010, a5304pr, alt3047, cal35124, cal35168, dra0736, dra4094, f032112328, f042303016, f042303123, f042a03016, j5115062, ja1523ir, lra01676, lra02079, md317860, md317862, md343562, md360394, md368519, 11053n, 13751, 13751n, 13787, 13787n, 13840n, 13898n, 13898r, 119856, 119933, 210624, 210624a, 282900, 284516, 401523ri, 440118, 440121, 1211801mi, 1220401mi, 9045581, 9051552, 9213554, 12060754, 155942090, 226150802, 226150902, 0986045581

  • Passar modeller
    Mitsubishi Model: Carisma Model series: Carisma Type of engine: GDi 16V Size of motor: 1.8 Brand of engine: 4G93 Body: Hatchback From date: 01-09-1997 To date: 01-06-2006 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Carisma Model series: Carisma Type of engine: GDi 16V Size of motor: 1.8 Brand of engine: 4G93 Type description: DA_ From date: 01-09-1997 To date: 01-06-2006 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Colt Model series: Colt Model type: 1600 GLX Size of motor: 1.6 Brand of engine: 4G92 Body: Hatchback From date: 01-05-1996 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Colt Model series: Colt Model type: 1600 Size of motor: 1.6 Brand of engine: 4G92 Type description: CJ1A Body: Hatchback From date: 01-09-2000 To date: 01-09-2003 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Galant Model series: Galant Type of engine: 16V Size of motor: 2.0 Brand of engine: 4G63 Type description: EA2A From date: 01-09-1996 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Galant Model series: Galant Type of engine: 16V Size of motor: 2.0 Brand of engine: 4G63 Type description: EA2W Body: Estate From date: 01-09-1996 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Lancer Model series: Lancer Model type: Evolution Type of engine: Turbo Size of motor: 2.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Lancer Model series: Lancer Size of motor: 2.0 From date: 01-01-2002 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Lancer Model series: Lancer Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Lancer Model series: Lancer Type of engine: 16V Size of motor: 1.6 Brand of engine: 4G92 Type description: CJ4A From date: 01-12-1995 To date: 01-08-2003 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Mirage Model series: Mirage Model type: LS Size of motor: 1.8 Brand of engine: 4G93 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Mirage Model series: Mirage Size of motor: 1.8 Brand of engine: 4G93 From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Mirage Model series: Mirage Size of motor: 1.8 Brand of engine: 4G93 From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Mirage Model series: Mirage V Saloon Size of motor: 1.8 Brand of engine: 4G93 (SOHC16V) Type description: CK_A Body: Saloon From date: 01-09-1996 To date: 01-12-2001 Fuel: Petrol Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Model type: Pinin Size of motor: 1.8 Brand of engine: 4G93 From date: 01-11-2001 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Model type: Pinin Type of engine: GDi Size of motor: 1.8 Brand of engine: 4G93 Type description: H6_W,H7_W From date: 01-10-1999 To date: 01-10-2001 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Space Star Model series: Space Star Type of engine: GDi Size of motor: 1.8 Brand of engine: 4G93 Body: MPV From date: 01-06-1998 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Space Star Model series: Space Star Type of engine: GDi Size of motor: 1.8 Brand of engine: 4G93 Type description: DGO Body: MPV From date: 01-06-1998 To date: 01-12-2004 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spænding: 14
    Amp.: 85
    Drevskive dist.: 38,00
    Bredde/holderarm: 13,00
    Monteringsbeslag dist.: 66,50
    Beslags hul: 10,50
    Remspændingsbeslags hulpos.: 6
    Remspændingsbeslags hul 1: M8
    Drevskive dia.: 60,50
    Riller/drevskive: 4
    Radius: 90,00
    Radius 2: 96,00
    B+: M8
    Position/B+ i min.: 10
    D+ Størrelse: Propel
    Rotation: CW
    Propel nr.: PL68
    Samlet længde mm: 170,00
    Terminal type: G-S-L-F
    Drevskive: SP
    Regulator type: IR
    Produktinfo: BN
    Service: Mitsubishi

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 66.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 6
    Plug no. PL68
    Bracket hole 10.50
    Position/B+ in min. 10
    Prod. info BN
    Pulley SP
    Pulley dia. 60.50
    Pulley dist. 38.00
    Radius 90.00
    D+ Size Plug
    Radius 2 96.00
    Regulator type IR
    Rotation CW
    Servicing Mitsubishi
    Grooves/pulley 4
    Terminal type G-S-L-F
    Voltage 14
    Total length 170.00 mm
    Width/holder arm 13.00
    Amp 85
  • Køretøjsmatchning

    • OEM
      A002TA4991, A002TA5391, A002TA5391ZT, A002TB0892, A002TB5791ZC, a2ta4991, a2ta5391, A2TA5391ZT, a2tb0892, A2TB5791ZC, F032112328, ja1523ir, md317860, md317862, md343562, MD360394, md368519

    • Konkurrentreferens
      A5010, A5304PR, ALT-3047, ALT3047, CAL35124, CAL35168, DRA0736, DRA4094, F042303016, F042303123, F042A03016, J5115062, LRA01676, LRA02079, 1-2118-01MI, 1-2204-01MI, 28-2900, 28-4516, 155.942.090, 226.150.802, 226.150.902, 11053N, 13751, 13751N, 13787, 13787N, 13840N, 13898N, 13898R, 119856, 119933, 210624, 210624A, 401523RI, 440118, 440121, 9045581, 9051552, 9213554, 12060754, 0986045581

    • NormaliseratArtNr
      a002ta4991, a002ta5391, a002ta5391zt, a002tb0892, a002tb5791zc, a2ta4991, a2ta5391, a2ta5391zt, a2tb0892, a2tb5791zc, a5010, a5304pr, alt3047, cal35124, cal35168, dra0736, dra4094, f032112328, f042303016, f042303123, f042a03016, j5115062, ja1523ir, lra01676, lra02079, md317860, md317862, md343562, md360394, md368519, 11053n, 13751, 13751n, 13787, 13787n, 13840n, 13898n, 13898r, 119856, 119933, 210624, 210624a, 282900, 284516, 401523ri, 440118, 440121, 1211801mi, 1220401mi, 9045581, 9051552, 9213554, 12060754, 155942090, 226150802, 226150902, 0986045581

    • Passar modeller
      Mitsubishi Model: Carisma Model series: Carisma Type of engine: GDi 16V Size of motor: 1.8 Brand of engine: 4G93 Body: Hatchback From date: 01-09-1997 To date: 01-06-2006 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Carisma Model series: Carisma Type of engine: GDi 16V Size of motor: 1.8 Brand of engine: 4G93 Type description: DA_ From date: 01-09-1997 To date: 01-06-2006 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Colt Model series: Colt Model type: 1600 GLX Size of motor: 1.6 Brand of engine: 4G92 Body: Hatchback From date: 01-05-1996 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Colt Model series: Colt Model type: 1600 Size of motor: 1.6 Brand of engine: 4G92 Type description: CJ1A Body: Hatchback From date: 01-09-2000 To date: 01-09-2003 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Galant Model series: Galant Type of engine: 16V Size of motor: 2.0 Brand of engine: 4G63 Type description: EA2A From date: 01-09-1996 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Galant Model series: Galant Type of engine: 16V Size of motor: 2.0 Brand of engine: 4G63 Type description: EA2W Body: Estate From date: 01-09-1996 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Lancer Model series: Lancer Model type: Evolution Type of engine: Turbo Size of motor: 2.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Lancer Model series: Lancer Size of motor: 2.0 From date: 01-01-2002 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Lancer Model series: Lancer Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Lancer Model series: Lancer Type of engine: 16V Size of motor: 1.6 Brand of engine: 4G92 Type description: CJ4A From date: 01-12-1995 To date: 01-08-2003 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Mirage Model series: Mirage Model type: LS Size of motor: 1.8 Brand of engine: 4G93 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Mirage Model series: Mirage Size of motor: 1.8 Brand of engine: 4G93 From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Mirage Model series: Mirage Size of motor: 1.8 Brand of engine: 4G93 From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Mirage Model series: Mirage V Saloon Size of motor: 1.8 Brand of engine: 4G93 (SOHC16V) Type description: CK_A Body: Saloon From date: 01-09-1996 To date: 01-12-2001 Fuel: Petrol Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Model type: Pinin Size of motor: 1.8 Brand of engine: 4G93 From date: 01-11-2001 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Model type: Pinin Type of engine: GDi Size of motor: 1.8 Brand of engine: 4G93 Type description: H6_W,H7_W From date: 01-10-1999 To date: 01-10-2001 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Space Star Model series: Space Star Type of engine: GDi Size of motor: 1.8 Brand of engine: 4G93 Body: MPV From date: 01-06-1998 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Space Star Model series: Space Star Type of engine: GDi Size of motor: 1.8 Brand of engine: 4G93 Type description: DGO Body: MPV From date: 01-06-1998 To date: 01-12-2004 Fuel: Diesel Approved: Yes
