Vare nr.: F032112681

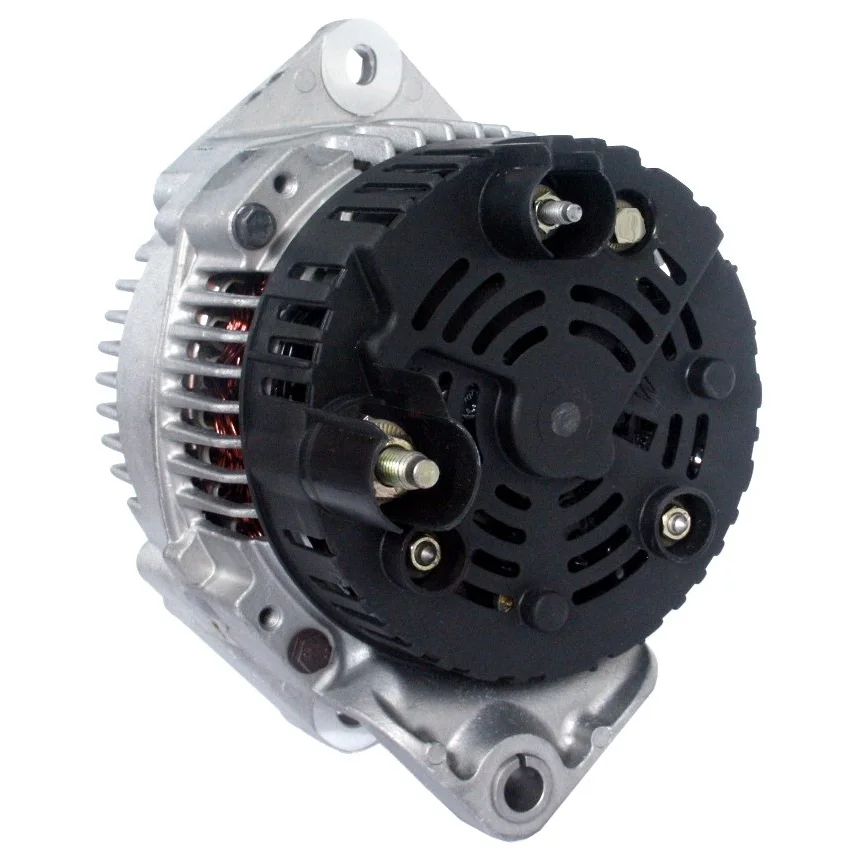

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 80, Rotation: CW, Monteringsbeslag for fordelerdæksel: 69.00

Beskrivelse

Spændings: 14
Amp: 80
Remskive dist.: 52.00
Bredde/holderarm: 27.00
Monteringsbeslag dist.: 69.00
Beslagshul: 10.50
Bælte justering beslags hul pos.: 60
Bælte justering beslags hul 1: 8.00
Bælte justering beslags hul 2: 10.00
Remskive dia.: 52.00
Riller/remskive: 6
Radius: 83.50
Radius 2: 82.50
B+: M8
Pos. / B+ i min.: 45
D+ Størrelse: M5
Rotation: med uret
Total længde mm: 190.00
Remskive: SP
Spændingsregulator type: IR
Produktinfo: BN
Service: Fiat

Filer

Specifikation

B+ M8
Mount. bracket dist. 69.00
Belt. adj. bracket hole 1 8.00
Belt. adj. bracket hole 2 10.00
Belt. adj. brackethole pos. 60
Bracket hole 10.50
Position/B+ in min. 45
Prod. info BN
Pulley SP
Pulley dia. 52.00
Pulley dist. 52.00
Radius 83.50
D+ Size M5
Radius 2 82.50
Regulator type IR
Rotation CW
Servicing Fiat
Grooves/pulley 6
Voltage 14
Total length 190.00 mm
Width/holder arm 27.00
Amp 80

  • OEM
    a13vi72, F032112681, 1039ir, 1986A00814, 1986A01181, 1516403R, 2541678, 2541678B, 2541678C, 46231787, 98490185

  • Konkurrentreferens
    A3019, A3019PR, A3019SR, ALT-7016, ALT14022, BAO3265, CAL15117, dra3423, F032UA0040, F042A0B021, F042A0H244, lrb00297, MAR5043, NA468, QA2232, va307, 8EL011710-041, 8el732711-001, 28-2621, 218.145.802, 4622, 5013, 21297N, 56409, 57054c, 118972, 200136, 210011, 210011A, 301039RI, 436635, 439064, 746067, 746867, 839006, 9041381, 9213669, 12041380, 32041381, 35215340, 063388505, 943356329, 0986041381, 063388505010, 943356329010, 944390413810

  • NormaliseratArtNr
    a13vi72, a3019, a3019pr, a3019sr, alt14022, alt7016, bao3265, cal15117, dra3423, f032112681, f032ua0040, f042a0b021, f042a0h244, lrb00297, mar5043, na468, qa2232, va307, 8el011710041, 8el732711001, 1039ir, 1986a00814, 1986a01181, 4622, 5013, 21297n, 56409, 57054c, 118972, 200136, 210011, 210011a, 282621, 301039ri, 436635, 439064, 746067, 746867, 839006, 1516403r, 2541678, 2541678b, 2541678c, 9041381, 9213669, 12041380, 32041381, 35215340, 46231787, 063388505, 98490185, 218145802, 943356329, 0986041381, 063388505010, 943356329010, 944390413810

  • Passar modeller
    Citroen Model: Jumper Model series: Jumper Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.63 (F28D) Type description: 230L Body: Van From date: 01-01-1999 To date: 01-02-2002 Fuel: Diesel Approved: Yes
    Citroen Model: Jumper Model series: Jumper Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.63 From date: 01-01-1999 Fuel: Diesel Approved: Yes
    Citroen Model: Jumper Model series: Jumper Type of engine: TD Size of motor: 2.8 Brand of engine: 8140.43 From date: 01-10-1999 Fuel: Diesel Approved: Yes
    Fiat Model: Croma Model series: Croma Type of engine: 16V Size of motor: 2.0 Brand of engine: 154E1.000 Body: Hatchback From date: 01-08-1992 To date: 01-08-1996 Fuel: Gasoline Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230 Body: Platform / Chassis From date: 01-05-1998 To date: 01-09-2001 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.67 Type description: 230 Body: Platform / Chassis From date: 01-03-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.67 Type description: 230L Body: Van From date: 01-03-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.63 Type description: 230L Body: Van From date: 01-08-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.47 Type description: 230 Body: Bus From date: 01-11-1994 To date: 01-04-1998 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.47 Type description: 230 Body: Platform / Chassis From date: 01-11-1994 To date: 01-04-1998 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.47 Type description: 230L Body: Van From date: 01-11-1994 To date: 01-04-1998 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TD Size of motor: 2.8 Brand of engine: 8140.63 Type description: 230 Body: Platform / Chassis From date: 01-05-1998 To date: 01-11-2001 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TDi Size of motor: 2.5 Brand of engine: 8140.47 Type description: 230 Body: Bus From date: 01-04-1997 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TDi Size of motor: 2.5 Brand of engine: 8140.47 Type description: 230 Body: Platform / Chassis From date: 01-06-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TDi Size of motor: 2.5 Brand of engine: 8140.47 Type description: 230L Body: Van From date: 01-05-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TDi Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230 Body: Bus From date: 01-07-1999 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TDi Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230L Body: Van From date: 01-06-1999 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: Maxi Type of engine: TDi Size of motor: 2.5 Brand of engine: 8140.47 Type description: 230 Body: Van From date: 01-03-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.67 Body: Platform / Chassis From date: 01-03-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.67 Type description: 230 Body: Bus From date: 01-08-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.67 Type description: 230 Body: Van From date: 01-03-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.63 Body: Bus From date: 01-02-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.63 Body: Platform / Chassis From date: 01-02-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.63 Body: Van From date: 01-05-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.47 Type description: 230 Body: Platform / Chassis From date: 01-06-1994 To date: 01-08-1998 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.47 Type description: 230L Body: Van From date: 01-06-1994 To date: 01-08-1998 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: TDi Size of motor: 2.5 Brand of engine: 8140.47 Type description: 230 Body: Bus From date: 01-03-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: TDi Size of motor: 2.5 Brand of engine: 8140.47R Type description: 230 Body: Bus From date: 01-07-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: TDi Size of motor: 2.5 Brand of engine: 8140.47R Type description: 230 Body: Platform / Chassis From date: 01-03-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: TDi Size of motor: 2.5 Brand of engine: 8140.47R Type description: 230 Body: Van From date: 01-03-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: TDi Size of motor: 2.8 Brand of engine: 8140.43 Body: Platform / Chassis From date: 01-12-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: TDi Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230 Body: Bus From date: 01-10-1997 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: TDi Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230 Body: Van From date: 01-10-1997 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    1 / 7
  • Beskrivelse
    Spændings: 14
    Amp: 80
    Remskive dist.: 52.00
    Bredde/holderarm: 27.00
    Monteringsbeslag dist.: 69.00
    Beslagshul: 10.50
    Bælte justering beslags hul pos.: 60
    Bælte justering beslags hul 1: 8.00
    Bælte justering beslags hul 2: 10.00
    Remskive dia.: 52.00
    Riller/remskive: 6
    Radius: 83.50
    Radius 2: 82.50
    B+: M8
    Pos. / B+ i min.: 45
    D+ Størrelse: M5
    Rotation: med uret
    Total længde mm: 190.00
    Remskive: SP
    Spændingsregulator type: IR
    Produktinfo: BN
    Service: Fiat

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 69.00
    Belt. adj. bracket hole 1 8.00
    Belt. adj. bracket hole 2 10.00
    Belt. adj. brackethole pos. 60
    Bracket hole 10.50
    Position/B+ in min. 45
    Prod. info BN
    Pulley SP
    Pulley dia. 52.00
    Pulley dist. 52.00
    Radius 83.50
    D+ Size M5
    Radius 2 82.50
    Regulator type IR
    Rotation CW
    Servicing Fiat
    Grooves/pulley 6
    Voltage 14
    Total length 190.00 mm
    Width/holder arm 27.00
    Amp 80
  • Køretøjsmatchning

    • OEM
      a13vi72, F032112681, 1039ir, 1986A00814, 1986A01181, 1516403R, 2541678, 2541678B, 2541678C, 46231787, 98490185

    • Konkurrentreferens
      A3019, A3019PR, A3019SR, ALT-7016, ALT14022, BAO3265, CAL15117, dra3423, F032UA0040, F042A0B021, F042A0H244, lrb00297, MAR5043, NA468, QA2232, va307, 8EL011710-041, 8el732711-001, 28-2621, 218.145.802, 4622, 5013, 21297N, 56409, 57054c, 118972, 200136, 210011, 210011A, 301039RI, 436635, 439064, 746067, 746867, 839006, 9041381, 9213669, 12041380, 32041381, 35215340, 063388505, 943356329, 0986041381, 063388505010, 943356329010, 944390413810

    • NormaliseratArtNr
      a13vi72, a3019, a3019pr, a3019sr, alt14022, alt7016, bao3265, cal15117, dra3423, f032112681, f032ua0040, f042a0b021, f042a0h244, lrb00297, mar5043, na468, qa2232, va307, 8el011710041, 8el732711001, 1039ir, 1986a00814, 1986a01181, 4622, 5013, 21297n, 56409, 57054c, 118972, 200136, 210011, 210011a, 282621, 301039ri, 436635, 439064, 746067, 746867, 839006, 1516403r, 2541678, 2541678b, 2541678c, 9041381, 9213669, 12041380, 32041381, 35215340, 46231787, 063388505, 98490185, 218145802, 943356329, 0986041381, 063388505010, 943356329010, 944390413810

    • Passar modeller
      Citroen Model: Jumper Model series: Jumper Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.63 (F28D) Type description: 230L Body: Van From date: 01-01-1999 To date: 01-02-2002 Fuel: Diesel Approved: Yes
      Citroen Model: Jumper Model series: Jumper Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.63 From date: 01-01-1999 Fuel: Diesel Approved: Yes
      Citroen Model: Jumper Model series: Jumper Type of engine: TD Size of motor: 2.8 Brand of engine: 8140.43 From date: 01-10-1999 Fuel: Diesel Approved: Yes
      Fiat Model: Croma Model series: Croma Type of engine: 16V Size of motor: 2.0 Brand of engine: 154E1.000 Body: Hatchback From date: 01-08-1992 To date: 01-08-1996 Fuel: Gasoline Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230 Body: Platform / Chassis From date: 01-05-1998 To date: 01-09-2001 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.67 Type description: 230 Body: Platform / Chassis From date: 01-03-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.67 Type description: 230L Body: Van From date: 01-03-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.63 Type description: 230L Body: Van From date: 01-08-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.47 Type description: 230 Body: Bus From date: 01-11-1994 To date: 01-04-1998 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.47 Type description: 230 Body: Platform / Chassis From date: 01-11-1994 To date: 01-04-1998 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.47 Type description: 230L Body: Van From date: 01-11-1994 To date: 01-04-1998 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TD Size of motor: 2.8 Brand of engine: 8140.63 Type description: 230 Body: Platform / Chassis From date: 01-05-1998 To date: 01-11-2001 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TDi Size of motor: 2.5 Brand of engine: 8140.47 Type description: 230 Body: Bus From date: 01-04-1997 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TDi Size of motor: 2.5 Brand of engine: 8140.47 Type description: 230 Body: Platform / Chassis From date: 01-06-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TDi Size of motor: 2.5 Brand of engine: 8140.47 Type description: 230L Body: Van From date: 01-05-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TDi Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230 Body: Bus From date: 01-07-1999 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TDi Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230L Body: Van From date: 01-06-1999 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: Maxi Type of engine: TDi Size of motor: 2.5 Brand of engine: 8140.47 Type description: 230 Body: Van From date: 01-03-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.67 Body: Platform / Chassis From date: 01-03-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.67 Type description: 230 Body: Bus From date: 01-08-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.67 Type description: 230 Body: Van From date: 01-03-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.63 Body: Bus From date: 01-02-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.63 Body: Platform / Chassis From date: 01-02-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.63 Body: Van From date: 01-05-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.47 Type description: 230 Body: Platform / Chassis From date: 01-06-1994 To date: 01-08-1998 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.47 Type description: 230L Body: Van From date: 01-06-1994 To date: 01-08-1998 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: TDi Size of motor: 2.5 Brand of engine: 8140.47 Type description: 230 Body: Bus From date: 01-03-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: TDi Size of motor: 2.5 Brand of engine: 8140.47R Type description: 230 Body: Bus From date: 01-07-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: TDi Size of motor: 2.5 Brand of engine: 8140.47R Type description: 230 Body: Platform / Chassis From date: 01-03-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: TDi Size of motor: 2.5 Brand of engine: 8140.47R Type description: 230 Body: Van From date: 01-03-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: TDi Size of motor: 2.8 Brand of engine: 8140.43 Body: Platform / Chassis From date: 01-12-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: TDi Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230 Body: Bus From date: 01-10-1997 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: TDi Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230 Body: Van From date: 01-10-1997 To date: 01-04-2002 Fuel: Diesel Approved: Yes
