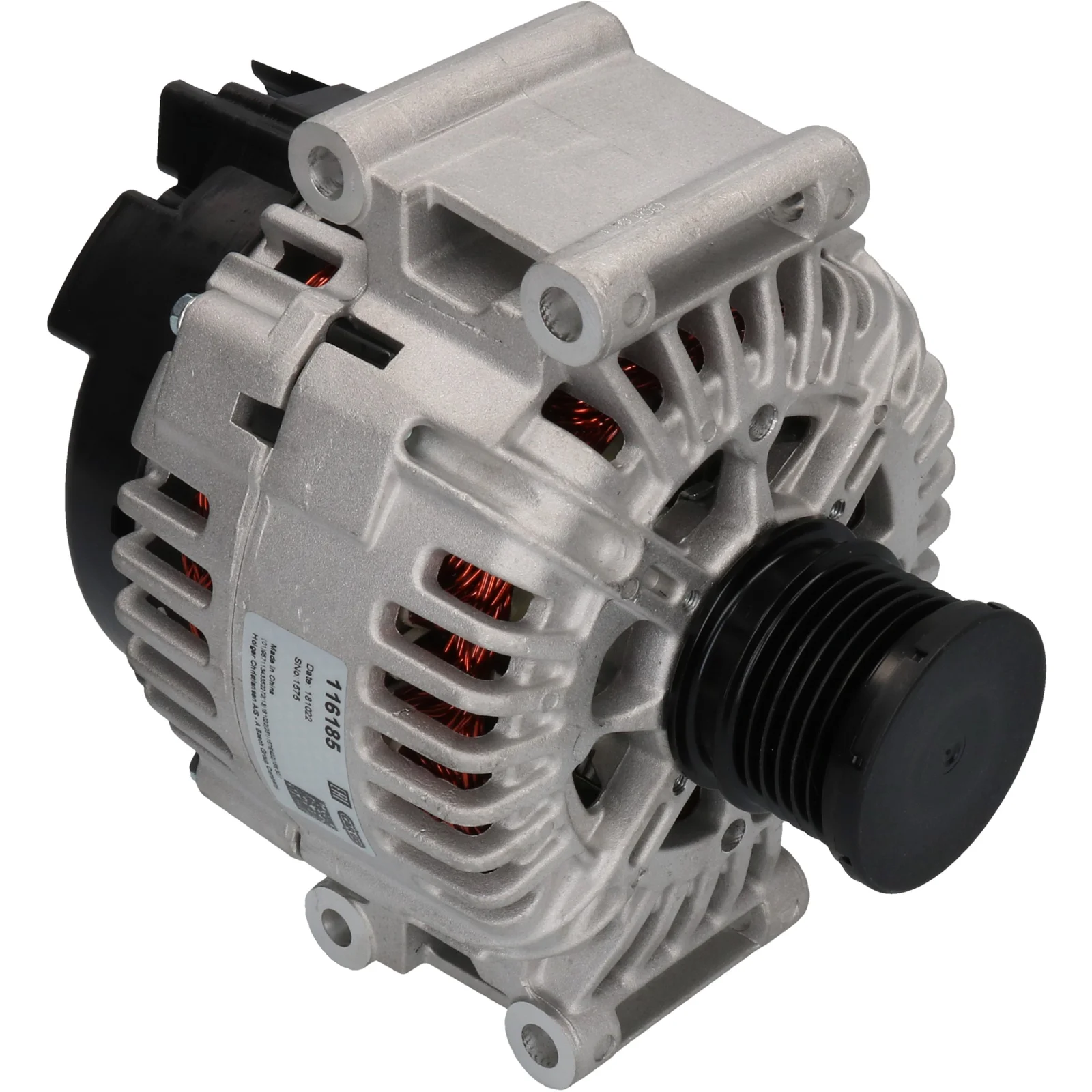

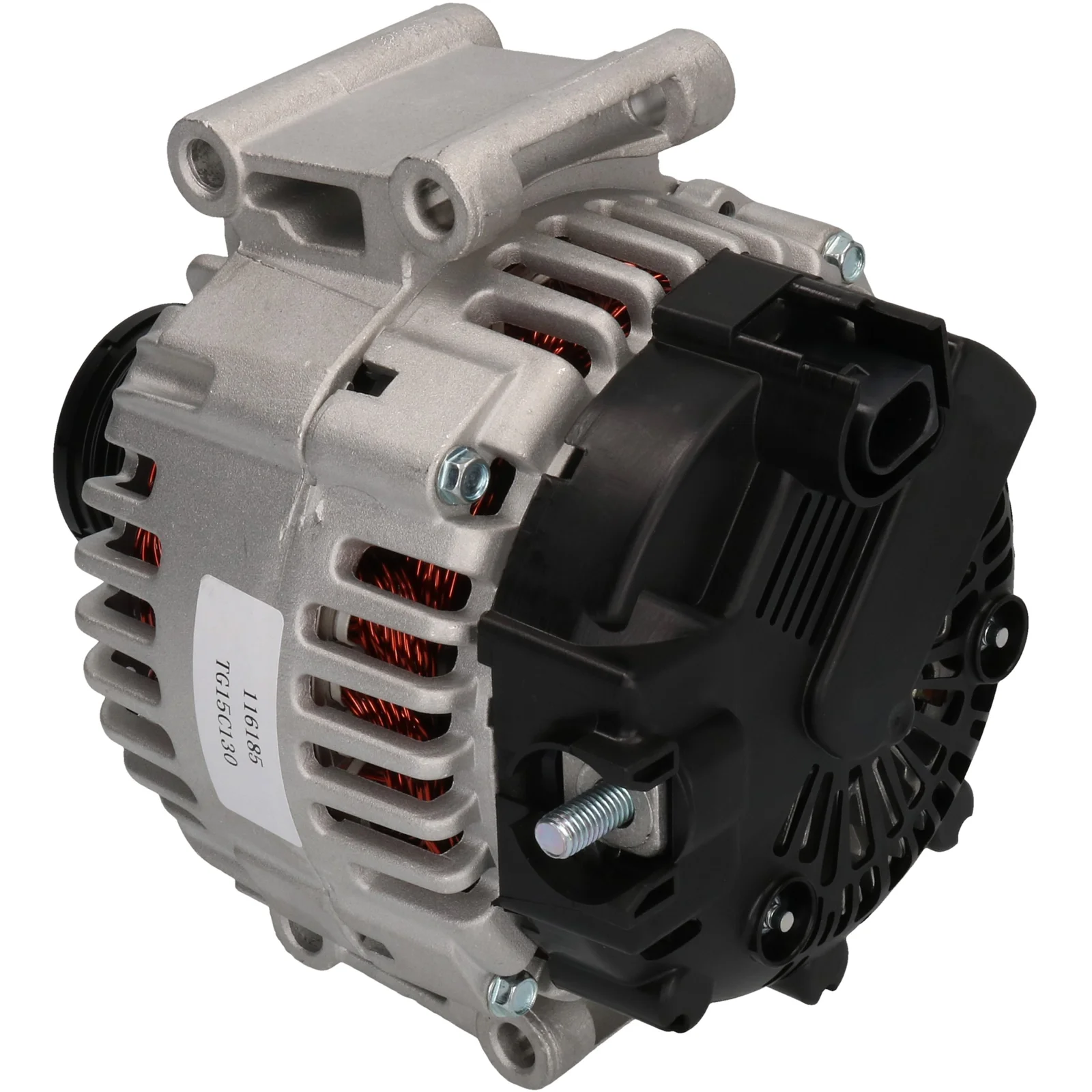

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116185

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Afløb: 150, Rotation: CW, Monteringsbeslag Fordelerdæksel: 56.30

Beskrivelse

Mercedes Generator 12V-150A 12V - 150A, 6gr.frg, (LIN2, - ) For Yourex produkt bestilling 90-365-5130

Spenning: 14
Amp.: 150
Remskive dist.: 31.00
Bredde/holder arm: 70.00
Monteringsbeslag dist.: 56.30
Beslagshul: 9.50
Bæltejustering beslag hul 1: 9.50
Bæltejustering beslag hul 2: 9.50
Remskive dia.: 50.00
Riller/remskive: 6
Radius: 81.50
Radius 2: 81.50
B+: M8
Rotation: CW
Stik nr.: PL181
Samlet længde mm: 190.00
Terminaltype: COM
Kommunikation: LIN
Remskive: SP/FW
Regulator type: IR
Bemærkninger: Denne Generator har en COM terminal på regulatoren. Det anbefales, at OEM-nummeret bruges til at kontrollere egnethed, inden der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 56.30
Belt. adj. bracket hole 1 9.50
Belt. adj. bracket hole 2 9.50
Plug no. PL181
Bracket hole 9.50
Pulley SP/FW
Pulley dia. 50.00
Pulley dist. 31.00
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 190.00 mm
Width/holder arm 70.00
Amp 150

  • OEM
    A014 1541102, a0141541102, F032116185, TG15C 130, TG15C130, 1986A01647, 116185, 439671, 440257, 2605299, 2605299A, 0141541102

  • Konkurrentreferens
    A3279, CAL15407, DRA1059, 28-6538, 225.198.1502, 555.578.150, 20294N, 20294N-OE, 200222, 209231, 209231A, 439671, 440257, 553744RI, 9090793, 12090442, 32002314, 0986084010

  • Bilmärken
    Mercedes Benz

  • NormaliseratArtNr
    a0141541102, a3279, cal15407, dra1059, f032116185, tg15c130, 1986a01647, 20294n, 20294noe, 116185, 200222, 209231, 209231a, 286538, 439671, 440257, 553744ri, 2605299, 2605299a, 9090793, 12090442, 32002314, 0141541102, 555578150, 0986084010, 2251981502

  • Passar modeller
    Mercedes Benz Series: C (S204) Model: 200 T CDI Engine volume: 2.1 Engine type: OM 651.913 Year: 08.10-
    Mercedes Benz Series: C (S204) Model: 220 T CDI Engine volume: 2.1 Engine type: OM 651.911 Year: 10.09-
    Mercedes Benz Series: C (S204) Model: 250 T CDI Engine volume: 2.1 Engine type: OM 651.911 Year: 10.09-
    Mercedes Benz Series: C (W204) Model: 220 CDI Engine volume: 2.1 Engine type: OM 651.911 Year: 04.09-02.11
    Mercedes Benz Series: C (W204) Model: 250 CDI Engine volume: 2.1 Engine type: OM 651.911 Year: 08.08-
    Mercedes Benz Series: E (A207) Cabrio Model: 220 CDI Engine volume: 2.1 Engine type: OM 651.911 Year: 01.10-
    Mercedes Benz Series: E (A207) Cabrio Model: 250 CDI Engine volume: 2.1 Engine type: OM 651.911 Year: 01.10-
    Mercedes Benz Series: E (C207) Coupé Model: 220 CDI Engine volume: 2.1 Engine type: OM 651.911 Year: 01.10-
    Mercedes Benz Series: E (C207) Coupé Model: 250 CDI Engine volume: 2.1 Engine type: OM 651.911 Year: 01.09-
    Mercedes-Benz Model: 180 Model series: C 180 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.913 Type description: W204 From date: 01-01-2011 To date: 01-01-2014 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 180 Model series: C 180 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM651.913 Type description: S204 Body: Estate From date: 01-01-2011 To date: 01-08-2014 Fuel: Diesel Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 200 Model series: C 200 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.913 Type description: S204 Body: Estate From date: 01-08-2010 To date: 01-08-2014 Fuel: Diesel Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 200 Model series: C 200 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.913 Type description: W204 From date: 01-01-2011 To date: 01-01-2014 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM651.925 Type description: W212 From date: 01-01-2009 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: C 220 Model type: T-Model Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.911 Type description: S204 Body: Estate From date: 01-12-2008 To date: 01-08-2014 Fuel: Diesel Approved: Yes Manufacture type: T-MODEL
    Mercedes-Benz Model: 220 Model series: C 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.911 Type description: C204 Body: Coupe From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: C 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.911 Type description: W204 From date: 01-12-2008 To date: 01-01-2014 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: C 220 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM651.911 Type description: S204 Body: Estate From date: 01-01-2009 To date: 01-08-2014 Fuel: Diesel Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.911 Type description: A207 Body: Convertible From date: 01-01-2010 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.911 Type description: C207 Body: Coupe From date: 01-01-2010 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.924 Type description: S212 Body: Estate From date: 01-08-2009 To date: 01-08-2014 Fuel: Diesel Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.924 Type description: W212 From date: 01-01-2009 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM651.924 Type description: S212 Body: Estate From date: 01-11-2009 To date: 01-12-2016 Fuel: Diesel Approved: Yes Manufacture type: T-model
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM651.925 Type description: S212 Body: Estate From date: 01-11-2009 To date: 01-12-2016 Fuel: Diesel Approved: Yes Manufacture type: T-model
    Mercedes-Benz Model: 250 Model series: C 250 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.911 Type description: C204 Body: Coupe From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 250 Model series: C 250 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.911 Type description: W204 From date: 01-08-2008 To date: 01-01-2014 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 250 Model series: E 250 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.911 Type description: A207 Body: Convertible From date: 01-01-2010 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 250 Model series: E 250 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.911 Type description: C207 Body: Coupe From date: 01-01-2009 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 250 Model series: E 250 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM651.924 Type description: S212 Body: Estate From date: 01-11-2009 To date: 01-12-2016 Fuel: Diesel Approved: Yes Manufacture type: T-model
    1 / 6
  • Beskrivelse
    Mercedes Generator 12V-150A 12V - 150A, 6gr.frg, (LIN2, - ) For Yourex produkt bestilling 90-365-5130

    Spenning: 14
    Amp.: 150
    Remskive dist.: 31.00
    Bredde/holder arm: 70.00
    Monteringsbeslag dist.: 56.30
    Beslagshul: 9.50
    Bæltejustering beslag hul 1: 9.50
    Bæltejustering beslag hul 2: 9.50
    Remskive dia.: 50.00
    Riller/remskive: 6
    Radius: 81.50
    Radius 2: 81.50
    B+: M8
    Rotation: CW
    Stik nr.: PL181
    Samlet længde mm: 190.00
    Terminaltype: COM
    Kommunikation: LIN
    Remskive: SP/FW
    Regulator type: IR
    Bemærkninger: Denne Generator har en COM terminal på regulatoren. Det anbefales, at OEM-nummeret bruges til at kontrollere egnethed, inden der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.30
    Belt. adj. bracket hole 1 9.50
    Belt. adj. bracket hole 2 9.50
    Plug no. PL181
    Bracket hole 9.50
    Pulley SP/FW
    Pulley dia. 50.00
    Pulley dist. 31.00
    Radius 81.50
    Radius 2 81.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 190.00 mm
    Width/holder arm 70.00
    Amp 150
  • Køretøjsmatchning

    • OEM
      A014 1541102, a0141541102, F032116185, TG15C 130, TG15C130, 1986A01647, 116185, 439671, 440257, 2605299, 2605299A, 0141541102

    • Konkurrentreferens
      A3279, CAL15407, DRA1059, 28-6538, 225.198.1502, 555.578.150, 20294N, 20294N-OE, 200222, 209231, 209231A, 439671, 440257, 553744RI, 9090793, 12090442, 32002314, 0986084010

    • Bilmärken
      Mercedes Benz

    • NormaliseratArtNr
      a0141541102, a3279, cal15407, dra1059, f032116185, tg15c130, 1986a01647, 20294n, 20294noe, 116185, 200222, 209231, 209231a, 286538, 439671, 440257, 553744ri, 2605299, 2605299a, 9090793, 12090442, 32002314, 0141541102, 555578150, 0986084010, 2251981502

    • Passar modeller
      Mercedes Benz Series: C (S204) Model: 200 T CDI Engine volume: 2.1 Engine type: OM 651.913 Year: 08.10-
      Mercedes Benz Series: C (S204) Model: 220 T CDI Engine volume: 2.1 Engine type: OM 651.911 Year: 10.09-
      Mercedes Benz Series: C (S204) Model: 250 T CDI Engine volume: 2.1 Engine type: OM 651.911 Year: 10.09-
      Mercedes Benz Series: C (W204) Model: 220 CDI Engine volume: 2.1 Engine type: OM 651.911 Year: 04.09-02.11
      Mercedes Benz Series: C (W204) Model: 250 CDI Engine volume: 2.1 Engine type: OM 651.911 Year: 08.08-
      Mercedes Benz Series: E (A207) Cabrio Model: 220 CDI Engine volume: 2.1 Engine type: OM 651.911 Year: 01.10-
      Mercedes Benz Series: E (A207) Cabrio Model: 250 CDI Engine volume: 2.1 Engine type: OM 651.911 Year: 01.10-
      Mercedes Benz Series: E (C207) Coupé Model: 220 CDI Engine volume: 2.1 Engine type: OM 651.911 Year: 01.10-
      Mercedes Benz Series: E (C207) Coupé Model: 250 CDI Engine volume: 2.1 Engine type: OM 651.911 Year: 01.09-
      Mercedes-Benz Model: 180 Model series: C 180 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.913 Type description: W204 From date: 01-01-2011 To date: 01-01-2014 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 180 Model series: C 180 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM651.913 Type description: S204 Body: Estate From date: 01-01-2011 To date: 01-08-2014 Fuel: Diesel Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 200 Model series: C 200 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.913 Type description: S204 Body: Estate From date: 01-08-2010 To date: 01-08-2014 Fuel: Diesel Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 200 Model series: C 200 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.913 Type description: W204 From date: 01-01-2011 To date: 01-01-2014 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 200 Model series: E 200 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM651.925 Type description: W212 From date: 01-01-2009 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: C 220 Model type: T-Model Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.911 Type description: S204 Body: Estate From date: 01-12-2008 To date: 01-08-2014 Fuel: Diesel Approved: Yes Manufacture type: T-MODEL
      Mercedes-Benz Model: 220 Model series: C 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.911 Type description: C204 Body: Coupe From date: 01-06-2011 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: C 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.911 Type description: W204 From date: 01-12-2008 To date: 01-01-2014 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: C 220 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM651.911 Type description: S204 Body: Estate From date: 01-01-2009 To date: 01-08-2014 Fuel: Diesel Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.911 Type description: A207 Body: Convertible From date: 01-01-2010 To date: 01-12-2016 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.911 Type description: C207 Body: Coupe From date: 01-01-2010 To date: 01-12-2016 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.924 Type description: S212 Body: Estate From date: 01-08-2009 To date: 01-08-2014 Fuel: Diesel Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.924 Type description: W212 From date: 01-01-2009 To date: 01-12-2016 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM651.924 Type description: S212 Body: Estate From date: 01-11-2009 To date: 01-12-2016 Fuel: Diesel Approved: Yes Manufacture type: T-model
      Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM651.925 Type description: S212 Body: Estate From date: 01-11-2009 To date: 01-12-2016 Fuel: Diesel Approved: Yes Manufacture type: T-model
      Mercedes-Benz Model: 250 Model series: C 250 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.911 Type description: C204 Body: Coupe From date: 01-06-2011 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 250 Model series: C 250 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.911 Type description: W204 From date: 01-08-2008 To date: 01-01-2014 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 250 Model series: E 250 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.911 Type description: A207 Body: Convertible From date: 01-01-2010 To date: 01-12-2016 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 250 Model series: E 250 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.911 Type description: C207 Body: Coupe From date: 01-01-2009 To date: 01-12-2016 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 250 Model series: E 250 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM651.924 Type description: S212 Body: Estate From date: 01-11-2009 To date: 01-12-2016 Fuel: Diesel Approved: Yes Manufacture type: T-model
