HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114666

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 180, Rotation: med uret, Monteringsbue skille: 56,00

Beskrivelse

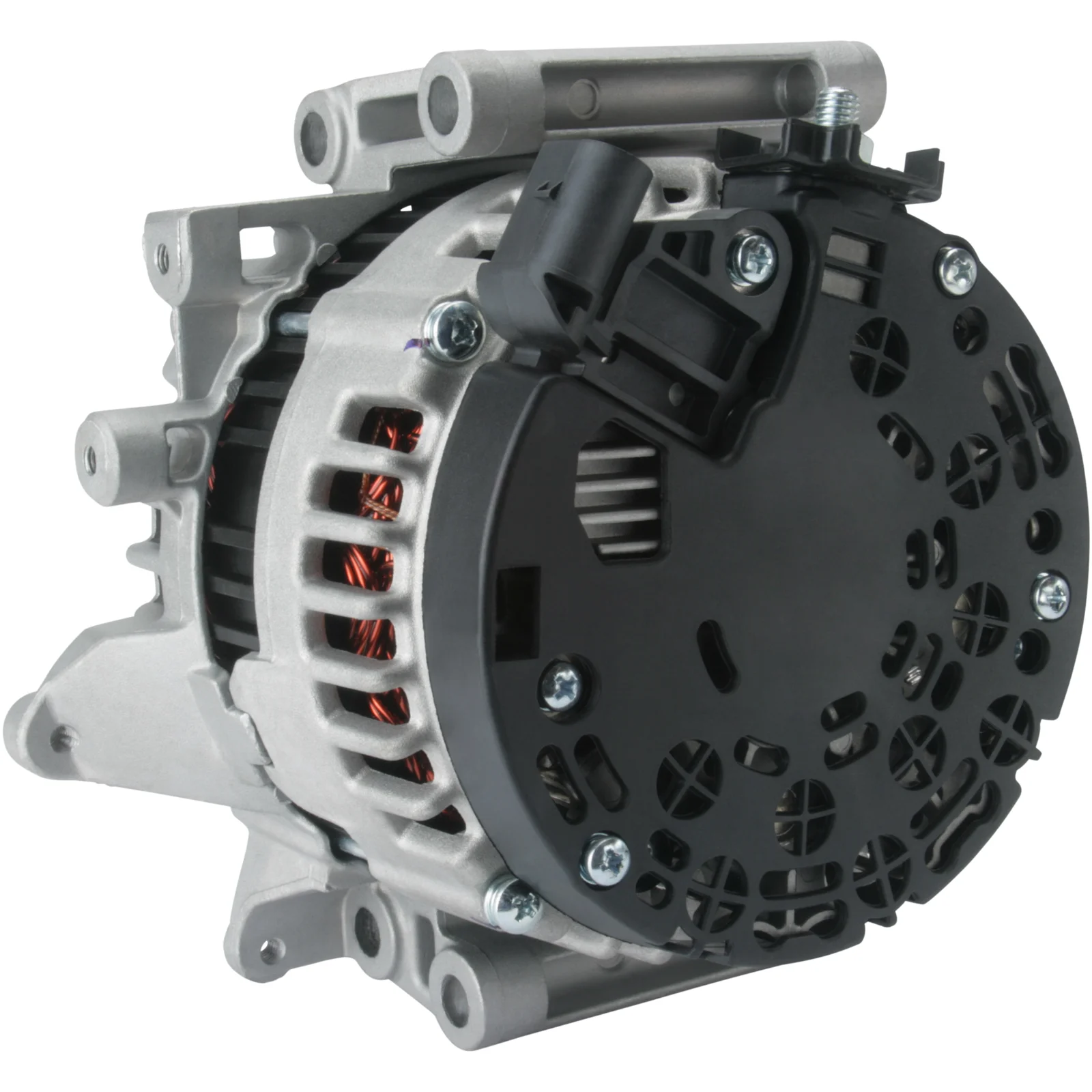

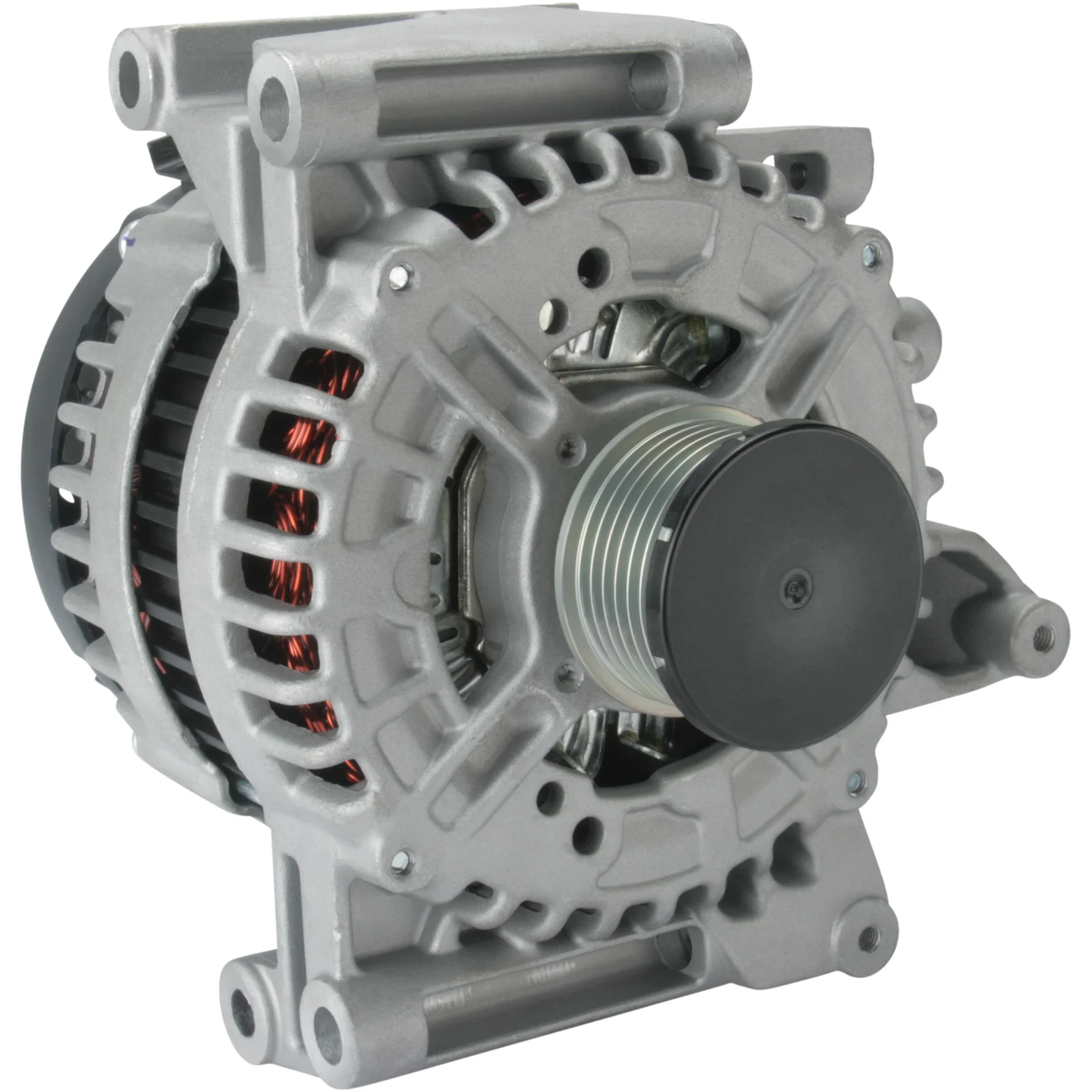

Mercedes Generator 12V-180A 12V - 180A, frg 6gr Ø 50mm. (LIN) For Yourex produktordre 90-365-4845

Voltage: 14
Ampere: 180
Skive afstand: 31,00
Bredde/holder arm: 93,50
Montagebeslag afstand: 56,00
Beslaghul: 8,00
Beslaghul 2: 8,50
Bæltespændingsjusteringsbeslag hul 1: 8,00
Bæltespændingsjusteringsbeslag hul 2: 8,50
Skivediameter: 50,00
Riller/skive: 6
Radius: 81,50
Radius 2: 81,50
B+: M8
Position/B+ i min.: 31
Rotation: CW
Stik nr.: PL86
Terminaltype: COM
Kommunikation: LIN
Skive: SP/FW
Blæser: IF
Regulator type: IR
Produktinfo: BN
Bemærkninger: Denne generator har en COM terminal på regulatoren. Det anbefales at anvende OEM-nummeret for at kontrollere egnethed inden bestilling.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 8.00
Belt. adj. bracket hole 2 8.50
Plug no. PL86
Bracket hole 8.00
Bracket hole 2 8.50
Position/B+ in min. 31
Prod. info BN
Pulley SP/FW
Pulley dia. 50.00
Pulley dist. 31.00
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Width/holder arm 93.50
Amp 180

  • OEM
    A0131549002, A013154900280, A0131549302, F032114666, 013 154 9002, 0121 715 029, 0121 715 129, 0986 048 450, 2032ir, 114666, 0121715029, 0121715129, 0131549002, 0131549302, 013154900280

  • Konkurrentreferens
    A0577S, CAL10362, DRA0546, 8EL012430-831, 8EL738212-651, 28-6554, 225.190.1802, 555.585.180, 4829, 20036N, 112887, 209037, 209037A, 444302, 12090308, 0986048450, 0986048453

  • Bilmärken
    Mercedes Benz

  • NormaliseratArtNr
    a0131549002, a013154900280, a0131549302, a0577s, cal10362, dra0546, f032114666, 8el012430831, 8el738212651, 2032ir, 4829, 20036n, 112887, 114666, 209037, 209037a, 286554, 444302, 12090308, 0121715029, 0121715129, 0131549002, 0131549302, 555585180, 0986048450, 0986048453, 2251901802, 013154900280

  • Passar modeller
    Mercedes Benz Series: C (W204) Model: 200 CDI Engine volume: 2.1 Engine type: OM 646.811/812 Year: 01.07-12.10
    Mercedes Benz Series: C (W204) Model: 200 CDI T Engine volume: 2.2 Engine type: OM 646.811 Year: 08.07-
    Mercedes Benz Series: C (W204) Model: 220 CDI Engine volume: 2.1 Engine type: OM 646.811 Year: 01.07-
    Mercedes Benz Series: C (W204) Model: 220 CDI T Engine volume: 2.2 Engine type: OM 646.811 Year: 08.07-
    Mercedes Benz Series: E (W211) Model: 200 CDI Engine volume: 2.1 Engine type: OM 646.820 Year: 04.06-12.08
    Mercedes Benz Series: E (W211) Model: 220 CDI Engine volume: 2.1 Engine type: OM 646.821 Year: 04.06-12.08
    Mercedes Benz Series: E (W211) Model: 220 T CDI Engine volume: 2.2 Engine type: OM 646.821 Year: 04.06-07.09
    Mercedes-Benz Model: 200 Model series: C 200 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.811 Type description: 204 From date: 01-01-2007 To date: 01-12-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 200 Model series: C 200 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.811 Type description: S204 Body: Estate From date: 01-08-2007 To date: 01-12-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 200 Model series: C 200 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.812 Type description: 204 From date: 01-01-2007 To date: 01-12-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Model type: T-Model Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.821 Type description: S211 Body: Estate From date: 01-04-2006 To date: 01-07-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.820 Type description: 211 From date: 01-04-2006 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: C 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.811 Type description: 204 From date: 01-01-2007 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: C 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.811 Type description: S204 Body: Estate From date: 01-08-2007 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: C 220 Type of engine: CDI Size of motor: 2.1 Brand of engine: OM646.811 Type description: S204 Body: Estate From date: 01-08-2007 To date: 01-11-2008 Fuel: Diesel Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 220 Model series: C 220 Type of engine: CDI Size of motor: 2.1 Brand of engine: OM646.811 Type description: W204 From date: 01-01-2007 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: C 220 Type of engine: CDI Size of motor: 2.1 Brand of engine: OM651.911 Type description: S204 Body: Estate From date: 01-12-2008 To date: 01-08-2014 Fuel: Diesel Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.821 Type description: 211 Body: Estate From date: 01-04-2006 To date: 01-07-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.821 Type description: 211 From date: 01-04-2006 To date: 01-12-2008 Fuel: Diesel Approved: Yes
