HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032113883

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 90, Rotation: CW, Monteringsbeslag forfordeling: 74,00

Beskrivelse

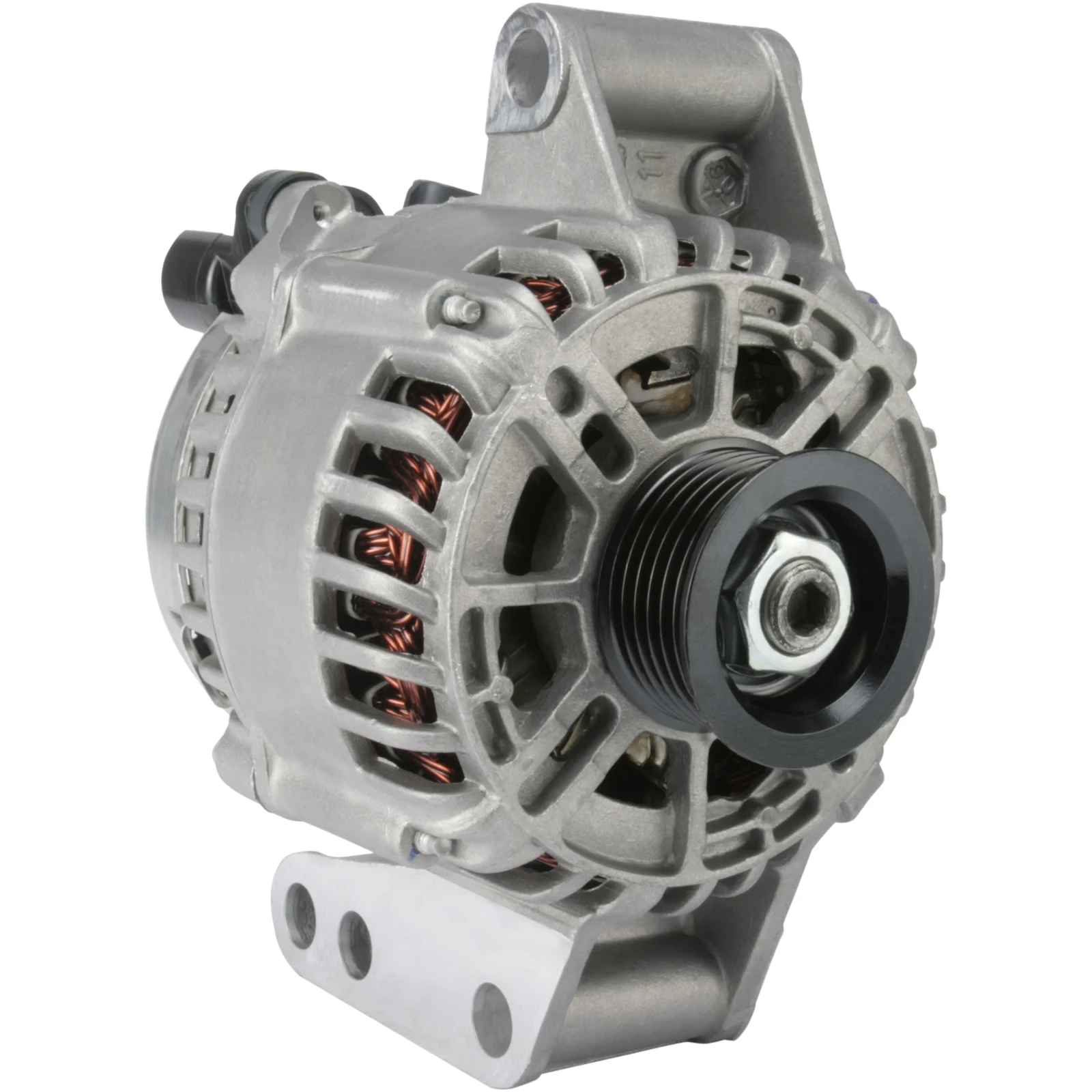

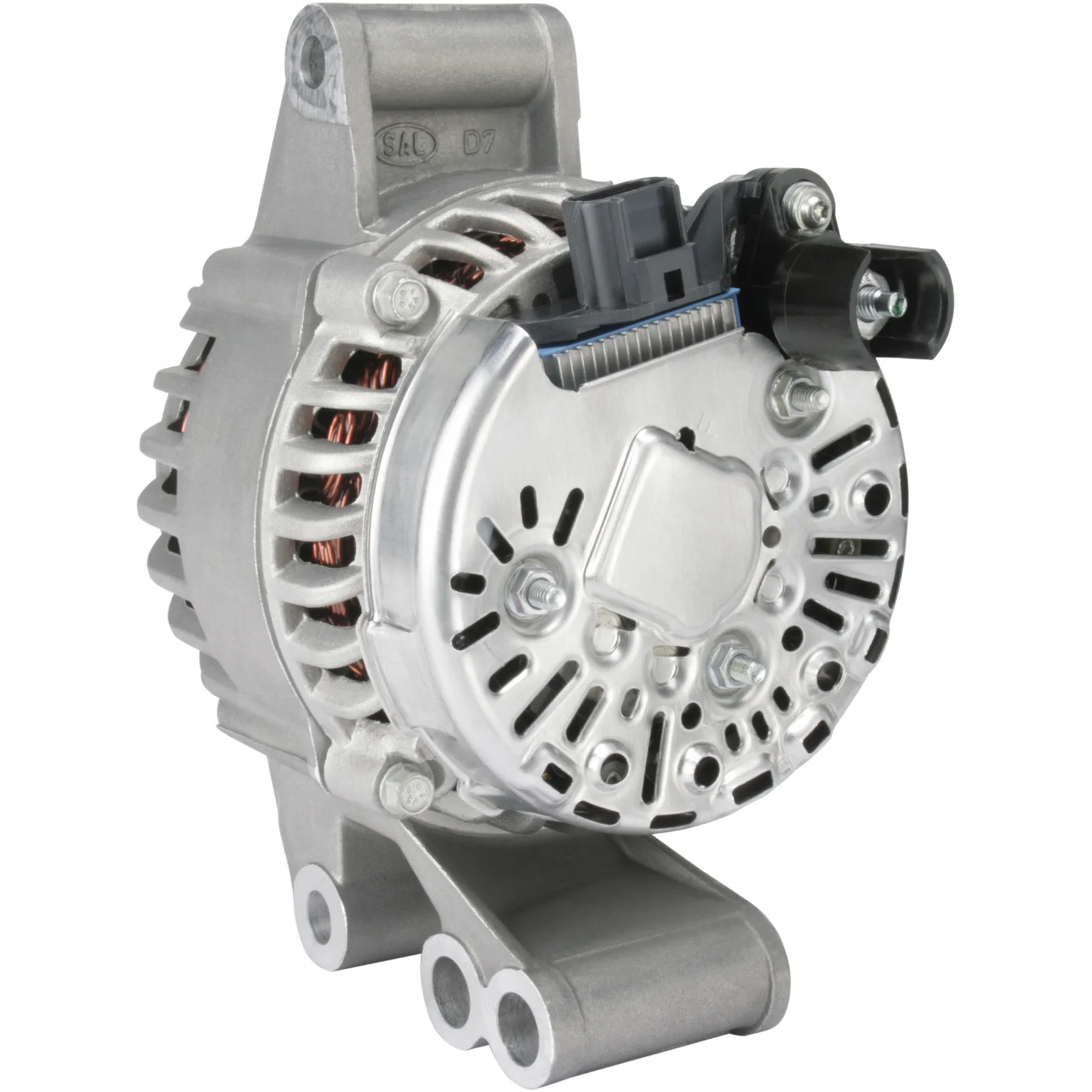

Ford Fiesta Generator 12V-90A 12V - 90A, 6 riller, (FR, SIG, A) For Yourex produkt bestilling 90-180-2060

Spænding: 14
Ampere: 90
Remskive diameter: 39,60
Bredde/holderarm: 54,80
Monteringsbeslag afstand: 74,00
Beslaghul: 12,00
Beslaghul 2: 10,20
Bæltejusteringsbeslag hul position: 60
Bæltejusteringsbeslag hul position 2: 5
Bæltejusteringsbeslag hul 1: 12,00
Bæltejusteringsbeslag hul 2: 10,20
Remskive diameter: 48,50
Riller/remskive: 6
Radius: 87,50
Radius 2: 90,00
B+: M6
Position/B+ i min.: 8
D+: Størrelse: Proppe
Rotation: CW
Propst no.: PL57
Total længde mm: 165,50
Remskive: SP
Regulator type: IR
Produkt info: BN
Service: Ford

Filer

Specifikation

B+ M6
Mount. bracket dist. 74.00
Belt. adj. bracket hole 1 12.00
Belt. adj. bracket hole 2 10.20
Belt. adj. brackethole pos. 60
Belt. adj. brackethole pos. 2 5
Plug no. PL57
Bracket hole 12.00
Bracket hole 2 10.20
Position/B+ in min. 8
Prod. info BN
Pulley SP
Pulley dia. 48.50
Pulley dist. 39.60
Radius 87.50
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Servicing Ford
Grooves/pulley 6
Voltage 14
Total length 165.50 mm
Width/holder arm 54.80
Amp 90

  • OEM
    F032113883, FO 1145715, FO 1464755, 2S6T-10300FA, 2S6T-10300FB, 2S6T10300FA, 2S6T10300FB, 2s6t10300fc, 2S6TFA, 2S6TFB, 20-150-01001, 1986A01121, 2034ir, 113883, 1145715, 1464755, 1479818, 1763861

  • Konkurrentreferens
    ALT-H169, CAL15284, DRA0177, DRA0177N, F042A0H169, LRA02348, 8EL012428-851, 8EL738212-311, 27-5651, 8527N, 112159, 200086, 210359, 210359A, 301758RI, 302034RI, 440566, 746098, 746898, 839026, 32000903, 063380001, 0986049980, 063380001010, 944390903810

  • Bilmärken
    Ford EU

  • NormaliseratArtNr
    alth169, cal15284, dra0177, dra0177n, f032113883, f042a0h169, fo1145715, fo1464755, lra02348, 2s6t10300fa, 2s6t10300fb, 2s6t10300fc, 2s6tfa, 2s6tfb, 8el012428851, 8el738212311, 1986a01121, 2034ir, 8527n, 112159, 113883, 200086, 210359, 210359a, 275651, 301758ri, 302034ri, 440566, 746098, 746898, 839026, 1145715, 1464755, 1479818, 1763861, 32000903, 063380001, 0986049980, 2015001001, 063380001010, 944390903810

  • Passar modeller
    Ford EU Series: Fiesta V Model: 1.3 Engine volume: 1.3 Engine type: A9JA/A9JB Year: 11.01-
    Ford EU Series: Fiesta V Model: 1.3 Engine volume: 1.3 Year: 11.01-
    Ford EU Series: KA Model: 1.6i Engine volume: 1.6 Engine type: CDB / CDC Year: 07.03-09.08
    Ford Model: Fiesta Model series: Fiesta Size of motor: 1.3 Brand of engine: A9JA Type description: JH_, JD_ Body: Hatchback From date: 01-11-2001 To date: 01-06-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Size of motor: 1.3 Brand of engine: A9JB Type description: JH_, JD_ Body: Hatchback From date: 01-11-2001 To date: 01-06-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Size of motor: 1.3 Brand of engine: BAJA Body: Box From date: 01-05-2002 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Size of motor: 1.3 Brand of engine: BAJA Type description: JH_, JD Body: Hatchback From date: 01-11-2001 To date: 01-06-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Size of motor: 1.6 Brand of engine: FYDA, FYDB, FYDC, FYDD Type description: DNW Body: Estate From date: 01-04-1999 To date: 01-03-2005 Fuel: Gasoline Approved: Yes Manufacture type: Estate
    Ford Model: Focus Model series: Focus Size of motor: 1.6 Brand of engine: ZH16DEAR Type description: DAW, DBW Body: Hatchback From date: 01-10-2004 To date: 01-12-2010 Fuel: Petrol Approved: Yes
    Ford Model: Focus Model series: Focus Size of motor: 1.6 Brand of engine: ZH16DEAR Type description: DFW From date: 01-10-2004 To date: 01-12-2010 Fuel: Petrol Approved: Yes
    Ford Model: Ka Model series: Ka Model type: Street Size of motor: 1.6 Brand of engine: CDRA Body: Convertible From date: 01-05-2003 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Model type: Street Size of motor: 1.6 Brand of engine: CDRB Body: Convertible From date: 01-05-2003 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.6 Brand of engine: CCA Body: Hatchback From date: 01-02-2001 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.6 Brand of engine: CDB Body: Hatchback From date: 01-02-2001 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.6 Brand of engine: CDC Body: Hatchback From date: 01-02-2001 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivelse
    Ford Fiesta Generator 12V-90A 12V - 90A, 6 riller, (FR, SIG, A) For Yourex produkt bestilling 90-180-2060

    Spænding: 14
    Ampere: 90
    Remskive diameter: 39,60
    Bredde/holderarm: 54,80
    Monteringsbeslag afstand: 74,00
    Beslaghul: 12,00
    Beslaghul 2: 10,20
    Bæltejusteringsbeslag hul position: 60
    Bæltejusteringsbeslag hul position 2: 5
    Bæltejusteringsbeslag hul 1: 12,00
    Bæltejusteringsbeslag hul 2: 10,20
    Remskive diameter: 48,50
    Riller/remskive: 6
    Radius: 87,50
    Radius 2: 90,00
    B+: M6
    Position/B+ i min.: 8
    D+: Størrelse: Proppe
    Rotation: CW
    Propst no.: PL57
    Total længde mm: 165,50
    Remskive: SP
    Regulator type: IR
    Produkt info: BN
    Service: Ford

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 74.00
    Belt. adj. bracket hole 1 12.00
    Belt. adj. bracket hole 2 10.20
    Belt. adj. brackethole pos. 60
    Belt. adj. brackethole pos. 2 5
    Plug no. PL57
    Bracket hole 12.00
    Bracket hole 2 10.20
    Position/B+ in min. 8
    Prod. info BN
    Pulley SP
    Pulley dia. 48.50
    Pulley dist. 39.60
    Radius 87.50
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Servicing Ford
    Grooves/pulley 6
    Voltage 14
    Total length 165.50 mm
    Width/holder arm 54.80
    Amp 90
  • Køretøjsmatchning

    • OEM
      F032113883, FO 1145715, FO 1464755, 2S6T-10300FA, 2S6T-10300FB, 2S6T10300FA, 2S6T10300FB, 2s6t10300fc, 2S6TFA, 2S6TFB, 20-150-01001, 1986A01121, 2034ir, 113883, 1145715, 1464755, 1479818, 1763861

    • Konkurrentreferens
      ALT-H169, CAL15284, DRA0177, DRA0177N, F042A0H169, LRA02348, 8EL012428-851, 8EL738212-311, 27-5651, 8527N, 112159, 200086, 210359, 210359A, 301758RI, 302034RI, 440566, 746098, 746898, 839026, 32000903, 063380001, 0986049980, 063380001010, 944390903810

    • Bilmärken
      Ford EU

    • NormaliseratArtNr
      alth169, cal15284, dra0177, dra0177n, f032113883, f042a0h169, fo1145715, fo1464755, lra02348, 2s6t10300fa, 2s6t10300fb, 2s6t10300fc, 2s6tfa, 2s6tfb, 8el012428851, 8el738212311, 1986a01121, 2034ir, 8527n, 112159, 113883, 200086, 210359, 210359a, 275651, 301758ri, 302034ri, 440566, 746098, 746898, 839026, 1145715, 1464755, 1479818, 1763861, 32000903, 063380001, 0986049980, 2015001001, 063380001010, 944390903810

    • Passar modeller
      Ford EU Series: Fiesta V Model: 1.3 Engine volume: 1.3 Engine type: A9JA/A9JB Year: 11.01-
      Ford EU Series: Fiesta V Model: 1.3 Engine volume: 1.3 Year: 11.01-
      Ford EU Series: KA Model: 1.6i Engine volume: 1.6 Engine type: CDB / CDC Year: 07.03-09.08
      Ford Model: Fiesta Model series: Fiesta Size of motor: 1.3 Brand of engine: A9JA Type description: JH_, JD_ Body: Hatchback From date: 01-11-2001 To date: 01-06-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Size of motor: 1.3 Brand of engine: A9JB Type description: JH_, JD_ Body: Hatchback From date: 01-11-2001 To date: 01-06-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Size of motor: 1.3 Brand of engine: BAJA Body: Box From date: 01-05-2002 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Size of motor: 1.3 Brand of engine: BAJA Type description: JH_, JD Body: Hatchback From date: 01-11-2001 To date: 01-06-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Size of motor: 1.6 Brand of engine: FYDA, FYDB, FYDC, FYDD Type description: DNW Body: Estate From date: 01-04-1999 To date: 01-03-2005 Fuel: Gasoline Approved: Yes Manufacture type: Estate
      Ford Model: Focus Model series: Focus Size of motor: 1.6 Brand of engine: ZH16DEAR Type description: DAW, DBW Body: Hatchback From date: 01-10-2004 To date: 01-12-2010 Fuel: Petrol Approved: Yes
      Ford Model: Focus Model series: Focus Size of motor: 1.6 Brand of engine: ZH16DEAR Type description: DFW From date: 01-10-2004 To date: 01-12-2010 Fuel: Petrol Approved: Yes
      Ford Model: Ka Model series: Ka Model type: Street Size of motor: 1.6 Brand of engine: CDRA Body: Convertible From date: 01-05-2003 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Model type: Street Size of motor: 1.6 Brand of engine: CDRB Body: Convertible From date: 01-05-2003 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.6 Brand of engine: CCA Body: Hatchback From date: 01-02-2001 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.6 Brand of engine: CDB Body: Hatchback From date: 01-02-2001 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.6 Brand of engine: CDC Body: Hatchback From date: 01-02-2001 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
