Vare nr.: F032112418

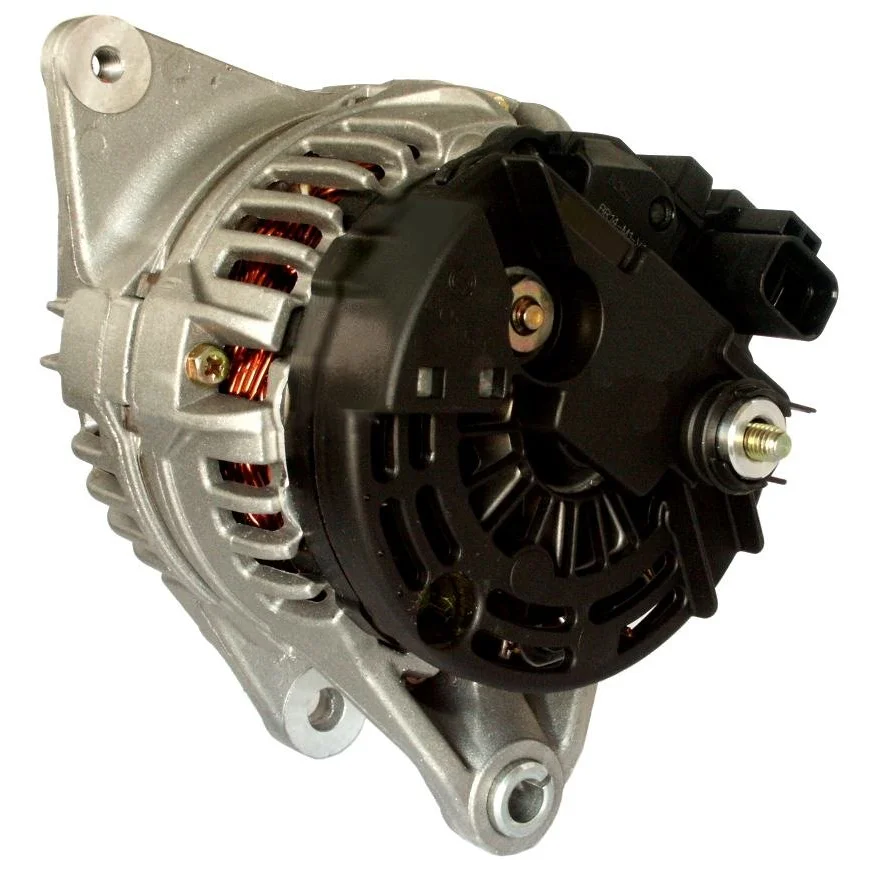

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 90, Rotation: CW, Monteringsbeslag afstand: 66,40

Beskrivelse

Mitsubishi Space Star Gen. 12V 12V - 90A, 5gr, (S, L) For Yourex produktordre 90-380-7744 Spænding: 14
Ampere: 90
Skive afstand: 38.00
Bredde/holder arm: 13.00
Monteringsbeslag afstand: 66.40
Beslag hul: 10.20
Bælte justeringsbeslags hul position: 6
Bælte justeringsbeslags hul 1: M8
Skivediameter: 56.00
Groove/rulle: 5
Rækkevidde: 90.00
Rækkevidde 2: 96.00
B+: M8
Position/B+ i min.: 10
D+ størrelse: Stik
Rotation: CW
Stik nr.: PL07
Samlet længde mm: 180.00
Skive: SP
Regulator type: IR
Produktoplysninger: BN
Servicering: Mitsubishi

Filer

Specifikation

B+ M8
Mount. bracket dist. 66.40
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 6
Plug no. PL07
Bracket hole 10.20
Position/B+ in min. 10
Prod. info BN
Pulley SP
Pulley dia. 56.00
Pulley dist. 38.00
Radius 90.00
D+ Size Plug
Radius 2 96.00
Regulator type IR
Rotation CW
Servicing Mitsubishi
Grooves/pulley 5
Voltage 14
Total length 180.00 mm
Width/holder arm 13.00
Amp 90

  • OEM
    F032112418, MD 257744, MD 349945, MD 357744, md257744, MD349945, md357744, 0124 325 008, 0986 042 680, 1585ir, 112418, 0124325008

  • Konkurrentreferens
    A0520PR, A0520S, ALT-H108, CAL10247, DRB2680, F042A0H108, LRA01815, 8EL012426-261, 28-3634, 155.529.090, 226.149.902, 9343, 22815R, 119913, 210770, 210770A, 301585RI, 437674, 9212705, 12060708, 0986042680

  • Bilmärken
    Mitsubishi

  • NormaliseratArtNr
    a0520pr, a0520s, alth108, cal10247, drb2680, f032112418, f042a0h108, lra01815, md257744, md349945, md357744, 8el012426261, 1585ir, 9343, 22815r, 112418, 119913, 210770, 210770a, 283634, 301585ri, 437674, 9212705, 12060708, 0124325008, 155529090, 226149902, 0986042680

  • Passar modeller
    Mitsubishi Model: Carisma Model series: Carisma Type of engine: 16V Size of motor: 1.3 Brand of engine: 4G13(16V) Type description: DA_ From date: 01-09-2000 To date: 01-10-2004 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Space Star Model series: Space Star Type of engine: 16V Size of motor: 1.3 Brand of engine: 4G13 Body: MPV From date: 01-06-1998 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Space Star Model series: Space Star Type of engine: 16V Size of motor: 1.3 Brand of engine: 4G13 Type description: DG0 Body: MPV From date: 01-09-2000 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Space Star Model series: Space Star Type of engine: 16V Size of motor: 1.3 Brand of engine: 4G13 Type description: DGO Body: MPV From date: 01-12-1998 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Space Star Model series: Space Star Type of engine: 16V Size of motor: 1.6 Brand of engine: 4G18 Type description: DGO Body: MPV From date: 01-01-2001 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Mitsubishi Series: Space Star Model: 1.3 16V Engine volume: 1.3 Engine type: 4 G 13 Year: 06.98-
    Mitsubishi Series: Space Star Model: 1.3 16V Engine volume: 1.3 Engine type: 4 G 13 Year: 09.00-
    Mitsubishi Series: Space Star Model: 1.3 16V Engine volume: 1.3 Engine type: 4 G 13 Year: 12.98-
    Mitsubishi Series: Space Star Model: 1.6 16V Engine volume: 1.6 Engine type: 4 G 18 Year: 04.01-
    1 / 2
  • Beskrivelse
    Mitsubishi Space Star Gen. 12V 12V - 90A, 5gr, (S, L) For Yourex produktordre 90-380-7744 Spænding: 14
    Ampere: 90
    Skive afstand: 38.00
    Bredde/holder arm: 13.00
    Monteringsbeslag afstand: 66.40
    Beslag hul: 10.20
    Bælte justeringsbeslags hul position: 6
    Bælte justeringsbeslags hul 1: M8
    Skivediameter: 56.00
    Groove/rulle: 5
    Rækkevidde: 90.00
    Rækkevidde 2: 96.00
    B+: M8
    Position/B+ i min.: 10
    D+ størrelse: Stik
    Rotation: CW
    Stik nr.: PL07
    Samlet længde mm: 180.00
    Skive: SP
    Regulator type: IR
    Produktoplysninger: BN
    Servicering: Mitsubishi

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 66.40
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 6
    Plug no. PL07
    Bracket hole 10.20
    Position/B+ in min. 10
    Prod. info BN
    Pulley SP
    Pulley dia. 56.00
    Pulley dist. 38.00
    Radius 90.00
    D+ Size Plug
    Radius 2 96.00
    Regulator type IR
    Rotation CW
    Servicing Mitsubishi
    Grooves/pulley 5
    Voltage 14
    Total length 180.00 mm
    Width/holder arm 13.00
    Amp 90
  • Køretøjsmatchning

    • OEM
      F032112418, MD 257744, MD 349945, MD 357744, md257744, MD349945, md357744, 0124 325 008, 0986 042 680, 1585ir, 112418, 0124325008

    • Konkurrentreferens
      A0520PR, A0520S, ALT-H108, CAL10247, DRB2680, F042A0H108, LRA01815, 8EL012426-261, 28-3634, 155.529.090, 226.149.902, 9343, 22815R, 119913, 210770, 210770A, 301585RI, 437674, 9212705, 12060708, 0986042680

    • Bilmärken
      Mitsubishi

    • NormaliseratArtNr
      a0520pr, a0520s, alth108, cal10247, drb2680, f032112418, f042a0h108, lra01815, md257744, md349945, md357744, 8el012426261, 1585ir, 9343, 22815r, 112418, 119913, 210770, 210770a, 283634, 301585ri, 437674, 9212705, 12060708, 0124325008, 155529090, 226149902, 0986042680

    • Passar modeller
      Mitsubishi Model: Carisma Model series: Carisma Type of engine: 16V Size of motor: 1.3 Brand of engine: 4G13(16V) Type description: DA_ From date: 01-09-2000 To date: 01-10-2004 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Space Star Model series: Space Star Type of engine: 16V Size of motor: 1.3 Brand of engine: 4G13 Body: MPV From date: 01-06-1998 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Space Star Model series: Space Star Type of engine: 16V Size of motor: 1.3 Brand of engine: 4G13 Type description: DG0 Body: MPV From date: 01-09-2000 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Space Star Model series: Space Star Type of engine: 16V Size of motor: 1.3 Brand of engine: 4G13 Type description: DGO Body: MPV From date: 01-12-1998 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Space Star Model series: Space Star Type of engine: 16V Size of motor: 1.6 Brand of engine: 4G18 Type description: DGO Body: MPV From date: 01-01-2001 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Mitsubishi Series: Space Star Model: 1.3 16V Engine volume: 1.3 Engine type: 4 G 13 Year: 06.98-
      Mitsubishi Series: Space Star Model: 1.3 16V Engine volume: 1.3 Engine type: 4 G 13 Year: 09.00-
      Mitsubishi Series: Space Star Model: 1.3 16V Engine volume: 1.3 Engine type: 4 G 13 Year: 12.98-
      Mitsubishi Series: Space Star Model: 1.6 16V Engine volume: 1.6 Engine type: 4 G 18 Year: 04.01-
