HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115980

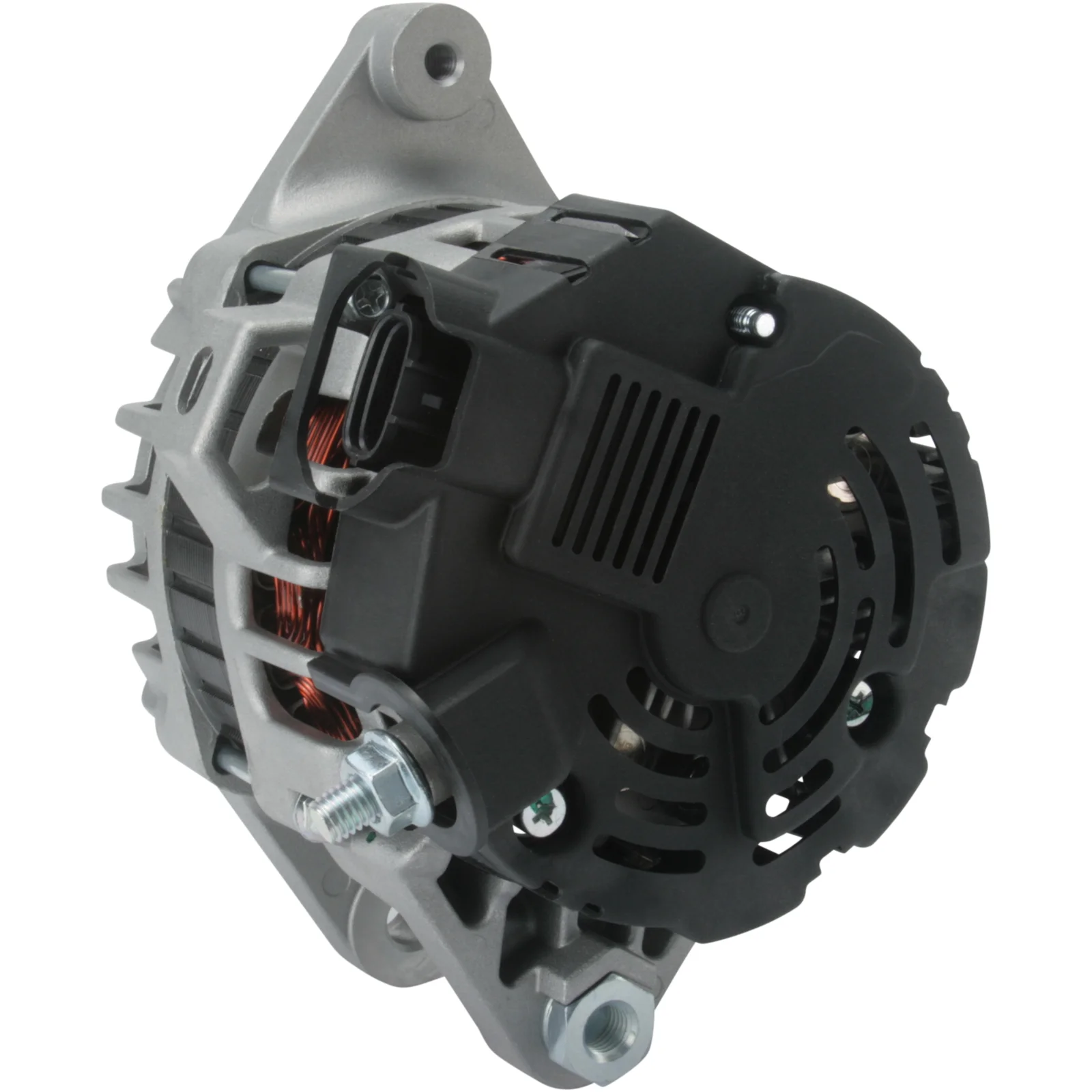

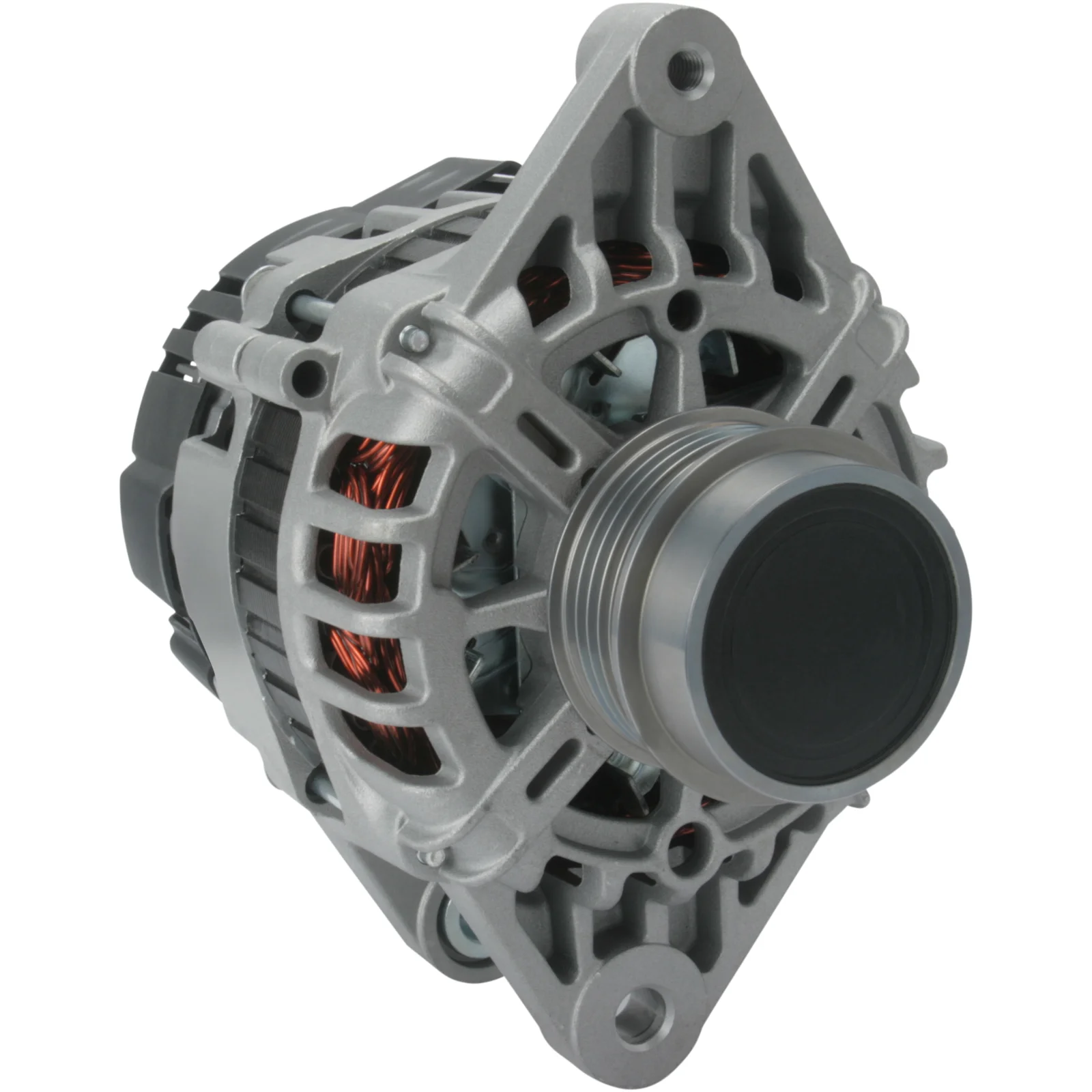

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 70, Rotation: CW, Monteringsbeslag forfordelingsdæksel: 45.70

Beskrivelse

Spænding: 14
Amp: 70
Remskive dist.: 35.50
Bredde/holderarm: 15.00
monteringsbeslag dist.: 45.70
Beslagshul: 10.50
Bæltejusteringsbeslagshul pos.: 60
Bæltejusteringsbeslagshul 1: M8
Remskive dia.: 57.50
Riller/remskive: 5
Radius: 81.50
Radius 2: 85.00
B+: M8
Position/B+ i min.: 42
D+ Størrelse: Pluggende
Rotation: CW
Plug nr.: PL176
Total længde mm: 175.00
Remskive: SP/FW
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 45.70
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL176
Bracket hole 10.50
Position/B+ in min. 42
Pulley SP/FW
Pulley dia. 57.50
Pulley dist. 35.50
Radius 81.50
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Grooves/pulley 5
Voltage 14
Total length 175.00 mm
Width/holder arm 15.00
Amp 70

  • OEM
    F032115980, 1986A00642, 37300-03500, 37300-03550, 2609013

  • Konkurrentreferens
    A3534S, CAL32154, DRA1165, DRA1165N, LRA03671, 8EL015637-351, 28-6811, 155.911.070, 224.311.702, 20295N, 20295N-OE, 209126, 209126A, 600272, 12061231, 0986085140, 0986085790

  • NormaliseratArtNr
    a3534s, cal32154, dra1165, dra1165n, f032115980, lra03671, 8el015637351, 1986a00642, 20295n, 20295noe, 209126, 209126a, 286811, 600272, 2609013, 12061231, 155911070, 224311702, 0986085140, 0986085790, 3730003500, 3730003550

  • Passar modeller
    Hyundai Model: i10 Model series: i10 Size of motor: 1.2 Brand of engine: G4LA Body: Hatchback From date: 01-04-2011 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.2 Brand of engine: G4LA Type description: TA Body: Hatchback From date: 01-09-2011 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.3 Brand of engine: G4LA Type description: TA Body: Hatchback From date: 01-09-2011 To date: 01-02-2017 Fuel: Petrol Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 70
    Remskive dist.: 35.50
    Bredde/holderarm: 15.00
    monteringsbeslag dist.: 45.70
    Beslagshul: 10.50
    Bæltejusteringsbeslagshul pos.: 60
    Bæltejusteringsbeslagshul 1: M8
    Remskive dia.: 57.50
    Riller/remskive: 5
    Radius: 81.50
    Radius 2: 85.00
    B+: M8
    Position/B+ i min.: 42
    D+ Størrelse: Pluggende
    Rotation: CW
    Plug nr.: PL176
    Total længde mm: 175.00
    Remskive: SP/FW
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 45.70
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL176
    Bracket hole 10.50
    Position/B+ in min. 42
    Pulley SP/FW
    Pulley dia. 57.50
    Pulley dist. 35.50
    Radius 81.50
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 5
    Voltage 14
    Total length 175.00 mm
    Width/holder arm 15.00
    Amp 70
  • Køretøjsmatchning

    • OEM
      F032115980, 1986A00642, 37300-03500, 37300-03550, 2609013

    • Konkurrentreferens
      A3534S, CAL32154, DRA1165, DRA1165N, LRA03671, 8EL015637-351, 28-6811, 155.911.070, 224.311.702, 20295N, 20295N-OE, 209126, 209126A, 600272, 12061231, 0986085140, 0986085790

    • NormaliseratArtNr
      a3534s, cal32154, dra1165, dra1165n, f032115980, lra03671, 8el015637351, 1986a00642, 20295n, 20295noe, 209126, 209126a, 286811, 600272, 2609013, 12061231, 155911070, 224311702, 0986085140, 0986085790, 3730003500, 3730003550

    • Passar modeller
      Hyundai Model: i10 Model series: i10 Size of motor: 1.2 Brand of engine: G4LA Body: Hatchback From date: 01-04-2011 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.2 Brand of engine: G4LA Type description: TA Body: Hatchback From date: 01-09-2011 Fuel: Gasoline Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.3 Brand of engine: G4LA Type description: TA Body: Hatchback From date: 01-09-2011 To date: 01-02-2017 Fuel: Petrol Approved: Yes
