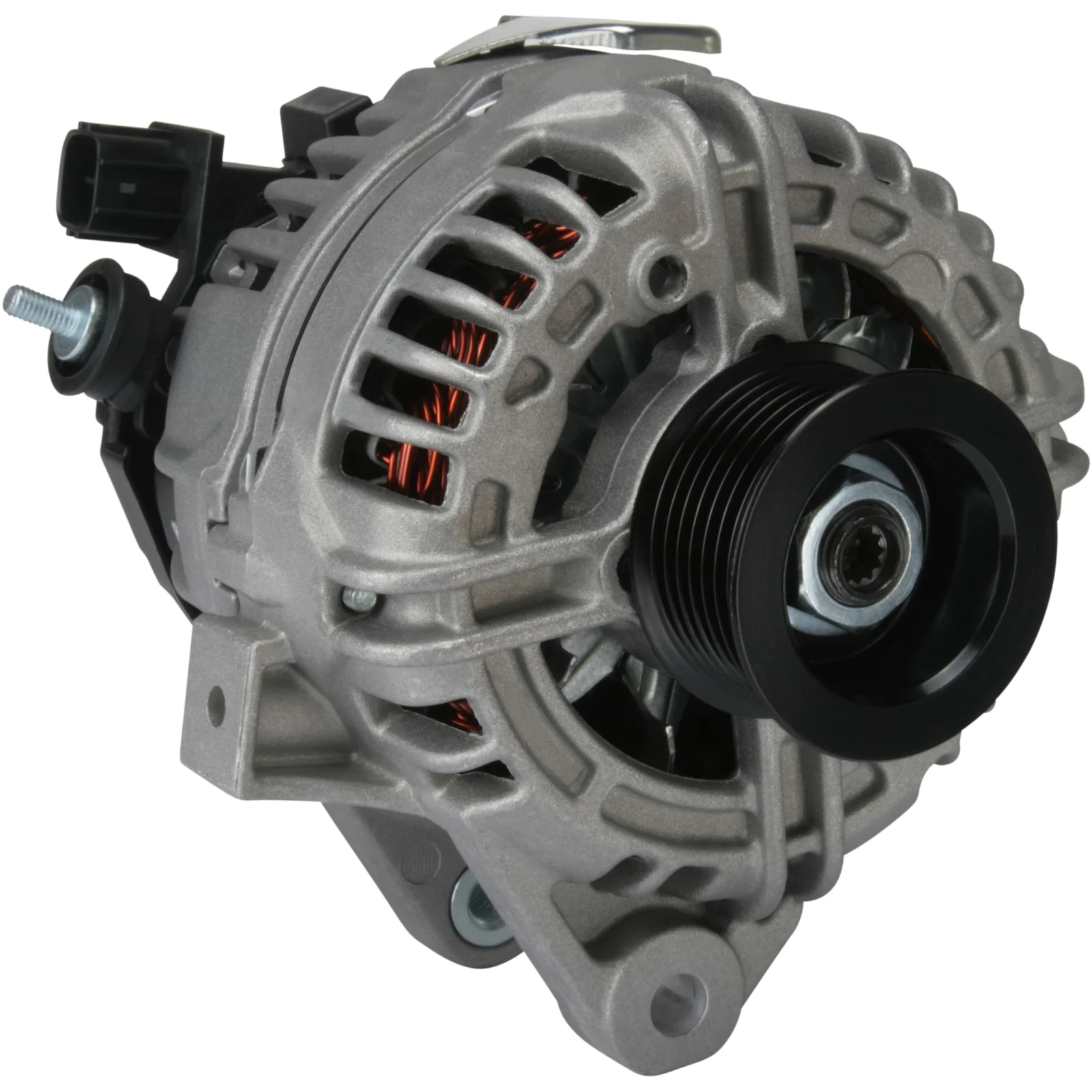

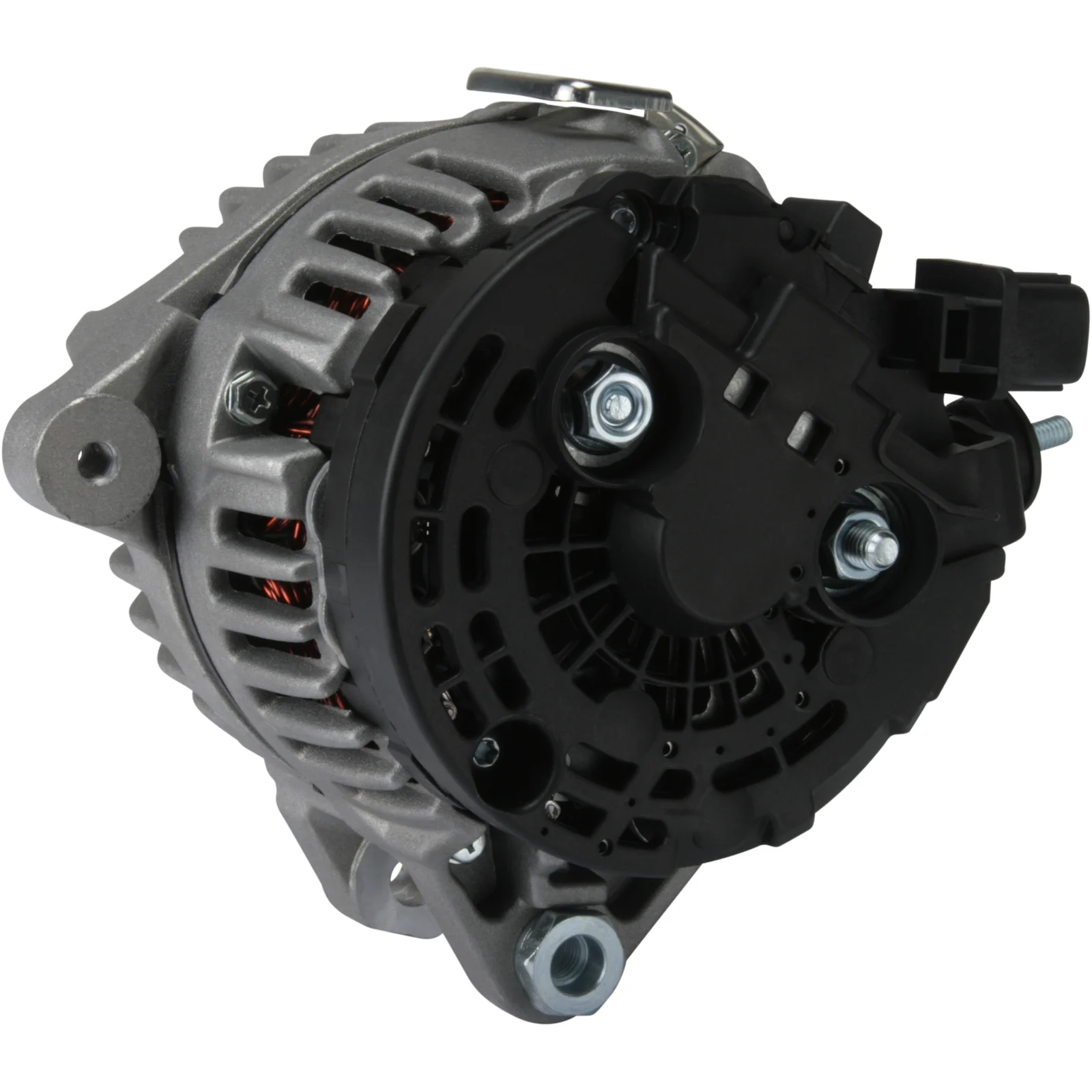

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115416

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 100, Rotation: CW, Mount. bøsning for fordelerdæksel: 45.00

Beskrivelse

Toyota Avensis Gen. 12V-100A 12V - 100A, 7 riller. (S, IG, L, DFM) Alternativ: 90-555-2823 Densodesign For Yourex produktordre 90-555-4612

Spænding: 14
Amp: 100
Skruekredsafstand: 35.00
Bredde/holderarm: 18.00
Montagebeslagets afstand: 45.00
Beslagshuldring: 11.00
Bæltejusteringsbeslagets hulposition: 15
Bæltejusteringsbeslagets hul 1: M8
Skruekredsdiameter: 55.50
Riller/skruehjul: 7
Radius: 84.00
Radius 2: 86.00
B+: M6
Position/B+ i min.: 12
Rotation: CW
Stiknummer: PL78
Skruehjul: SP
Regulator type: IR
Produktoplysninger: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 45.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 15
Plug no. PL78
Bracket hole 11.00
Position/B+ in min. 12
Prod. info BN
Pulley SP
Pulley dia. 55.50
Pulley dist. 35.00
Radius 84.00
Radius 2 86.00
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Width/holder arm 18.00
Amp 100

  • OEM
    F032115416, 0124 325 085, 0124 325 086, 0986 046 120, 1907ir, 1986A00795, 27060-0H070, 27060-0h070, 27060-0H080, 27060-0H221, 115416, 0124325071, 0124325082, 0124325084, 0124325085, 0124325086

  • Konkurrentreferens
    A0224, A0646S, A0740S, A6055(DENSO), A6055(P), CAL40209, DRB6120, LRA03500, 8EL738212-721, 28-6610, 195.530.100, 195.530.110, 11088, 11088N, 209366, 209366A, 301907RI, 440843, 443022, 12060778, 0986046120, 0986046123

  • Bilmärken
    Toyota

  • NormaliseratArtNr
    a0224, a0646s, a0740s, a6055denso, a6055p, cal40209, drb6120, f032115416, lra03500, 8el738212721, 1907ir, 1986a00795, 11088, 11088n, 115416, 209366, 209366a, 270600h070, 270600h080, 270600h221, 286610, 301907ri, 440843, 443022, 12060778, 0124325071, 0124325082, 0124325084, 0124325085, 0124325086, 195530100, 195530110, 0986046120, 0986046123

  • Passar modeller
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 1AZ-FSE Type description: T25 Body: Estate From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 1AZ-FSE Type description: T25 Body: Hatchback From date: 01-03-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 1AZ-FSE Type description: T25 From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 Body: Estate From date: 01-09-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 Body: Estate From date: 01-10-2003 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 Body: Hatchback From date: 01-09-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 Body: Hatchback From date: 01-10-2003 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 From date: 01-09-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 From date: 01-10-2003 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: T25 Body: Estate From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Toyota Series: Avensis (T25) Kombi Model: 2.0 Engine volume: 2.0 Engine type: 1AZ-FSE Year: 04.03-11.08
    Toyota Series: Avensis (T25) Kombi Model: 2.0 Engine volume: 2.0 Engine type: 1AZ-RE Year: 01.03-10.04
    Toyota Series: Avensis (T25) Kombi Model: 2.4 Engine volume: 2.4 Engine type: 2AZ-FSE Year: 10.03-11.08
    Toyota Series: Avensis (T25) Model: 2.0 Engine volume: 2.0 Engine type: 1AZ-FE Year: 01.03-10.08
    Toyota Series: Avensis (T25) Model: 2.0 Engine volume: 2.0 Engine type: 1AZ-FSE Year: 01.03-03.06
    Toyota Series: Avensis (T25) Model: 2.0 Engine volume: 2.0 Engine type: 1AZ-FSE Year: 04.03-
    Toyota Series: Avensis (T25) Model: 2.4 Engine volume: 2.4 Engine type: 2AZ-FSE Year: 09.03-03.06
    Toyota Series: Avensis (T25) Model: 2.4 Engine volume: 2.4 Engine type: 2AZ-FSE Year: 09.03-10.08
    Toyota Series: Avensis (T25) Model: 2.4 Engine volume: 2.4 Engine type: 2AZ-FSE Year: 10.03-03.06
    1 / 4
  • Beskrivelse
    Toyota Avensis Gen. 12V-100A 12V - 100A, 7 riller. (S, IG, L, DFM) Alternativ: 90-555-2823 Densodesign For Yourex produktordre 90-555-4612

    Spænding: 14
    Amp: 100
    Skruekredsafstand: 35.00
    Bredde/holderarm: 18.00
    Montagebeslagets afstand: 45.00
    Beslagshuldring: 11.00
    Bæltejusteringsbeslagets hulposition: 15
    Bæltejusteringsbeslagets hul 1: M8
    Skruekredsdiameter: 55.50
    Riller/skruehjul: 7
    Radius: 84.00
    Radius 2: 86.00
    B+: M6
    Position/B+ i min.: 12
    Rotation: CW
    Stiknummer: PL78
    Skruehjul: SP
    Regulator type: IR
    Produktoplysninger: BN

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 45.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 15
    Plug no. PL78
    Bracket hole 11.00
    Position/B+ in min. 12
    Prod. info BN
    Pulley SP
    Pulley dia. 55.50
    Pulley dist. 35.00
    Radius 84.00
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 7
    Voltage 14
    Width/holder arm 18.00
    Amp 100
  • Køretøjsmatchning

    • OEM
      F032115416, 0124 325 085, 0124 325 086, 0986 046 120, 1907ir, 1986A00795, 27060-0H070, 27060-0h070, 27060-0H080, 27060-0H221, 115416, 0124325071, 0124325082, 0124325084, 0124325085, 0124325086

    • Konkurrentreferens
      A0224, A0646S, A0740S, A6055(DENSO), A6055(P), CAL40209, DRB6120, LRA03500, 8EL738212-721, 28-6610, 195.530.100, 195.530.110, 11088, 11088N, 209366, 209366A, 301907RI, 440843, 443022, 12060778, 0986046120, 0986046123

    • Bilmärken
      Toyota

    • NormaliseratArtNr
      a0224, a0646s, a0740s, a6055denso, a6055p, cal40209, drb6120, f032115416, lra03500, 8el738212721, 1907ir, 1986a00795, 11088, 11088n, 115416, 209366, 209366a, 270600h070, 270600h080, 270600h221, 286610, 301907ri, 440843, 443022, 12060778, 0124325071, 0124325082, 0124325084, 0124325085, 0124325086, 195530100, 195530110, 0986046120, 0986046123

    • Passar modeller
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 1AZ-FSE Type description: T25 Body: Estate From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 1AZ-FSE Type description: T25 Body: Hatchback From date: 01-03-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 1AZ-FSE Type description: T25 From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 Body: Estate From date: 01-09-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 Body: Estate From date: 01-10-2003 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 Body: Hatchback From date: 01-09-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 Body: Hatchback From date: 01-10-2003 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 From date: 01-09-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 From date: 01-10-2003 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: T25 Body: Estate From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Toyota Series: Avensis (T25) Kombi Model: 2.0 Engine volume: 2.0 Engine type: 1AZ-FSE Year: 04.03-11.08
      Toyota Series: Avensis (T25) Kombi Model: 2.0 Engine volume: 2.0 Engine type: 1AZ-RE Year: 01.03-10.04
      Toyota Series: Avensis (T25) Kombi Model: 2.4 Engine volume: 2.4 Engine type: 2AZ-FSE Year: 10.03-11.08
      Toyota Series: Avensis (T25) Model: 2.0 Engine volume: 2.0 Engine type: 1AZ-FE Year: 01.03-10.08
      Toyota Series: Avensis (T25) Model: 2.0 Engine volume: 2.0 Engine type: 1AZ-FSE Year: 01.03-03.06
      Toyota Series: Avensis (T25) Model: 2.0 Engine volume: 2.0 Engine type: 1AZ-FSE Year: 04.03-
      Toyota Series: Avensis (T25) Model: 2.4 Engine volume: 2.4 Engine type: 2AZ-FSE Year: 09.03-03.06
      Toyota Series: Avensis (T25) Model: 2.4 Engine volume: 2.4 Engine type: 2AZ-FSE Year: 09.03-10.08
      Toyota Series: Avensis (T25) Model: 2.4 Engine volume: 2.4 Engine type: 2AZ-FSE Year: 10.03-03.06
