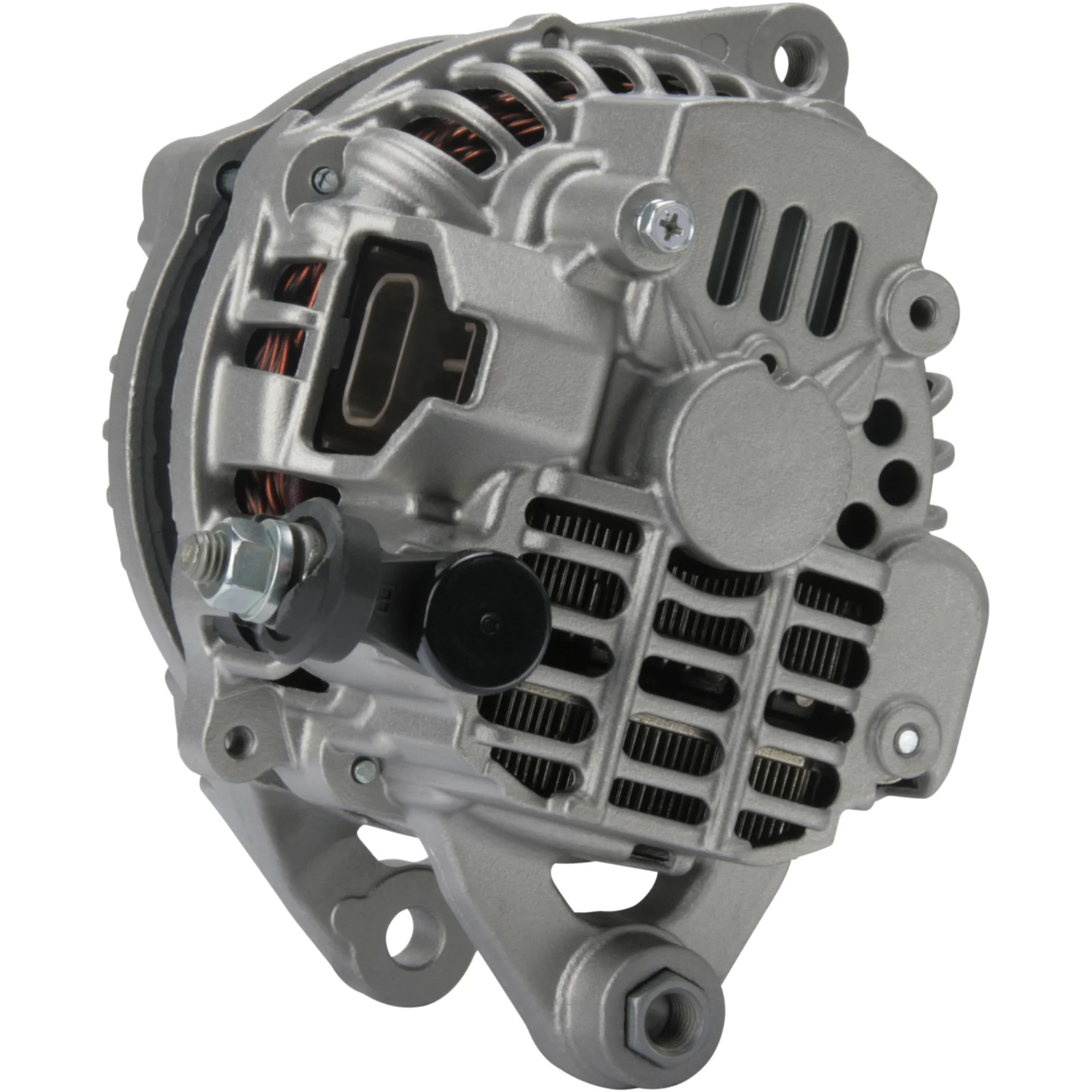

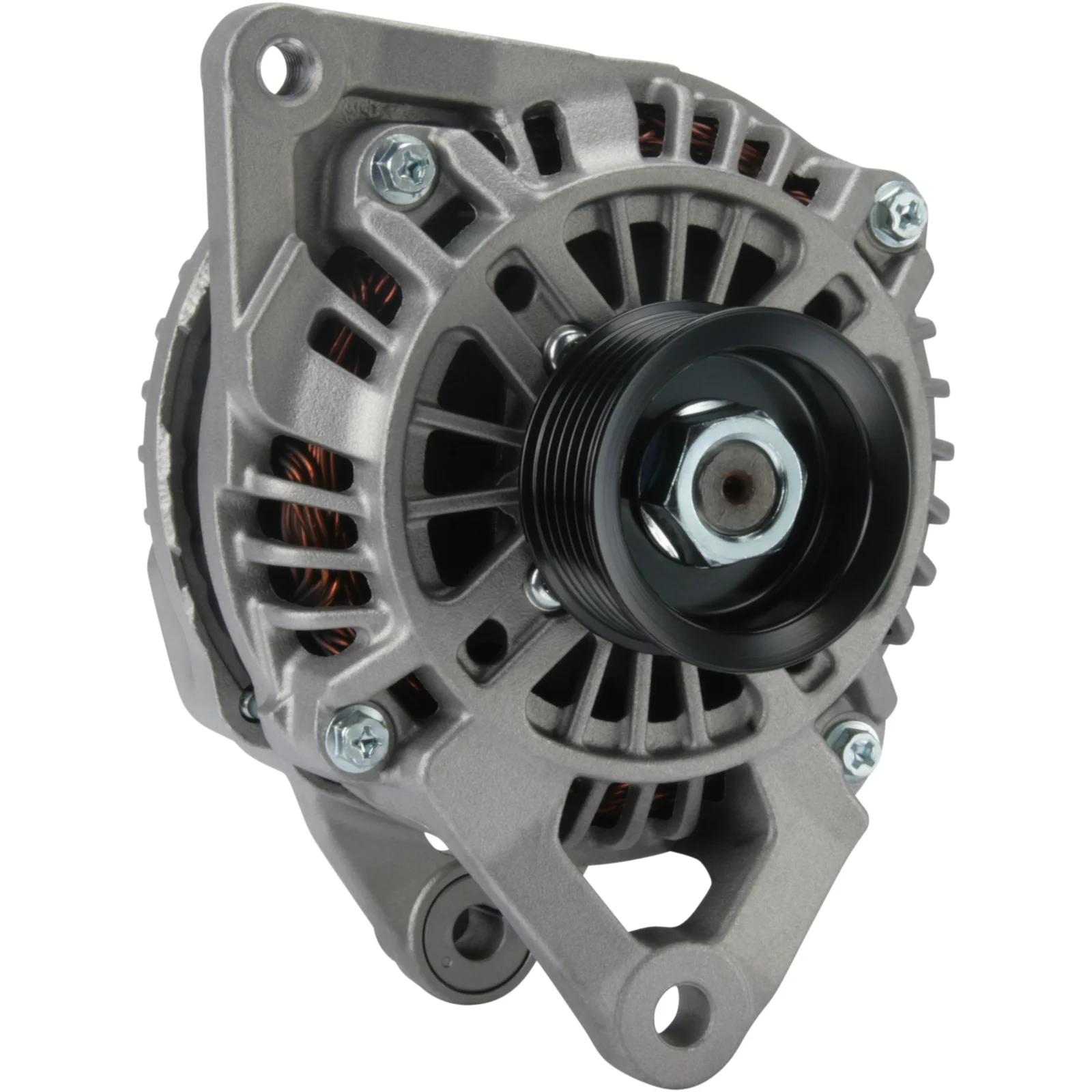

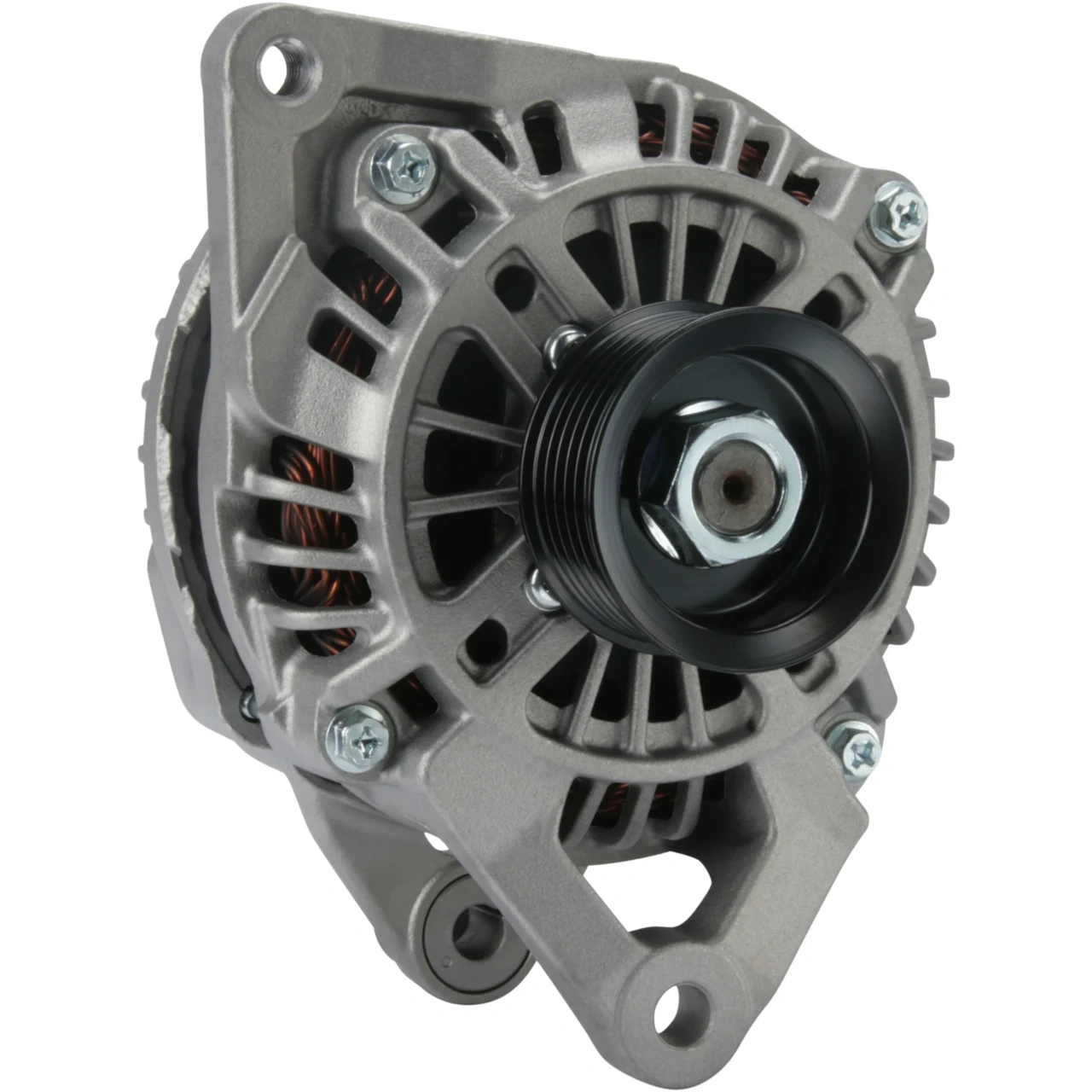

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114358

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 110, Rotation: CW, Monteringsbeslag forfordeling: 66,50

Beskrivelse

Spenning: 14
Amp: 110
Skive ford.: 13,70
Bredde/holderarm: 24,20
Monteringsbeslag afstand: 66,50
Beslagshulder: 10,30
Bæltejustering beslagshul pos.: 50
Bæltejustering beslagshul 1: M10
Skivedi.: 55,00
Udtag/Skive: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 40
Rotation: med uret
Stik nr.: PL54
Samlet længde mm: 165,00
Skive: SP

Filer

Specifikation

B+ M8
Mount. bracket dist. 66.50
Belt. adj. bracket hole 1 M10
Belt. adj. brackethole pos. 50
Plug no. PL54
Bracket hole 10.30
Position/B+ in min. 40
Pulley SP
Pulley dia. 55.00
Pulley dist. 13.70
Radius 90.00
Radius 2 90.00
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 165.00 mm
Width/holder arm 24.20
Amp 110

  • OEM
    A002TC0091, A2TC0091, F032114358, ja1898, zj01-18-300, 1986A01719

  • Konkurrentreferens
    A5056, ALT-H214, CAL35217, DRA0169, F042205140, F042303083, F042A0H214, 8EL011712-471, 27-4991, 23875N, 112615, 209357, 209357A, 401898, 12060843, 0986082710

  • NormaliseratArtNr
    a002tc0091, a2tc0091, a5056, alth214, cal35217, dra0169, f032114358, f042205140, f042303083, f042a0h214, ja1898, zj0118300, 8el011712471, 1986a01719, 23875n, 112615, 209357, 209357a, 274991, 401898, 12060843, 0986082710

  • Passar modeller
    Mazda Model: 3 Model series: 3 Model type: (BK5P) Size of motor: 1.5 Brand of engine: ZY-VE Type description: BK Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
    Mazda Model: 3 Model series: 3 Size of motor: 1.3 Brand of engine: ZJ-VE Body: Hatchback From date: 01-10-2003 To date: 01-06-2009 Fuel: Gasoline Approved: Yes
    Mazda Model: 3 Model series: 3 Size of motor: 1.6 Brand of engine: B6ZE Body: Hatchback From date: 01-10-2003 To date: 01-06-2009 Fuel: Gasoline Approved: Yes
    Mazda Model: 3 Model series: 3 Size of motor: 1.6 Brand of engine: Z6 From date: 01-02-2004 To date: 01-06-2009 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spenning: 14
    Amp: 110
    Skive ford.: 13,70
    Bredde/holderarm: 24,20
    Monteringsbeslag afstand: 66,50
    Beslagshulder: 10,30
    Bæltejustering beslagshul pos.: 50
    Bæltejustering beslagshul 1: M10
    Skivedi.: 55,00
    Udtag/Skive: 6
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Position/B+ i min.: 40
    Rotation: med uret
    Stik nr.: PL54
    Samlet længde mm: 165,00
    Skive: SP

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 66.50
    Belt. adj. bracket hole 1 M10
    Belt. adj. brackethole pos. 50
    Plug no. PL54
    Bracket hole 10.30
    Position/B+ in min. 40
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 13.70
    Radius 90.00
    Radius 2 90.00
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 165.00 mm
    Width/holder arm 24.20
    Amp 110
  • Køretøjsmatchning

    • OEM
      A002TC0091, A2TC0091, F032114358, ja1898, zj01-18-300, 1986A01719

    • Konkurrentreferens
      A5056, ALT-H214, CAL35217, DRA0169, F042205140, F042303083, F042A0H214, 8EL011712-471, 27-4991, 23875N, 112615, 209357, 209357A, 401898, 12060843, 0986082710

    • NormaliseratArtNr
      a002tc0091, a2tc0091, a5056, alth214, cal35217, dra0169, f032114358, f042205140, f042303083, f042a0h214, ja1898, zj0118300, 8el011712471, 1986a01719, 23875n, 112615, 209357, 209357a, 274991, 401898, 12060843, 0986082710

    • Passar modeller
      Mazda Model: 3 Model series: 3 Model type: (BK5P) Size of motor: 1.5 Brand of engine: ZY-VE Type description: BK Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
      Mazda Model: 3 Model series: 3 Size of motor: 1.3 Brand of engine: ZJ-VE Body: Hatchback From date: 01-10-2003 To date: 01-06-2009 Fuel: Gasoline Approved: Yes
      Mazda Model: 3 Model series: 3 Size of motor: 1.6 Brand of engine: B6ZE Body: Hatchback From date: 01-10-2003 To date: 01-06-2009 Fuel: Gasoline Approved: Yes
      Mazda Model: 3 Model series: 3 Size of motor: 1.6 Brand of engine: Z6 From date: 01-02-2004 To date: 01-06-2009 Fuel: Gasoline Approved: Yes
