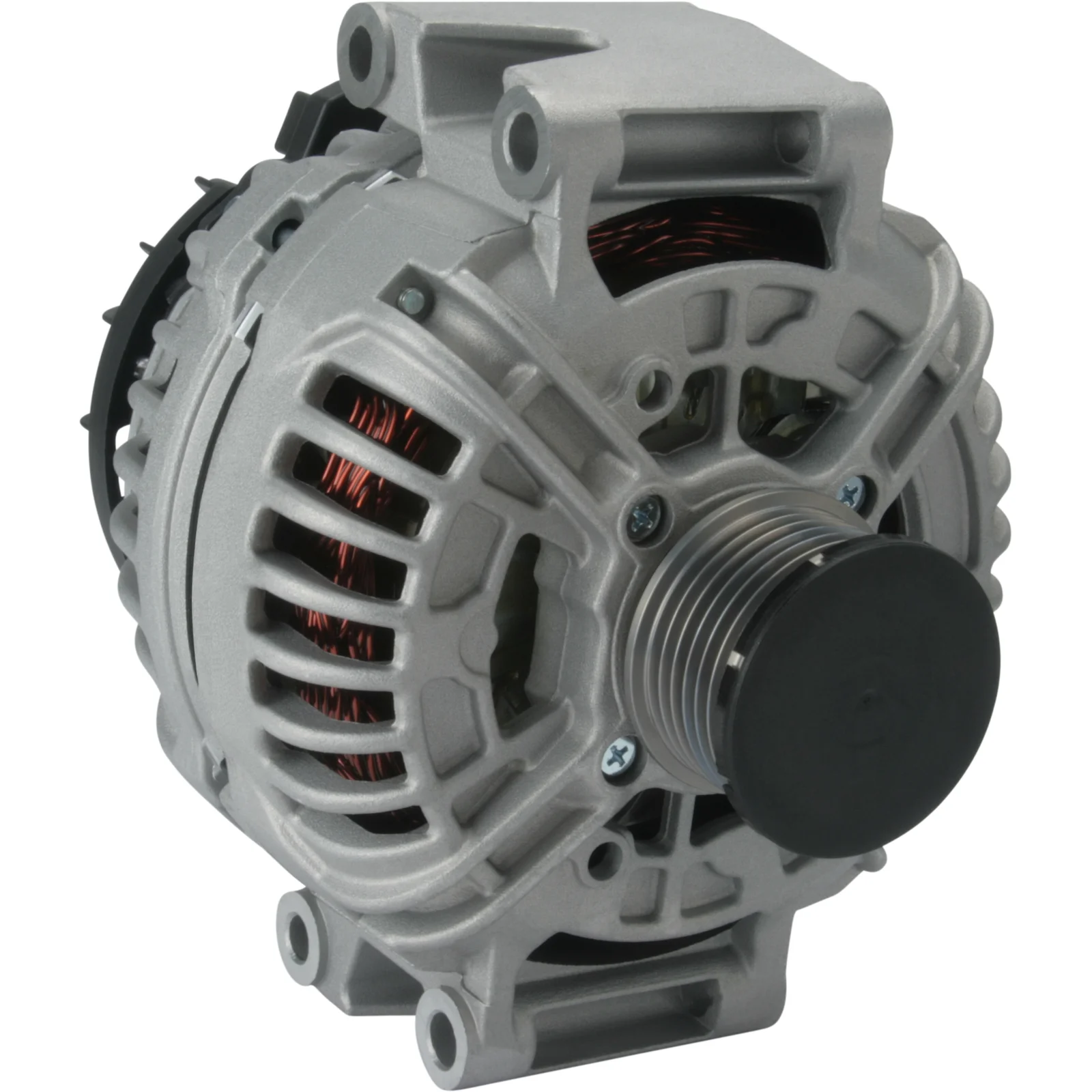

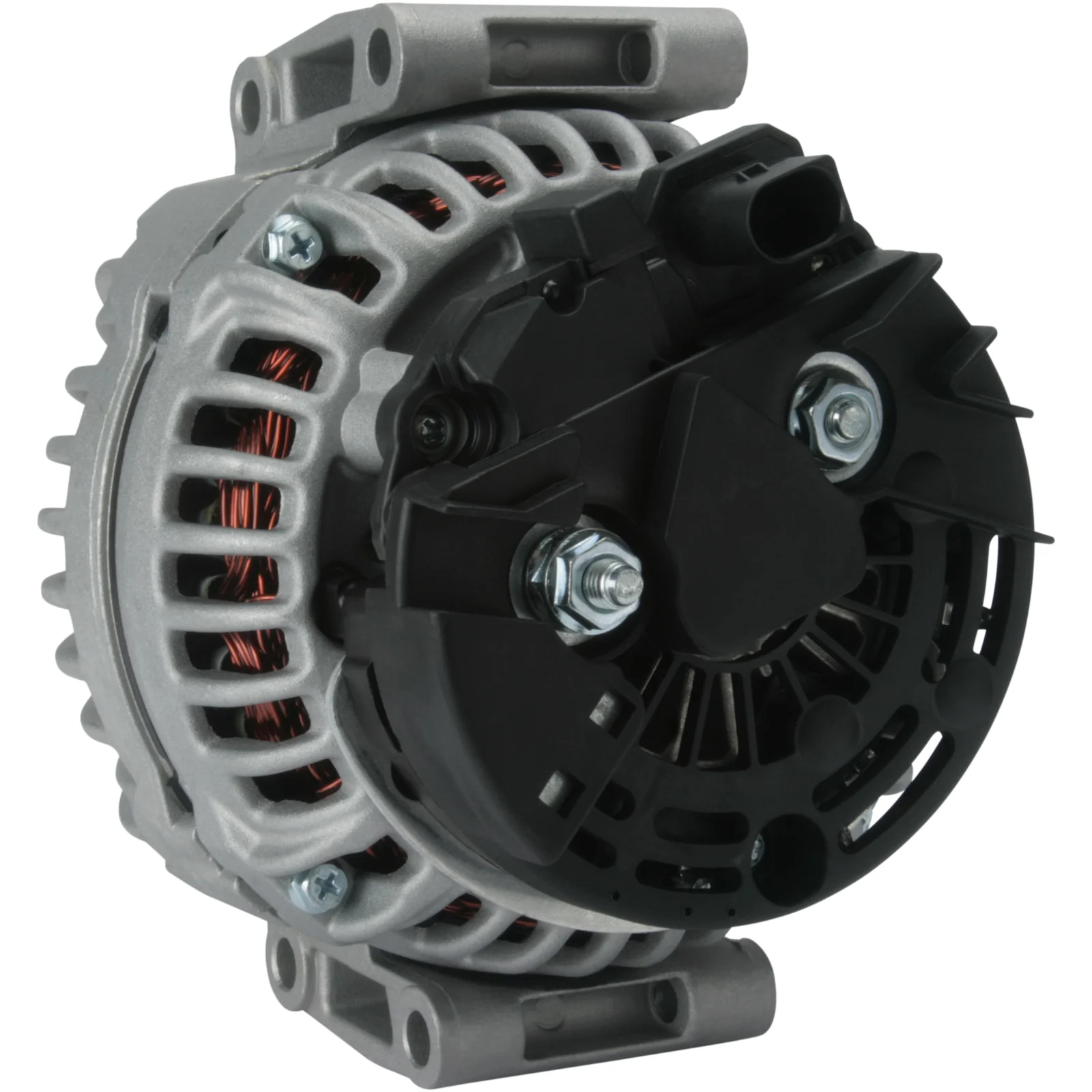

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115383

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 200, Rotation: CW, Monteringsbeslag afstand: 57.00

Beskrivelse

Generator passar til MB Vito 12V-200A 12V - 200A, 6-gr. fw remskive, (COM-DFM) 6-gr. fw remskive, (COM-DFM) Biler med automatgear Til Yourex produktordre 90-365-4749

Voltage: 14
Amp: 200
Remskive afstand: 30,50
Bredde/holderarm: 70,00
Monteringsbeslag afstand: 57,00
Beslagshulder: 10,00
Bælte. justering beslagshulder 1: 9,50
Remskive dia.: 50,00
Groove/rimskive: 6
B+: M8
Position/B+ i min.: 43
Rotation: med uret
Stik nr.: PL114
Total længde mm: 193,00
Terminaltype: COM
Kommunikation: BSS
Remskive: SP/FW
Regulator type: IR
Produktoplysninger: BN
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret for at kontrollere egnethed, inden der bestilles.

Filer

Specifikation

B+ M8
Communication BSS
Mount. bracket dist. 57.00
Belt. adj. bracket hole 1 9.50
Plug no. PL114
Bracket hole 10.00
Position/B+ in min. 43
Prod. info BN
Pulley SP/FW
Pulley dia. 50.00
Pulley dist. 30.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 193.00 mm
Width/holder arm 70.00
Amp 200

  • OEM
    A013154 2102, A0131542102, A013154210280, A0207, CAL10256, DRB7490, F032115383, S108116, S10861, S10861A, S10861B, S10861C, S10861D, S10861E, S10861F, S10861G, 8EL011712-211, 8EL738211-351, 013 154 2102, 28-5618, 0124 625 022, 225.177.2002, 0986 047 490, 1840ir, 1986A00951, 4814, 23248N, 111840, 115383, 209050, 209050A, 301840RI, 443468, 9047490, 12047490, 32047490, 0124625022, 0124625207, 0131542102, 211633003F, 211633003G, 211633003YR, 211633711, 211633711A, 211635031, 944390474, 0986047490, 0986047493, 013154210280, 944390474900

  • Konkurrentreferens
    A0207, CAL10256, DRB7490, 8EL011712-211, 8EL738211-351, 28-5618, 225.177.2002, 4814, 23248N, 111840, 209050, 209050A, 301840RI, 443468, 9047490, 12047490, 32047490, 944390474, 0986047490, 0986047493, 944390474900

  • Bilmärken
    MERCEDES-BENZ

  • NormaliseratArtNr
    a0131542102, a013154210280, a0207, cal10256, drb7490, f032115383, s108116, s10861, s10861a, s10861b, s10861c, s10861d, s10861e, s10861f, s10861g, 8el011712211, 8el738211351, 1840ir, 1986a00951, 4814, 23248n, 111840, 115383, 209050, 209050a, 285618, 301840ri, 443468, 9047490, 12047490, 32047490, 0124625022, 0124625207, 0131542102, 211633003f, 211633003g, 211633003yr, 211633711, 211633711a, 211635031, 944390474, 0986047490, 0986047493, 2251772002, 013154210280, 944390474900

  • Passar modeller
    MERCEDES-BENZ VIANO (W639) CDI 2.2 (639.711, 639.713, 639.811, 639.813, 639.815) Engine volume: 2.2 Engine type: OM 646.982 Year: 08.05-
    MERCEDES-BENZ VIANO (W639) CDI 2.2 (639.711, 639.713, 639.811, 639.813, 639.815) Engine volume: 2.2 Engine type: OM 646.982 Year: 09.03-
    MERCEDES-BENZ VIANO (W639) CDI 2.2 (639.711, 639.713, 639.811, 639.813, 639.815) Engine volume: 2.2 Engine type: OM 646.982, OM 646.980 Year: 09.03-
    MERCEDES-BENZ VIANO (W639) CDI 2.2 4-matic (639.711, 639.713, 639.811, 639.813,... Engine volume: 2.2 Engine type: OM 646.982 Year: 03.06-
    MERCEDES-BENZ VIANO (W639) CDI 2.2 4-matic (639.711, 639.713, 639.811, 639.813,... Engine volume: 2.2 Engine type: OM 646.982 Year: 07.05-
    MERCEDES-BENZ VIANO (W639) CDI 2.2 4-matic (639.713) Engine volume: 2.2 Engine type: OM 646.982 Year: 07.05-
    MERCEDES-BENZ VITO / MIXTO Skåp (W639) 109 CDI (639.601, 639.603, 639.605) Engine volume: 2.2 Engine type: OM 646.981, OM 646.980 Year: 08.06-08.14
    MERCEDES-BENZ VITO / MIXTO Skåp (W639) 109 CDI (639.601, 639.603, 639.605) Engine volume: 2.2 Engine type: OM 646.983 Year: 09.03-07.06
    MERCEDES-BENZ VITO / MIXTO Skåp (W639) 111 CDI (639.601, 639.603) Engine volume: 2.2 Engine type: OM 646.982, OM 646.980 Year: 09.07-08.14
    MERCEDES-BENZ VITO / MIXTO Skåp (W639) 111 CDI (639.601, 639.603, 639.605) Engine volume: 2.2 Engine type: OM 646.982 Year: 09.03-08.07
    MERCEDES-BENZ VITO / MIXTO Skåp (W639) 111 CDI 4x4 (639.601, 639.603, 639.605) Engine volume: 2.2 Engine type: OM 646.982 Year: 09.07-08.14
    MERCEDES-BENZ VITO / MIXTO Skåp (W639) 115 CDI (639.601, 639.603, 639.605) Engine volume: 2.2 Engine type: OM 646.982, OM 646.980 Year: 09.03-08.14
    MERCEDES-BENZ VITO / MIXTO Skåp (W639) 115 CDI 4x4 (639.601, 639.603, 639.605) Engine volume: 2.2 Engine type: OM 646.982 Year: 07.06-08.14
    MERCEDES-BENZ VITO Buss (W639) 109 CDI (639.701, 639.703, 639.705) Engine volume: 2.1 Engine type: OM 646.981, OM 646.980 Year: 09.06-
    MERCEDES-BENZ VITO Buss (W639) 109 CDI (639.701, 639.703, 639.705) Engine volume: 2.2 Engine type: OM 646.983 Year: 09.03-
    MERCEDES-BENZ VITO Buss (W639) 109 CDI 4x4 (639.701) Engine volume: 2.2 Engine type: OM 646.981 Year: 09.07-08.14
    MERCEDES-BENZ VITO Buss (W639) 111 CDI (639.701, 639.703, 639.705) Engine volume: 2.2 Engine type: OM 646.980 Year: 09.07-
    MERCEDES-BENZ VITO Buss (W639) 111 CDI (639.701, 639.703, 639.705) Engine volume: 2.2 Engine type: OM 646.982 Year: 09.03-
    MERCEDES-BENZ VITO Buss (W639) 111 CDI 4x4 (639.701, 639.703, 639.705) Engine volume: 2.2 Engine type: OM 646.982 Year: 09.07-08.14
    MERCEDES-BENZ VITO Buss (W639) 115 CDI (639.701, 639.703, 639.705) Engine volume: 2.2 Engine type: OM 646.982, OM 646.980 Year: 09.03-
    MERCEDES-BENZ VITO Buss (W639) 115 CDI 4x4 (639.701, 639.705) Engine volume: 2.2 Engine type: OM 646.982 Year: 09.07-08.14
