Vare nr.: F032113316

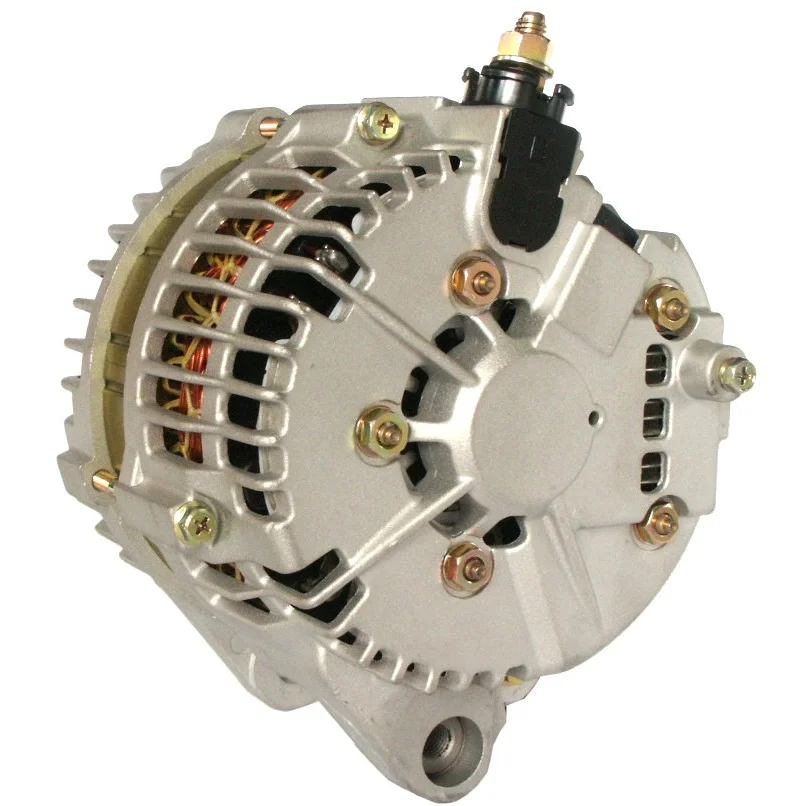

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 110, Rotation: CW, Mount. bøjle fordelerhuset: 59.20

Beskrivelse

Nissan X-Trail Gen.12V-110A 12V - 110A, 6frg, (L, S) 6gr. fwеlgenforb. til Yourex produktordre 90-400-0420

Spenning: 14
Ampere: 110
Bæltehjulafstand: 33,00
Bredde/beslagarm: 13,00
Monteringsbeslagafstand: 59,20
Beslagshul: 10,30
Bæltejustering beslags hulpos.: 52
Bæltejustering beslags hul 1: 10,30
Bæltehjulsdiameter: 52,20
Riller/bæltehjul: 6
Radius: 85,00
Radius 2: 86,50
B+: M8
Position/B+ i min.: 60
D+ Størrelse: Plug
Rotation: CW
Plug nr.: PL07
Total længde mm: 184,00
Bæltehjul: SP/FW
Regulator type: IR
Produktinfo: BN
Service: Nissan

Filer

Specifikation

B+ M8
Mount. bracket dist. 59.20
Belt. adj. bracket hole 1 10.30
Belt. adj. brackethole pos. 52
Plug no. PL07
Bracket hole 10.30
Position/B+ in min. 60
Prod. info BN
Pulley SP/FW
Pulley dia. 52.20
Pulley dist. 33.00
Radius 85.00
D+ Size Plug
Radius 2 86.50
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 6
Voltage 14
Total length 184.00 mm
Width/holder arm 13.00
Amp 110

  • OEM
    F032113316, ja1712ir, LR1110-713, lr1110-713, lr1110-713b, LR1110-713C, LR1110-713V, LR1110-717, LR1110-717B, 23100-AU400, 23100-au400, 23100-AU40A, 23100-au40d, 23100-AU410, 23100-AU420, 23100-au420, 23100-AU424, 113316

  • Konkurrentreferens
    A2044, ALT-H126, ALT10081, CAL20144, CAL20145, DRA3945, F042303085, F042A0H126, LEA0592, LRA02351, 8EL738087-001, 28-4853, 227.184.1102, 11163N, 11163R, 111800, 209153, 209153A, 401712RI, 440533, 443158, 849125, 12060830, 0986083750

  • Bilmärken
    Nissan

  • NormaliseratArtNr
    a2044, alt10081, alth126, cal20144, cal20145, dra3945, f032113316, f042303085, f042a0h126, ja1712ir, lea0592, lr1110713, lr1110713b, lr1110713c, lr1110713v, lr1110717, lr1110717b, lra02351, 8el738087001, 11163n, 11163r, 23100au400, 23100au40a, 23100au40d, 23100au410, 23100au420, 23100au424, 111800, 113316, 209153, 209153a, 284853, 401712ri, 440533, 443158, 849125, 12060830, 0986083750, 2271841102

  • Passar modeller
    Nissan Model: Pathfinder Model series: Pathfinder Model type: 4WD Type of engine: Hybrid Size of motor: 2.5 Brand of engine: QR25DER Type description: R52 Body: SUV From date: 01-09-2013 Fuel: Petrol/Electric Approved: Yes
    Nissan Model: Primera Model series: Primera Size of motor: 2.0 Brand of engine: QR20DE Type description: P12 Body: Hatchback From date: 01-07-2002 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Nissan Model: Primera Model series: Primera Size of motor: 2.0 Brand of engine: QR20DE Type description: P12 From date: 01-03-2002 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Nissan Model: Primera Model series: Primera Size of motor: 2.0 Brand of engine: QR20DE Type description: WP12 Body: Estate From date: 01-03-2002 Fuel: Gasoline Approved: Yes
    Nissan Model: Rogue Model series: Rogue Model type: 4x4 Size of motor: 2.5 Brand of engine: QR25DE Type description: T32_ Body: Closed Off-Road Vehicle From date: 01-10-2014 Fuel: Petrol Approved: Yes
    Nissan Model: Rogue/Rogue Select Model series: Rogue/Rogue Select Model type: AWD Size of motor: 2.5 Brand of engine: QR25DE Body: Closed Off-Road Vehicle From date: 01-01-2010 To date: 01-11-2013 Fuel: Gasoline Approved: Yes
    Nissan Model: X-Trail Model series: X-Trail Model type: 4WD Size of motor: 2.0 Brand of engine: QR20DE Type description: T30 From date: 01-07-2001 To date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Nissan Model: X-Trail Model series: X-Trail Model type: 4WD Size of motor: 2.5 Brand of engine: QR25DE From date: 01-09-2002 To date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Nissan Model: X-Trail Model series: X-Trail Size of motor: 2.0 Brand of engine: QR20DE Type description: T30 From date: 01-07-2001 To date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Nissan Model: X-Trail Model series: X-Trail Size of motor: 2.5 Brand of engine: QR25DE Type description: T31 Body: SUV From date: 01-09-2007 To date: 01-11-2013 Fuel: Petrol Approved: Yes
    Nissan Series: Primera (P12) Model: 2.0 Engine volume: 2.0 Engine type: QR 20 DE Year: 03.02-
    Nissan Series: Primera (P12) Model: 2.0 Hatchback Engine volume: 2.0 Engine type: QR 20 DE Year: 07.02-
    Nissan Series: Primera (WP12) Model: 2.0 Kombi Engine volume: 2.0 Engine type: QR 20 DE Year: 03.02-
    Nissan Series: X-Trail (T30) Model: 2.0 4x4 Engine volume: 2.0 Engine type: QR 20 DE Year: 07.01-
    Nissan Series: X-Trail (T30) Model: 2.5 4x4 Engine volume: 2.5 Engine type: QR 25 DE Year: 01.03-
    1 / 3
  • Beskrivelse
    Nissan X-Trail Gen.12V-110A 12V - 110A, 6frg, (L, S) 6gr. fwеlgenforb. til Yourex produktordre 90-400-0420

    Spenning: 14
    Ampere: 110
    Bæltehjulafstand: 33,00
    Bredde/beslagarm: 13,00
    Monteringsbeslagafstand: 59,20
    Beslagshul: 10,30
    Bæltejustering beslags hulpos.: 52
    Bæltejustering beslags hul 1: 10,30
    Bæltehjulsdiameter: 52,20
    Riller/bæltehjul: 6
    Radius: 85,00
    Radius 2: 86,50
    B+: M8
    Position/B+ i min.: 60
    D+ Størrelse: Plug
    Rotation: CW
    Plug nr.: PL07
    Total længde mm: 184,00
    Bæltehjul: SP/FW
    Regulator type: IR
    Produktinfo: BN
    Service: Nissan

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 59.20
    Belt. adj. bracket hole 1 10.30
    Belt. adj. brackethole pos. 52
    Plug no. PL07
    Bracket hole 10.30
    Position/B+ in min. 60
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 52.20
    Pulley dist. 33.00
    Radius 85.00
    D+ Size Plug
    Radius 2 86.50
    Regulator type IR
    Rotation CW
    Servicing Nissan
    Grooves/pulley 6
    Voltage 14
    Total length 184.00 mm
    Width/holder arm 13.00
    Amp 110
  • Køretøjsmatchning

    • OEM
      F032113316, ja1712ir, LR1110-713, lr1110-713, lr1110-713b, LR1110-713C, LR1110-713V, LR1110-717, LR1110-717B, 23100-AU400, 23100-au400, 23100-AU40A, 23100-au40d, 23100-AU410, 23100-AU420, 23100-au420, 23100-AU424, 113316

    • Konkurrentreferens
      A2044, ALT-H126, ALT10081, CAL20144, CAL20145, DRA3945, F042303085, F042A0H126, LEA0592, LRA02351, 8EL738087-001, 28-4853, 227.184.1102, 11163N, 11163R, 111800, 209153, 209153A, 401712RI, 440533, 443158, 849125, 12060830, 0986083750

    • Bilmärken
      Nissan

    • NormaliseratArtNr
      a2044, alt10081, alth126, cal20144, cal20145, dra3945, f032113316, f042303085, f042a0h126, ja1712ir, lea0592, lr1110713, lr1110713b, lr1110713c, lr1110713v, lr1110717, lr1110717b, lra02351, 8el738087001, 11163n, 11163r, 23100au400, 23100au40a, 23100au40d, 23100au410, 23100au420, 23100au424, 111800, 113316, 209153, 209153a, 284853, 401712ri, 440533, 443158, 849125, 12060830, 0986083750, 2271841102

    • Passar modeller
      Nissan Model: Pathfinder Model series: Pathfinder Model type: 4WD Type of engine: Hybrid Size of motor: 2.5 Brand of engine: QR25DER Type description: R52 Body: SUV From date: 01-09-2013 Fuel: Petrol/Electric Approved: Yes
      Nissan Model: Primera Model series: Primera Size of motor: 2.0 Brand of engine: QR20DE Type description: P12 Body: Hatchback From date: 01-07-2002 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Nissan Model: Primera Model series: Primera Size of motor: 2.0 Brand of engine: QR20DE Type description: P12 From date: 01-03-2002 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Nissan Model: Primera Model series: Primera Size of motor: 2.0 Brand of engine: QR20DE Type description: WP12 Body: Estate From date: 01-03-2002 Fuel: Gasoline Approved: Yes
      Nissan Model: Rogue Model series: Rogue Model type: 4x4 Size of motor: 2.5 Brand of engine: QR25DE Type description: T32_ Body: Closed Off-Road Vehicle From date: 01-10-2014 Fuel: Petrol Approved: Yes
      Nissan Model: Rogue/Rogue Select Model series: Rogue/Rogue Select Model type: AWD Size of motor: 2.5 Brand of engine: QR25DE Body: Closed Off-Road Vehicle From date: 01-01-2010 To date: 01-11-2013 Fuel: Gasoline Approved: Yes
      Nissan Model: X-Trail Model series: X-Trail Model type: 4WD Size of motor: 2.0 Brand of engine: QR20DE Type description: T30 From date: 01-07-2001 To date: 01-01-2013 Fuel: Gasoline Approved: Yes
      Nissan Model: X-Trail Model series: X-Trail Model type: 4WD Size of motor: 2.5 Brand of engine: QR25DE From date: 01-09-2002 To date: 01-01-2013 Fuel: Gasoline Approved: Yes
      Nissan Model: X-Trail Model series: X-Trail Size of motor: 2.0 Brand of engine: QR20DE Type description: T30 From date: 01-07-2001 To date: 01-01-2013 Fuel: Gasoline Approved: Yes
      Nissan Model: X-Trail Model series: X-Trail Size of motor: 2.5 Brand of engine: QR25DE Type description: T31 Body: SUV From date: 01-09-2007 To date: 01-11-2013 Fuel: Petrol Approved: Yes
      Nissan Series: Primera (P12) Model: 2.0 Engine volume: 2.0 Engine type: QR 20 DE Year: 03.02-
      Nissan Series: Primera (P12) Model: 2.0 Hatchback Engine volume: 2.0 Engine type: QR 20 DE Year: 07.02-
      Nissan Series: Primera (WP12) Model: 2.0 Kombi Engine volume: 2.0 Engine type: QR 20 DE Year: 03.02-
      Nissan Series: X-Trail (T30) Model: 2.0 4x4 Engine volume: 2.0 Engine type: QR 20 DE Year: 07.01-
      Nissan Series: X-Trail (T30) Model: 2.5 4x4 Engine volume: 2.5 Engine type: QR 25 DE Year: 01.03-
      1 / 3
