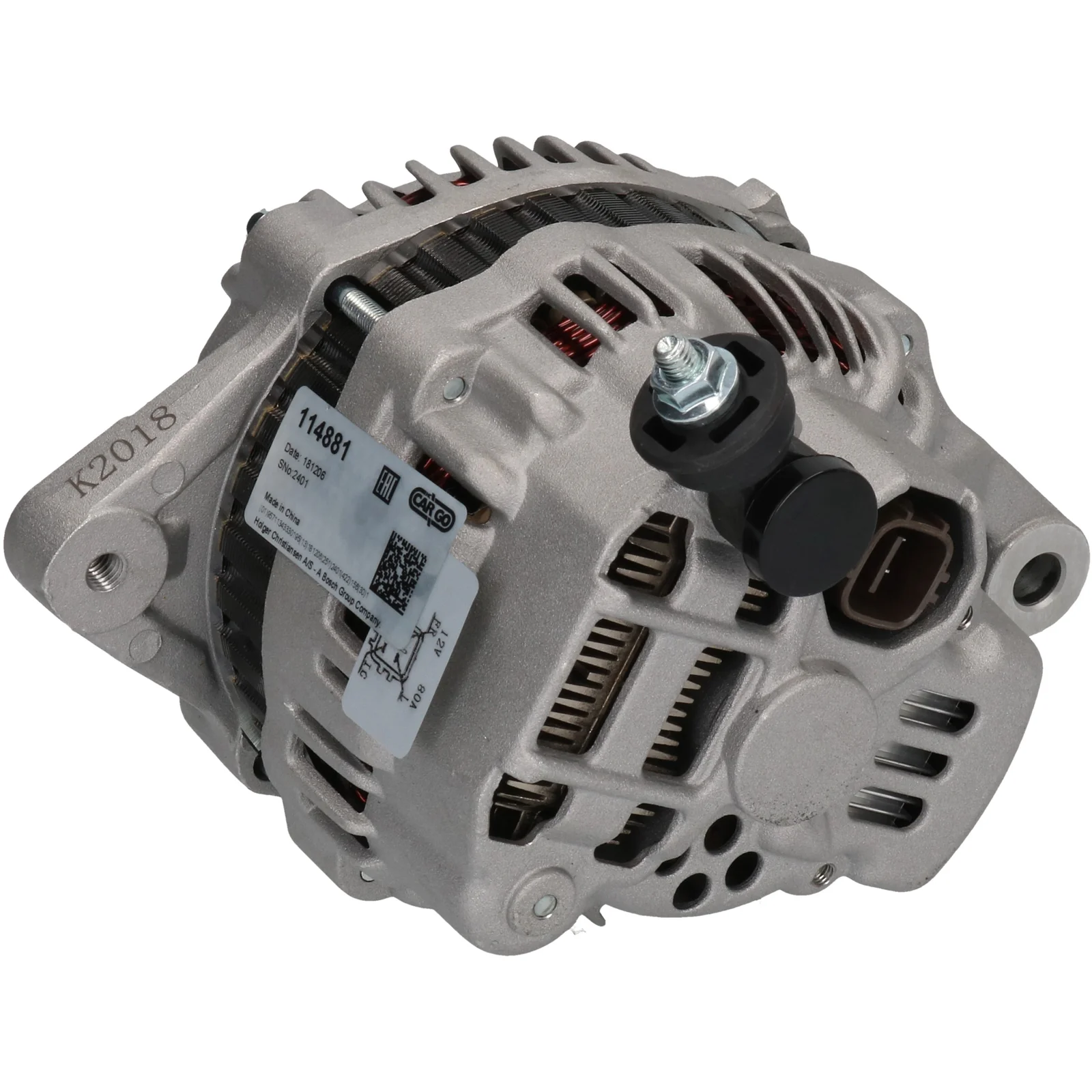

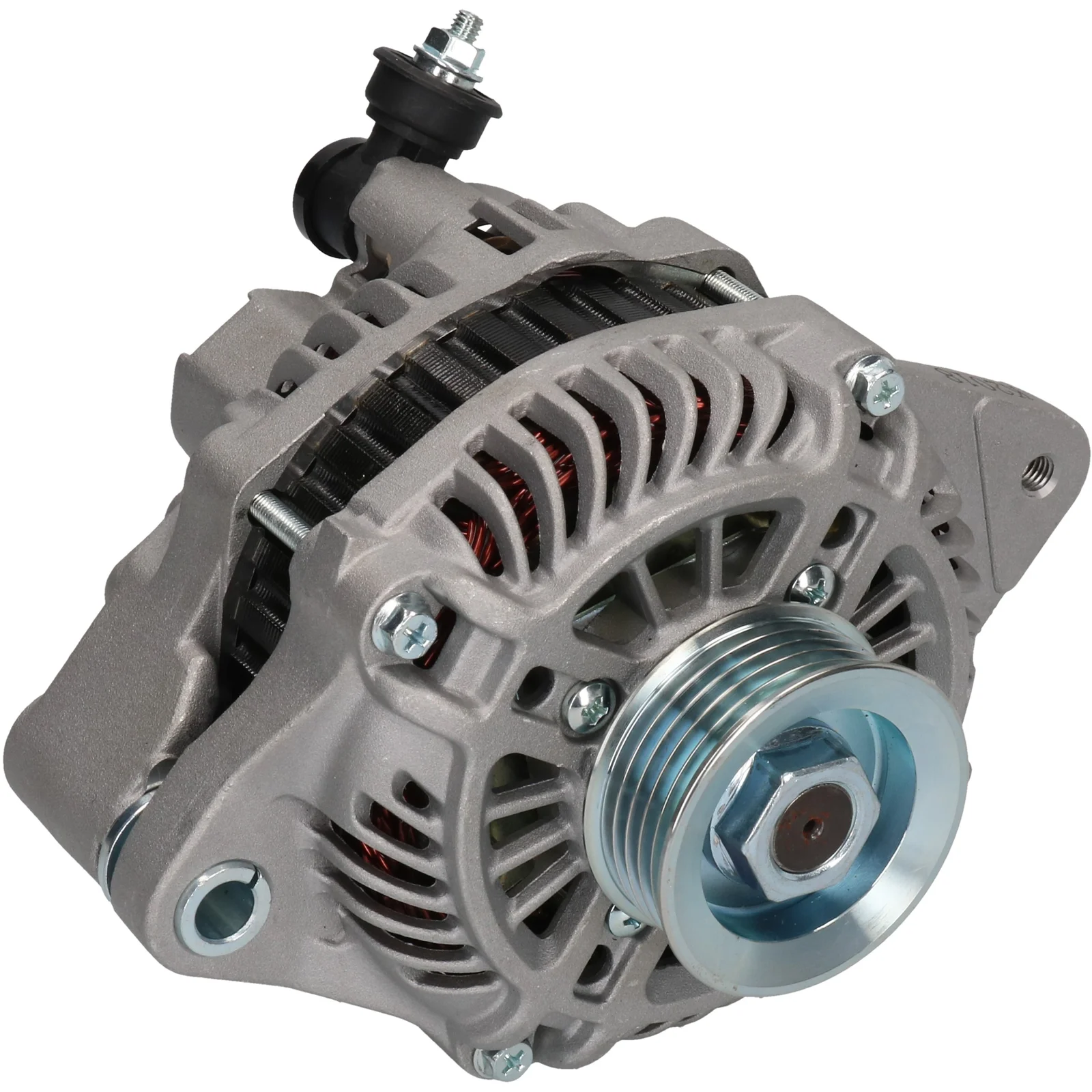

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114881

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 80, Rotation: CW, Remskive dia.: 55,00

Beskrivelse

Spænding: 14
Amp: 80
Dreven: 90.00
Bredde/holderarm: 57.50
Bracket hul: 10.50
Bælte. just. bøsning pos.: 60
Bælte. just. bøsning hul 1: M8
Dreven diameter: 55.00
Grooves/dreven: 5
Radius: 79.50
Radius 2: 83.50
B+: M6
Position/B+ i min.: 5
Rotation: UHV
Stik nr.: PL60
Samlet længde mm: 170.00
Dreven: SP
Spændingsregulator type: IR
Produktsinfo: BN

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL60
Bracket hole 10.50
Position/B+ in min. 5
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 90.00
Radius 79.50
Radius 2 83.50
Regulator type IR
Rotation CW
Grooves/pulley 5
Voltage 14
Total length 170.00 mm
Width/holder arm 57.50
Amp 80

  • OEM
    A005TG0291, a5tg0291, A5TG0291A, F032114881, 1986A00031, 2004ir, 31400-63J00, 31400-65j10, 31400-65J12, 31400-80J0, 31400-80j00, 31400-80j02, 102211-9260

  • Konkurrentreferens
    A5080, A6417S, CAL35238, CAL40493, DAN1357, DRA0561, DRA0561N, F042A03130, J5118026, LRA02957, 8EL738212-351, 28-5571, 28-7699, 185.515.075, 245.126.802, 14024R, 23955, 23955N, 113023, 209500, 209500A, 443154, 9090595, 12060995

  • NormaliseratArtNr
    a005tg0291, a5080, a5tg0291, a5tg0291a, a6417s, cal35238, cal40493, dan1357, dra0561, dra0561n, f032114881, f042a03130, j5118026, lra02957, 8el738212351, 1986a00031, 2004ir, 14024r, 23955, 23955n, 113023, 209500, 209500a, 285571, 287699, 443154, 3140063j00, 3140065j10, 3140065j12, 3140080j0, 3140080j00, 3140080j02, 9090595, 12060995, 185515075, 245126802, 1022119260

  • Passar modeller
    Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: All-wheel Drive (JB416) Size of motor: 1.6 Brand of engine: M16A Type description: JT, TE, TD Body: Closed Off-Road Vehicle From date: 01-03-2013 Fuel: Petrol Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: All-wheel Drive (JB420) Size of motor: 2.0 Brand of engine: J20A Type description: JT, TE, TD Body: Closed Off-Road Vehicle From date: 01-07-2007 To date: 01-02-2010 Fuel: Petrol Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 1.6 Brand of engine: M16A From date: 01-04-2005 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 2.0 Brand of engine: J20A From date: 01-10-2005 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Model type: 4WD Size of motor: 1.3 Brand of engine: M13A Type description: ME, EZ Body: Hatchback From date: 01-01-2006 Fuel: Gasoline Approved: Yes
    Suzuki Model: SX4 Model series: SX4 Model type: AWD Size of motor: 1.6 Brand of engine: M16A Type description: GY, RW Body: Saloon From date: 01-10-2007 To date: 01-12-2011 Fuel: Petrol Approved: Yes
    Suzuki Model: SX4 Model series: SX4 Size of motor: 1.6 Brand of engine: M16A From date: 01-10-2007 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 80
    Dreven: 90.00
    Bredde/holderarm: 57.50
    Bracket hul: 10.50
    Bælte. just. bøsning pos.: 60
    Bælte. just. bøsning hul 1: M8
    Dreven diameter: 55.00
    Grooves/dreven: 5
    Radius: 79.50
    Radius 2: 83.50
    B+: M6
    Position/B+ i min.: 5
    Rotation: UHV
    Stik nr.: PL60
    Samlet længde mm: 170.00
    Dreven: SP
    Spændingsregulator type: IR
    Produktsinfo: BN

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL60
    Bracket hole 10.50
    Position/B+ in min. 5
    Prod. info BN
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 90.00
    Radius 79.50
    Radius 2 83.50
    Regulator type IR
    Rotation CW
    Grooves/pulley 5
    Voltage 14
    Total length 170.00 mm
    Width/holder arm 57.50
    Amp 80
  • Køretøjsmatchning

    • OEM
      A005TG0291, a5tg0291, A5TG0291A, F032114881, 1986A00031, 2004ir, 31400-63J00, 31400-65j10, 31400-65J12, 31400-80J0, 31400-80j00, 31400-80j02, 102211-9260

    • Konkurrentreferens
      A5080, A6417S, CAL35238, CAL40493, DAN1357, DRA0561, DRA0561N, F042A03130, J5118026, LRA02957, 8EL738212-351, 28-5571, 28-7699, 185.515.075, 245.126.802, 14024R, 23955, 23955N, 113023, 209500, 209500A, 443154, 9090595, 12060995

    • NormaliseratArtNr
      a005tg0291, a5080, a5tg0291, a5tg0291a, a6417s, cal35238, cal40493, dan1357, dra0561, dra0561n, f032114881, f042a03130, j5118026, lra02957, 8el738212351, 1986a00031, 2004ir, 14024r, 23955, 23955n, 113023, 209500, 209500a, 285571, 287699, 443154, 3140063j00, 3140065j10, 3140065j12, 3140080j0, 3140080j00, 3140080j02, 9090595, 12060995, 185515075, 245126802, 1022119260

    • Passar modeller
      Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: All-wheel Drive (JB416) Size of motor: 1.6 Brand of engine: M16A Type description: JT, TE, TD Body: Closed Off-Road Vehicle From date: 01-03-2013 Fuel: Petrol Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: All-wheel Drive (JB420) Size of motor: 2.0 Brand of engine: J20A Type description: JT, TE, TD Body: Closed Off-Road Vehicle From date: 01-07-2007 To date: 01-02-2010 Fuel: Petrol Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 1.6 Brand of engine: M16A From date: 01-04-2005 Fuel: Gasoline Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 2.0 Brand of engine: J20A From date: 01-10-2005 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
      Suzuki Model: Swift Model series: Swift Model type: 4WD Size of motor: 1.3 Brand of engine: M13A Type description: ME, EZ Body: Hatchback From date: 01-01-2006 Fuel: Gasoline Approved: Yes
      Suzuki Model: SX4 Model series: SX4 Model type: AWD Size of motor: 1.6 Brand of engine: M16A Type description: GY, RW Body: Saloon From date: 01-10-2007 To date: 01-12-2011 Fuel: Petrol Approved: Yes
      Suzuki Model: SX4 Model series: SX4 Size of motor: 1.6 Brand of engine: M16A From date: 01-10-2007 Fuel: Gasoline Approved: Yes
