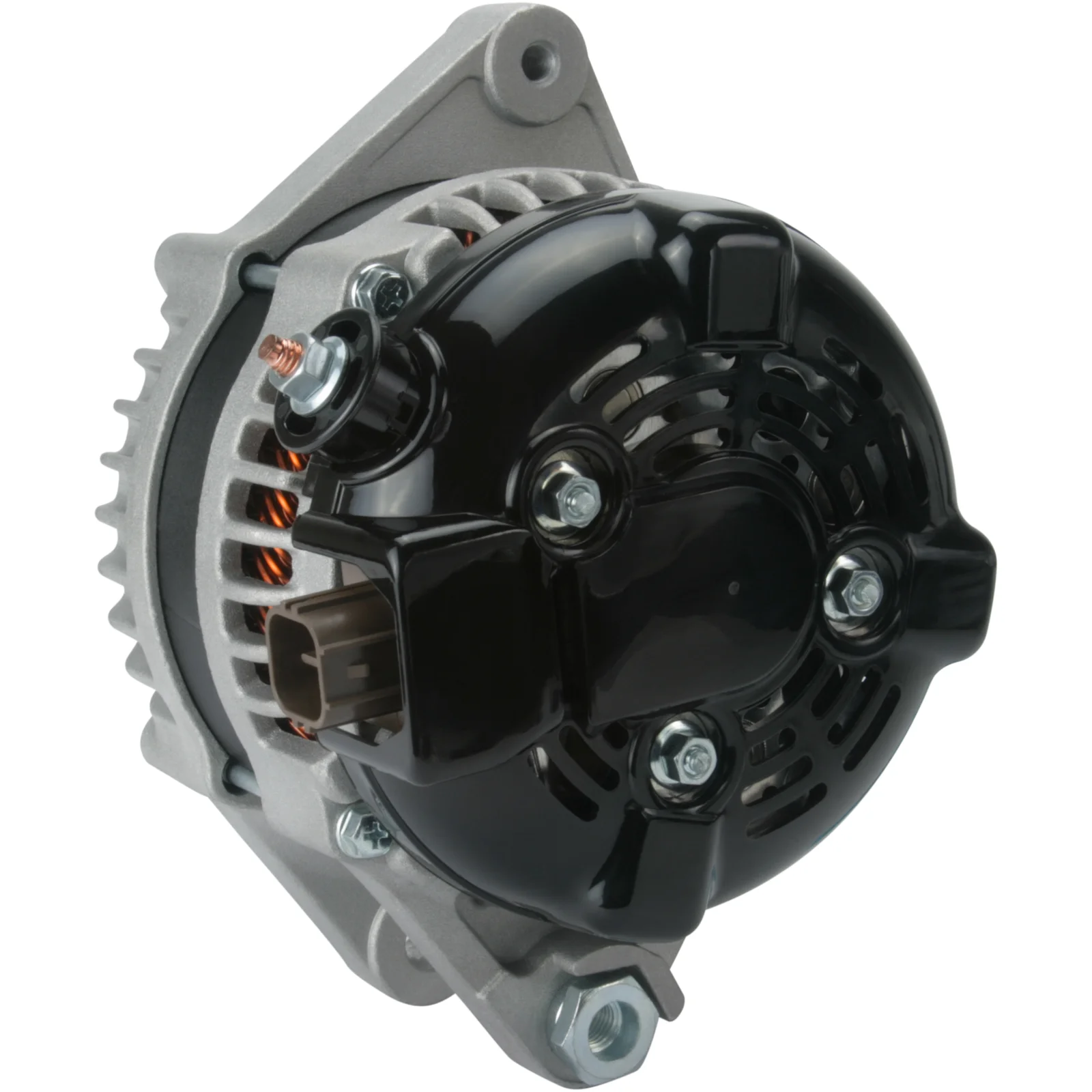

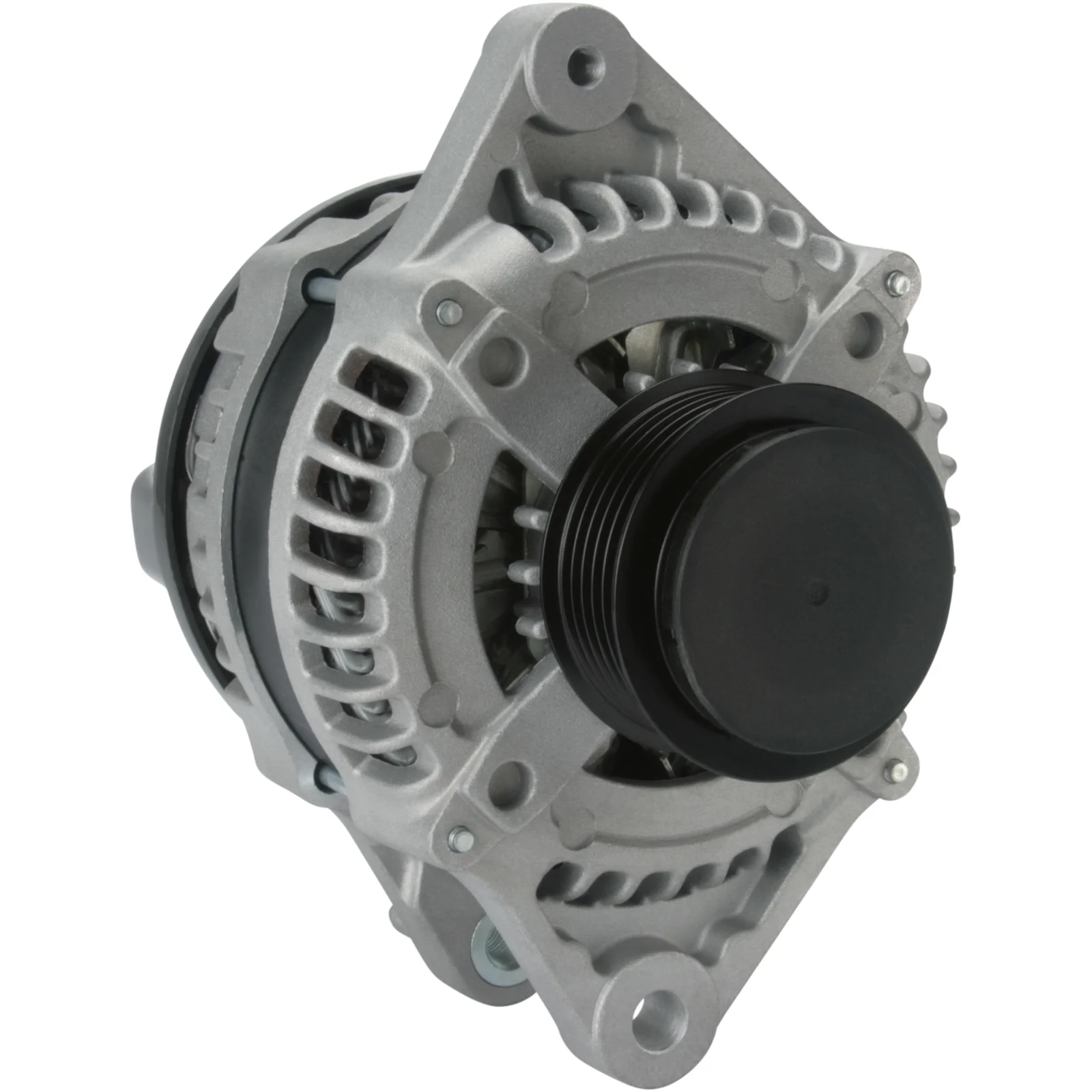

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032113972

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 100, Rotation: CW, Monteringsbeslag afstanden: 39.00

Beskrivelse

Spænding: 14
Amp: 100
Remskive dist.: 31.00
Bredde/holderarm: 16.00
Montagebeslag dist.: 39.00
Beslagshul: 11.00
Bæltespændingsbeslag hulpos.: 59
Bæltespændingsbeslag hul 1: M8
Remskive dia.: 62.00
Riller/remskive: 6
Radius: 87.00
Radius 2: 87.00
B+: M6
Position/B+ i min.: 50
D+ Størrelse: Plugg
Rotation: CW
Plug nr.: PL78
Total længde mm: 165.00
Lampetyp: Inaktiv
Remskive: SP/FW
Blæser: IF
Regulator type: IR
Produktf. info: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 39.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 59
Plug no. PL78
Bracket hole 11.00
Position/B+ in min. 50
Prod. info BN
Pulley SP/FW
Pulley dia. 62.00
Pulley dist. 31.00
Radius 87.00
D+ Size Plug
Radius 2 87.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Lamp type Inactive
Voltage 14
Total length 165.00 mm
Width/holder arm 16.00
Amp 100

  • OEM
    F032113972, 1964ir, 1986A01688, 27060-0N020, 27060-0N021, 27060-0N030, 27060-0N031, 27060-33071, 27060-33072, 104210-4100, 104210-4101, 104210-4102, 104210-5150, 104210-5151, 104210-5591

  • Konkurrentreferens
    A6038, A6038(DENSO), A6038PR, CAL40206, dan1076, DRA0411, DRA0411X, J5112148, 8EL012429-531, 8EL738212-931, 28-4959, 195.582.100, 9311, 23843, 112859, 210882, 210882A, 301964RI, 440517, 440913, 443077, 9212697, 12060858, 0986082020, 09860820200, 944390904080

  • NormaliseratArtNr
    a6038, a6038denso, a6038pr, cal40206, dan1076, dra0411, dra0411x, f032113972, j5112148, 8el012429531, 8el738212931, 1964ir, 1986a01688, 9311, 23843, 112859, 210882, 210882a, 270600n020, 270600n021, 270600n030, 270600n031, 284959, 301964ri, 440517, 440913, 443077, 9212697, 12060858, 195582100, 0986082020, 1042104100, 1042104101, 1042104102, 1042105150, 1042105151, 1042105591, 2706033071, 2706033072, 09860820200, 944390904080

  • Passar modeller
    Lancia Model: Kappa Model series: Kappa Type of engine: TD Size of motor: 2.4 Brand of engine: 838A3.000 Type description: 838 Body: Estate From date: 01-07-1996 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NDE150 Body: Hatchback From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _E15_ Body: Box From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND-TV Type description: E12_, 12J_ Body: Estate From date: 01-06-2004 To date: 01-10-2007 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _E12U_, _E12J_ Body: Hatchback From date: 01-07-2004 To date: 01-02-2007 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _E12_ From date: 01-06-2004 To date: 01-10-2006 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 100
    Remskive dist.: 31.00
    Bredde/holderarm: 16.00
    Montagebeslag dist.: 39.00
    Beslagshul: 11.00
    Bæltespændingsbeslag hulpos.: 59
    Bæltespændingsbeslag hul 1: M8
    Remskive dia.: 62.00
    Riller/remskive: 6
    Radius: 87.00
    Radius 2: 87.00
    B+: M6
    Position/B+ i min.: 50
    D+ Størrelse: Plugg
    Rotation: CW
    Plug nr.: PL78
    Total længde mm: 165.00
    Lampetyp: Inaktiv
    Remskive: SP/FW
    Blæser: IF
    Regulator type: IR
    Produktf. info: BN

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 39.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 59
    Plug no. PL78
    Bracket hole 11.00
    Position/B+ in min. 50
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 62.00
    Pulley dist. 31.00
    Radius 87.00
    D+ Size Plug
    Radius 2 87.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Lamp type Inactive
    Voltage 14
    Total length 165.00 mm
    Width/holder arm 16.00
    Amp 100
  • Køretøjsmatchning

    • OEM
      F032113972, 1964ir, 1986A01688, 27060-0N020, 27060-0N021, 27060-0N030, 27060-0N031, 27060-33071, 27060-33072, 104210-4100, 104210-4101, 104210-4102, 104210-5150, 104210-5151, 104210-5591

    • Konkurrentreferens
      A6038, A6038(DENSO), A6038PR, CAL40206, dan1076, DRA0411, DRA0411X, J5112148, 8EL012429-531, 8EL738212-931, 28-4959, 195.582.100, 9311, 23843, 112859, 210882, 210882A, 301964RI, 440517, 440913, 443077, 9212697, 12060858, 0986082020, 09860820200, 944390904080

    • NormaliseratArtNr
      a6038, a6038denso, a6038pr, cal40206, dan1076, dra0411, dra0411x, f032113972, j5112148, 8el012429531, 8el738212931, 1964ir, 1986a01688, 9311, 23843, 112859, 210882, 210882a, 270600n020, 270600n021, 270600n030, 270600n031, 284959, 301964ri, 440517, 440913, 443077, 9212697, 12060858, 195582100, 0986082020, 1042104100, 1042104101, 1042104102, 1042105150, 1042105151, 1042105591, 2706033071, 2706033072, 09860820200, 944390904080

    • Passar modeller
      Lancia Model: Kappa Model series: Kappa Type of engine: TD Size of motor: 2.4 Brand of engine: 838A3.000 Type description: 838 Body: Estate From date: 01-07-1996 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NDE150 Body: Hatchback From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _E15_ Body: Box From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND-TV Type description: E12_, 12J_ Body: Estate From date: 01-06-2004 To date: 01-10-2007 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _E12U_, _E12J_ Body: Hatchback From date: 01-07-2004 To date: 01-02-2007 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _E12_ From date: 01-06-2004 To date: 01-10-2006 Fuel: Diesel Approved: Yes
      1 / 2
