Vare nr.: F032111967

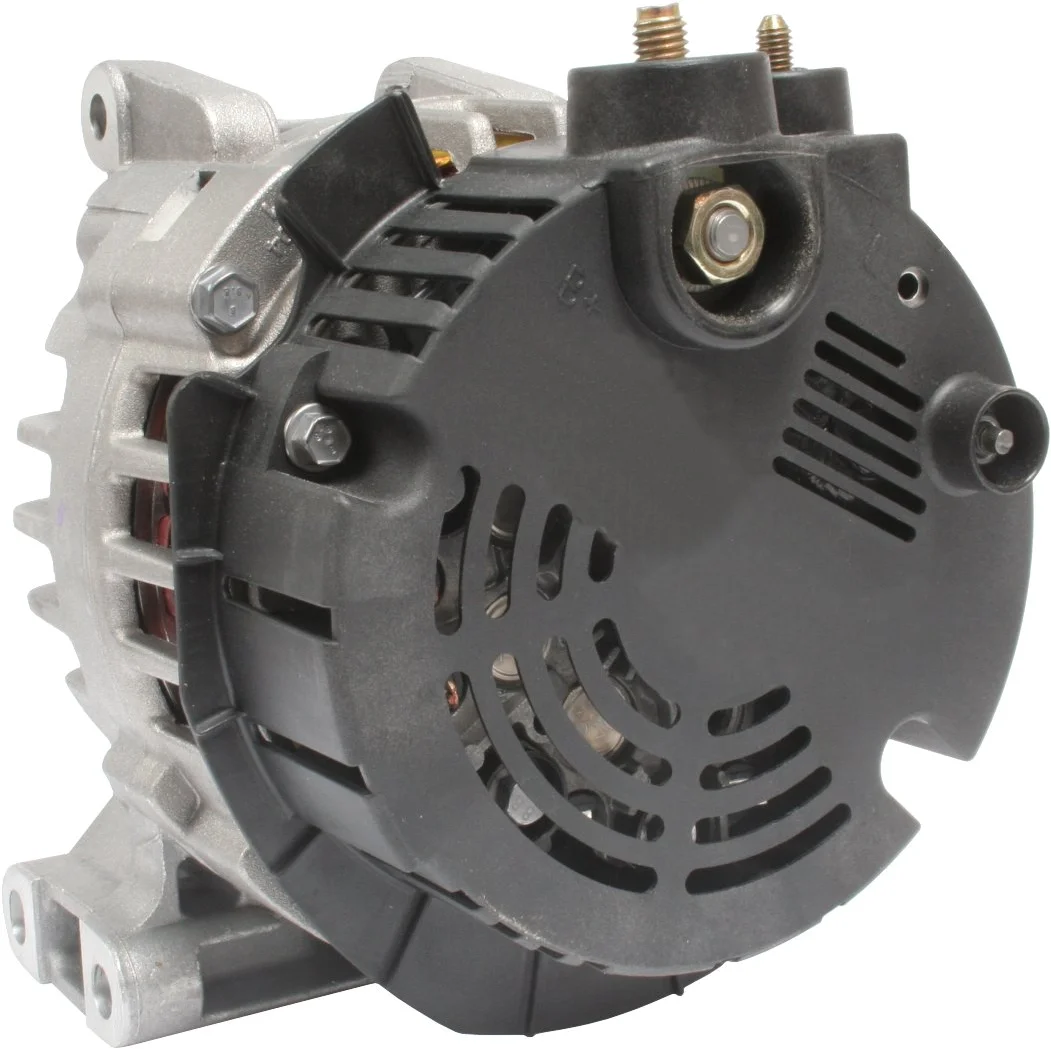

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 90, Rotation: CW, Monteringsbeslag dist.: 41.20

Beskrivelse

Spænding: 14
Amp: 90
Skive: 30,00
Bredde/holderarm: 140,00
Monteringsbeslag afstand: 41,20
Beslagshul: 8,00x10,00
Beslagshul 2: 9,00
Båndjust. beskighul pos.: 57
Båndjust. beskighul pos. 2: 5
Båndjust. beskighul hul 1: 8,00
Båndjust. beskighul hul 2: 10,00
Skivediameter: 51,80
Riller/skive: 5
B+: M8
Position/B+ i min.: 60
D+ størrelse: M6
Rotation: CW
Samlet længde mm: 177,00
Skive: SP
Regulator type: IR
Prod. info: BN
Service: Mercedes-Benz

Filer

Specifikation

B+ M8
Mount. bracket dist. 41.20
Belt. adj. bracket hole 1 8.00
Belt. adj. bracket hole 2 10.00
Belt. adj. brackethole pos. 57
Belt. adj. brackethole pos. 2 5
Bracket hole 8.00x10.00
Bracket hole 2 9.00
Position/B+ in min. 60
Prod. info BN
Pulley SP
Pulley dia. 51.80
Pulley dist. 30.00
D+ Size M6
Regulator type IR
Rotation CW
Servicing Mercedes-Benz
Grooves/pulley 5
Voltage 14
Total length 177.00 mm
Width/holder arm 140.00
Amp 90

  • OEM
    A0101543802, A010154380280, A0111543502, A011154350280, A0111545602, A011154560280, A0121544502, A012154450280, a13vi178, a13vi237, F032111967, sg9b037, 1342ir, 1986A01671, 2541922, 2541922B, 2542291, 2542291A, 2542412, 2542412A, 2542412B, 2542412C, 0101543802, 0111543502, 0111545602, 0121544502, 0124325023, 010154380280, 011154350280, 011154560280, 012154450280

  • Konkurrentreferens
    A3058, A3624PR, ALT-H074, ALT14178, CAL15121, dra3779, DRA3779X, F042A0H074, LEA0674, LRB00458, NA534, 8EL012428-031, 8el737538-001, 28-3867, 225.129.902, 555.526.090, 4626, 6004, 21466N, 21466R, 119880, 200044, 210233, 210233A, 301342RI, 436732, 439206, 746111, 746911, 12041800, 32041800, 0986041800, 944390900720

  • NormaliseratArtNr
    a0101543802, a010154380280, a0111543502, a011154350280, a0111545602, a011154560280, a0121544502, a012154450280, a13vi178, a13vi237, a3058, a3624pr, alt14178, alth074, cal15121, dra3779, dra3779x, f032111967, f042a0h074, lea0674, lrb00458, na534, sg9b037, 8el012428031, 8el737538001, 1342ir, 1986a01671, 4626, 6004, 21466n, 21466r, 119880, 200044, 210233, 210233a, 283867, 301342ri, 436732, 439206, 746111, 746911, 2541922, 2541922b, 2542291, 2542291a, 2542412, 2542412a, 2542412b, 2542412c, 12041800, 32041800, 0101543802, 0111543502, 0111545602, 0121544502, 0124325023, 225129902, 555526090, 0986041800, 010154380280, 011154350280, 011154560280, 012154450280, 944390900720

  • Passar modeller
    Mercedes-Benz Model: 140 Model series: A 140 Size of motor: 1.4 Brand of engine: M166.940 Type description: 168 Body: Hatchback From date: 01-07-1997 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 140 Model series: A 140 Size of motor: 1.6 Brand of engine: M166.960 Type description: 168 Body: Hatchback From date: 01-01-2001 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 160 Model series: A 160 Size of motor: 1.6 Brand of engine: M166.960 Type description: 168 Body: Hatchback From date: 01-07-1997 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Vaneo Model series: Vaneo Size of motor: 1.6 Brand of engine: M166.961 Body: MPV From date: 01-02-2002 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 90
    Skive: 30,00
    Bredde/holderarm: 140,00
    Monteringsbeslag afstand: 41,20
    Beslagshul: 8,00x10,00
    Beslagshul 2: 9,00
    Båndjust. beskighul pos.: 57
    Båndjust. beskighul pos. 2: 5
    Båndjust. beskighul hul 1: 8,00
    Båndjust. beskighul hul 2: 10,00
    Skivediameter: 51,80
    Riller/skive: 5
    B+: M8
    Position/B+ i min.: 60
    D+ størrelse: M6
    Rotation: CW
    Samlet længde mm: 177,00
    Skive: SP
    Regulator type: IR
    Prod. info: BN
    Service: Mercedes-Benz

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 41.20
    Belt. adj. bracket hole 1 8.00
    Belt. adj. bracket hole 2 10.00
    Belt. adj. brackethole pos. 57
    Belt. adj. brackethole pos. 2 5
    Bracket hole 8.00x10.00
    Bracket hole 2 9.00
    Position/B+ in min. 60
    Prod. info BN
    Pulley SP
    Pulley dia. 51.80
    Pulley dist. 30.00
    D+ Size M6
    Regulator type IR
    Rotation CW
    Servicing Mercedes-Benz
    Grooves/pulley 5
    Voltage 14
    Total length 177.00 mm
    Width/holder arm 140.00
    Amp 90
  • Køretøjsmatchning

    • OEM
      A0101543802, A010154380280, A0111543502, A011154350280, A0111545602, A011154560280, A0121544502, A012154450280, a13vi178, a13vi237, F032111967, sg9b037, 1342ir, 1986A01671, 2541922, 2541922B, 2542291, 2542291A, 2542412, 2542412A, 2542412B, 2542412C, 0101543802, 0111543502, 0111545602, 0121544502, 0124325023, 010154380280, 011154350280, 011154560280, 012154450280

    • Konkurrentreferens
      A3058, A3624PR, ALT-H074, ALT14178, CAL15121, dra3779, DRA3779X, F042A0H074, LEA0674, LRB00458, NA534, 8EL012428-031, 8el737538-001, 28-3867, 225.129.902, 555.526.090, 4626, 6004, 21466N, 21466R, 119880, 200044, 210233, 210233A, 301342RI, 436732, 439206, 746111, 746911, 12041800, 32041800, 0986041800, 944390900720

    • NormaliseratArtNr
      a0101543802, a010154380280, a0111543502, a011154350280, a0111545602, a011154560280, a0121544502, a012154450280, a13vi178, a13vi237, a3058, a3624pr, alt14178, alth074, cal15121, dra3779, dra3779x, f032111967, f042a0h074, lea0674, lrb00458, na534, sg9b037, 8el012428031, 8el737538001, 1342ir, 1986a01671, 4626, 6004, 21466n, 21466r, 119880, 200044, 210233, 210233a, 283867, 301342ri, 436732, 439206, 746111, 746911, 2541922, 2541922b, 2542291, 2542291a, 2542412, 2542412a, 2542412b, 2542412c, 12041800, 32041800, 0101543802, 0111543502, 0111545602, 0121544502, 0124325023, 225129902, 555526090, 0986041800, 010154380280, 011154350280, 011154560280, 012154450280, 944390900720

    • Passar modeller
      Mercedes-Benz Model: 140 Model series: A 140 Size of motor: 1.4 Brand of engine: M166.940 Type description: 168 Body: Hatchback From date: 01-07-1997 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 140 Model series: A 140 Size of motor: 1.6 Brand of engine: M166.960 Type description: 168 Body: Hatchback From date: 01-01-2001 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 160 Model series: A 160 Size of motor: 1.6 Brand of engine: M166.960 Type description: 168 Body: Hatchback From date: 01-07-1997 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: Vaneo Model series: Vaneo Size of motor: 1.6 Brand of engine: M166.961 Body: MPV From date: 01-02-2002 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
