HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032111594

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 75, Rotation: CW, Mount. bøjle afstand: 55,00

Beskrivelse

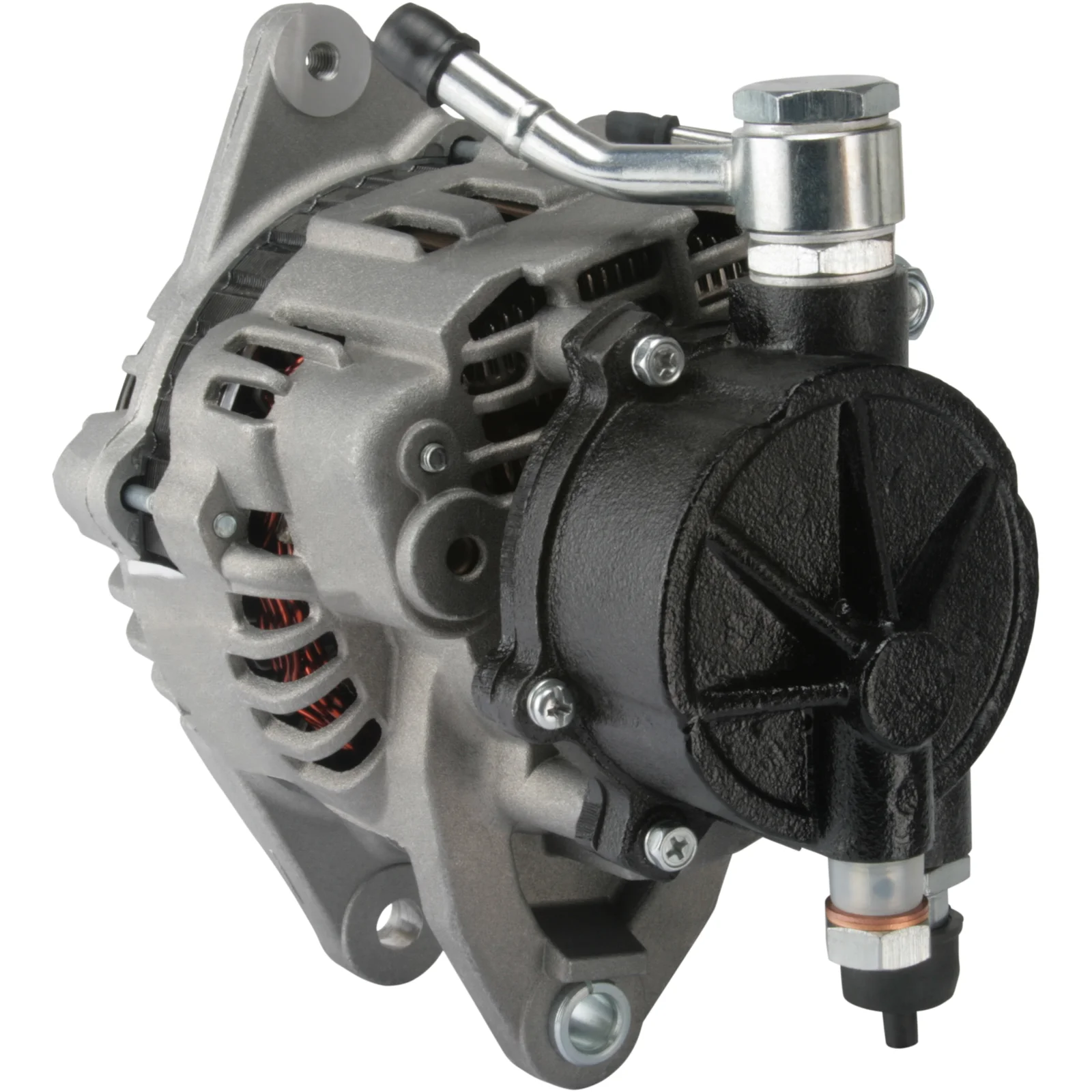

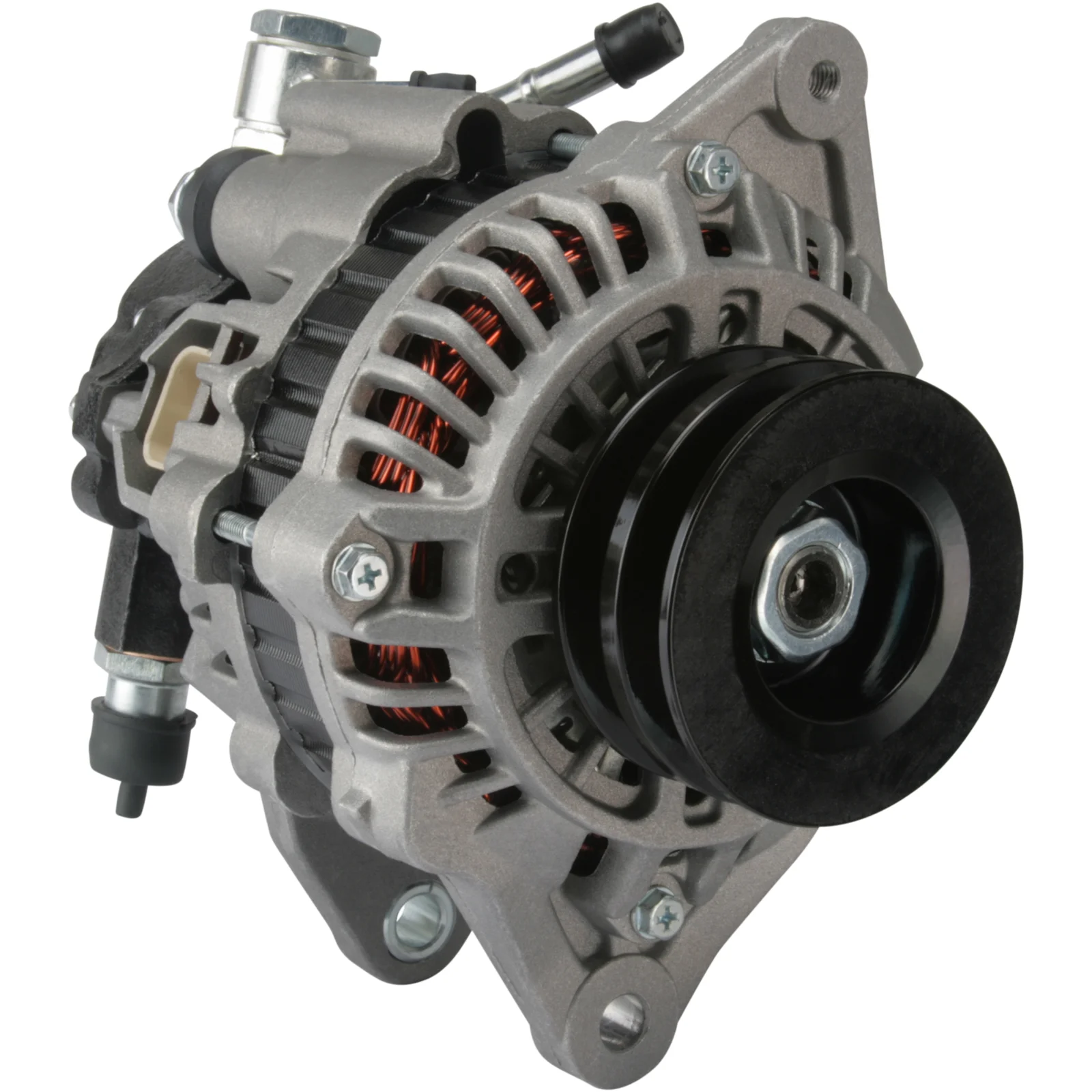

Mitsubishi Generator 12V-75A 12V - 75A, 2V, (S, L) Remskive 79mm i diameter! For Yourex produktordre 90-380-3116

Spænding: 14
Amp: 75
Remskive diameter: 42.50
Bredde/festarmsafstand: 13.00
Monteringsbeslag afstand: 55.00
Beslagshul: 10.50
Kædebælte justeringsbeslags hul position: 5
Kædebælte justeringsbeslags hul 1: M8
Remskive diameter: 77.00
Riller/remskive: 2
Radius: 88.00
Radius 2: 89.00
B+: M8
Position/B+ i min.: 6
Rotation: CW
Stik nr.: PL07
Samlet længde mm: 227.00
Remskive: DP
Regulator type: IR
Kølevandspumpe: Ja
Produktoplysninger: BN
Servicering: Mitsubishi

Filer

Specifikation

B+ M8
Mount. bracket dist. 55.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL07
Bracket hole 10.50
Position/B+ in min. 6
Prod. info BN
Pulley DP
Pulley dia. 77.00
Pulley dist. 42.50
Radius 88.00
Radius 2 89.00
Regulator type IR
Rotation CW
Servicing Mitsubishi
Grooves/pulley 2
Vac. pump Yes
Voltage 14
Total length 227.00 mm
Width/holder arm 13.00
Amp 75

  • OEM
    A002T82899, A002T82899A, A002T82899AT, A002T82899ZT, A002TN0499AT, A2T-82899, A2T-82899AT, A2T-82899ZT, A2T-N0399, A2T-N0499, A2T-N0499ZT, A2T-N1199, A2T-N1199AT, A2T-N1199ZT, a2t82899, A2T82899A, a2t82899at, a2t82899zt, A2TN0499AT, A3T-04999, A3T-06099, A3T-15099, F032111594, F032112128, ja1183ir, MD 135825, MD 147246, MD 304129, MD 306649, MD 306834, MD 313939, MD 327514, MD 366050, MD 366051, md306649, md366050, MN137867, 111594, 112128

  • Konkurrentreferens
    A5008, A5092, ALT-H048, CAL35101, dra3474, DRA4227, F042A0H048, GA15899, LRA02714, lrb00236, 8EL011711-081, 8el737328-001, 28-2759, 526.119.652, 5671, 9029, 12666R, 12667N, 111518, 210274, 210274A, 401183RI, 440950, 443279, 12060516, 0986045561, 0986087070, 944390900700

  • Bilmärken
    Mitsubishi

  • NormaliseratArtNr
    a002t82899, a002t82899a, a002t82899at, a002t82899zt, a002tn0499at, a2t82899, a2t82899a, a2t82899at, a2t82899zt, a2tn0399, a2tn0499, a2tn0499at, a2tn0499zt, a2tn1199, a2tn1199at, a2tn1199zt, a3t04999, a3t06099, a3t15099, a5008, a5092, alth048, cal35101, dra3474, dra4227, f032111594, f032112128, f042a0h048, ga15899, ja1183ir, lra02714, lrb00236, md135825, md147246, md304129, md306649, md306834, md313939, md327514, md366050, md366051, mn137867, 8el011711081, 8el737328001, 5671, 9029, 12666r, 12667n, 111518, 111594, 112128, 210274, 210274a, 282759, 401183ri, 440950, 443279, 12060516, 526119652, 0986045561, 0986087070, 944390900700

  • Passar modeller
    Mitsubishi Model: L 200 Model series: L 200 Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: K6_T Body: Pick Up From date: 01-08-2001 To date: 01-12-2007 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 200 Model series: L 200 Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: K74T Body: Pick Up From date: 01-09-2001 To date: 01-12-2007 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 200 Model series: L 200 Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Body: Pick Up From date: 01-06-1996 To date: 01-12-2007 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 200 Model series: L 200 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4D56 Body: Pick Up From date: 01-06-1996 To date: 01-12-2007 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 300 Model series: L 300 Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: P25V, P25W, P45V Body: Bus From date: 01-11-1988 To date: 01-05-2004 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 400 Model series: L 400 Model type: 2500 Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: PA5V Body: Van From date: 01-09-1996 To date: 01-06-2005 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 400 Model series: L 400 Model type: 2500 Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: PA5W Body: Bus From date: 01-05-1995 To date: 01-06-2005 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L200 Model series: L200 Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56-TD Type description: K7_T, K6_T, K5_T Body: Pickup From date: 01-07-1997 To date: 01-01-2001 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L200 Model series: L200 Type of engine: TDiC Size of motor: 2.5 Brand of engine: 4D56-T Type description: K7_T, K6_T, K5_T Body: Pickup From date: 01-08-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W Body: Convertible From date: 01-12-1990 To date: 01-04-2000 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W From date: 01-12-1990 To date: 01-10-1999 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TDi Size of motor: 2.5 Brand of engine: 4D56T Type description: V60 Body: Convertible From date: 01-04-2000 To date: 01-12-2006 Fuel: Diesel Approved: Yes
    Mitsubishi Series: L 200 (K64T) Model: 2.5 D Engine volume: 2.5 Engine type: 4 D 56 Year: 01.96-06.01
    Mitsubishi Series: L 200 (K74T) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: 4 D 56 Year: 08.98-05.01
    Mitsubishi Series: L 200 (K74T) Model: 2.5 TD 4x4 Engine volume: 2.5 Engine type: 4D 56 Year: 06.96-
    Mitsubishi Series: L 200 (K74T) Model: 2.5 TD 4WD Engine volume: 2.5 Engine type: 4 D 56 T Year: 09.01-
    Mitsubishi Series: L 200 (K74T) Model: 2.5 TD 4WD Engine volume: 2.5 Year: 08.03-
    Mitsubishi Series: L 400 (PAOV) Model: 2500 TD Engine volume: 2.5 Year: 06.96-
    Mitsubishi Series: Pajero II Model: 2.5 TD Engine volume: 2.5 Engine type: 4 D 56 TD Year: 11.93-04.00
    1 / 4
  • Beskrivelse
    Mitsubishi Generator 12V-75A 12V - 75A, 2V, (S, L) Remskive 79mm i diameter! For Yourex produktordre 90-380-3116

    Spænding: 14
    Amp: 75
    Remskive diameter: 42.50
    Bredde/festarmsafstand: 13.00
    Monteringsbeslag afstand: 55.00
    Beslagshul: 10.50
    Kædebælte justeringsbeslags hul position: 5
    Kædebælte justeringsbeslags hul 1: M8
    Remskive diameter: 77.00
    Riller/remskive: 2
    Radius: 88.00
    Radius 2: 89.00
    B+: M8
    Position/B+ i min.: 6
    Rotation: CW
    Stik nr.: PL07
    Samlet længde mm: 227.00
    Remskive: DP
    Regulator type: IR
    Kølevandspumpe: Ja
    Produktoplysninger: BN
    Servicering: Mitsubishi

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 55.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 5
    Plug no. PL07
    Bracket hole 10.50
    Position/B+ in min. 6
    Prod. info BN
    Pulley DP
    Pulley dia. 77.00
    Pulley dist. 42.50
    Radius 88.00
    Radius 2 89.00
    Regulator type IR
    Rotation CW
    Servicing Mitsubishi
    Grooves/pulley 2
    Vac. pump Yes
    Voltage 14
    Total length 227.00 mm
    Width/holder arm 13.00
    Amp 75
  • Køretøjsmatchning

    • OEM
      A002T82899, A002T82899A, A002T82899AT, A002T82899ZT, A002TN0499AT, A2T-82899, A2T-82899AT, A2T-82899ZT, A2T-N0399, A2T-N0499, A2T-N0499ZT, A2T-N1199, A2T-N1199AT, A2T-N1199ZT, a2t82899, A2T82899A, a2t82899at, a2t82899zt, A2TN0499AT, A3T-04999, A3T-06099, A3T-15099, F032111594, F032112128, ja1183ir, MD 135825, MD 147246, MD 304129, MD 306649, MD 306834, MD 313939, MD 327514, MD 366050, MD 366051, md306649, md366050, MN137867, 111594, 112128

    • Konkurrentreferens
      A5008, A5092, ALT-H048, CAL35101, dra3474, DRA4227, F042A0H048, GA15899, LRA02714, lrb00236, 8EL011711-081, 8el737328-001, 28-2759, 526.119.652, 5671, 9029, 12666R, 12667N, 111518, 210274, 210274A, 401183RI, 440950, 443279, 12060516, 0986045561, 0986087070, 944390900700

    • Bilmärken
      Mitsubishi

    • NormaliseratArtNr
      a002t82899, a002t82899a, a002t82899at, a002t82899zt, a002tn0499at, a2t82899, a2t82899a, a2t82899at, a2t82899zt, a2tn0399, a2tn0499, a2tn0499at, a2tn0499zt, a2tn1199, a2tn1199at, a2tn1199zt, a3t04999, a3t06099, a3t15099, a5008, a5092, alth048, cal35101, dra3474, dra4227, f032111594, f032112128, f042a0h048, ga15899, ja1183ir, lra02714, lrb00236, md135825, md147246, md304129, md306649, md306834, md313939, md327514, md366050, md366051, mn137867, 8el011711081, 8el737328001, 5671, 9029, 12666r, 12667n, 111518, 111594, 112128, 210274, 210274a, 282759, 401183ri, 440950, 443279, 12060516, 526119652, 0986045561, 0986087070, 944390900700

    • Passar modeller
      Mitsubishi Model: L 200 Model series: L 200 Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: K6_T Body: Pick Up From date: 01-08-2001 To date: 01-12-2007 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 200 Model series: L 200 Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: K74T Body: Pick Up From date: 01-09-2001 To date: 01-12-2007 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 200 Model series: L 200 Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Body: Pick Up From date: 01-06-1996 To date: 01-12-2007 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 200 Model series: L 200 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4D56 Body: Pick Up From date: 01-06-1996 To date: 01-12-2007 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 300 Model series: L 300 Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: P25V, P25W, P45V Body: Bus From date: 01-11-1988 To date: 01-05-2004 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 400 Model series: L 400 Model type: 2500 Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: PA5V Body: Van From date: 01-09-1996 To date: 01-06-2005 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 400 Model series: L 400 Model type: 2500 Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: PA5W Body: Bus From date: 01-05-1995 To date: 01-06-2005 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L200 Model series: L200 Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56-TD Type description: K7_T, K6_T, K5_T Body: Pickup From date: 01-07-1997 To date: 01-01-2001 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L200 Model series: L200 Type of engine: TDiC Size of motor: 2.5 Brand of engine: 4D56-T Type description: K7_T, K6_T, K5_T Body: Pickup From date: 01-08-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W Body: Convertible From date: 01-12-1990 To date: 01-04-2000 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W From date: 01-12-1990 To date: 01-10-1999 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TDi Size of motor: 2.5 Brand of engine: 4D56T Type description: V60 Body: Convertible From date: 01-04-2000 To date: 01-12-2006 Fuel: Diesel Approved: Yes
      Mitsubishi Series: L 200 (K64T) Model: 2.5 D Engine volume: 2.5 Engine type: 4 D 56 Year: 01.96-06.01
      Mitsubishi Series: L 200 (K74T) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: 4 D 56 Year: 08.98-05.01
      Mitsubishi Series: L 200 (K74T) Model: 2.5 TD 4x4 Engine volume: 2.5 Engine type: 4D 56 Year: 06.96-
      Mitsubishi Series: L 200 (K74T) Model: 2.5 TD 4WD Engine volume: 2.5 Engine type: 4 D 56 T Year: 09.01-
      Mitsubishi Series: L 200 (K74T) Model: 2.5 TD 4WD Engine volume: 2.5 Year: 08.03-
      Mitsubishi Series: L 400 (PAOV) Model: 2500 TD Engine volume: 2.5 Year: 06.96-
      Mitsubishi Series: Pajero II Model: 2.5 TD Engine volume: 2.5 Engine type: 4 D 56 TD Year: 11.93-04.00
