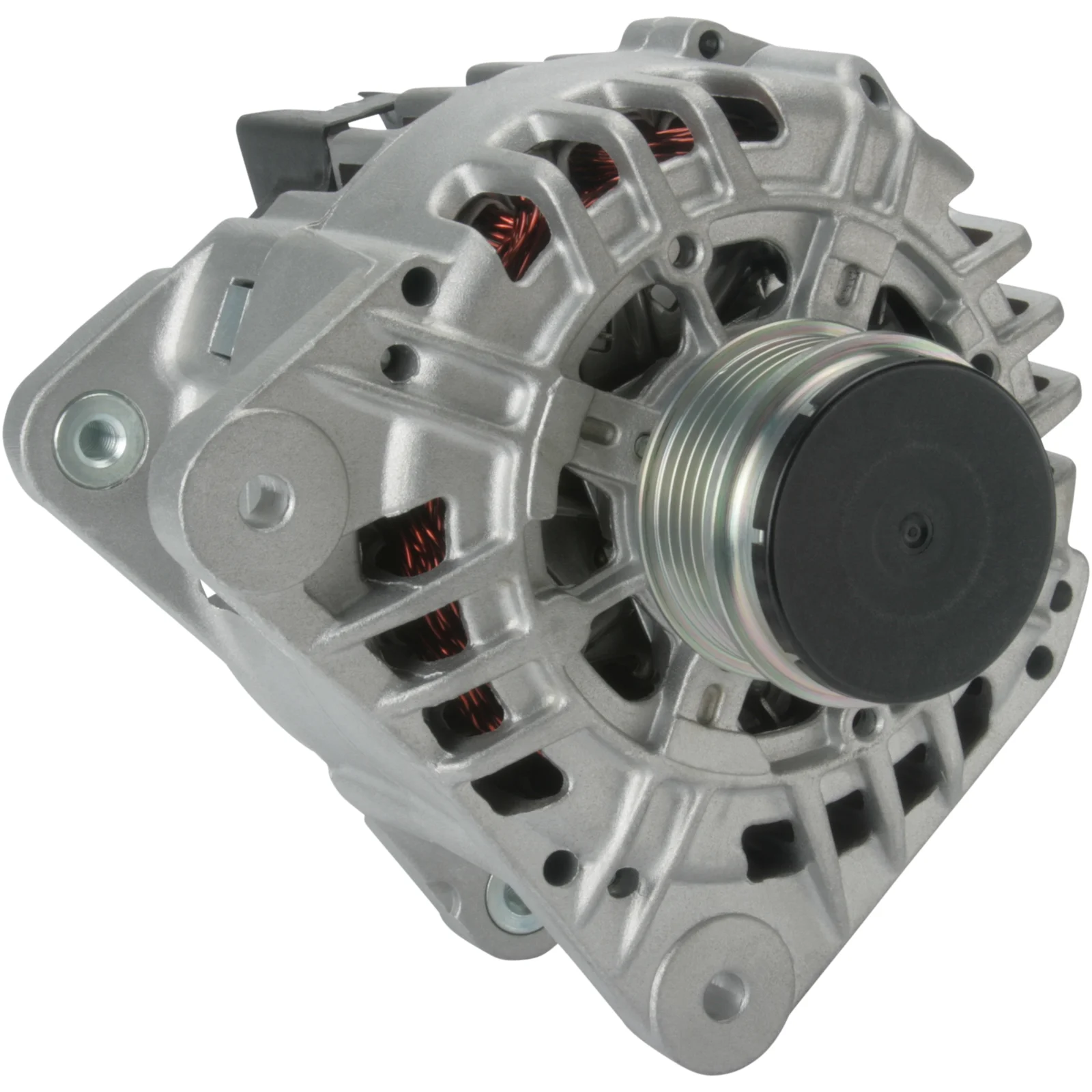

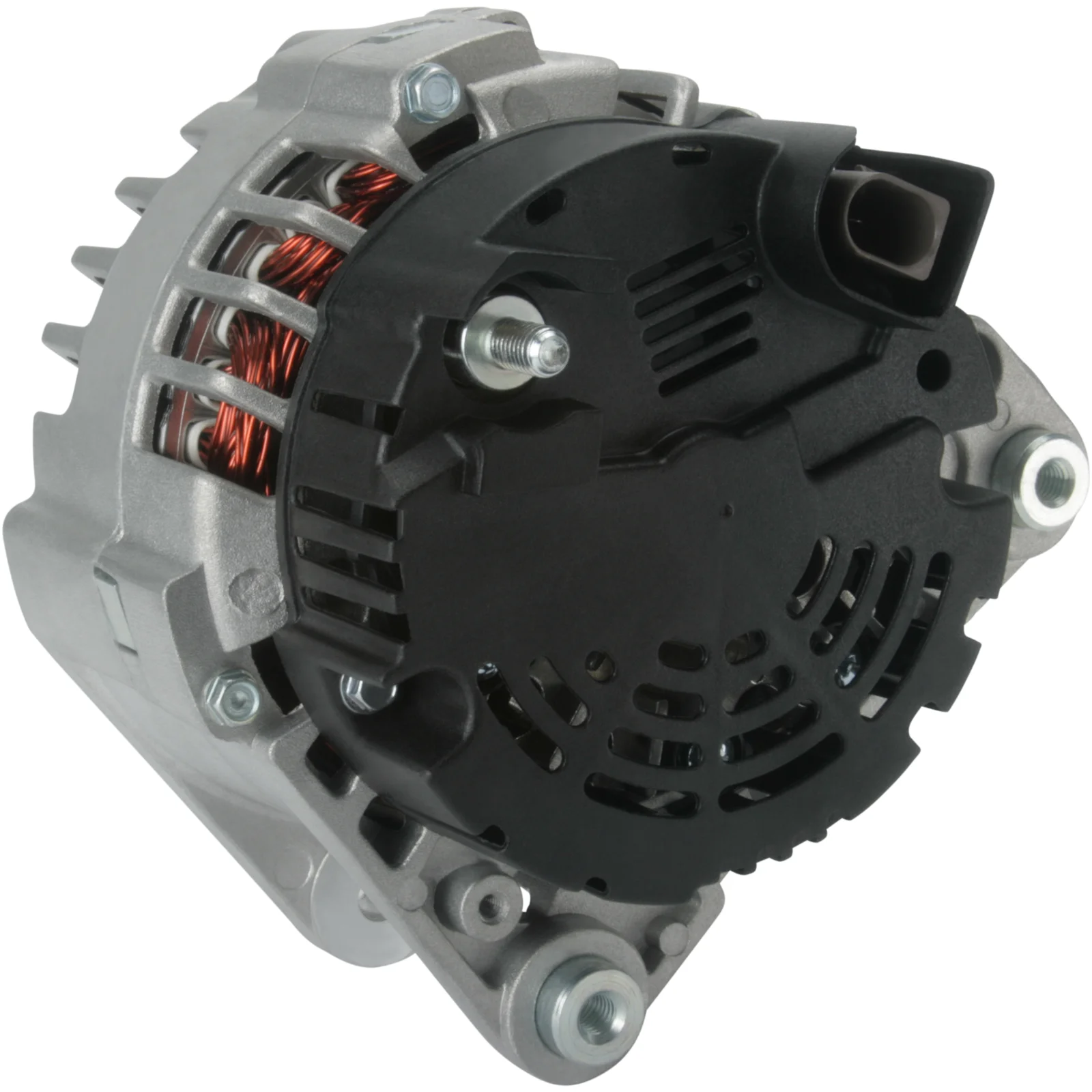

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032113252

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 140, Rotation: CW, Monteringsbeslag dist.: 61.00

Beskrivelse

Spænding: 14
Amp: 140
Skive dist.: 29.00
Bredde/holderarm: 14.00
Monteringsbeslag dist.: 61.00
Beslagshul: 8.50
Kædelås justeringsbeslagshul pos.: 45
Kædelås justeringsbeslagshul 1: 8.50
Skivedia.: 56.00
Grooves/skive: 5
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ i min.: 50
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL61
Total længde mm: 180.00
Skive: SP/FW
Reg. type: IR
Produktinfo: BN
Service: VW

Filer

Specifikation

B+ M8
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL61
Bracket hole 8.50
Position/B+ in min. 50
Prod. info BN
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 29.00
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Servicing VW
Grooves/pulley 5
Voltage 14
Total length 180.00 mm
Width/holder arm 14.00
Amp 140

  • OEM
    F032113252, sg14b011, 1678ir, 2542496, 2542496B, 2542496C, 028903029Q, 028903029QX, 028903029r, 028903029RX, 0124525010, 0124525021, 0124525089

  • Konkurrentreferens
    A0725S, A3033, ALT-H121, CAL15270, DRB4460, DRB4460X, F042A0H121, LRA02323, 8EL011710-681, 28-4818, 211.197.1402, 305.525.140, 4647, 23320N, 23320R, 111411, 200017, 210134, 210134A, 301678RI, 437377, 439421, 746125, 746925, 9044460, 9213623, 12044460, 32044460, 0986044460, 944390444600

  • NormaliseratArtNr
    a0725s, a3033, alth121, cal15270, drb4460, drb4460x, f032113252, f042a0h121, lra02323, sg14b011, 8el011710681, 1678ir, 4647, 23320n, 23320r, 111411, 200017, 210134, 210134a, 284818, 301678ri, 437377, 439421, 746125, 746925, 2542496, 2542496b, 2542496c, 9044460, 9213623, 12044460, 028903029q, 028903029qx, 028903029r, 028903029rx, 32044460, 0124525010, 0124525021, 0124525089, 305525140, 0986044460, 2111971402, 944390444600

  • Passar modeller
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E2 From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E5 Body: Estate From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 8E2,B6 From date: 01-05-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 8E5 Body: Estate From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E2,B6 From date: 01-11-2000 To date: 01-12-2004 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 8E5, B6 Body: Estate From date: 01-09-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 4B,C5 Body: Estate From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 4B,C5 Body: Estate From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Skoda Model: Superb Model series: Superb Type of engine: TDi Size of motor: 2.0 Brand of engine: BWW Type description: 3U4 From date: 01-02-2006 To date: 01-03-2008 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 3B2 From date: 01-02-2000 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 3B5 Body: Estate From date: 01-02-2000 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGH Type description: 3B3 From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGH Type description: 3B6 Body: Estate From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGW Type description: 3B3 From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGW Type description: 3B6 Body: Estate From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
