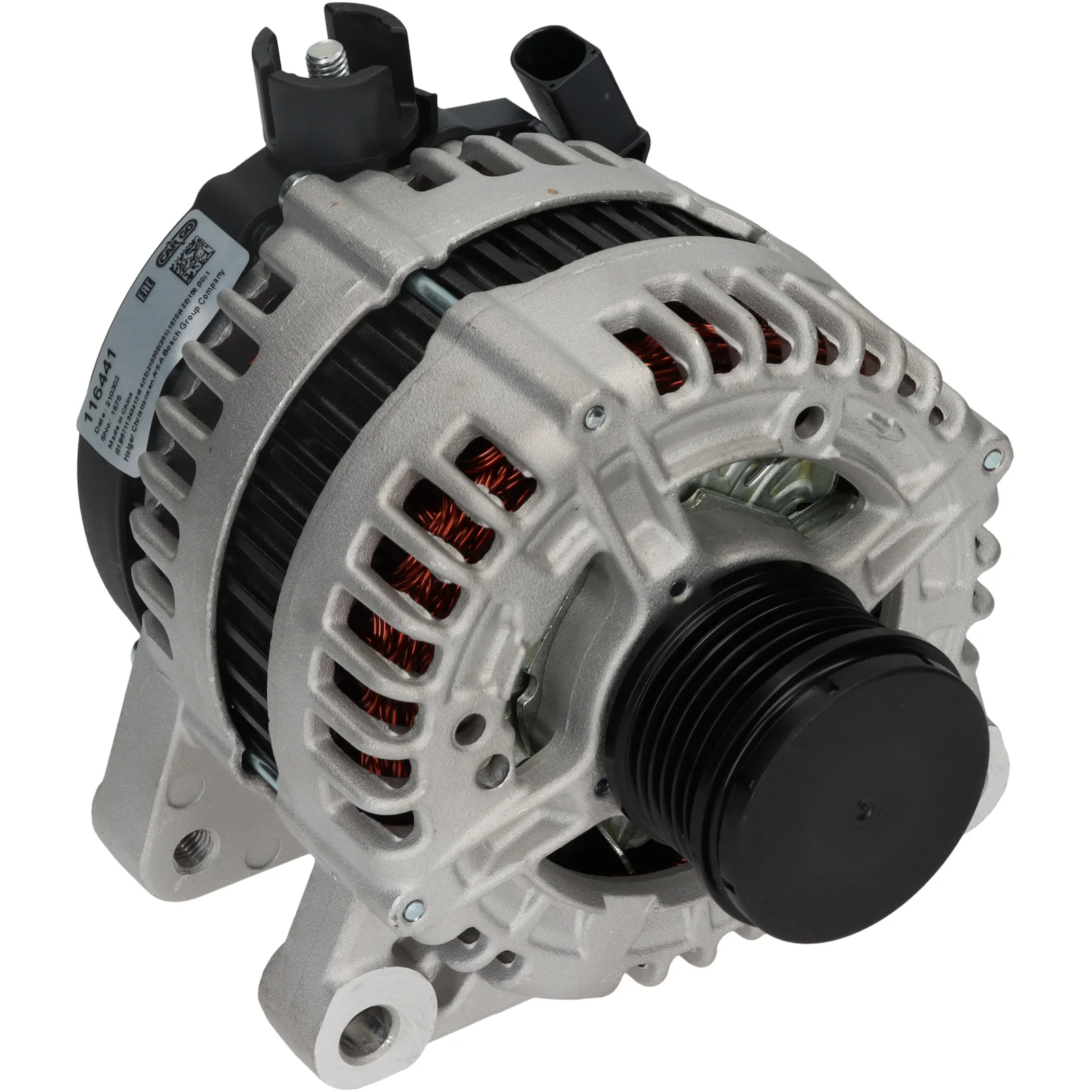

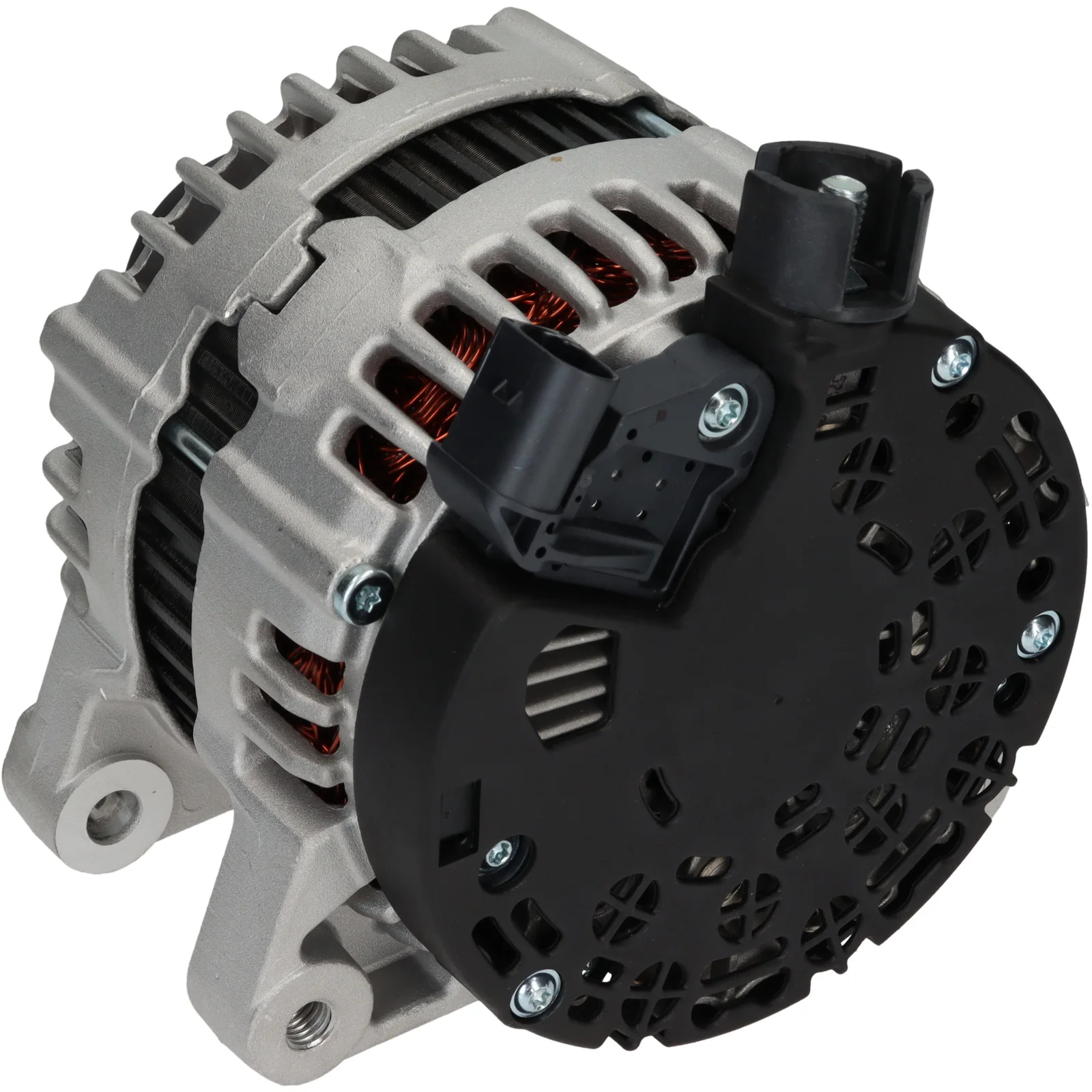

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116441

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Montering. bøsning for fordeling: 46.50

Beskrivelse

Gen. 12V-150A passer til Volvo 12V - 150A, 6gr.frg, (LIN) ID-kode : 88 180A se 90-600-2929, For Yourex produktordre 90-600-7316

Spænding: 14
Amp: 150
Skive fordeling: 43,00
Bredde/holder arm: 21,00
Monteringsbeslag afstand: 46,50
Beslaghul: 10,20
Bæltejustering beslaghul pos.: 45
Bæltejustering beslaghul 1: 10,50
Skive diameter: 54,50
Riller/skive: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 50
Rotation: Sidelæns
Stik ned.: PL137
Total længde mm: 170,00
Terminaltype: COM
Kommunikation: LIN
Skive: SP/FW
Regulator type: IR
Produktinfo: BN
Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, før der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 46.50
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 45
Plug no. PL137
Bracket hole 10.20
Position/B+ in min. 50
Prod. info BN
Pulley SP/FW
Pulley dia. 54.50
Pulley dist. 43.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 170.00 mm
Width/holder arm 21.00
Amp 150

  • OEM
    A0284, A3344S, AV6N-10300GB, AV6N-10300GC, CAL10311, DRA0213N, F032114724, F032116441, LRA02953, TG15C 103, TG15C 183, TG15C 186, 06E903016P, 6G9N10300XA, 6G9N10300XB, 8EL012430-381, 28-5567, 0121 615 009, 219.190.1502, 595.515.150, 0986 047 960, 01210AA7NB, 1986A01496, 23953N, 112706, 114724, 116441, 301970RI, 1074769, 1376501, 1387927, 1506300, 1762869, 1791839, 2099445, 2543428, 2609244, 2612673, 9090357, 12047960, 30285659, 30659390, 31285808, 32003006, 36000909, 36001117, 36001501, 36012505, 0121615009, 0121615019, 0121615109, 0986047960

  • Konkurrentreferens
    A0284, A3344S, CAL10311, dra0213, DRA0213N, LRA02953, 8EL012430-381, 28-5567, 219.190.1502, 595.515.150, 23953N, 112706, 301970RI, 9090357, 12047960, 32003006, 0986047960

  • Bilmärken
    FORD, MAZDA, VOLVO

  • NormaliseratArtNr
    a0284, a3344s, av6n10300gb, av6n10300gc, cal10311, dra0213n, f032114724, f032116441, lra02953, tg15c103, tg15c183, tg15c186, 06e903016p, 6g9n10300xa, 6g9n10300xb, 8el012430381, 01210aa7nb, 1986a01496, 23953n, 112706, 114724, 116441, 285567, 301970ri, 1074769, 1376501, 1387927, 1506300, 1762869, 1791839, 2099445, 2543428, 2609244, 2612673, 9090357, 12047960, 30285659, 30659390, 31285808, 32003006, 36000909, 36001117, 36001501, 36012505, 0121615009, 0121615019, 0121615109, 595515150, 0986047960, 2191901502

  • Passar modeller
    FORD C-MAX II (DXA/CB7, DXA/CEU) 1.6 TDCi Engine volume: 1.6 Engine type: T1DA, T1DB Year: 12.10-06.19
    FORD C-MAX II (DXA/CB7, DXA/CEU) 1.6 TDCi Engine volume: 1.6 Engine type: T3DA, T3DB Year: 12.10-06.19
    FORD FIESTA VI (CB1, CCN) 1.4 TDCi Engine volume: 1.4 Engine type: F6JD, KVJA Year: 07.10-09.12
    FORD FIESTA VI (CB1, CCN) 1.6 TDCi Engine volume: 1.6 Engine type: HHJC, HHJE, HHJD Year: 06.08-12.12
    FORD FIESTA VI (CB1, CCN) 1.6 TDCi Engine volume: 1.6 Engine type: HHJF, UBJA Year: 06.08-12.12
    FORD FIESTA VI (CB1, CCN) 1.6 TDCi Engine volume: 1.6 Engine type: TZJA, TZJB, T3JA Year: 02.10-12.15
    FORD FOCUS III Sedan 1.6 TDCi Engine volume: 1.6 Engine type: T3DA, T3DB Year: 07.10-02.20
    FORD FOCUS III Turnier 1.6 TDCi ECOnetic Engine volume: 1.6 Engine type: NGDB, NGDA Year: 05.12-07.15
    FORD FOCUS III Turnier 1.6 TDCi Engine volume: 1.6 Engine type: T3DA, T3DB Year: 07.10-02.20
    FORD GALAXY II (WA6) 1.6 TDCi Engine volume: 1.6 Engine type: T1WA, T1WB Year: 02.11-06.15
    FORD GALAXY II (WA6) 2.0 TDCi Engine volume: 2.0 Engine type: AZWA Year: 05.06-06.15
    FORD GALAXY II (WA6) 2.0 TDCi Engine volume: 2.0 Engine type: QXWC, UFWA, QXWA, QXWB Year: 05.06-06.15
    FORD GALAXY II (WA6) 2.0 TDCi Engine volume: 2.0 Engine type: TYWA, KLWA Year: 11.07-06.15
    FORD GALAXY II (WA6) 2.0 TDCi Engine volume: 2.0 Engine type: UKWA, AZWC Year: 05.06-06.15
    FORD GALAXY MK II VAN (WA6) TDCi Engine volume: 2.0 Engine type: AZWA Year: 11.06-06.15
    FORD GALAXY MK II VAN (WA6) TDCi Engine volume: 2.0 Engine type: TYWA, KLWA Year: 01.07-06.15
    FORD GRAND C-MAX (DXA/CB7, DXA/CEU) 1.6 TDCi Engine volume: 1.6 Engine type: T1DA, T1DB Year: 12.10-06.19
    FORD GRAND C-MAX (DXA/CB7, DXA/CEU) 1.6 TDCi Engine volume: 1.6 Engine type: T3DA, T3DB Year: 12.10-06.19
    FORD S-MAX (WA6) 2.0 TDCi Engine volume: 2.0 Engine type: AZWA Year: 05.06-12.14
    FORD S-MAX (WA6) 2.0 TDCi Engine volume: 2.0 Engine type: QXWC, UFWA, QXWA, QXWB Year: 05.06-12.14
    FORD S-MAX (WA6) 2.0 TDCi Engine volume: 2.0 Engine type: TYWA, KLWA Year: 11.07-12.14
    FORD S-MAX (WA6) 2.0 TDCi Engine volume: 2.0 Engine type: UKWA, AZWC Year: 05.06-12.14
    FORD S-MAX VAN (WA6) 2.0 TDCi Engine volume: 2.0 Engine type: TYWA, KLWA Year: 01.07-12.14
    MAZDA 2 (DE_, DH_) 1.6 MZ-CD Engine volume: 1.6 Engine type: Y406, Y646 Year: 10.08-06.15
    MAZDA 3 (BL) 1.6 MZ-CD (BL14) Engine volume: 1.6 Engine type: Y642 Year: 12.08-05.13
    VOLVO C30 (533) D2 Engine volume: 1.6 Engine type: D 4162 T Year: 10.10-12.12
    VOLVO S40 II (544) D2 Engine volume: 1.6 Engine type: D 4162 T Year: 10.10-12.12
    VOLVO S60 II (134) DRIVe / D2 Engine volume: 1.6 Engine type: D 4162 T Year: 01.11-12.15
    VOLVO S80 II (124) 1.6 D DRIVe Engine volume: 1.6 Engine type: D 4164 T Year: 01.10-12.11
    VOLVO S80 II (124) 1.6 DRIVe Engine volume: 1.6 Engine type: D 4162 T Year: 06.11-01.14
    VOLVO V40 Halvkombi (525) D2 Engine volume: 1.6 Engine type: D 4162 T Year: 03.12-12.16
    VOLVO V60 I (155) 1.6 DRIVe Engine volume: 1.6 Engine type: D 4162 T Year: 02.11-12.15
    VOLVO V70 III (135) 1.6 D Engine volume: 1.6 Engine type: D 4164 T Year: 07.09-12.11
    VOLVO V70 III (135) 1.6 DRIVe / D2 Engine volume: 1.6 Engine type: D 4162 T Year: 04.11-12.15
    1 / 7
