HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115603

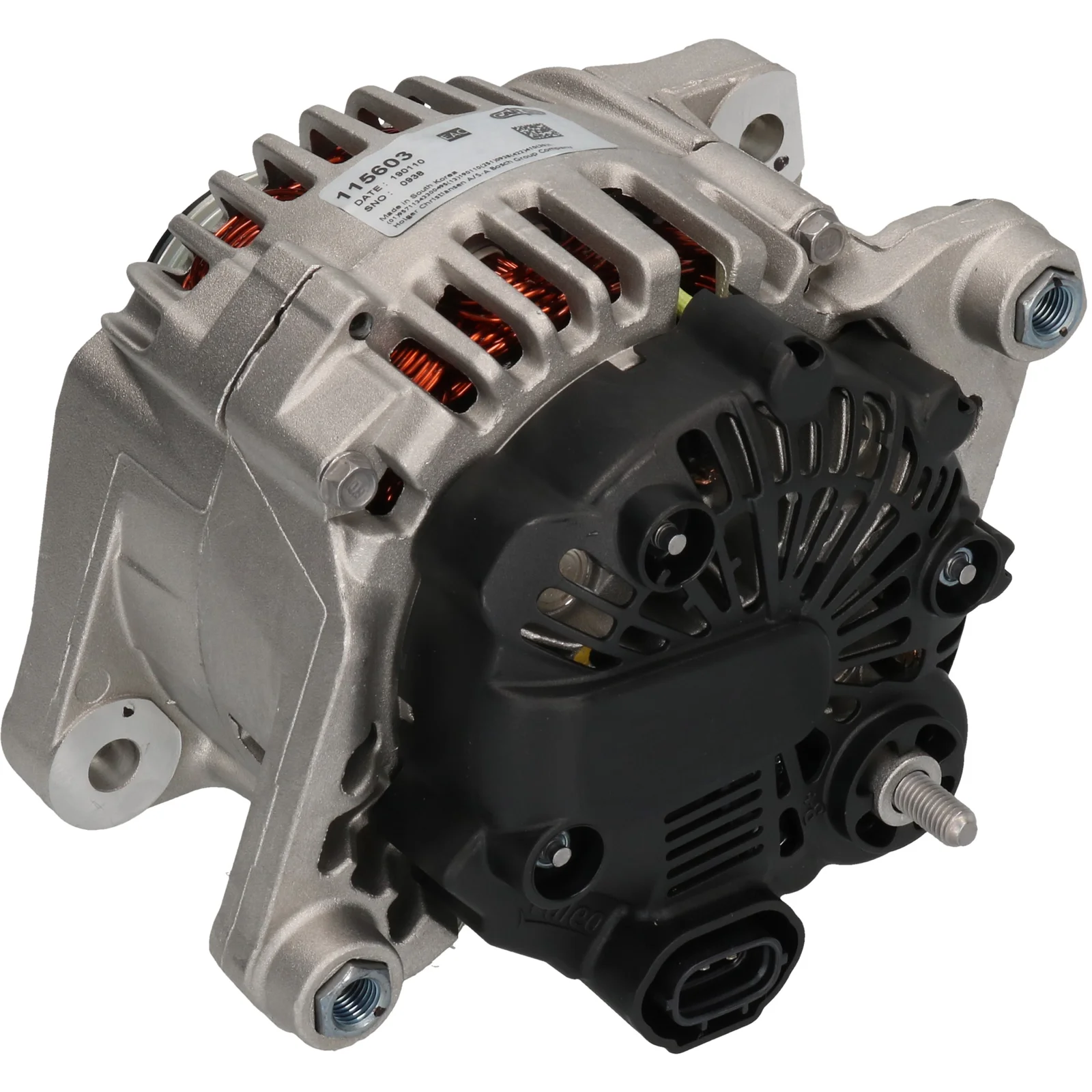

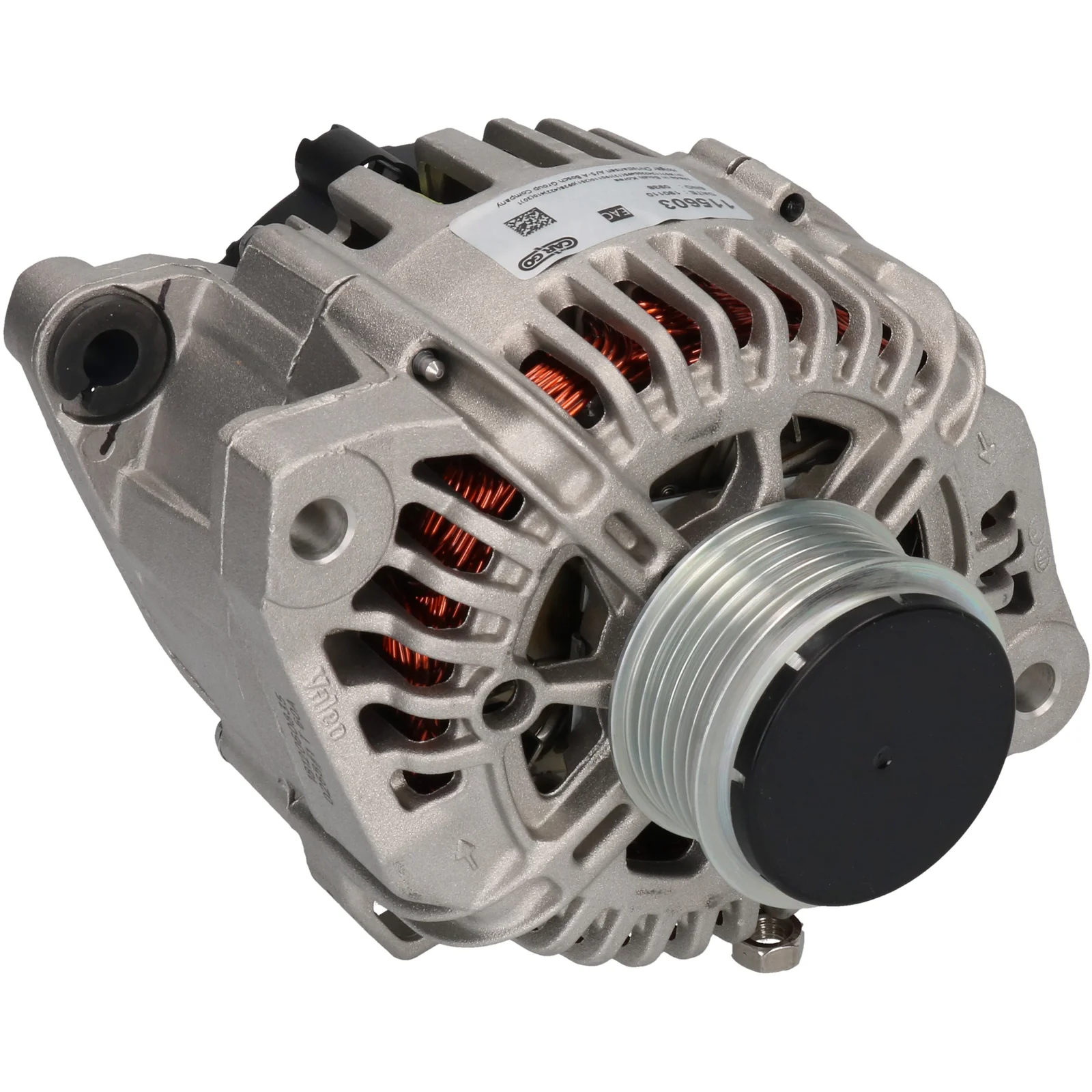

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 110, Rotation: CW, Monteringsbeslag afstand.: 57.00

Beskrivelse

Spænding: 14
Amp: 110
Remskive dist.: 42,50
Bredde/bærerarm: 20,00
Monteringsbeslag dist.: 57,00
Beslagshul: 10,50
Bæltejusteringsbeslag hulpos.: 60
Bæltejusteringsbeslag hul 1: 10,50
Remskive dia.: 60,00
Riller/remskive: 6
Radius: 85,00
Radius 2: 85,00
B+: M8
Position/B+ i min.: 13
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL176
Samlet længde mm: 174,50
Remskive: SP/FW
Regulator type: IR
Produktinfo: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 57.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 60
Plug no. PL176
Bracket hole 10.50
Position/B+ in min. 13
Prod. info BN
Pulley SP/FW
Pulley dia. 60.00
Pulley dist. 42.50
Radius 85.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 174.50 mm
Width/holder arm 20.00
Amp 110

  • OEM
    F032115603, TG11C087, 1986A01833, 2189ir, 37300-25600, 37300-2G150, 37300-2g400, 37300-2G500, 2606184, 2606446, 2607928, 2608052

  • Konkurrentreferens
    A3239(VALEO), A3278, CAL32175, CAL32176, DRA0988N, DRA1142, 28-6951, 155.574.110, 226.320.1102, 255.513.110, 0986UN6116, 11491N, 11492N, 14006N, 210820, 210820A, 444357, 444365, 553591RI, 600196, 600225, 600269, 600700, 600878, 849101, 12060964, 0986083490

  • NormaliseratArtNr
    a3239valeo, a3278, cal32175, cal32176, dra0988n, dra1142, f032115603, tg11c087, 0986un6116, 1986a01833, 2189ir, 11491n, 11492n, 14006n, 210820, 210820a, 286951, 373002g150, 373002g400, 373002g500, 444357, 444365, 553591ri, 600196, 600225, 600269, 600700, 600878, 849101, 2606184, 2606446, 2607928, 2608052, 12060964, 155574110, 255513110, 0986083490, 2263201102, 3730025600

  • Passar modeller
    Hyundai Model: Grandeur Model series: Grandeur Type of engine: 16V Size of motor: 2.4 Brand of engine: G4KJ Type description: HG From date: 01-01-2011 Fuel: Gasoline Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Model type: 4WD Size of motor: 2.0 Brand of engine: G4KD Type description: LM, EL, ELH Body: SUV Fuel: Petrol Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Size of motor: 2.0 Brand of engine: G4KD From date: 01-01-2010 Fuel: Gasoline Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Size of motor: 2.0 Brand of engine: G4KD Type description: LM, EL, ELH Body: SUV Fuel: Petrol Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Type of engine: D-CVVT Size of motor: 2.0 Brand of engine: G4KD Type description: TM From date: 01-01-2010 Fuel: Gasoline Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Size of motor: 2.4 Brand of engine: G4KE Type description: CM Body: SUV From date: 01-09-2009 To date: 01-12-2012 Fuel: Petrol Approved: Yes
    Hyundai Model: Sonata Model series: Sonata Size of motor: 2.0 Brand of engine: G4KD Type description: YF From date: 01-01-2009 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Hyundai Model: Sonata Model series: Sonata Size of motor: 2.4 Brand of engine: G4KC Type description: YF From date: 01-01-2010 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Hyundai Model: Sonata Model series: Sonata Type of engine: i Size of motor: 2.0 Brand of engine: G4KD Type description: YF From date: 01-01-2011 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Kia Model: K5 Model series: K5 Type of engine: CVVT Size of motor: 2.0 From date: 01-01-2011 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Kia Model: Optima Model series: Optima Model type: CVVT Size of motor: 2.4 Brand of engine: G4KE Type description: FSGDS6B Body: Saloon From date: 01-01-2012 Fuel: Petrol Approved: Yes
    Kia Model: Optima Model series: Optima Model type: LPI Size of motor: 2.0 Brand of engine: G4KD Type description: FSGDS6B Body: Saloon Fuel: Petrol/Liquified Pet Approved: Yes
    Kia Model: Optima Model series: Optima Model type: LPI Size of motor: 2.0 Brand of engine: G4NA, L4NA Type description: JF Body: Saloon Fuel: Petrol/Liquified Pet Approved: Yes
    Kia Model: Optima Model series: Optima Size of motor: 2.4 Brand of engine: G4KC Type description: FSGDS6B Body: Saloon From date: 01-06-2010 To date: 01-12-2015 Fuel: Petrol Approved: Yes
    Kia Model: Optima Model series: Optima Size of motor: 2.4 From date: 01-09-2010 Fuel: Gasoline Approved: Yes
    Kia Model: Sorento Model series: Sorento SUV Van Model type: 4WD Size of motor: 2.4 Brand of engine: G4KE Type description: XM Body: Box Body / Estate From date: 01-06-2009 To date: 01-12-2015 Fuel: Petrol Approved: Yes
    Kia Model: Sorento Model series: Sorento SUV Van Size of motor: 2.4 Brand of engine: G4KE Type description: XM Body: Box Body / Estate From date: 01-06-2009 To date: 01-12-2015 Fuel: Petrol Approved: Yes
    Kia Model: Sportage Model series: Sportage Model type: AWD Size of motor: 2.0 Brand of engine: G4KD From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Kia Model: Sportage Model series: Sportage Model type: AWD Type of engine: CVVT Size of motor: 2.0 Brand of engine: G4KD Type description: SL Body: SUV From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Kia Model: Sportage Model series: Sportage Model type: AWD Type of engine: CVVT Size of motor: 2.0 Brand of engine: G4KD Type description: SL From date: 01-06-2010 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Kia Model: Sportage Model series: Sportage Model type: CVVT Size of motor: 2.0 Brand of engine: G4KD Type description: SL Body: SUV From date: 01-06-2010 To date: 01-12-2013 Fuel: Petrol Approved: Yes
    Kia Model: Sportage Model series: Sportage Size of motor: 2.0 Brand of engine: G4KD From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    1 / 5
  • Beskrivelse
    Spænding: 14
    Amp: 110
    Remskive dist.: 42,50
    Bredde/bærerarm: 20,00
    Monteringsbeslag dist.: 57,00
    Beslagshul: 10,50
    Bæltejusteringsbeslag hulpos.: 60
    Bæltejusteringsbeslag hul 1: 10,50
    Remskive dia.: 60,00
    Riller/remskive: 6
    Radius: 85,00
    Radius 2: 85,00
    B+: M8
    Position/B+ i min.: 13
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL176
    Samlet længde mm: 174,50
    Remskive: SP/FW
    Regulator type: IR
    Produktinfo: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 57.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 60
    Plug no. PL176
    Bracket hole 10.50
    Position/B+ in min. 13
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 60.00
    Pulley dist. 42.50
    Radius 85.00
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 174.50 mm
    Width/holder arm 20.00
    Amp 110
  • Køretøjsmatchning

    • OEM
      F032115603, TG11C087, 1986A01833, 2189ir, 37300-25600, 37300-2G150, 37300-2g400, 37300-2G500, 2606184, 2606446, 2607928, 2608052

    • Konkurrentreferens
      A3239(VALEO), A3278, CAL32175, CAL32176, DRA0988N, DRA1142, 28-6951, 155.574.110, 226.320.1102, 255.513.110, 0986UN6116, 11491N, 11492N, 14006N, 210820, 210820A, 444357, 444365, 553591RI, 600196, 600225, 600269, 600700, 600878, 849101, 12060964, 0986083490

    • NormaliseratArtNr
      a3239valeo, a3278, cal32175, cal32176, dra0988n, dra1142, f032115603, tg11c087, 0986un6116, 1986a01833, 2189ir, 11491n, 11492n, 14006n, 210820, 210820a, 286951, 373002g150, 373002g400, 373002g500, 444357, 444365, 553591ri, 600196, 600225, 600269, 600700, 600878, 849101, 2606184, 2606446, 2607928, 2608052, 12060964, 155574110, 255513110, 0986083490, 2263201102, 3730025600

    • Passar modeller
      Hyundai Model: Grandeur Model series: Grandeur Type of engine: 16V Size of motor: 2.4 Brand of engine: G4KJ Type description: HG From date: 01-01-2011 Fuel: Gasoline Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Model type: 4WD Size of motor: 2.0 Brand of engine: G4KD Type description: LM, EL, ELH Body: SUV Fuel: Petrol Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Size of motor: 2.0 Brand of engine: G4KD From date: 01-01-2010 Fuel: Gasoline Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Size of motor: 2.0 Brand of engine: G4KD Type description: LM, EL, ELH Body: SUV Fuel: Petrol Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Type of engine: D-CVVT Size of motor: 2.0 Brand of engine: G4KD Type description: TM From date: 01-01-2010 Fuel: Gasoline Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Size of motor: 2.4 Brand of engine: G4KE Type description: CM Body: SUV From date: 01-09-2009 To date: 01-12-2012 Fuel: Petrol Approved: Yes
      Hyundai Model: Sonata Model series: Sonata Size of motor: 2.0 Brand of engine: G4KD Type description: YF From date: 01-01-2009 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
      Hyundai Model: Sonata Model series: Sonata Size of motor: 2.4 Brand of engine: G4KC Type description: YF From date: 01-01-2010 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Hyundai Model: Sonata Model series: Sonata Type of engine: i Size of motor: 2.0 Brand of engine: G4KD Type description: YF From date: 01-01-2011 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
      Kia Model: K5 Model series: K5 Type of engine: CVVT Size of motor: 2.0 From date: 01-01-2011 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Kia Model: Optima Model series: Optima Model type: CVVT Size of motor: 2.4 Brand of engine: G4KE Type description: FSGDS6B Body: Saloon From date: 01-01-2012 Fuel: Petrol Approved: Yes
      Kia Model: Optima Model series: Optima Model type: LPI Size of motor: 2.0 Brand of engine: G4KD Type description: FSGDS6B Body: Saloon Fuel: Petrol/Liquified Pet Approved: Yes
      Kia Model: Optima Model series: Optima Model type: LPI Size of motor: 2.0 Brand of engine: G4NA, L4NA Type description: JF Body: Saloon Fuel: Petrol/Liquified Pet Approved: Yes
      Kia Model: Optima Model series: Optima Size of motor: 2.4 Brand of engine: G4KC Type description: FSGDS6B Body: Saloon From date: 01-06-2010 To date: 01-12-2015 Fuel: Petrol Approved: Yes
      Kia Model: Optima Model series: Optima Size of motor: 2.4 From date: 01-09-2010 Fuel: Gasoline Approved: Yes
      Kia Model: Sorento Model series: Sorento SUV Van Model type: 4WD Size of motor: 2.4 Brand of engine: G4KE Type description: XM Body: Box Body / Estate From date: 01-06-2009 To date: 01-12-2015 Fuel: Petrol Approved: Yes
      Kia Model: Sorento Model series: Sorento SUV Van Size of motor: 2.4 Brand of engine: G4KE Type description: XM Body: Box Body / Estate From date: 01-06-2009 To date: 01-12-2015 Fuel: Petrol Approved: Yes
      Kia Model: Sportage Model series: Sportage Model type: AWD Size of motor: 2.0 Brand of engine: G4KD From date: 01-07-2010 Fuel: Gasoline Approved: Yes
      Kia Model: Sportage Model series: Sportage Model type: AWD Type of engine: CVVT Size of motor: 2.0 Brand of engine: G4KD Type description: SL Body: SUV From date: 01-07-2010 Fuel: Gasoline Approved: Yes
      Kia Model: Sportage Model series: Sportage Model type: AWD Type of engine: CVVT Size of motor: 2.0 Brand of engine: G4KD Type description: SL From date: 01-06-2010 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Kia Model: Sportage Model series: Sportage Model type: CVVT Size of motor: 2.0 Brand of engine: G4KD Type description: SL Body: SUV From date: 01-06-2010 To date: 01-12-2013 Fuel: Petrol Approved: Yes
      Kia Model: Sportage Model series: Sportage Size of motor: 2.0 Brand of engine: G4KD From date: 01-07-2010 Fuel: Gasoline Approved: Yes
