HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115984

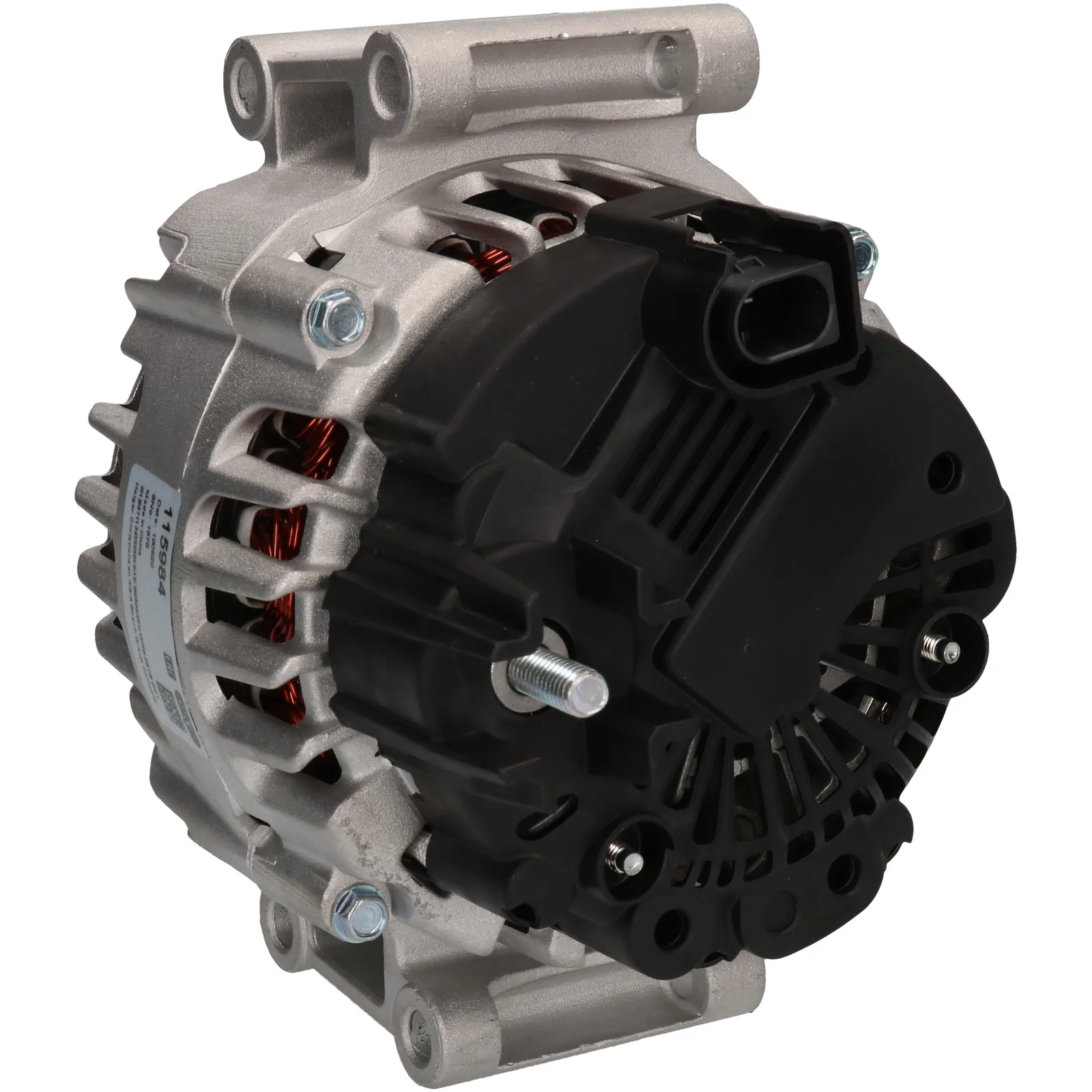

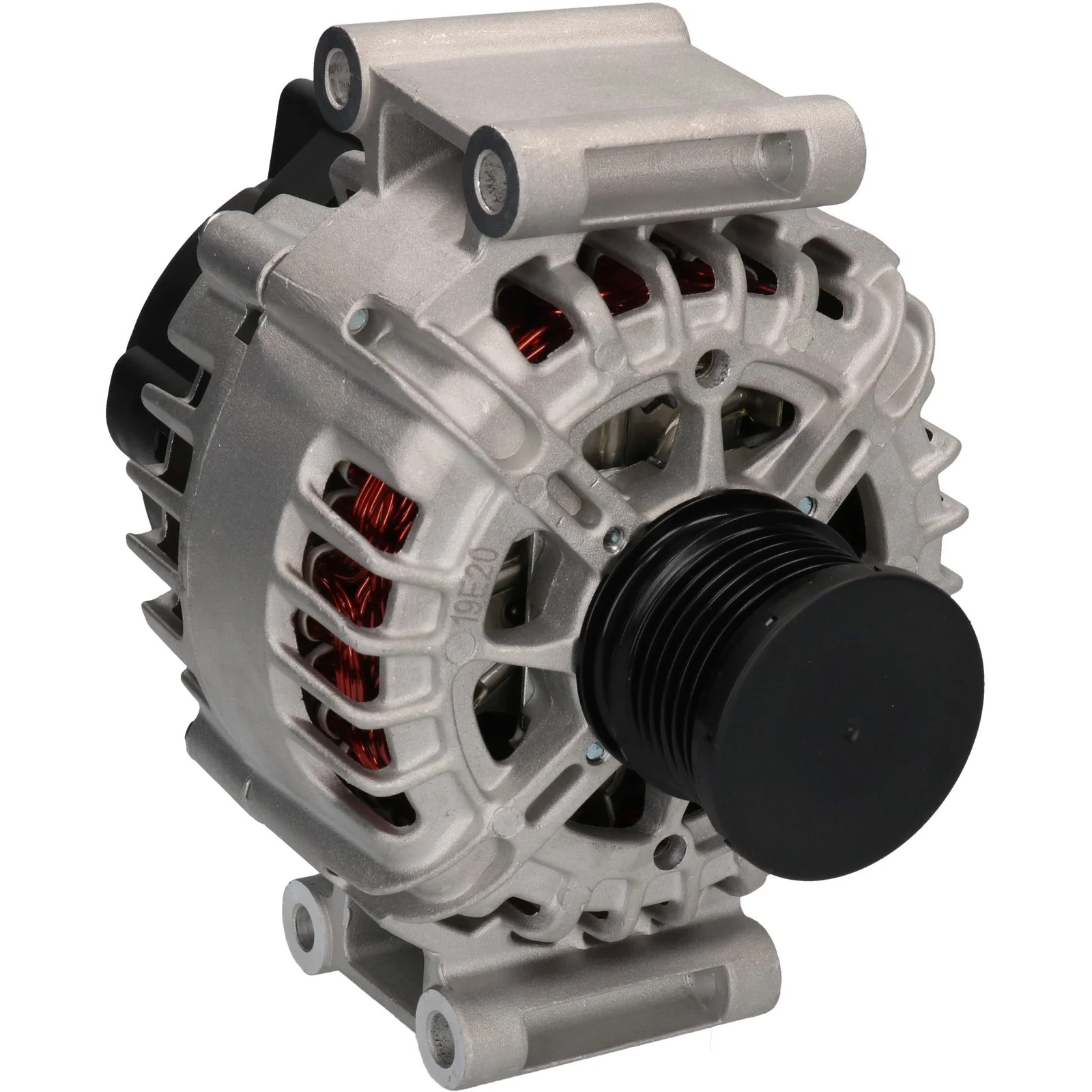

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Afløb: 150, Rotation: CW, Monteringsbeslag Fordelerdæksel: 56.30

Beskrivelse

Spænding: 14
Amp: 150
Remskive: 31,50
Bredde/holderarm: 70,00
Monteringsbeslag afstanden: 56,30
Beslagshul: 9,50
Remskivediameter: 50,00
Grooves/remskive: 6
Radius: 81,50
Radius 2: 81,50
B+: M8
Position/B+ i min.: 15
Rotation: uret
Plugt no.: PL181
Samlet længde mm: 196,50
Terminaltype: COM
Kommunikation: LIN
Remskive: SP/FW
Regulator type: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret for at tjekke egnethed, inden ordren placeres.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 56.30
Plug no. PL181
Bracket hole 9.50
Position/B+ in min. 15
Pulley SP/FW
Pulley dia. 50.00
Pulley dist. 31.50
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 196.50 mm
Width/holder arm 70.00
Amp 150

  • OEM
    a0009063000, A0009067902, a0141541502, F032115984, FG15T036, FG15T079, TG15C133, TG15C167, 2605421A, 2608896A, 0009063000, 0009067902, 0141541502

  • Konkurrentreferens
    A3452S, A3586S, CAL15496, DRA0974, LRA03506, 8EL012240-011, 8EL015630-841, 8EL015637-061, 28-6616, 225.306.1502, 555.569.150, 0986UR6092, 11822N, 209166, 209166A, 439679, 439820, 440264, 440474, 553501RI, 9090607, 12090566, 32085260, 0986085260

  • NormaliseratArtNr
    a0009063000, a0009067902, a0141541502, a3452s, a3586s, cal15496, dra0974, f032115984, fg15t036, fg15t079, lra03506, tg15c133, tg15c167, 8el012240011, 8el015630841, 8el015637061, 0986ur6092, 11822n, 209166, 209166a, 286616, 439679, 439820, 440264, 440474, 553501ri, 2605421a, 2608896a, 0009063000, 0009067902, 9090607, 12090566, 32085260, 0141541502, 555569150, 0986085260, 2253061502

  • Passar modeller
    Mercedes-Benz Model: 180 Model series: C 180 Size of motor: 1.8 Brand of engine: M271.820 Type description: C204 Body: Coupe From date: 01-06-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 180 Model series: C 180 Size of motor: 1.8 Brand of engine: M271.820 Type description: S204 Body: Estate From date: 01-11-2009 To date: 01-08-2014 Fuel: Gasoline Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 180 Model series: C 180 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.820 Type description: W204 From date: 01-01-2007 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: C 200 Size of motor: 1.8 Brand of engine: M271.820 Type description: S204 Body: Estate From date: 01-08-2007 To date: 01-08-2014 Fuel: Gasoline Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 200 Model series: C 200 Size of motor: 1.8 Brand of engine: M271.860 Type description: S204 Body: Estate From date: 01-08-2007 To date: 01-08-2014 Fuel: Gasoline Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 200 Model series: C 200 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.820 Type description: W204 From date: 01-01-2007 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Model type: CGI Size of motor: 1.8 Brand of engine: M271.820 Type description: A207 Body: Convertible From date: 01-01-2010 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Model type: CGI Size of motor: 1.8 Brand of engine: M271.820 Type description: C207 Body: Coupe From date: 01-01-2010 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Model type: CGI Size of motor: 1.8 Brand of engine: M271.860 Type description: A207 Body: Convertible From date: 01-01-2010 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Model type: CGI Size of motor: 1.8 Brand of engine: M271.860 Type description: C207 Body: Coupe From date: 01-01-2010 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.820 Type description: S212 Body: Estate From date: 01-11-2009 To date: 01-12-2016 Fuel: Gasoline Approved: Yes Manufacture type: T-model
    Mercedes-Benz Model: 200 Model series: E 200 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.820 Type description: W212 From date: 01-08-2009 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.860 Type description: S212 Body: Estate From date: 01-11-2009 To date: 01-12-2016 Fuel: Gasoline Approved: Yes Manufacture type: T-model
    Mercedes-Benz Model: 200 Model series: SLK 200 Size of motor: 1.8 Brand of engine: M271.860 Type description: R172 Body: Convertible From date: 01-02-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: SLK 200 Size of motor: 1.8 Brand of engine: M271.861 Type description: R172 Body: Convertible From date: 01-02-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 250 Model series: C 250 Model type: CGI Size of motor: 1.8 Brand of engine: M271.860 Type description: S204 Body: Estate From date: 01-07-2009 To date: 01-08-2014 Fuel: Gasoline Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 250 Model series: C 250 Size of motor: 1.8 Brand of engine: M271.860 Type description: C204 Body: Coupe From date: 01-06-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 250 Model series: C 250 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.860 Type description: W204 From date: 01-07-2009 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 250 Model series: E 250 Model type: CGI Size of motor: 1.8 Brand of engine: M271.860 Type description: A207 Body: Convertible From date: 01-01-2010 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 250 Model series: E 250 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.860 Type description: C207 Body: Coupe From date: 01-01-2009 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 250 Model series: E 250 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.860 Type description: S212 Body: Estate From date: 01-11-2009 To date: 01-12-2013 Fuel: Gasoline Approved: Yes Manufacture type: T-model
    Mercedes-Benz Model: 250 Model series: E 250 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.860 Type description: W212 From date: 01-01-2009 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 250 Model series: SLK 250 Size of motor: 1.8 Brand of engine: M271.860 Type description: R172 Body: Convertible From date: 01-02-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 250 Model series: SLK 250 Size of motor: 1.8 Brand of engine: M271.861 Type description: R172 Body: Convertible From date: 01-02-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 210 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.955 Type description: 906 Body: Bus From date: 01-03-2009 To date: 01-12-2013 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 211 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.985 Type description: 906 Body: Bus From date: 01-06-2006 To date: 01-12-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 215 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.986 Type description: 906 Body: Bus From date: 01-06-2006 To date: 01-12-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 215 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.989 Type description: 906 Body: Bus From date: 01-06-2006 To date: 01-12-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 215 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.990 Type description: 906 Body: Bus From date: 01-06-2006 To date: 01-12-2009 Fuel: Diesel Approved: Yes
    1 / 6
  • Beskrivelse
    Spænding: 14
    Amp: 150
    Remskive: 31,50
    Bredde/holderarm: 70,00
    Monteringsbeslag afstanden: 56,30
    Beslagshul: 9,50
    Remskivediameter: 50,00
    Grooves/remskive: 6
    Radius: 81,50
    Radius 2: 81,50
    B+: M8
    Position/B+ i min.: 15
    Rotation: uret
    Plugt no.: PL181
    Samlet længde mm: 196,50
    Terminaltype: COM
    Kommunikation: LIN
    Remskive: SP/FW
    Regulator type: IR
    Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret for at tjekke egnethed, inden ordren placeres.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.30
    Plug no. PL181
    Bracket hole 9.50
    Position/B+ in min. 15
    Pulley SP/FW
    Pulley dia. 50.00
    Pulley dist. 31.50
    Radius 81.50
    Radius 2 81.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 196.50 mm
    Width/holder arm 70.00
    Amp 150
  • Køretøjsmatchning

    • OEM
      a0009063000, A0009067902, a0141541502, F032115984, FG15T036, FG15T079, TG15C133, TG15C167, 2605421A, 2608896A, 0009063000, 0009067902, 0141541502

    • Konkurrentreferens
      A3452S, A3586S, CAL15496, DRA0974, LRA03506, 8EL012240-011, 8EL015630-841, 8EL015637-061, 28-6616, 225.306.1502, 555.569.150, 0986UR6092, 11822N, 209166, 209166A, 439679, 439820, 440264, 440474, 553501RI, 9090607, 12090566, 32085260, 0986085260

    • NormaliseratArtNr
      a0009063000, a0009067902, a0141541502, a3452s, a3586s, cal15496, dra0974, f032115984, fg15t036, fg15t079, lra03506, tg15c133, tg15c167, 8el012240011, 8el015630841, 8el015637061, 0986ur6092, 11822n, 209166, 209166a, 286616, 439679, 439820, 440264, 440474, 553501ri, 2605421a, 2608896a, 0009063000, 0009067902, 9090607, 12090566, 32085260, 0141541502, 555569150, 0986085260, 2253061502

    • Passar modeller
      Mercedes-Benz Model: 180 Model series: C 180 Size of motor: 1.8 Brand of engine: M271.820 Type description: C204 Body: Coupe From date: 01-06-2011 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 180 Model series: C 180 Size of motor: 1.8 Brand of engine: M271.820 Type description: S204 Body: Estate From date: 01-11-2009 To date: 01-08-2014 Fuel: Gasoline Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 180 Model series: C 180 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.820 Type description: W204 From date: 01-01-2007 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 200 Model series: C 200 Size of motor: 1.8 Brand of engine: M271.820 Type description: S204 Body: Estate From date: 01-08-2007 To date: 01-08-2014 Fuel: Gasoline Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 200 Model series: C 200 Size of motor: 1.8 Brand of engine: M271.860 Type description: S204 Body: Estate From date: 01-08-2007 To date: 01-08-2014 Fuel: Gasoline Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 200 Model series: C 200 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.820 Type description: W204 From date: 01-01-2007 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 200 Model series: E 200 Model type: CGI Size of motor: 1.8 Brand of engine: M271.820 Type description: A207 Body: Convertible From date: 01-01-2010 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 200 Model series: E 200 Model type: CGI Size of motor: 1.8 Brand of engine: M271.820 Type description: C207 Body: Coupe From date: 01-01-2010 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 200 Model series: E 200 Model type: CGI Size of motor: 1.8 Brand of engine: M271.860 Type description: A207 Body: Convertible From date: 01-01-2010 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 200 Model series: E 200 Model type: CGI Size of motor: 1.8 Brand of engine: M271.860 Type description: C207 Body: Coupe From date: 01-01-2010 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 200 Model series: E 200 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.820 Type description: S212 Body: Estate From date: 01-11-2009 To date: 01-12-2016 Fuel: Gasoline Approved: Yes Manufacture type: T-model
      Mercedes-Benz Model: 200 Model series: E 200 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.820 Type description: W212 From date: 01-08-2009 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 200 Model series: E 200 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.860 Type description: S212 Body: Estate From date: 01-11-2009 To date: 01-12-2016 Fuel: Gasoline Approved: Yes Manufacture type: T-model
      Mercedes-Benz Model: 200 Model series: SLK 200 Size of motor: 1.8 Brand of engine: M271.860 Type description: R172 Body: Convertible From date: 01-02-2011 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 200 Model series: SLK 200 Size of motor: 1.8 Brand of engine: M271.861 Type description: R172 Body: Convertible From date: 01-02-2011 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 250 Model series: C 250 Model type: CGI Size of motor: 1.8 Brand of engine: M271.860 Type description: S204 Body: Estate From date: 01-07-2009 To date: 01-08-2014 Fuel: Gasoline Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 250 Model series: C 250 Size of motor: 1.8 Brand of engine: M271.860 Type description: C204 Body: Coupe From date: 01-06-2011 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 250 Model series: C 250 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.860 Type description: W204 From date: 01-07-2009 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 250 Model series: E 250 Model type: CGI Size of motor: 1.8 Brand of engine: M271.860 Type description: A207 Body: Convertible From date: 01-01-2010 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 250 Model series: E 250 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.860 Type description: C207 Body: Coupe From date: 01-01-2009 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 250 Model series: E 250 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.860 Type description: S212 Body: Estate From date: 01-11-2009 To date: 01-12-2013 Fuel: Gasoline Approved: Yes Manufacture type: T-model
      Mercedes-Benz Model: 250 Model series: E 250 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.860 Type description: W212 From date: 01-01-2009 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 250 Model series: SLK 250 Size of motor: 1.8 Brand of engine: M271.860 Type description: R172 Body: Convertible From date: 01-02-2011 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 250 Model series: SLK 250 Size of motor: 1.8 Brand of engine: M271.861 Type description: R172 Body: Convertible From date: 01-02-2011 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: Sprinter Model series: Sprinter 210 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.955 Type description: 906 Body: Bus From date: 01-03-2009 To date: 01-12-2013 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Sprinter Model series: Sprinter 211 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.985 Type description: 906 Body: Bus From date: 01-06-2006 To date: 01-12-2009 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Sprinter Model series: Sprinter 215 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.986 Type description: 906 Body: Bus From date: 01-06-2006 To date: 01-12-2009 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Sprinter Model series: Sprinter 215 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.989 Type description: 906 Body: Bus From date: 01-06-2006 To date: 01-12-2009 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Sprinter Model series: Sprinter 215 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.990 Type description: 906 Body: Bus From date: 01-06-2006 To date: 01-12-2009 Fuel: Diesel Approved: Yes
      1 / 6
