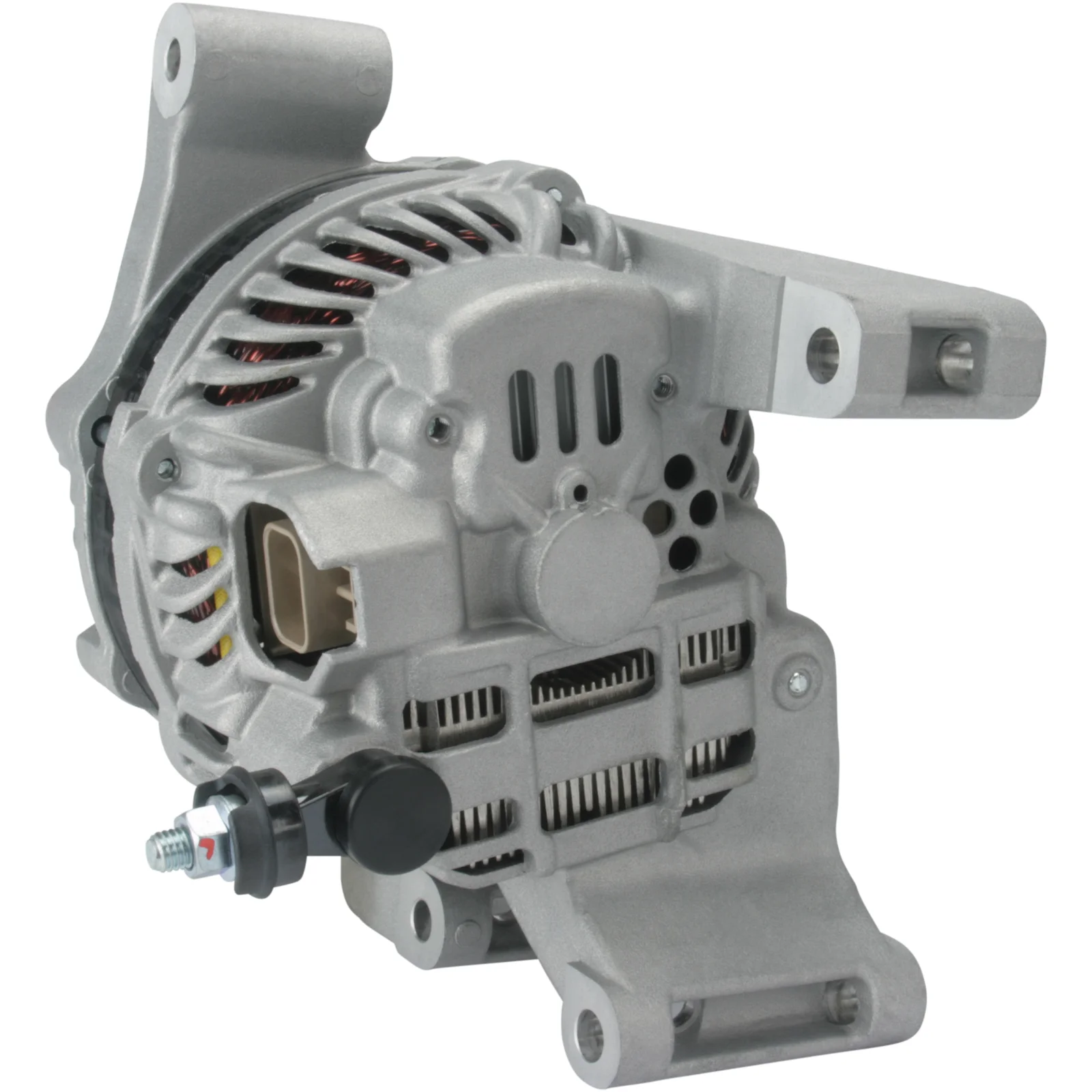

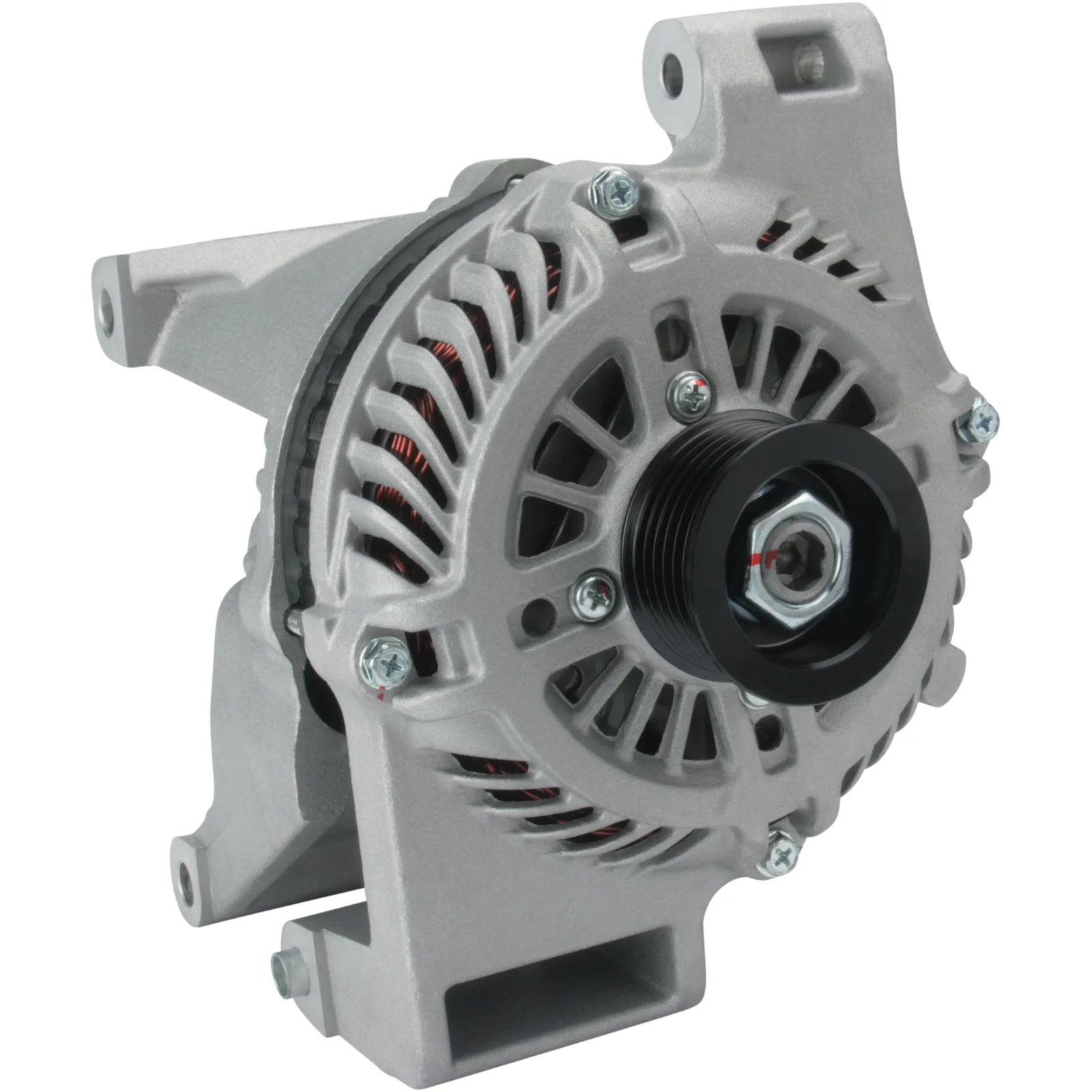

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115786

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 90, Rotation: med uret, Mount. bøjle afstand: 68,60

Beskrivelse

Spænding: 14
Amp: 90
Drevskive dist.: 75,00
Bredde/holder arm: 75,00
Monteringsbeslag dist.: 68,60
Beslaghul: 8,50
Bælte. justering beslag hul 1: 8,50
Drevskive dia.: 49,00
Riller/drevskive: 6
B+: M8
Position/B+ i min.: 40
Rotation: CW
Stik nr.: PL54
Terminaltype: P-D
Drevskive: SP
Produkt info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 68.60
Belt. adj. bracket hole 1 8.50
Plug no. PL54
Bracket hole 8.50
Position/B+ in min. 40
Prod. info BN
Pulley SP
Pulley dia. 49.00
Pulley dist. 75.00
Rotation CW
Grooves/pulley 6
Terminal type P-D
Voltage 14
Width/holder arm 75.00
Amp 90

  • OEM
    A003TG1391, A003TG1391A, a3tg1391, a3tg1391A, A3TG1391AD, A3TG4791, F032115786, ja1902, LF1F-18-300, LF50-18-300, LF50-18-300A, 1986A01419

  • Konkurrentreferens
    A5098, CAL35216, DRA0109, F042205136, J5113066, 8EL011712-321, 27-5529, 224.158.902, 11008, 11008N, 11008R, 11174R, 209358, 209358A, 401902, 9090847, 12060833, 0986081300

  • NormaliseratArtNr
    a003tg1391, a003tg1391a, a3tg1391, a3tg1391a, a3tg1391ad, a3tg4791, a5098, cal35216, dra0109, f032115786, f042205136, j5113066, ja1902, lf1f18300, lf5018300, lf5018300a, 8el011712321, 1986a01419, 11008, 11008n, 11008r, 11174r, 209358, 209358a, 275529, 401902, 9090847, 12060833, 224158902, 0986081300

  • Passar modeller
    Mazda Model: 3 Model series: 3 Model type: SP23 (BK3P) Size of motor: 2.3 Brand of engine: L3-VE Type description: BK Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
    Mazda Model: 5 Model series: 5 Size of motor: 1.8 Brand of engine: L823 Body: MPV From date: 01-02-2005 To date: 01-05-2010 Fuel: Gasoline Approved: Yes
    Mazda Model: 5 Model series: 5 Size of motor: 2.0 Brand of engine: LFF7 Body: MPV From date: 01-02-2005 To date: 01-05-2010 Fuel: Gasoline Approved: Yes
    Mazda Model: 5 Model series: 5 Type of engine: MZR Size of motor: 1.8 Brand of engine: L850 Type description: CW Body: MPV From date: 01-09-2010 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 90
    Drevskive dist.: 75,00
    Bredde/holder arm: 75,00
    Monteringsbeslag dist.: 68,60
    Beslaghul: 8,50
    Bælte. justering beslag hul 1: 8,50
    Drevskive dia.: 49,00
    Riller/drevskive: 6
    B+: M8
    Position/B+ i min.: 40
    Rotation: CW
    Stik nr.: PL54
    Terminaltype: P-D
    Drevskive: SP
    Produkt info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 68.60
    Belt. adj. bracket hole 1 8.50
    Plug no. PL54
    Bracket hole 8.50
    Position/B+ in min. 40
    Prod. info BN
    Pulley SP
    Pulley dia. 49.00
    Pulley dist. 75.00
    Rotation CW
    Grooves/pulley 6
    Terminal type P-D
    Voltage 14
    Width/holder arm 75.00
    Amp 90
  • Køretøjsmatchning

    • OEM
      A003TG1391, A003TG1391A, a3tg1391, a3tg1391A, A3TG1391AD, A3TG4791, F032115786, ja1902, LF1F-18-300, LF50-18-300, LF50-18-300A, 1986A01419

    • Konkurrentreferens
      A5098, CAL35216, DRA0109, F042205136, J5113066, 8EL011712-321, 27-5529, 224.158.902, 11008, 11008N, 11008R, 11174R, 209358, 209358A, 401902, 9090847, 12060833, 0986081300

    • NormaliseratArtNr
      a003tg1391, a003tg1391a, a3tg1391, a3tg1391a, a3tg1391ad, a3tg4791, a5098, cal35216, dra0109, f032115786, f042205136, j5113066, ja1902, lf1f18300, lf5018300, lf5018300a, 8el011712321, 1986a01419, 11008, 11008n, 11008r, 11174r, 209358, 209358a, 275529, 401902, 9090847, 12060833, 224158902, 0986081300

    • Passar modeller
      Mazda Model: 3 Model series: 3 Model type: SP23 (BK3P) Size of motor: 2.3 Brand of engine: L3-VE Type description: BK Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
      Mazda Model: 5 Model series: 5 Size of motor: 1.8 Brand of engine: L823 Body: MPV From date: 01-02-2005 To date: 01-05-2010 Fuel: Gasoline Approved: Yes
      Mazda Model: 5 Model series: 5 Size of motor: 2.0 Brand of engine: LFF7 Body: MPV From date: 01-02-2005 To date: 01-05-2010 Fuel: Gasoline Approved: Yes
      Mazda Model: 5 Model series: 5 Type of engine: MZR Size of motor: 1.8 Brand of engine: L850 Type description: CW Body: MPV From date: 01-09-2010 Fuel: Gasoline Approved: Yes
