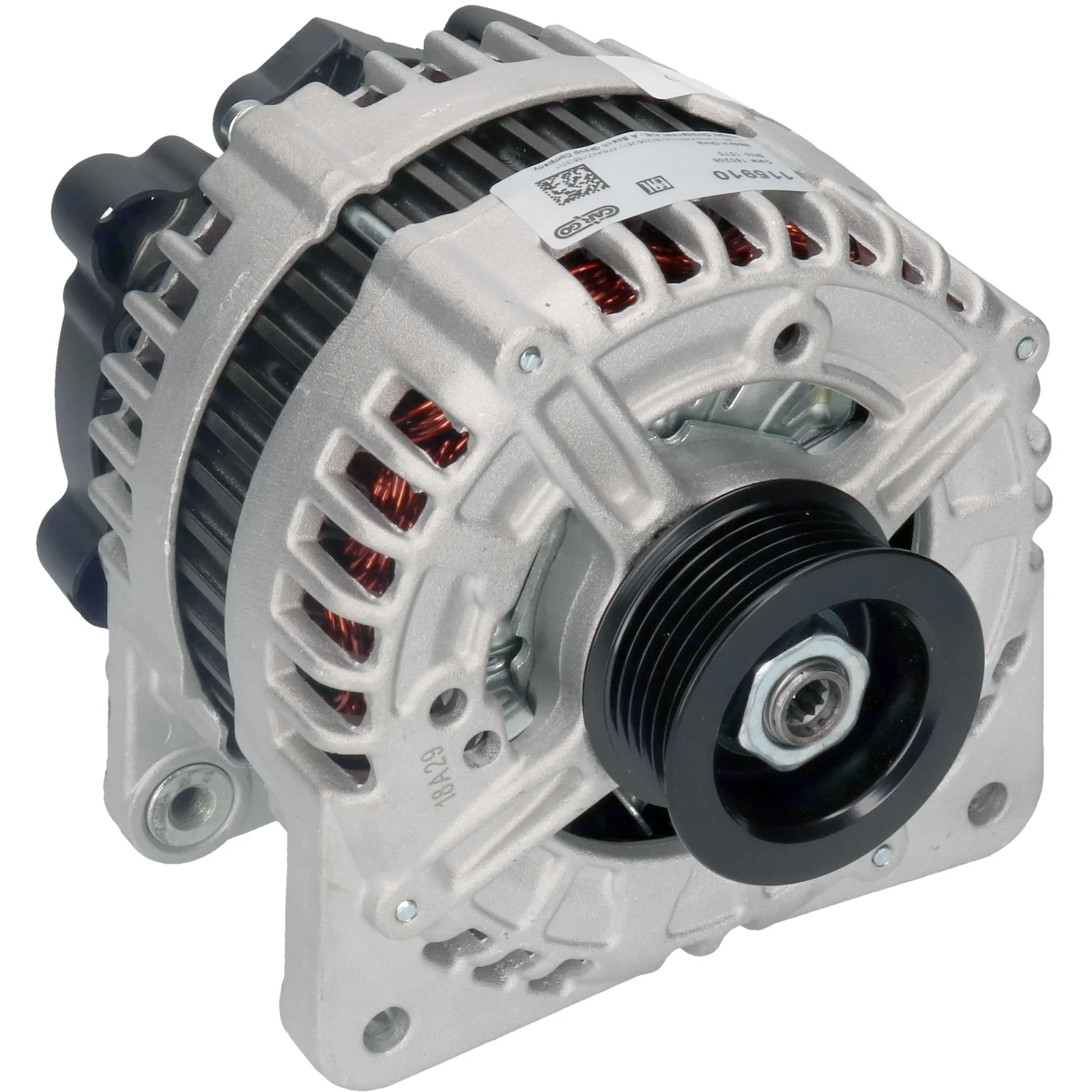

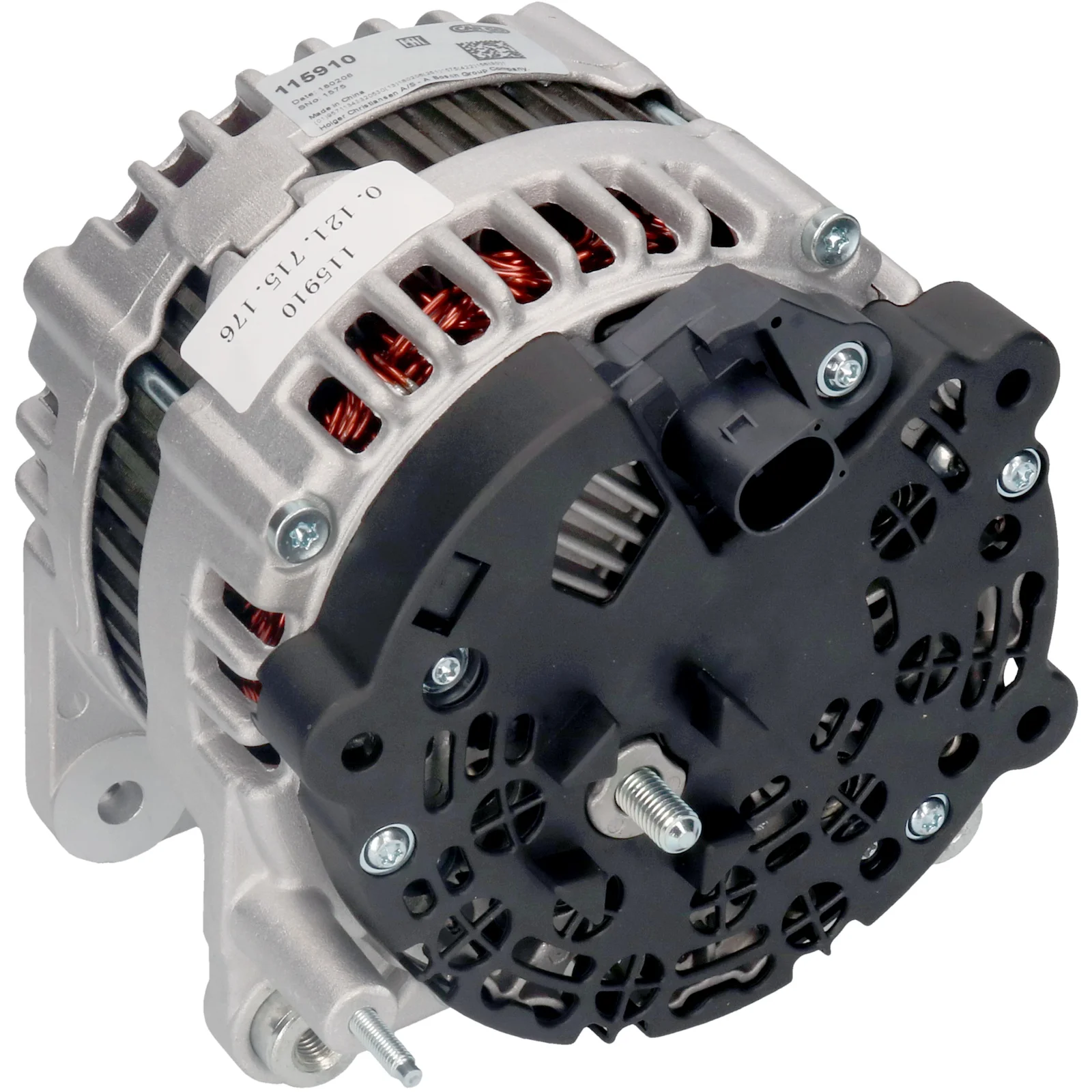

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115910

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 180, Rotation: CW, Mount. bøsning dist.: 62,30

Beskrivelse

Spænding: 14
Amp: 180
Lædderskiv.: 30.00
Bredde/holderarm: 14.50
Vægbeslag. afstand: 62.30
BESLAGS Hul: 8.50
Bælte. just. beslagshul pos.: 45
Bælte. just. beslagshul 1: 8.50
Lædderskiv. dia.: 56.00
Riller/lædderskiv.: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ i min.: 30
Rotation: CW
Stik nr.: PL181
Samlet længde mm: 179.00
Terminaltype: COM
Kommunikation: LIN
Lædderskiv.: SP
Regulator type: IR
Produktion info: BN
Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnetheden, før bestilling.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 62.30
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL181
Bracket hole 8.50
Position/B+ in min. 30
Prod. info BN
Pulley SP
Pulley dia. 56.00
Pulley dist. 30.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 179.00 mm
Width/holder arm 14.50
Amp 180

  • OEM
    F032115910, 1986A00768, 059903018e, 059903018EX, 059903018TX, 0121715076, 0121715176

  • Konkurrentreferens
    A0409, DRA0833, LRA03286, 28-5898, 205.578.180, 211.370.1802, 20138N, 20138R, 209186, 209186A, 443306, 444215, 9090608, 12090500, 32715180, 0986081930

  • NormaliseratArtNr
    a0409, dra0833, f032115910, lra03286, 1986a00768, 20138n, 20138r, 209186, 209186a, 285898, 443306, 444215, 9090608, 12090500, 32715180, 059903018e, 059903018ex, 059903018tx, 0121715076, 0121715176, 205578180, 0986081930, 2113701802

  • Passar modeller
    Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: BSG Type description: 4FH Body: Estate From date: 01-05-2006 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: CANC Type description: 4FH Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: CAND Type description: 4FH Body: Estate From date: 01-05-2006 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BNG Type description: 4FH Body: Estate From date: 01-05-2006 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDYA Type description: 4FH Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDYB Type description: 4FH Body: Estate From date: 01-05-2006 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDYC Type description: 4FH Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: BSG Type description: 4F2 From date: 01-06-2005 To date: 01-03-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: BSG Type description: 4F5 Body: Estate From date: 01-06-2005 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: CANC Type description: 4F2 From date: 01-10-2008 To date: 01-03-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: CANC Type description: 4F5 Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: CAND Type description: 4F2 From date: 01-06-2005 To date: 01-03-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: CAND Type description: 4F5 Body: Estate From date: 01-06-2005 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BNG Type description: 4F2 From date: 01-05-2004 To date: 01-03-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BNG Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDYB Type description: 4F2 From date: 01-05-2004 To date: 01-03-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDYB Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.7 Brand of engine: CANA Type description: 4F2 From date: 01-10-2008 To date: 01-03-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.7 Brand of engine: CANA Type description: 4F5 Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.7 Brand of engine: CANC Type description: 4F5 Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BUG Type description: 4LB Body: Box Body / Estate From date: 01-03-2006 To date: 01-05-2008 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CASB,BUN Type description: 4LB Body: Box Body / Estate From date: 01-03-2006 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CCMA,CASA,CJGA Type description: 4LB Body: Box Body / Estate From date: 01-11-2007 To date: 01-05-2012 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 4LB Body: Box Body / Estate From date: 01-11-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: BUG Body: SUV From date: 01-03-2006 To date: 01-05-2008 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: BUN Body: SUV From date: 01-03-2006 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CASA Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CASB Body: SUV From date: 01-03-2006 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CCMA Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGA Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGC Type description: 4L From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGD Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 4L From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CLZB Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CNRB Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    1 / 8
  • Beskrivelse
    Spænding: 14
    Amp: 180
    Lædderskiv.: 30.00
    Bredde/holderarm: 14.50
    Vægbeslag. afstand: 62.30
    BESLAGS Hul: 8.50
    Bælte. just. beslagshul pos.: 45
    Bælte. just. beslagshul 1: 8.50
    Lædderskiv. dia.: 56.00
    Riller/lædderskiv.: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ i min.: 30
    Rotation: CW
    Stik nr.: PL181
    Samlet længde mm: 179.00
    Terminaltype: COM
    Kommunikation: LIN
    Lædderskiv.: SP
    Regulator type: IR
    Produktion info: BN
    Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnetheden, før bestilling.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 62.30
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL181
    Bracket hole 8.50
    Position/B+ in min. 30
    Prod. info BN
    Pulley SP
    Pulley dia. 56.00
    Pulley dist. 30.00
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 179.00 mm
    Width/holder arm 14.50
    Amp 180
  • Køretøjsmatchning

    • OEM
      F032115910, 1986A00768, 059903018e, 059903018EX, 059903018TX, 0121715076, 0121715176

    • Konkurrentreferens
      A0409, DRA0833, LRA03286, 28-5898, 205.578.180, 211.370.1802, 20138N, 20138R, 209186, 209186A, 443306, 444215, 9090608, 12090500, 32715180, 0986081930

    • NormaliseratArtNr
      a0409, dra0833, f032115910, lra03286, 1986a00768, 20138n, 20138r, 209186, 209186a, 285898, 443306, 444215, 9090608, 12090500, 32715180, 059903018e, 059903018ex, 059903018tx, 0121715076, 0121715176, 205578180, 0986081930, 2113701802

    • Passar modeller
      Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: BSG Type description: 4FH Body: Estate From date: 01-05-2006 To date: 01-08-2011 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: CANC Type description: 4FH Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: CAND Type description: 4FH Body: Estate From date: 01-05-2006 To date: 01-08-2011 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BNG Type description: 4FH Body: Estate From date: 01-05-2006 To date: 01-08-2011 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDYA Type description: 4FH Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDYB Type description: 4FH Body: Estate From date: 01-05-2006 To date: 01-08-2011 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDYC Type description: 4FH Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: BSG Type description: 4F2 From date: 01-06-2005 To date: 01-03-2011 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: BSG Type description: 4F5 Body: Estate From date: 01-06-2005 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: CANC Type description: 4F2 From date: 01-10-2008 To date: 01-03-2011 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: CANC Type description: 4F5 Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: CAND Type description: 4F2 From date: 01-06-2005 To date: 01-03-2011 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 2.7 Brand of engine: CAND Type description: 4F5 Body: Estate From date: 01-06-2005 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BNG Type description: 4F2 From date: 01-05-2004 To date: 01-03-2011 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BNG Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDYB Type description: 4F2 From date: 01-05-2004 To date: 01-03-2011 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDYB Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.7 Brand of engine: CANA Type description: 4F2 From date: 01-10-2008 To date: 01-03-2011 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.7 Brand of engine: CANA Type description: 4F5 Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.7 Brand of engine: CANC Type description: 4F5 Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BUG Type description: 4LB Body: Box Body / Estate From date: 01-03-2006 To date: 01-05-2008 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CASB,BUN Type description: 4LB Body: Box Body / Estate From date: 01-03-2006 To date: 01-05-2010 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CCMA,CASA,CJGA Type description: 4LB Body: Box Body / Estate From date: 01-11-2007 To date: 01-05-2012 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 4LB Body: Box Body / Estate From date: 01-11-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: BUG Body: SUV From date: 01-03-2006 To date: 01-05-2008 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: BUN Body: SUV From date: 01-03-2006 To date: 01-05-2010 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CASA Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CASB Body: SUV From date: 01-03-2006 To date: 01-05-2010 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CCMA Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGA Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGC Type description: 4L From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGD Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 4L From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CLZB Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CNRB Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
