HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115923

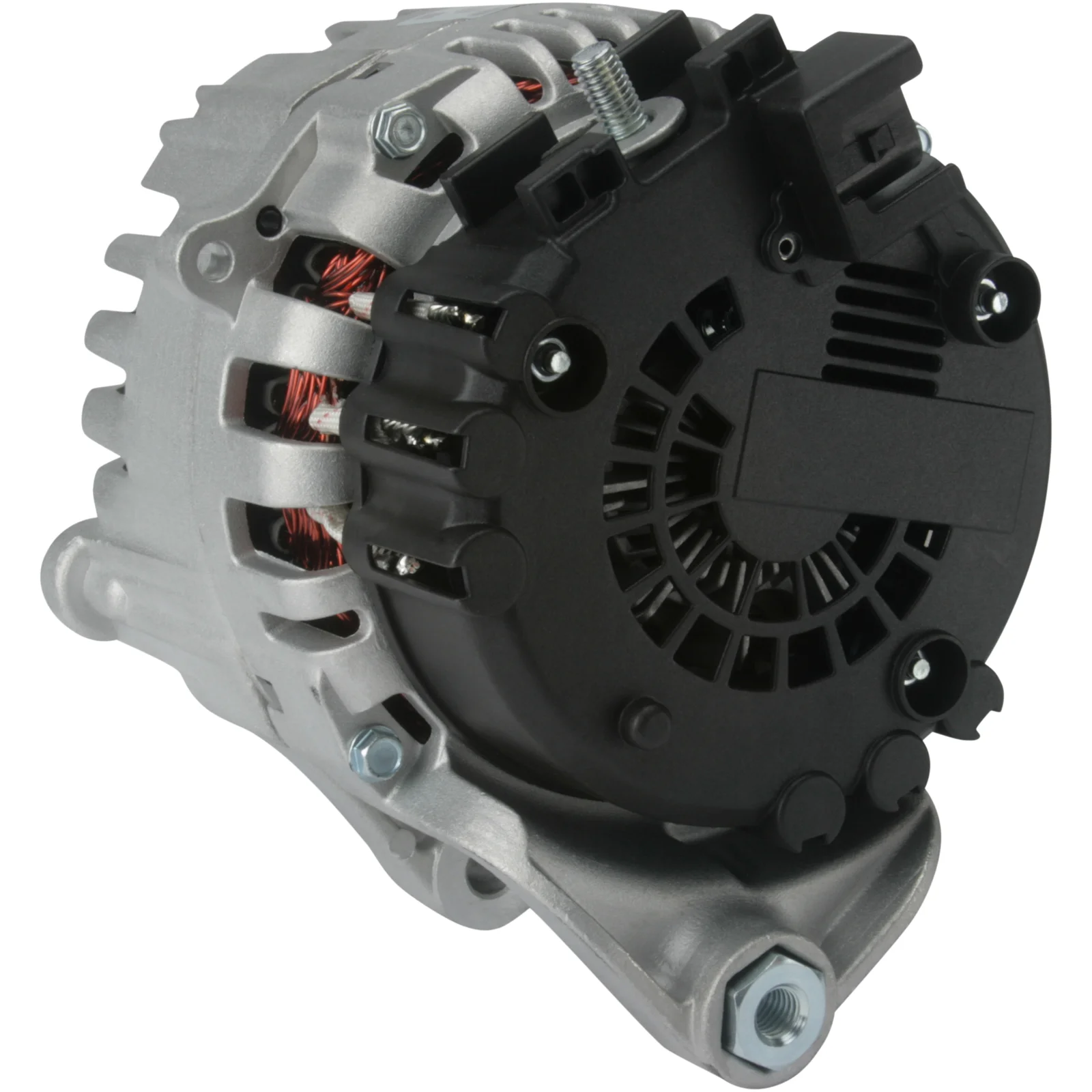

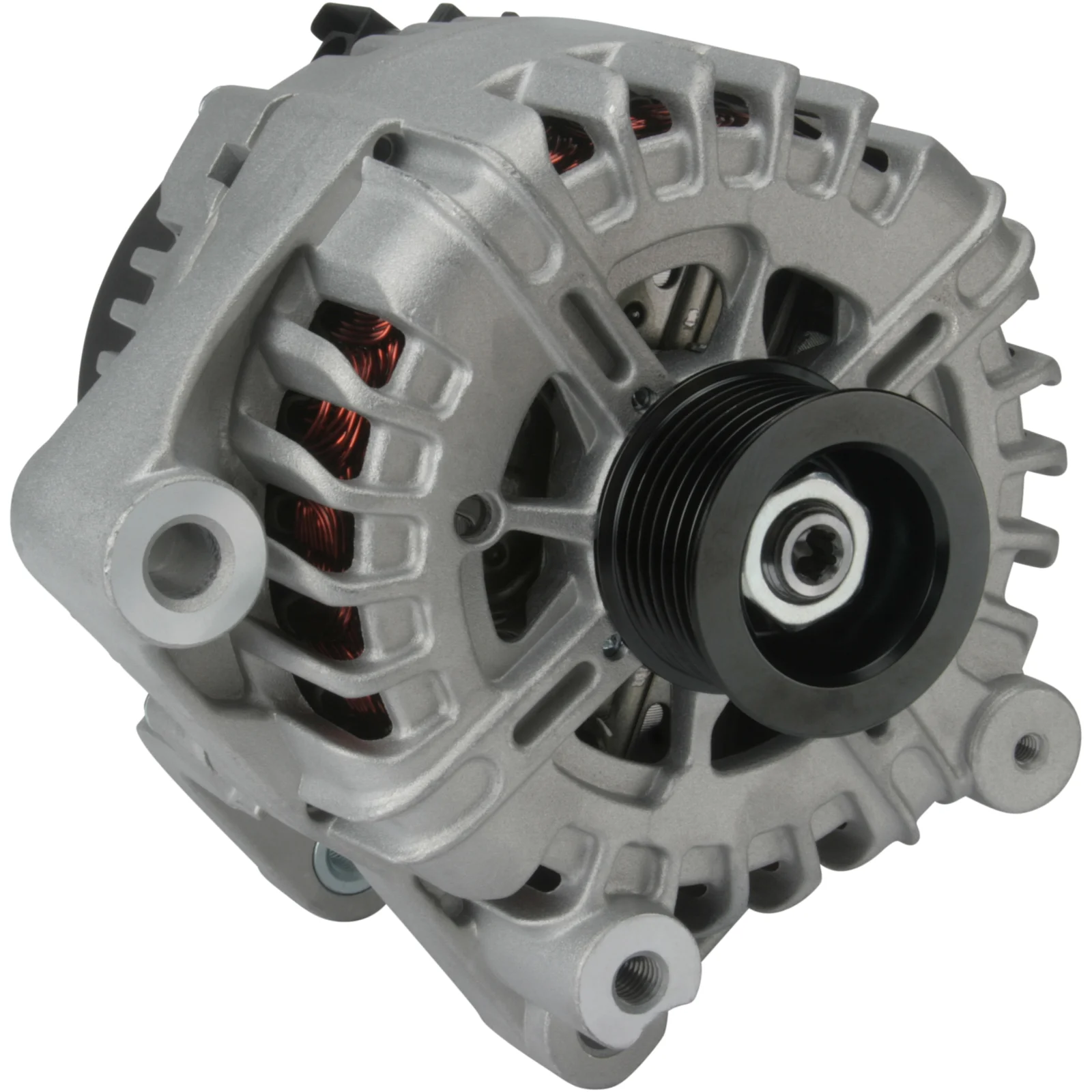

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 180, Rotation: med uret, Monteringsbeslag fordeler: 75,50

Beskrivelse

Spænding: 14
Ampere: 180
Remskive placering: 57.00
Bredde/holderarm: 28.50
Monteringsbeslag afstand: 75.50
Beslagshul: 10.30
Bælte justering beslag hul position: 45
Bælte justering beslag hul 1: 12.00
Remskive diameter: 51.00
Riller/remskive: 7
Radius: 93.00
Radius 2: 93.00
B+: M8
Position/B+ i min.: 55
Rotation: CW
Stik nr.: PL125
Total længde mm: 185.00
Terminal type: COM
Kommunikation: BSS
Remskive: SP
Regulator type: IR
Produktinfo: BN
Bemærkninger: Denne Generator har en COM terminal på regulatoren. Det anbefales, at OEM-nummeret bruges til at kontrollere egnethed inden bestilling.

Filer

Specifikation

B+ M8
Communication BSS
Mount. bracket dist. 75.50
Belt. adj. bracket hole 1 12.00
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 10.30
Position/B+ in min. 55
Prod. info BN
Pulley SP
Pulley dia. 51.00
Pulley dist. 57.00
Radius 93.00
Radius 2 93.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 185.00 mm
Width/holder arm 28.50
Amp 180

  • OEM
    F032115923, TG17C036, 12317561003, 12317561004

  • Konkurrentreferens
    A3230, CAL15487, DRA0592, LRA03162, 28-5774, 215.184.1702, 215.542.170, 215.542.180, 11396N, 112535, 209236, 209236A, 439601, 440097, 9090473, 12090524

  • NormaliseratArtNr
    a3230, cal15487, dra0592, f032115923, lra03162, tg17c036, 11396n, 112535, 209236, 209236a, 285774, 439601, 440097, 9090473, 12090524, 215542170, 215542180, 2151841702, 12317561003, 12317561004

  • Passar modeller
    BMW Model: X5 Model series: X5 Model type: Xdrive Type of engine: i Size of motor: 4.8 Brand of engine: N62B48B Type description: E70 From date: 01-10-2008 To date: 01-03-2010 Fuel: Gasoline Approved: Yes
    BMW Model: X5 Model series: X5 Type of engine: i Size of motor: 4.8 Brand of engine: N62B48B Type description: E70 From date: 01-10-2006 To date: 01-09-2008 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Ampere: 180
    Remskive placering: 57.00
    Bredde/holderarm: 28.50
    Monteringsbeslag afstand: 75.50
    Beslagshul: 10.30
    Bælte justering beslag hul position: 45
    Bælte justering beslag hul 1: 12.00
    Remskive diameter: 51.00
    Riller/remskive: 7
    Radius: 93.00
    Radius 2: 93.00
    B+: M8
    Position/B+ i min.: 55
    Rotation: CW
    Stik nr.: PL125
    Total længde mm: 185.00
    Terminal type: COM
    Kommunikation: BSS
    Remskive: SP
    Regulator type: IR
    Produktinfo: BN
    Bemærkninger: Denne Generator har en COM terminal på regulatoren. Det anbefales, at OEM-nummeret bruges til at kontrollere egnethed inden bestilling.

    Filer

  • Specifikation
    B+ M8
    Communication BSS
    Mount. bracket dist. 75.50
    Belt. adj. bracket hole 1 12.00
    Belt. adj. brackethole pos. 45
    Plug no. PL125
    Bracket hole 10.30
    Position/B+ in min. 55
    Prod. info BN
    Pulley SP
    Pulley dia. 51.00
    Pulley dist. 57.00
    Radius 93.00
    Radius 2 93.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 7
    Terminal type COM
    Voltage 14
    Total length 185.00 mm
    Width/holder arm 28.50
    Amp 180
  • Køretøjsmatchning

    • OEM
      F032115923, TG17C036, 12317561003, 12317561004

    • Konkurrentreferens
      A3230, CAL15487, DRA0592, LRA03162, 28-5774, 215.184.1702, 215.542.170, 215.542.180, 11396N, 112535, 209236, 209236A, 439601, 440097, 9090473, 12090524

    • NormaliseratArtNr
      a3230, cal15487, dra0592, f032115923, lra03162, tg17c036, 11396n, 112535, 209236, 209236a, 285774, 439601, 440097, 9090473, 12090524, 215542170, 215542180, 2151841702, 12317561003, 12317561004

    • Passar modeller
      BMW Model: X5 Model series: X5 Model type: Xdrive Type of engine: i Size of motor: 4.8 Brand of engine: N62B48B Type description: E70 From date: 01-10-2008 To date: 01-03-2010 Fuel: Gasoline Approved: Yes
      BMW Model: X5 Model series: X5 Type of engine: i Size of motor: 4.8 Brand of engine: N62B48B Type description: E70 From date: 01-10-2006 To date: 01-09-2008 Fuel: Gasoline Approved: Yes
