HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032112356

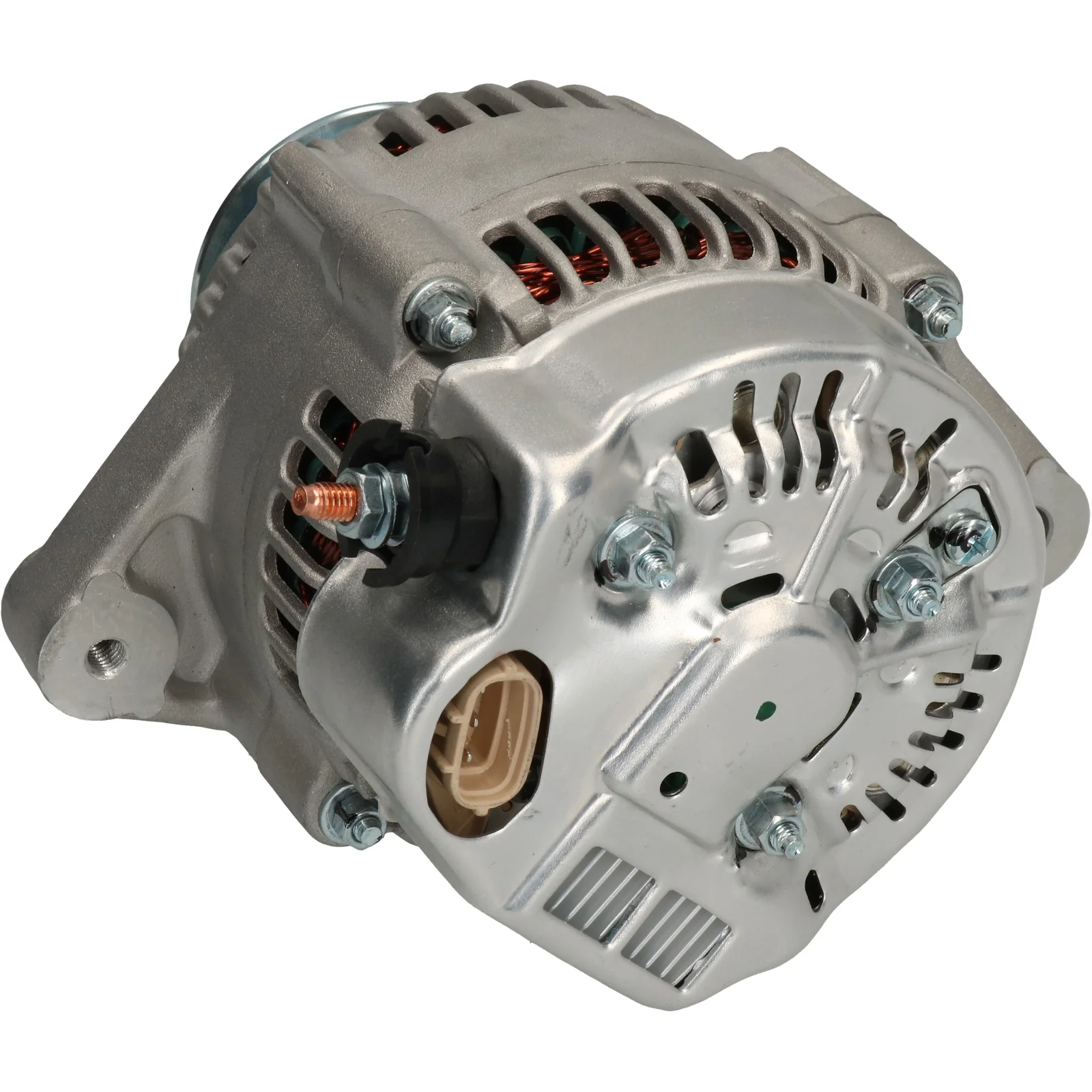

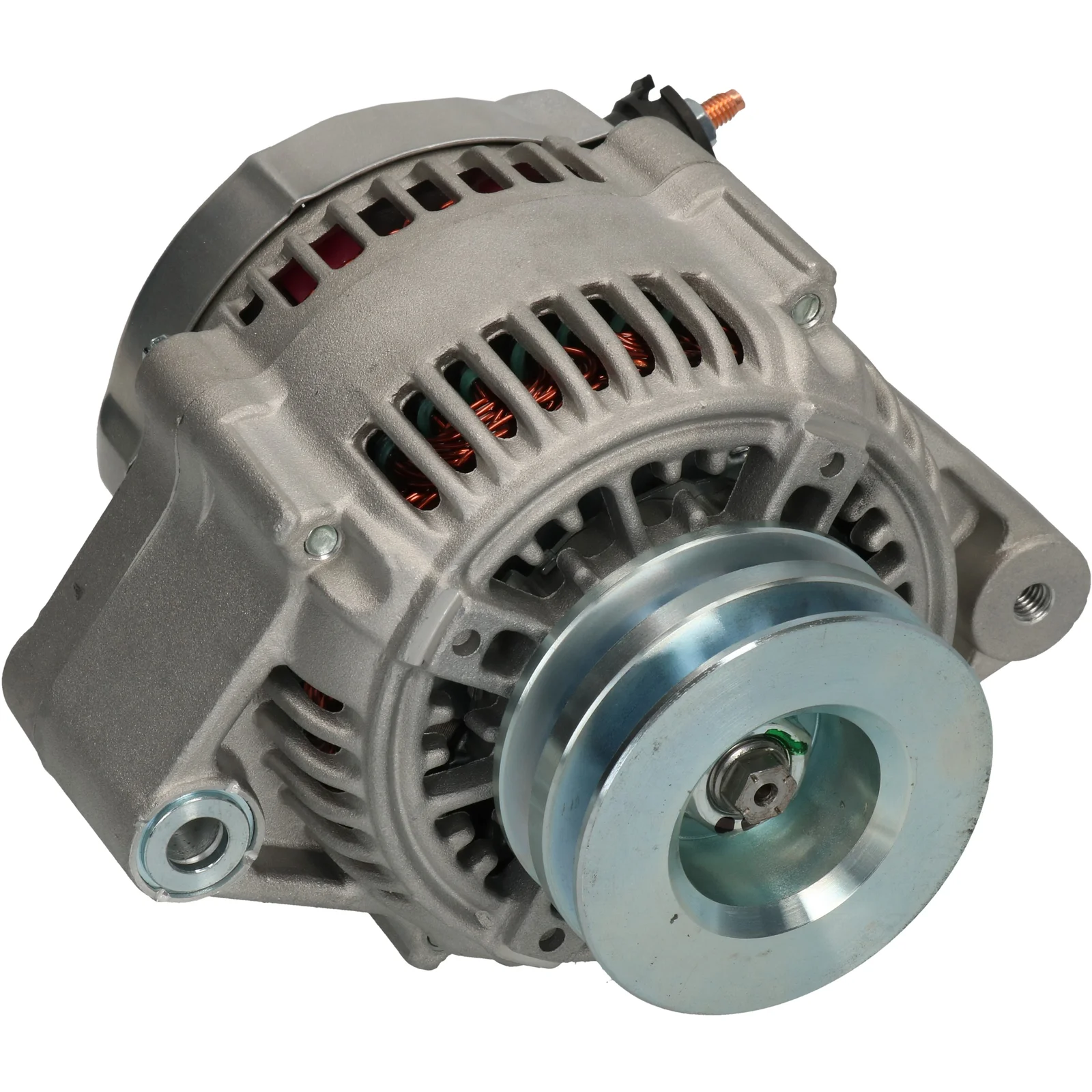

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 80, Rotation: CW, Remskive dia.: 77,00

Beskrivelse

Spænding: 14
Amp: 80
Remskive dist.: 93.00
Bredde/holderarm: 58.00
Indeholdt hul: 10.30
Remskive justering af bøsning hul position: 5
Remskive justering af bøsning hul 1: M8
Remskive dia.: 77.00
Riller/remskive: 2
Radius: 79.00
Radius 2: 83.00
B+: M6
Position/B+ i min.: 5
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL42
Total længde mm: 167.00
Terminaltype: L-IG-S
Remskive: DP
Kølerblæser: IF
Spændingsregulator type: IR
Produktinfo: BN
Service: Toyota

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL42
Bracket hole 10.30
Position/B+ in min. 5
Prod. info BN
Pulley DP
Pulley dia. 77.00
Pulley dist. 93.00
Radius 79.00
D+ Size Plug
Radius 2 83.00
Regulator type IR
Rotation CW
Servicing Toyota
Fan IF
Grooves/pulley 2
Terminal type L-IG-S
Voltage 14
Total length 167.00 mm
Width/holder arm 58.00
Amp 80

  • OEM
    F032112356, ja1534ir, 1986A00583, 1986A00752, 021080-0410, 27060-17150, 27060-17170, 27060-17171, 27060-17220, 101211-5260, 101211-5261, 101211-5330, 102211-1360, 102211-1361, 102211-1362

  • Konkurrentreferens
    A6104, ALT30089, CAL40217, DAN1114, dra3517, J5112085, LRA01598, 8EL012426-551, 28-2750, 195.942.080, 535.121.802, 119948, 401534RI, 9212887, 12060592, 0986083720

  • NormaliseratArtNr
    a6104, alt30089, cal40217, dan1114, dra3517, f032112356, j5112085, ja1534ir, lra01598, 8el012426551, 1986a00583, 1986a00752, 119948, 282750, 401534ri, 9212887, 12060592, 195942080, 0210800410, 535121802, 0986083720, 1012115260, 1012115261, 1012115330, 1022111360, 1022111361, 1022111362, 2706017150, 2706017170, 2706017171, 2706017220

  • Passar modeller
    Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 100 Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-FTE Type description: J10 From date: 01-01-1998 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.2 Brand of engine: 1H-Z Type description: HZJ80_ From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.2 Brand of engine: 1H-Z Type description: _J7_ Body: Hardtop From date: 01-01-1990 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-FT Type description: HDJ80 From date: 01-01-1995 To date: 01-12-1997 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-T Type description: HJD80 From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-T Type description: HJD80 From date: 01-10-1992 To date: 01-12-1997 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 80
    Remskive dist.: 93.00
    Bredde/holderarm: 58.00
    Indeholdt hul: 10.30
    Remskive justering af bøsning hul position: 5
    Remskive justering af bøsning hul 1: M8
    Remskive dia.: 77.00
    Riller/remskive: 2
    Radius: 79.00
    Radius 2: 83.00
    B+: M6
    Position/B+ i min.: 5
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL42
    Total længde mm: 167.00
    Terminaltype: L-IG-S
    Remskive: DP
    Kølerblæser: IF
    Spændingsregulator type: IR
    Produktinfo: BN
    Service: Toyota

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 5
    Plug no. PL42
    Bracket hole 10.30
    Position/B+ in min. 5
    Prod. info BN
    Pulley DP
    Pulley dia. 77.00
    Pulley dist. 93.00
    Radius 79.00
    D+ Size Plug
    Radius 2 83.00
    Regulator type IR
    Rotation CW
    Servicing Toyota
    Fan IF
    Grooves/pulley 2
    Terminal type L-IG-S
    Voltage 14
    Total length 167.00 mm
    Width/holder arm 58.00
    Amp 80
  • Køretøjsmatchning

    • OEM
      F032112356, ja1534ir, 1986A00583, 1986A00752, 021080-0410, 27060-17150, 27060-17170, 27060-17171, 27060-17220, 101211-5260, 101211-5261, 101211-5330, 102211-1360, 102211-1361, 102211-1362

    • Konkurrentreferens
      A6104, ALT30089, CAL40217, DAN1114, dra3517, J5112085, LRA01598, 8EL012426-551, 28-2750, 195.942.080, 535.121.802, 119948, 401534RI, 9212887, 12060592, 0986083720

    • NormaliseratArtNr
      a6104, alt30089, cal40217, dan1114, dra3517, f032112356, j5112085, ja1534ir, lra01598, 8el012426551, 1986a00583, 1986a00752, 119948, 282750, 401534ri, 9212887, 12060592, 195942080, 0210800410, 535121802, 0986083720, 1012115260, 1012115261, 1012115330, 1022111360, 1022111361, 1022111362, 2706017150, 2706017170, 2706017171, 2706017220

    • Passar modeller
      Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 100 Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-FTE Type description: J10 From date: 01-01-1998 To date: 01-08-2007 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.2 Brand of engine: 1H-Z Type description: HZJ80_ From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.2 Brand of engine: 1H-Z Type description: _J7_ Body: Hardtop From date: 01-01-1990 To date: 01-08-2001 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-FT Type description: HDJ80 From date: 01-01-1995 To date: 01-12-1997 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-T Type description: HJD80 From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-T Type description: HJD80 From date: 01-10-1992 To date: 01-12-1997 Fuel: Diesel Approved: Yes
      1 / 2
