HC-Cargo Generator

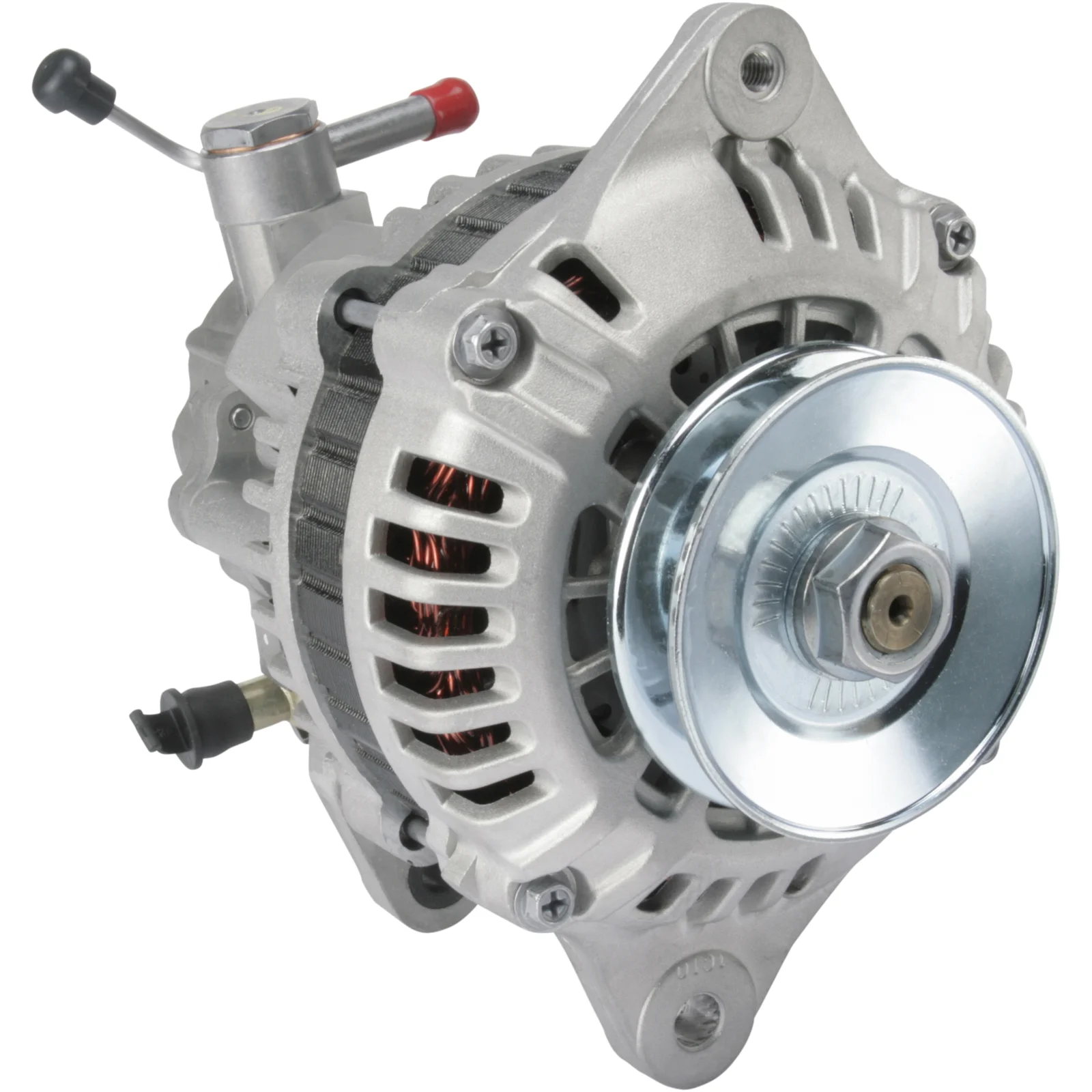

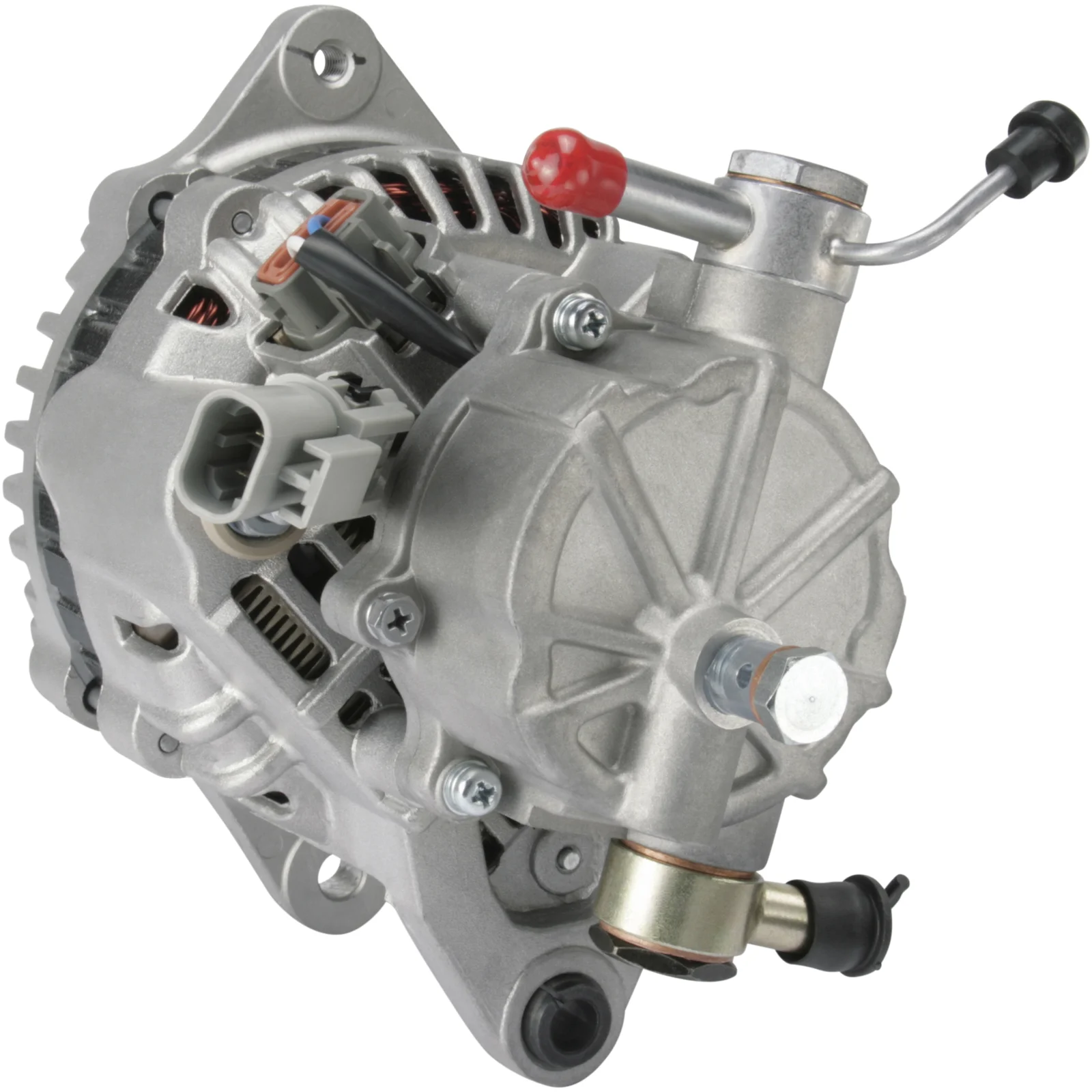

HC-Cargo Generator
Vare nr.: F032112394

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 70, Rotation: CW, Monteringsbeslag afstand: 80,00

Beskrivelse

Spænding: 14
Ampere: 70
Båret dist.: 42,00
Bredde/holderarm: 13,50
Montageskruesteds dist.: 80,00
Bøsning: 10,50
Bælte. just. bøsning position.: 60
Bælte. just. bøsning hul 1: M8
Hjul diameter: 80,60
Riller/hjul: 1
Radius: 90,00
Radius 2: 85,00
B+: M6
Position/B+ i min.: 48
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL121
W stiktype: M5
Total længde mm: 234,00
Terminaltype: L-W
Hjul: P
Blæser: IF
Regulator type: IR
Vakuumpumpe: Ja
Producent information: BN
Vedligeholdelse: Nissan

Filer

Specifikation

B+ M6
Mount. bracket dist. 80.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL121
Bracket hole 10.50
Position/B+ in min. 48
Prod. info BN
Pulley P
Pulley dia. 80.60
Pulley dist. 42.00
Radius 90.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Nissan
Fan IF
Grooves/pulley 1
Terminal type L-W
Vac. pump Yes
Voltage 14
W plug type M5
Total length 234.00 mm
Width/holder arm 13.50
Amp 70

  • OEM
    F032112394, ja1603ir, 6033gb4018, 23100-69t10, 23100-69t20, 1516879R, 9120334642

  • Konkurrentreferens
    A3612S, CAL45116, DRA0343, LRA01880, 8EL011711-741, 28-3745, 527.117.702, 22880R, 119966, 210456, 210456A, 401603RI, 9990441, 12060875, 0986049730

  • NormaliseratArtNr
    a3612s, cal45116, dra0343, f032112394, ja1603ir, lra01880, 8el011711741, 6033gb4018, 22880r, 119966, 210456, 210456a, 283745, 401603ri, 1516879r, 2310069t10, 2310069t20, 9990441, 12060875, 527117702, 0986049730, 9120334642

  • Passar modeller
    Nissan Model: Atleon Model series: 110.35 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Atleon Model series: 110.56 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Atleon Model series: 120.35 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Atleon Model series: 120.56 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Atleon Model series: 120.56 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2003 Fuel: Diesel Approved: Yes
    Nissan Model: ECO-T Model series: 100.45 Size of motor: 3.0 Brand of engine: BD-30Ti Body: Platform / Chassis From date: 01-01-1997 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    Nissan Model: ECO-T Model series: 100.56 Size of motor: 3.0 Brand of engine: BD-30Ti Body: Platform / Chassis From date: 01-01-1997 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Trade Model series: Trade Size of motor: 3.0 Brand of engine: BD-30Ti Body: Platform / Chassis From date: 01-01-1996 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    Nissan Model: Trade Model series: Trade Size of motor: 3.0 Brand of engine: BD-30Ti Body: Twin Cab From date: 01-01-1996 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Ampere: 70
    Båret dist.: 42,00
    Bredde/holderarm: 13,50
    Montageskruesteds dist.: 80,00
    Bøsning: 10,50
    Bælte. just. bøsning position.: 60
    Bælte. just. bøsning hul 1: M8
    Hjul diameter: 80,60
    Riller/hjul: 1
    Radius: 90,00
    Radius 2: 85,00
    B+: M6
    Position/B+ i min.: 48
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL121
    W stiktype: M5
    Total længde mm: 234,00
    Terminaltype: L-W
    Hjul: P
    Blæser: IF
    Regulator type: IR
    Vakuumpumpe: Ja
    Producent information: BN
    Vedligeholdelse: Nissan

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 80.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL121
    Bracket hole 10.50
    Position/B+ in min. 48
    Prod. info BN
    Pulley P
    Pulley dia. 80.60
    Pulley dist. 42.00
    Radius 90.00
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Servicing Nissan
    Fan IF
    Grooves/pulley 1
    Terminal type L-W
    Vac. pump Yes
    Voltage 14
    W plug type M5
    Total length 234.00 mm
    Width/holder arm 13.50
    Amp 70
  • Køretøjsmatchning

    • OEM
      F032112394, ja1603ir, 6033gb4018, 23100-69t10, 23100-69t20, 1516879R, 9120334642

    • Konkurrentreferens
      A3612S, CAL45116, DRA0343, LRA01880, 8EL011711-741, 28-3745, 527.117.702, 22880R, 119966, 210456, 210456A, 401603RI, 9990441, 12060875, 0986049730

    • NormaliseratArtNr
      a3612s, cal45116, dra0343, f032112394, ja1603ir, lra01880, 8el011711741, 6033gb4018, 22880r, 119966, 210456, 210456a, 283745, 401603ri, 1516879r, 2310069t10, 2310069t20, 9990441, 12060875, 527117702, 0986049730, 9120334642

    • Passar modeller
      Nissan Model: Atleon Model series: 110.35 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
      Nissan Model: Atleon Model series: 110.56 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
      Nissan Model: Atleon Model series: 120.35 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
      Nissan Model: Atleon Model series: 120.56 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
      Nissan Model: Atleon Model series: 120.56 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2003 Fuel: Diesel Approved: Yes
      Nissan Model: ECO-T Model series: 100.45 Size of motor: 3.0 Brand of engine: BD-30Ti Body: Platform / Chassis From date: 01-01-1997 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      Nissan Model: ECO-T Model series: 100.56 Size of motor: 3.0 Brand of engine: BD-30Ti Body: Platform / Chassis From date: 01-01-1997 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      Nissan Model: Trade Model series: Trade Size of motor: 3.0 Brand of engine: BD-30Ti Body: Platform / Chassis From date: 01-01-1996 To date: 01-12-1998 Fuel: Diesel Approved: Yes
      Nissan Model: Trade Model series: Trade Size of motor: 3.0 Brand of engine: BD-30Ti Body: Twin Cab From date: 01-01-1996 To date: 01-12-1998 Fuel: Diesel Approved: Yes
      1 / 2
