Vare nr.: F032112447

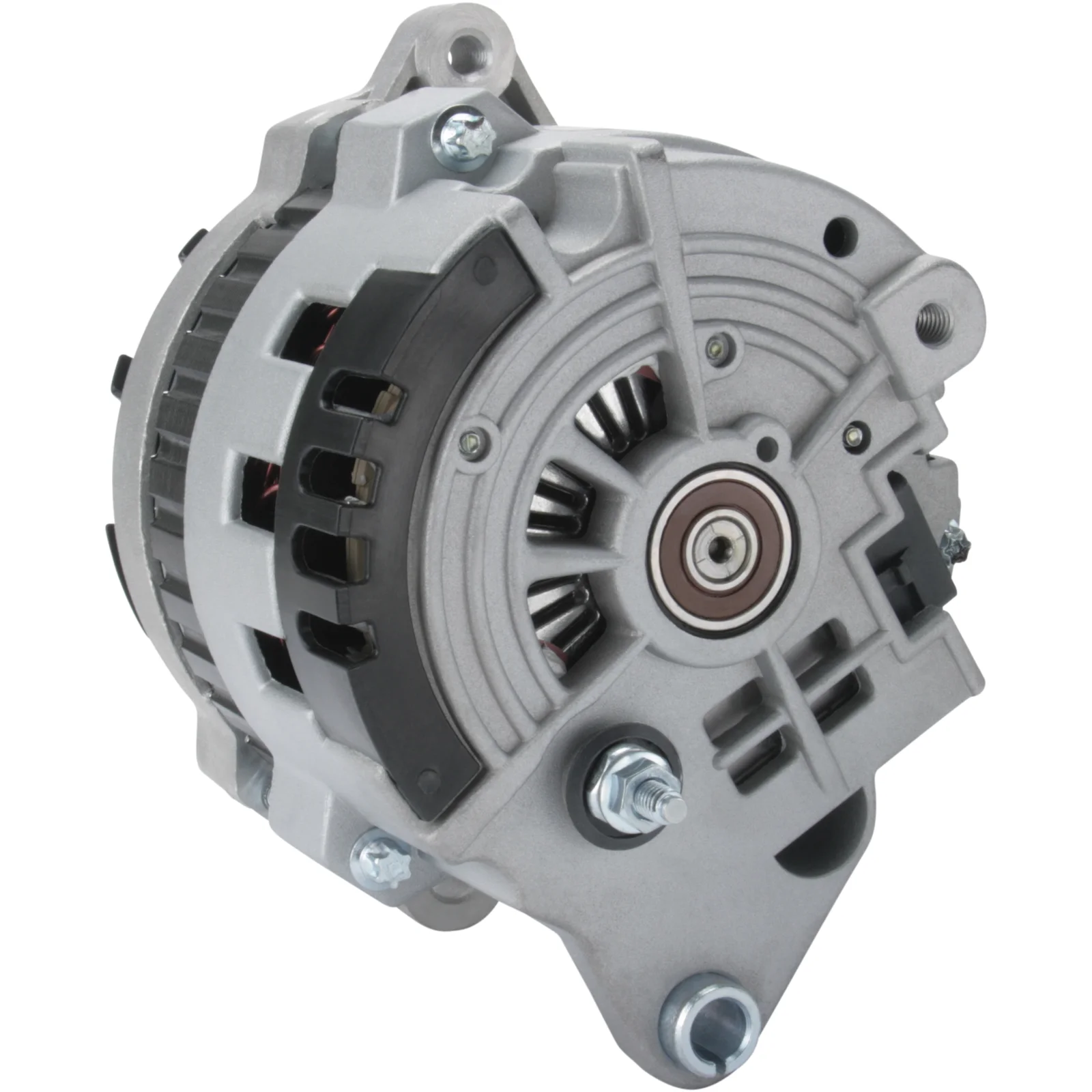

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 105, Rotation: CW, Monteringsbeslag afstand: 81,80

Beskrivelse

Spænding: 14
Amp: 105
Remskive dist.: 33.00
Bredde/holderarm: 13.00
Monteringsbeslag dist.: 81.80
Beslagshul: 10.20
Bæltejustering beslagshul pos.: 60
Bæltejustering beslagshul 1: M8
Remskivediá.: 55.70
Riller/remskive: 6
Radius: 78.00
Radius 2: 78.00
B+: M6
Position/B+ i min.: 35
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL24
Total længde mm: 172.00
Remskive: SP
Regulator type: IR
Produktoplysninger: BN
Service: Dodge
Bemærkninger: Udskiftning: CS130.

Filer

Specifikation

B+ M6
Mount. bracket dist. 81.80
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL24
Bracket hole 10.20
Position/B+ in min. 35
Prod. info BN
Pulley SP
Pulley dia. 55.70
Pulley dist. 33.00
Radius 78.00
D+ Size Plug
Radius 2 78.00
Regulator type IR
Remarks Replacing: CS130.
Rotation CW
Servicing Dodge
Grooves/pulley 6
Voltage 14
Total length 172.00 mm
Width/holder arm 13.00
Amp 105

  • OEM
    F032112447, 1101266, 1101267, 1102644, 4609003, 33002941

  • Konkurrentreferens
    AL656X, ALT-1317A, ALT1317A, drz0172, F042300107, F042A00107, 1-1650-01DR, 1-1651-01DR, 20-182-10, 20-182-11, 20-182-11-1, 7972, 7973, 7973N, 7973R, 56484, 553072RI

  • NormaliseratArtNr
    al656x, alt1317a, drz0172, f032112447, f042300107, f042a00107, 7972, 7973, 7973n, 7973r, 56484, 553072ri, 1101266, 1101267, 1102644, 1165001dr, 1165101dr, 2018210, 2018211, 4609003, 20182111, 33002941

  • Passar modeller
    Dodge Model: Monaco Model series: Monaco Model type: ES Size of motor: 3.0 From date: 01-01-1990 To date: 01-01-1992 Fuel: Gasoline Approved: Yes
    Dodge Model: Monaco Model series: Monaco Model type: LE Size of motor: 3.0 From date: 01-01-1990 To date: 01-01-1992 Fuel: Gasoline Approved: Yes
    Eagle Model: Premier Model series: Premier Model type: ES Size of motor: 3.0 From date: 01-01-1988 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Eagle Model: Premier Model series: Premier Model type: ES Size of motor: 3.0 From date: 01-01-1989 To date: 01-01-1992 Fuel: Gasoline Approved: Yes
    Eagle Model: Premier Model series: Premier Model type: Limited Size of motor: 3.0 From date: 01-01-1991 To date: 01-01-1992 Fuel: Gasoline Approved: Yes
    Eagle Model: Premier Model series: Premier Model type: LX Size of motor: 3.0 From date: 01-01-1988 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Eagle Model: Premier Model series: Premier Model type: LX Size of motor: 3.0 From date: 01-01-1989 To date: 01-01-1992 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 105
    Remskive dist.: 33.00
    Bredde/holderarm: 13.00
    Monteringsbeslag dist.: 81.80
    Beslagshul: 10.20
    Bæltejustering beslagshul pos.: 60
    Bæltejustering beslagshul 1: M8
    Remskivediá.: 55.70
    Riller/remskive: 6
    Radius: 78.00
    Radius 2: 78.00
    B+: M6
    Position/B+ i min.: 35
    D+ Størrelse: Stik
    Rotation: med uret
    Stik nr.: PL24
    Total længde mm: 172.00
    Remskive: SP
    Regulator type: IR
    Produktoplysninger: BN
    Service: Dodge
    Bemærkninger: Udskiftning: CS130.

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 81.80
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL24
    Bracket hole 10.20
    Position/B+ in min. 35
    Prod. info BN
    Pulley SP
    Pulley dia. 55.70
    Pulley dist. 33.00
    Radius 78.00
    D+ Size Plug
    Radius 2 78.00
    Regulator type IR
    Remarks Replacing: CS130.
    Rotation CW
    Servicing Dodge
    Grooves/pulley 6
    Voltage 14
    Total length 172.00 mm
    Width/holder arm 13.00
    Amp 105
  • Køretøjsmatchning

    • OEM
      F032112447, 1101266, 1101267, 1102644, 4609003, 33002941

    • Konkurrentreferens
      AL656X, ALT-1317A, ALT1317A, drz0172, F042300107, F042A00107, 1-1650-01DR, 1-1651-01DR, 20-182-10, 20-182-11, 20-182-11-1, 7972, 7973, 7973N, 7973R, 56484, 553072RI

    • NormaliseratArtNr
      al656x, alt1317a, drz0172, f032112447, f042300107, f042a00107, 7972, 7973, 7973n, 7973r, 56484, 553072ri, 1101266, 1101267, 1102644, 1165001dr, 1165101dr, 2018210, 2018211, 4609003, 20182111, 33002941

    • Passar modeller
      Dodge Model: Monaco Model series: Monaco Model type: ES Size of motor: 3.0 From date: 01-01-1990 To date: 01-01-1992 Fuel: Gasoline Approved: Yes
      Dodge Model: Monaco Model series: Monaco Model type: LE Size of motor: 3.0 From date: 01-01-1990 To date: 01-01-1992 Fuel: Gasoline Approved: Yes
      Eagle Model: Premier Model series: Premier Model type: ES Size of motor: 3.0 From date: 01-01-1988 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Eagle Model: Premier Model series: Premier Model type: ES Size of motor: 3.0 From date: 01-01-1989 To date: 01-01-1992 Fuel: Gasoline Approved: Yes
      Eagle Model: Premier Model series: Premier Model type: Limited Size of motor: 3.0 From date: 01-01-1991 To date: 01-01-1992 Fuel: Gasoline Approved: Yes
      Eagle Model: Premier Model series: Premier Model type: LX Size of motor: 3.0 From date: 01-01-1988 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Eagle Model: Premier Model series: Premier Model type: LX Size of motor: 3.0 From date: 01-01-1989 To date: 01-01-1992 Fuel: Gasoline Approved: Yes
