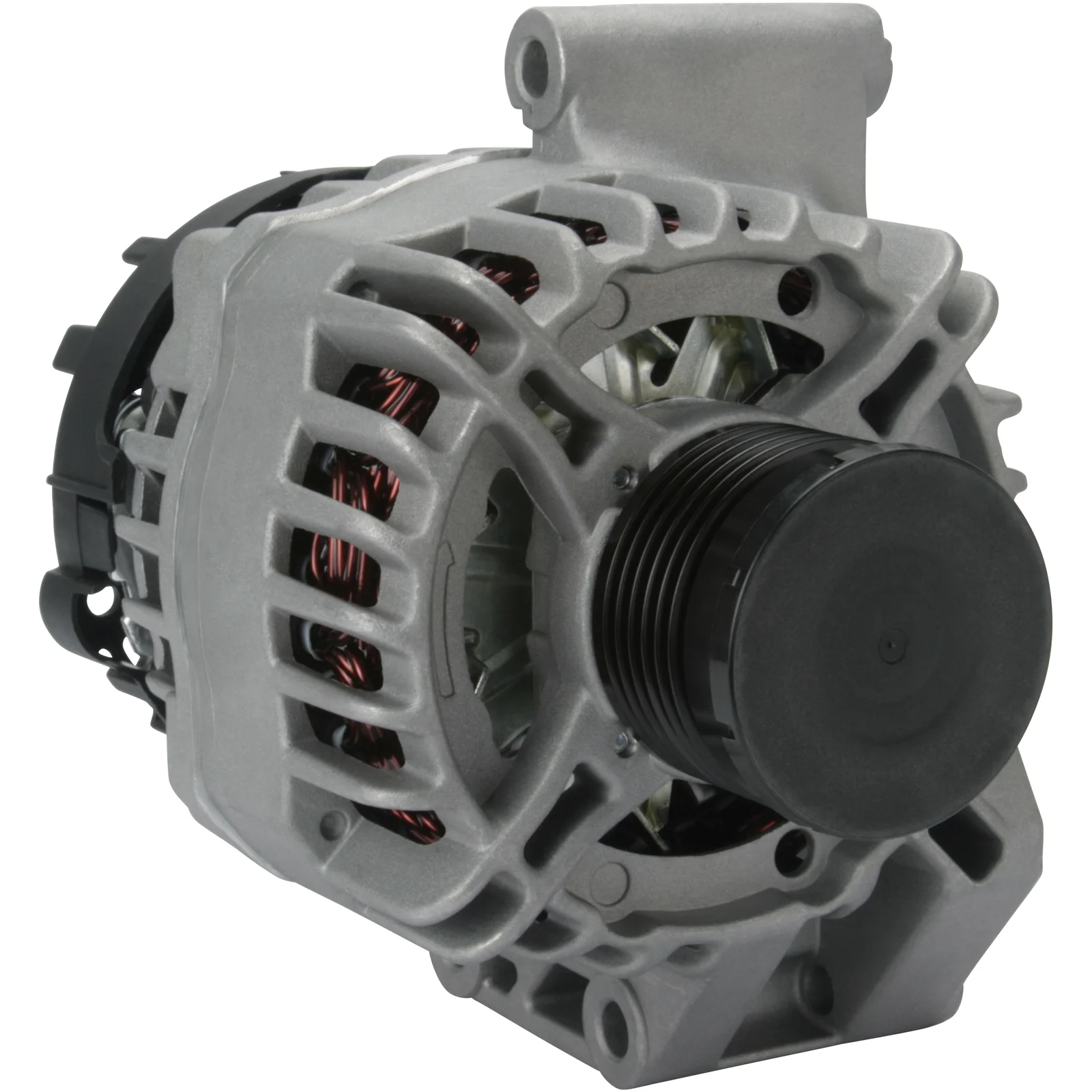

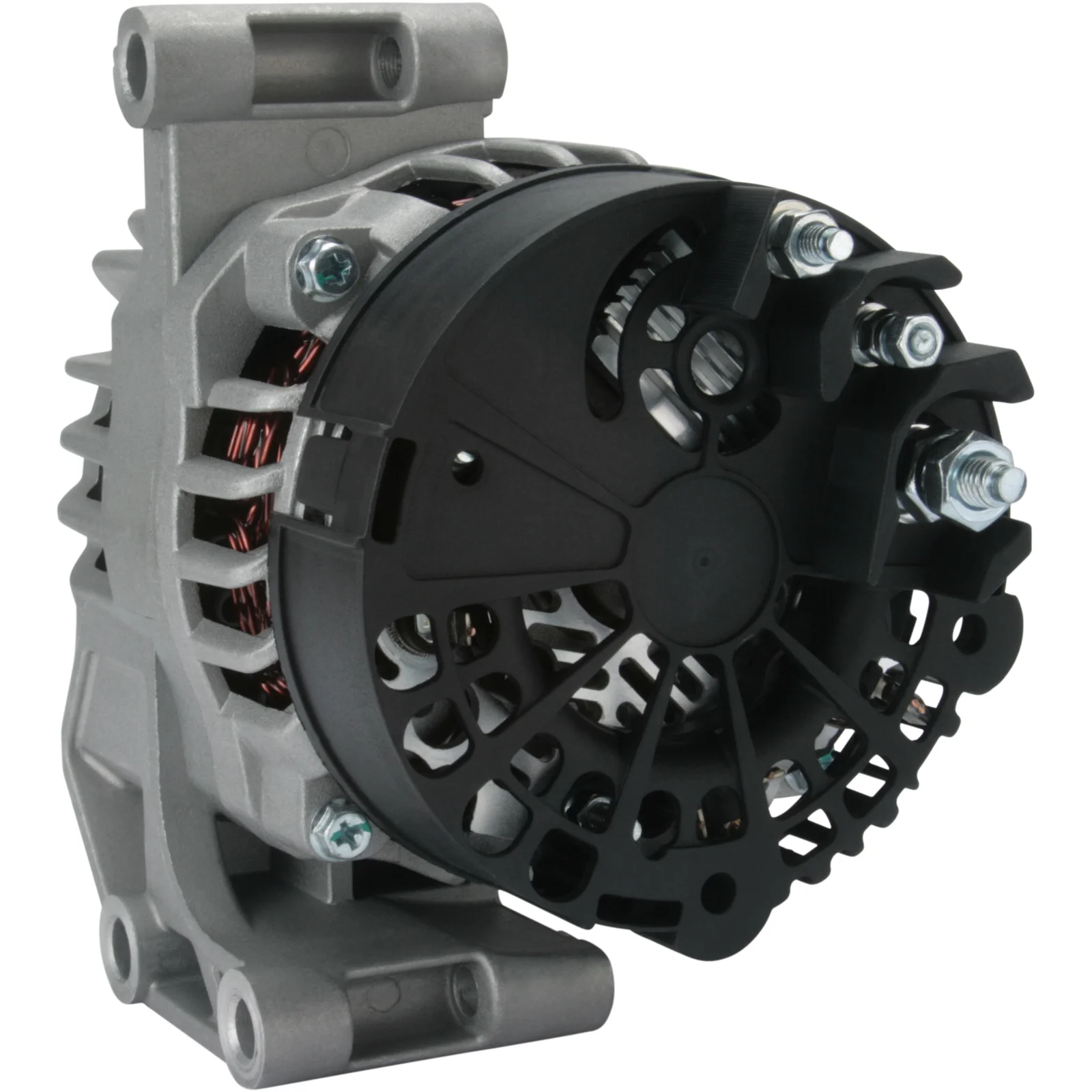

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115308

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 120, Rotation: CW, Mount. bøjle afstand: 54,50

Beskrivelse

Opel Astra Generator 12V-120A 12V - 120A, 6gr.frg, (B+, D+, DFM) for Yourex produktordre 90-430-7495

Voltage: 14
Amp: 120
Drevkugg. dist.: 41,00
Bredde/bøsning arm: 64,50
Monteringsbeslag dist.: 54,50
Bøsning hul: 8,00
Remskivejustering hul 1: 8,00
Drevkugg. dia.: 53,00
Riller/drevkugg.: 6
B+: M8
Position/B+ i min.: 15
D+ Størrelse: M5
Rotation: med uret
Stik nr.: PL130
Drevkugg.: SP/FW
Regulator type: IR
Produktoplysninger: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 54.50
Belt. adj. bracket hole 1 8.00
Plug no. PL130
Bracket hole 8.00
Position/B+ in min. 15
Prod. info BN
Pulley SP/FW
Pulley dia. 53.00
Pulley dist. 41.00
D+ Size M5
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Width/holder arm 64.50
Amp 120

  • OEM
    F032115308, TG12C239, 1935ir, 102211-8630, 102211-8631, 102211-8632, 115308, 6204201, 6204273, 6204280, 13153237, 13256928, 63377495, 93183381, 93190915

  • Konkurrentreferens
    A6203, A6478(DENSO), CAL30237, DAN1034, DRA0247, LRA03068, MAN7495, 8EL011712-531, 8EL738212-801, 28-5680, 135.538.120, 228.176.1202, 24068, 24068N, 113301, 210833, 210833A, 301935RI, 440941, 443050, 443289, 9090668, 12090278, 063377495, 0986084160, 63377004010, 063377495010

  • Bilmärken
    Opel

  • NormaliseratArtNr
    a6203, a6478denso, cal30237, dan1034, dra0247, f032115308, lra03068, man7495, tg12c239, 8el011712531, 8el738212801, 1935ir, 24068, 24068n, 113301, 115308, 210833, 210833a, 285680, 301935ri, 440941, 443050, 443289, 6204201, 6204273, 6204280, 9090668, 12090278, 13153237, 13256928, 063377495, 63377495, 93183381, 93190915, 135538120, 0986084160, 1022118630, 1022118631, 1022118632, 2281761202, 63377004010, 063377495010

  • Passar modeller
    Fiat Model: Qubo Model series: Qubo Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B1.000 Type description: 300 Body: MPV From date: 01-07-2010 Fuel: Diesel Approved: Yes
    Lancia Model: Musa Model series: Musa Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B1.000 Type description: 350 Body: MPV From date: 01-03-2009 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Opel Model: Astra H Family Model series: Astra H Family Hatchback Type of engine: CDTI Size of motor: 1.3 Brand of engine: Z13DTH Type description: A04 Body: Hatchback From date: 01-01-2009 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra H Model type: GTC Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Hatchback From date: 01-04-2005 To date: 01-10-2010 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra H Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Estate From date: 01-08-2005 To date: 01-10-2010 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
    Opel Model: Astra Model series: Astra H Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Hatchback From date: 01-08-2005 To date: 01-10-2010 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra H Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Van From date: 01-08-2005 To date: 01-10-2010 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra H Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH From date: 01-02-2007 To date: 01-10-2010 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa C Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: Z13DT Type description: F08, W5L Body: Van From date: 01-07-2005 To date: 01-06-2006 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa C Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DT Type description: F08,F68 Body: Hatchback From date: 01-06-2003 To date: 01-12-2009 Fuel: Diesel Approved: Yes
    Opel Model: Meriva Model series: Meriva A Type of engine: CDTi Size of motor: 1.3 Brand of engine: Y13DT Body: MPV From date: 01-04-2005 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Opel Model: Meriva Model series: Meriva A Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DT Body: MPV From date: 01-04-2005 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Opel Model: Meriva Model series: Meriva A Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTJ Body: MPV From date: 01-09-2003 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Opel Model: Tigra Model series: Tigra Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DT Body: Convertible From date: 01-06-2004 To date: 01-12-2010 Fuel: Diesel Approved: Yes Manufacture type: Twin Top
    Opel Series: Astra H Kombi Model: 1.3 CDTI Engine volume: 1.3 Engine type: Z 13 DTH Year: 08.05-
    Opel Series: Astra H Model: 1.3 CDTI Engine volume: 1.3 Engine type: Z 13 DTH Year: 08.05-
    Opel Series: Combo Skåp/Kombi Model: 1.3 CDTI 16V Engine volume: 1.3 Engine type: Z 13 DT Year: 08.05-
    Opel Series: Combo Skåp/Kombi Model: 1.3 CDTI 16V Engine volume: 1.3 Engine type: Z 13 DTJ Year: 10.05-01.12
    Opel Series: Corsa C Model: 1.3 CDTI Engine volume: 1.3 Engine type: Z 13 DT Year: 06.03-12.09
    Opel Series: Meriva Model: 1.3 CDTI Engine volume: 1.3 Engine type: Z 13 DTJ Year: 09.03-05.10
    Vauxhall Model: Astra Model series: Astra MK V Model type: Sport Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Hatchback From date: 01-04-2005 To date: 01-11-2010 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK V Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Estate From date: 01-08-2004 To date: 01-03-2009 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK V Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Hatchback From date: 01-01-2004 To date: 01-05-2009 Fuel: Diesel Approved: Yes Manufacture type: CC
    Vauxhall Model: Astravan Model series: Astravan Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Van From date: 01-08-2005 Fuel: Diesel Approved: Yes
    Vauxhall Model: Combo Model series: Combo Tour Mk II Type of engine: CDTI 16V Size of motor: 1.3 Brand of engine: Z13DT,Y13DT Type description: C Body: Estate From date: 01-09-2004 To date: 01-09-2006 Fuel: Diesel Approved: Yes
    Vauxhall Model: Combo Model series: Combo Tour Mk II Type of engine: CDTI 16V Size of motor: 1.3 Brand of engine: Z13DTJ Type description: C Body: Estate From date: 01-07-2006 To date: 01-02-2012 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa MK III Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: Z13DT Body: Hatchback From date: 01-10-2003 To date: 01-04-2007 Fuel: Diesel Approved: Yes
    Vauxhall Model: Meriva Model series: Meriva A Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTJ Body: MPV From date: 01-01-2003 To date: 01-10-2009 Fuel: Diesel Approved: Yes
    Vauxhall Model: Tigra Model series: Tigra Model type: TwinTop Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DT Body: Convertible From date: 01-06-2004 To date: 01-08-2009 Fuel: Diesel Approved: Yes
    1 / 6
  • Beskrivelse
    Opel Astra Generator 12V-120A 12V - 120A, 6gr.frg, (B+, D+, DFM) for Yourex produktordre 90-430-7495

    Voltage: 14
    Amp: 120
    Drevkugg. dist.: 41,00
    Bredde/bøsning arm: 64,50
    Monteringsbeslag dist.: 54,50
    Bøsning hul: 8,00
    Remskivejustering hul 1: 8,00
    Drevkugg. dia.: 53,00
    Riller/drevkugg.: 6
    B+: M8
    Position/B+ i min.: 15
    D+ Størrelse: M5
    Rotation: med uret
    Stik nr.: PL130
    Drevkugg.: SP/FW
    Regulator type: IR
    Produktoplysninger: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 54.50
    Belt. adj. bracket hole 1 8.00
    Plug no. PL130
    Bracket hole 8.00
    Position/B+ in min. 15
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 53.00
    Pulley dist. 41.00
    D+ Size M5
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Width/holder arm 64.50
    Amp 120
  • Køretøjsmatchning

    • OEM
      F032115308, TG12C239, 1935ir, 102211-8630, 102211-8631, 102211-8632, 115308, 6204201, 6204273, 6204280, 13153237, 13256928, 63377495, 93183381, 93190915

    • Konkurrentreferens
      A6203, A6478(DENSO), CAL30237, DAN1034, DRA0247, LRA03068, MAN7495, 8EL011712-531, 8EL738212-801, 28-5680, 135.538.120, 228.176.1202, 24068, 24068N, 113301, 210833, 210833A, 301935RI, 440941, 443050, 443289, 9090668, 12090278, 063377495, 0986084160, 63377004010, 063377495010

    • Bilmärken
      Opel

    • NormaliseratArtNr
      a6203, a6478denso, cal30237, dan1034, dra0247, f032115308, lra03068, man7495, tg12c239, 8el011712531, 8el738212801, 1935ir, 24068, 24068n, 113301, 115308, 210833, 210833a, 285680, 301935ri, 440941, 443050, 443289, 6204201, 6204273, 6204280, 9090668, 12090278, 13153237, 13256928, 063377495, 63377495, 93183381, 93190915, 135538120, 0986084160, 1022118630, 1022118631, 1022118632, 2281761202, 63377004010, 063377495010

    • Passar modeller
      Fiat Model: Qubo Model series: Qubo Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B1.000 Type description: 300 Body: MPV From date: 01-07-2010 Fuel: Diesel Approved: Yes
      Lancia Model: Musa Model series: Musa Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B1.000 Type description: 350 Body: MPV From date: 01-03-2009 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Opel Model: Astra H Family Model series: Astra H Family Hatchback Type of engine: CDTI Size of motor: 1.3 Brand of engine: Z13DTH Type description: A04 Body: Hatchback From date: 01-01-2009 Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra H Model type: GTC Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Hatchback From date: 01-04-2005 To date: 01-10-2010 Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra H Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Estate From date: 01-08-2005 To date: 01-10-2010 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
      Opel Model: Astra Model series: Astra H Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Hatchback From date: 01-08-2005 To date: 01-10-2010 Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra H Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Van From date: 01-08-2005 To date: 01-10-2010 Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra H Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH From date: 01-02-2007 To date: 01-10-2010 Fuel: Diesel Approved: Yes
      Opel Model: Corsa Model series: Corsa C Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: Z13DT Type description: F08, W5L Body: Van From date: 01-07-2005 To date: 01-06-2006 Fuel: Diesel Approved: Yes
      Opel Model: Corsa Model series: Corsa C Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DT Type description: F08,F68 Body: Hatchback From date: 01-06-2003 To date: 01-12-2009 Fuel: Diesel Approved: Yes
      Opel Model: Meriva Model series: Meriva A Type of engine: CDTi Size of motor: 1.3 Brand of engine: Y13DT Body: MPV From date: 01-04-2005 To date: 01-05-2010 Fuel: Diesel Approved: Yes
      Opel Model: Meriva Model series: Meriva A Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DT Body: MPV From date: 01-04-2005 To date: 01-05-2010 Fuel: Diesel Approved: Yes
      Opel Model: Meriva Model series: Meriva A Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTJ Body: MPV From date: 01-09-2003 To date: 01-05-2010 Fuel: Diesel Approved: Yes
      Opel Model: Tigra Model series: Tigra Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DT Body: Convertible From date: 01-06-2004 To date: 01-12-2010 Fuel: Diesel Approved: Yes Manufacture type: Twin Top
      Opel Series: Astra H Kombi Model: 1.3 CDTI Engine volume: 1.3 Engine type: Z 13 DTH Year: 08.05-
      Opel Series: Astra H Model: 1.3 CDTI Engine volume: 1.3 Engine type: Z 13 DTH Year: 08.05-
      Opel Series: Combo Skåp/Kombi Model: 1.3 CDTI 16V Engine volume: 1.3 Engine type: Z 13 DT Year: 08.05-
      Opel Series: Combo Skåp/Kombi Model: 1.3 CDTI 16V Engine volume: 1.3 Engine type: Z 13 DTJ Year: 10.05-01.12
      Opel Series: Corsa C Model: 1.3 CDTI Engine volume: 1.3 Engine type: Z 13 DT Year: 06.03-12.09
      Opel Series: Meriva Model: 1.3 CDTI Engine volume: 1.3 Engine type: Z 13 DTJ Year: 09.03-05.10
      Vauxhall Model: Astra Model series: Astra MK V Model type: Sport Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Hatchback From date: 01-04-2005 To date: 01-11-2010 Fuel: Diesel Approved: Yes
      Vauxhall Model: Astra Model series: Astra MK V Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Estate From date: 01-08-2004 To date: 01-03-2009 Fuel: Diesel Approved: Yes
      Vauxhall Model: Astra Model series: Astra MK V Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Hatchback From date: 01-01-2004 To date: 01-05-2009 Fuel: Diesel Approved: Yes Manufacture type: CC
      Vauxhall Model: Astravan Model series: Astravan Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Van From date: 01-08-2005 Fuel: Diesel Approved: Yes
      Vauxhall Model: Combo Model series: Combo Tour Mk II Type of engine: CDTI 16V Size of motor: 1.3 Brand of engine: Z13DT,Y13DT Type description: C Body: Estate From date: 01-09-2004 To date: 01-09-2006 Fuel: Diesel Approved: Yes
      Vauxhall Model: Combo Model series: Combo Tour Mk II Type of engine: CDTI 16V Size of motor: 1.3 Brand of engine: Z13DTJ Type description: C Body: Estate From date: 01-07-2006 To date: 01-02-2012 Fuel: Diesel Approved: Yes
      Vauxhall Model: Corsa Model series: Corsa MK III Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: Z13DT Body: Hatchback From date: 01-10-2003 To date: 01-04-2007 Fuel: Diesel Approved: Yes
      Vauxhall Model: Meriva Model series: Meriva A Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTJ Body: MPV From date: 01-01-2003 To date: 01-10-2009 Fuel: Diesel Approved: Yes
      Vauxhall Model: Tigra Model series: Tigra Model type: TwinTop Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DT Body: Convertible From date: 01-06-2004 To date: 01-08-2009 Fuel: Diesel Approved: Yes
