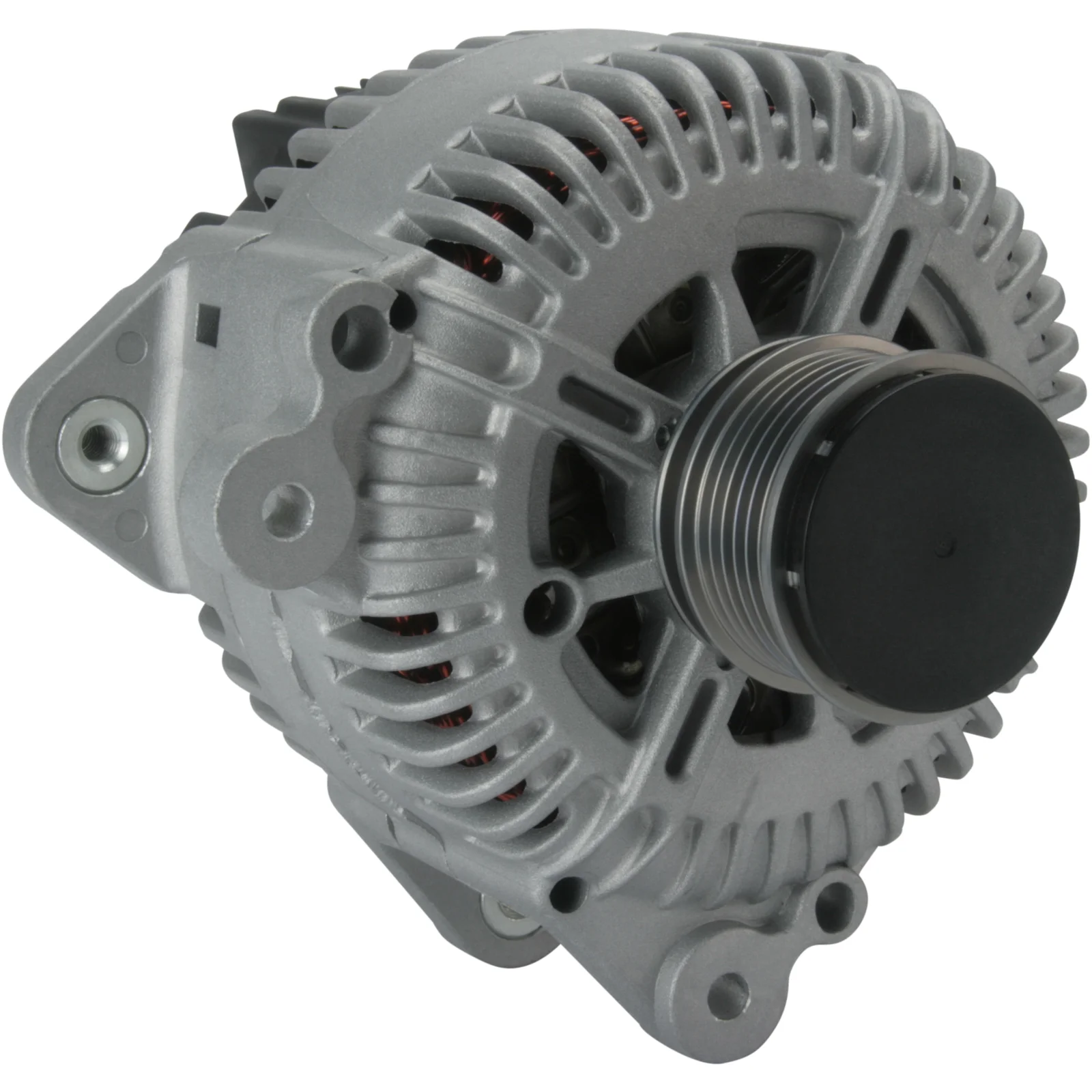

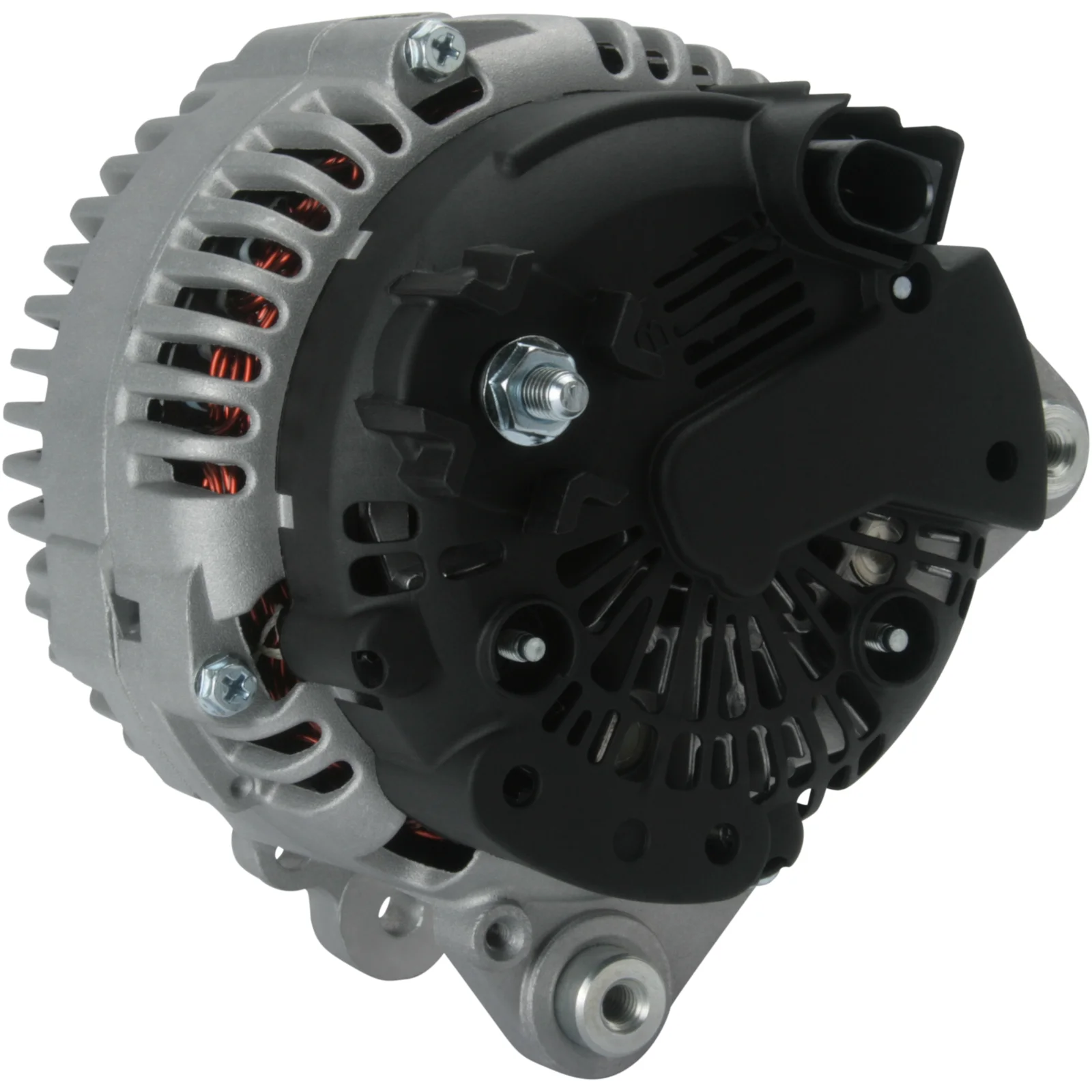

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114831

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 180, Rotation: CW, Monteringsbeslag forfordelingsdæksel: 61,00

Beskrivelse

Spænding: 14
Amp: 180
Poulie afstand: 39,50
Bredde/holderarm: 14,00
Monteringsbeslag afstand: 61,00
Beslagshul: 8,30
Bæltejustering beslagshul pos.: 45
Bæltejustering beslagshul 1: 8,30
Poulie dia.: 55,80
Fald/gruber: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 50
Rotation: CW
Stik nr.: PL86
Samlet længde mm: 195,00
Terminaltype: COM
Kommunikation: BSS
Poulie: SP/FW
Regulator type: IR
Prod. info: BN
Huskesedler: Denne Generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at tjekke egnethed, før der bestilles.

Filer

Specifikation

B+ M8
Communication BSS
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.30
Belt. adj. brackethole pos. 45
Plug no. PL86
Bracket hole 8.30
Position/B+ in min. 50
Prod. info BN
Pulley SP/FW
Pulley dia. 55.80
Pulley dist. 39.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 195.00 mm
Width/holder arm 14.00
Amp 180

  • OEM
    F032114831, tg17c024, tg17c054, 03g903016a, 1910ir, 2542827, 2543374

  • Konkurrentreferens
    A3209(VALEO), A3209S, CAL15176, DRA0202, LRA03176, 8EL012429-811, 8EL738211-691, 28-5788, 211.364.1802, 4650, 20444R, 113359, 209423, 209423A, 301910RI, 437542, 747130, 9213138, 12090317, 32000017, 0986084250

  • NormaliseratArtNr
    a3209s, a3209valeo, cal15176, dra0202, f032114831, lra03176, tg17c024, tg17c054, 03g903016a, 8el012429811, 8el738211691, 1910ir, 4650, 20444r, 113359, 209423, 209423a, 285788, 301910ri, 437542, 747130, 2542827, 2543374, 9213138, 12090317, 32000017, 0986084250, 2113641802

  • Passar modeller
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: BNA Type description: 4F2 From date: 01-07-2004 To date: 01-03-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: BNA Type description: 4F5 Body: Estate From date: 01-06-2005 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: BRF Type description: 4F2 From date: 01-07-2004 To date: 01-03-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: BRF Type description: 4F5 Body: Estate From date: 01-06-2005 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Seat Model: Alhambra Model series: Alhambra Model type: 4x4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 710 Body: MPV From date: 01-05-2011 Fuel: Diesel Approved: Yes
    Seat Model: Alhambra Model series: Alhambra Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFA Type description: 710 Body: MPV From date: 01-06-2010 To date: 01-05-2011 Fuel: Diesel Approved: Yes
    Seat Model: Alhambra Model series: Alhambra Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFE Type description: 710 Body: MPV From date: 01-05-2011 Fuel: Diesel Approved: Yes
    VW Model: CC Model series: CC Model type: 4 Motion Type of engine: TDI Size of motor: 2.0 Brand of engine: CFFB Type description: 358 Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    VW Model: CC Model series: CC Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGC Type description: 358 Body: Coupe From date: 01-12-2012 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    VW Model: CC Model series: CC Type of engine: TDI Size of motor: 2.0 Brand of engine: CFFA Type description: 358 Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    VW Model: CC Model series: CC Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    VW Model: CC Model series: CC Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGB Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    VW Model: CC Model series: CC Type of engine: TDI Size of motor: 2.0 Brand of engine: CFGC Type description: 358 Body: Coupe From date: 01-12-2012 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    VW Model: Sharan Model series: Sharan Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFA Type description: 7N Body: MPV From date: 01-05-2010 Fuel: Diesel Approved: Yes
    VW Model: Sharan Model series: Sharan Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFE Type description: 7N Body: MPV From date: 01-05-2011 To date: 01-07-2019 Fuel: Diesel Approved: Yes
    VW Model: Sharan Model series: Sharan Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGB Type description: 7N Body: MPV From date: 01-08-2010 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spænding: 14
    Amp: 180
    Poulie afstand: 39,50
    Bredde/holderarm: 14,00
    Monteringsbeslag afstand: 61,00
    Beslagshul: 8,30
    Bæltejustering beslagshul pos.: 45
    Bæltejustering beslagshul 1: 8,30
    Poulie dia.: 55,80
    Fald/gruber: 6
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Position/B+ i min.: 50
    Rotation: CW
    Stik nr.: PL86
    Samlet længde mm: 195,00
    Terminaltype: COM
    Kommunikation: BSS
    Poulie: SP/FW
    Regulator type: IR
    Prod. info: BN
    Huskesedler: Denne Generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at tjekke egnethed, før der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication BSS
    Mount. bracket dist. 61.00
    Belt. adj. bracket hole 1 8.30
    Belt. adj. brackethole pos. 45
    Plug no. PL86
    Bracket hole 8.30
    Position/B+ in min. 50
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 55.80
    Pulley dist. 39.50
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 195.00 mm
    Width/holder arm 14.00
    Amp 180
  • Køretøjsmatchning

    • OEM
      F032114831, tg17c024, tg17c054, 03g903016a, 1910ir, 2542827, 2543374

    • Konkurrentreferens
      A3209(VALEO), A3209S, CAL15176, DRA0202, LRA03176, 8EL012429-811, 8EL738211-691, 28-5788, 211.364.1802, 4650, 20444R, 113359, 209423, 209423A, 301910RI, 437542, 747130, 9213138, 12090317, 32000017, 0986084250

    • NormaliseratArtNr
      a3209s, a3209valeo, cal15176, dra0202, f032114831, lra03176, tg17c024, tg17c054, 03g903016a, 8el012429811, 8el738211691, 1910ir, 4650, 20444r, 113359, 209423, 209423a, 285788, 301910ri, 437542, 747130, 2542827, 2543374, 9213138, 12090317, 32000017, 0986084250, 2113641802

    • Passar modeller
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: BNA Type description: 4F2 From date: 01-07-2004 To date: 01-03-2011 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: BNA Type description: 4F5 Body: Estate From date: 01-06-2005 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: BRF Type description: 4F2 From date: 01-07-2004 To date: 01-03-2011 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: BRF Type description: 4F5 Body: Estate From date: 01-06-2005 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Seat Model: Alhambra Model series: Alhambra Model type: 4x4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 710 Body: MPV From date: 01-05-2011 Fuel: Diesel Approved: Yes
      Seat Model: Alhambra Model series: Alhambra Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFA Type description: 710 Body: MPV From date: 01-06-2010 To date: 01-05-2011 Fuel: Diesel Approved: Yes
      Seat Model: Alhambra Model series: Alhambra Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFE Type description: 710 Body: MPV From date: 01-05-2011 Fuel: Diesel Approved: Yes
      VW Model: CC Model series: CC Model type: 4 Motion Type of engine: TDI Size of motor: 2.0 Brand of engine: CFFB Type description: 358 Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
      VW Model: CC Model series: CC Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGC Type description: 358 Body: Coupe From date: 01-12-2012 To date: 01-12-2016 Fuel: Diesel Approved: Yes
      VW Model: CC Model series: CC Type of engine: TDI Size of motor: 2.0 Brand of engine: CFFA Type description: 358 Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
      VW Model: CC Model series: CC Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
      VW Model: CC Model series: CC Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGB Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
      VW Model: CC Model series: CC Type of engine: TDI Size of motor: 2.0 Brand of engine: CFGC Type description: 358 Body: Coupe From date: 01-12-2012 To date: 01-12-2016 Fuel: Diesel Approved: Yes
      VW Model: Sharan Model series: Sharan Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFA Type description: 7N Body: MPV From date: 01-05-2010 Fuel: Diesel Approved: Yes
      VW Model: Sharan Model series: Sharan Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFE Type description: 7N Body: MPV From date: 01-05-2011 To date: 01-07-2019 Fuel: Diesel Approved: Yes
      VW Model: Sharan Model series: Sharan Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGB Type description: 7N Body: MPV From date: 01-08-2010 Fuel: Diesel Approved: Yes
