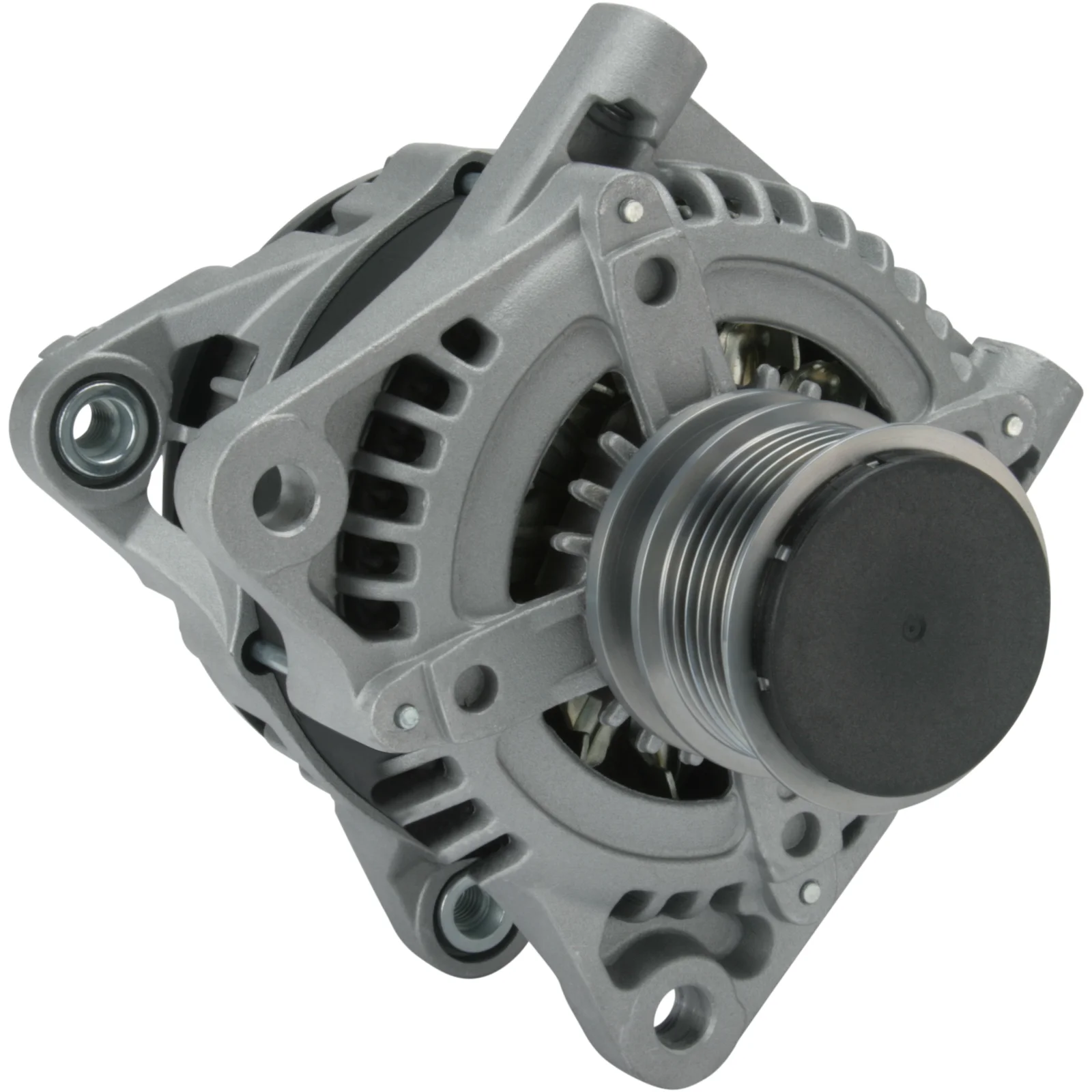

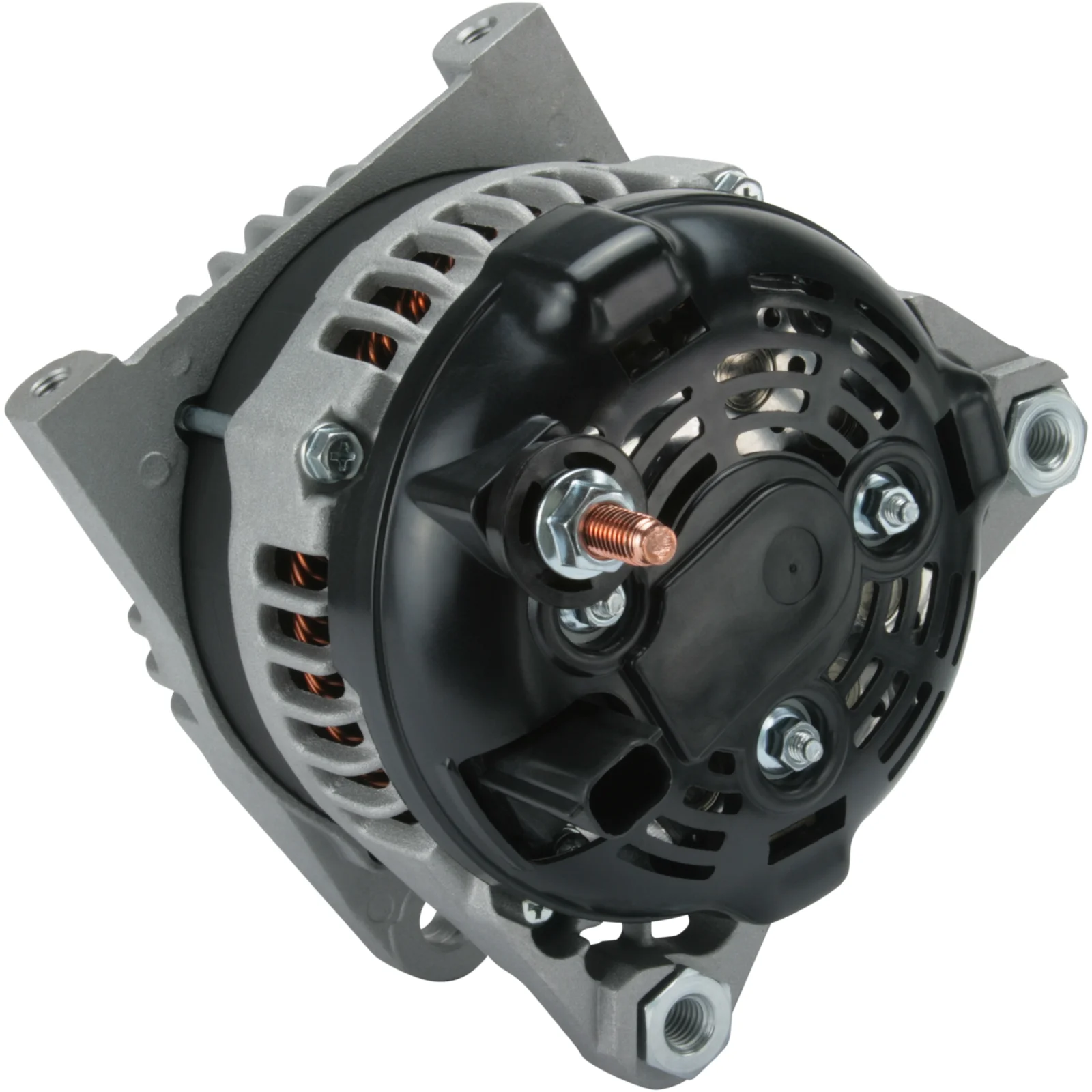

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114011

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 160, Rotation: CW, Mount. bøjle afstand: 60.00

Beskrivelse

Spænding: 14
Amp: 160
Remskive dist.: 46.00
Bredde/holder arm: 14.00
Monteringsbeslag dist.: 60.00
Beslagshul: 11.00
Bælte. indstilling beslagshul pos.: 15
Bælte. indstilling beslagshul 1: 12.00
Remskive dia.: 57.00
Riller/remskive: 6
Radius: 83.00
Radius 2: 83.00
B+: M8
Position/B+ i min.: 50
Rotering: CW
Stiknr.: PL153
Total længde mm: 202.00
Remskive: SP/FW
Produktsinfo: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 60.00
Belt. adj. bracket hole 1 12.00
Belt. adj. brackethole pos. 15
Plug no. PL153
Bracket hole 11.00
Position/B+ in min. 50
Prod. info BN
Pulley SP/FW
Pulley dia. 57.00
Pulley dist. 46.00
Radius 83.00
Radius 2 83.00
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 202.00 mm
Width/holder arm 14.00
Amp 160

  • OEM
    F032114011, 2021, 421000-0080, 421000-0081, 421000-0082, 421000-0083, 421000-0084, 421000-0085, 421000-0086, 04868429AB, 04868429ac, 04868429ad, 4868429AB, 4868429ac, 4868429AD

  • Konkurrentreferens
    A6039, CAL40166, DRA0157, 8EL738213-101, 27-4948, 534.023.1602, 9449, 23830R, 112290, 210883, 210883A, 302021, 440979, 9090658, 12090224, 0986083900

  • NormaliseratArtNr
    a6039, cal40166, dra0157, f032114011, 8el738213101, 2021, 9449, 23830r, 112290, 210883, 210883a, 274948, 302021, 440979, 04868429ab, 04868429ac, 04868429ad, 4868429ab, 4868429ac, 4868429ad, 9090658, 12090224, 0986083900, 4210000080, 4210000081, 4210000082, 4210000083, 4210000084, 4210000085, 4210000086, 5340231602

  • Passar modeller
    Chrysler Model: Voyager / Grand Voyager Model series: Voyager / Grand Voyager Type of engine: CRD Size of motor: 2.5 Brand of engine: ENJ Type description: RG Body: Van From date: 01-01-2001 To date: 01-02-2008 Fuel: Diesel Approved: Yes
    Chrysler Model: Voyager / Grand Voyager Model series: Voyager / Grand Voyager Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR Type description: RG Body: Van From date: 01-04-2004 To date: 01-02-2008 Fuel: Diesel Approved: Yes
    Chrysler Model: Voyager Model series: Voyager Type of engine: CRD Size of motor: 2.5 Brand of engine: ENC Type description: RG Body: MPV From date: 01-02-2000 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Chrysler Model: Voyager Model series: Voyager Type of engine: CRD Size of motor: 2.5 Brand of engine: ENJ Type description: RG Body: MPV From date: 01-02-2000 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Chrysler Model: Voyager Model series: Voyager Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR Type description: RG Body: MPV From date: 01-06-2004 To date: 01-12-2008 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 160
    Remskive dist.: 46.00
    Bredde/holder arm: 14.00
    Monteringsbeslag dist.: 60.00
    Beslagshul: 11.00
    Bælte. indstilling beslagshul pos.: 15
    Bælte. indstilling beslagshul 1: 12.00
    Remskive dia.: 57.00
    Riller/remskive: 6
    Radius: 83.00
    Radius 2: 83.00
    B+: M8
    Position/B+ i min.: 50
    Rotering: CW
    Stiknr.: PL153
    Total længde mm: 202.00
    Remskive: SP/FW
    Produktsinfo: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 60.00
    Belt. adj. bracket hole 1 12.00
    Belt. adj. brackethole pos. 15
    Plug no. PL153
    Bracket hole 11.00
    Position/B+ in min. 50
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 57.00
    Pulley dist. 46.00
    Radius 83.00
    Radius 2 83.00
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 202.00 mm
    Width/holder arm 14.00
    Amp 160
  • Køretøjsmatchning

    • OEM
      F032114011, 2021, 421000-0080, 421000-0081, 421000-0082, 421000-0083, 421000-0084, 421000-0085, 421000-0086, 04868429AB, 04868429ac, 04868429ad, 4868429AB, 4868429ac, 4868429AD

    • Konkurrentreferens
      A6039, CAL40166, DRA0157, 8EL738213-101, 27-4948, 534.023.1602, 9449, 23830R, 112290, 210883, 210883A, 302021, 440979, 9090658, 12090224, 0986083900

    • NormaliseratArtNr
      a6039, cal40166, dra0157, f032114011, 8el738213101, 2021, 9449, 23830r, 112290, 210883, 210883a, 274948, 302021, 440979, 04868429ab, 04868429ac, 04868429ad, 4868429ab, 4868429ac, 4868429ad, 9090658, 12090224, 0986083900, 4210000080, 4210000081, 4210000082, 4210000083, 4210000084, 4210000085, 4210000086, 5340231602

    • Passar modeller
      Chrysler Model: Voyager / Grand Voyager Model series: Voyager / Grand Voyager Type of engine: CRD Size of motor: 2.5 Brand of engine: ENJ Type description: RG Body: Van From date: 01-01-2001 To date: 01-02-2008 Fuel: Diesel Approved: Yes
      Chrysler Model: Voyager / Grand Voyager Model series: Voyager / Grand Voyager Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR Type description: RG Body: Van From date: 01-04-2004 To date: 01-02-2008 Fuel: Diesel Approved: Yes
      Chrysler Model: Voyager Model series: Voyager Type of engine: CRD Size of motor: 2.5 Brand of engine: ENC Type description: RG Body: MPV From date: 01-02-2000 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Chrysler Model: Voyager Model series: Voyager Type of engine: CRD Size of motor: 2.5 Brand of engine: ENJ Type description: RG Body: MPV From date: 01-02-2000 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Chrysler Model: Voyager Model series: Voyager Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR Type description: RG Body: MPV From date: 01-06-2004 To date: 01-12-2008 Fuel: Diesel Approved: Yes
