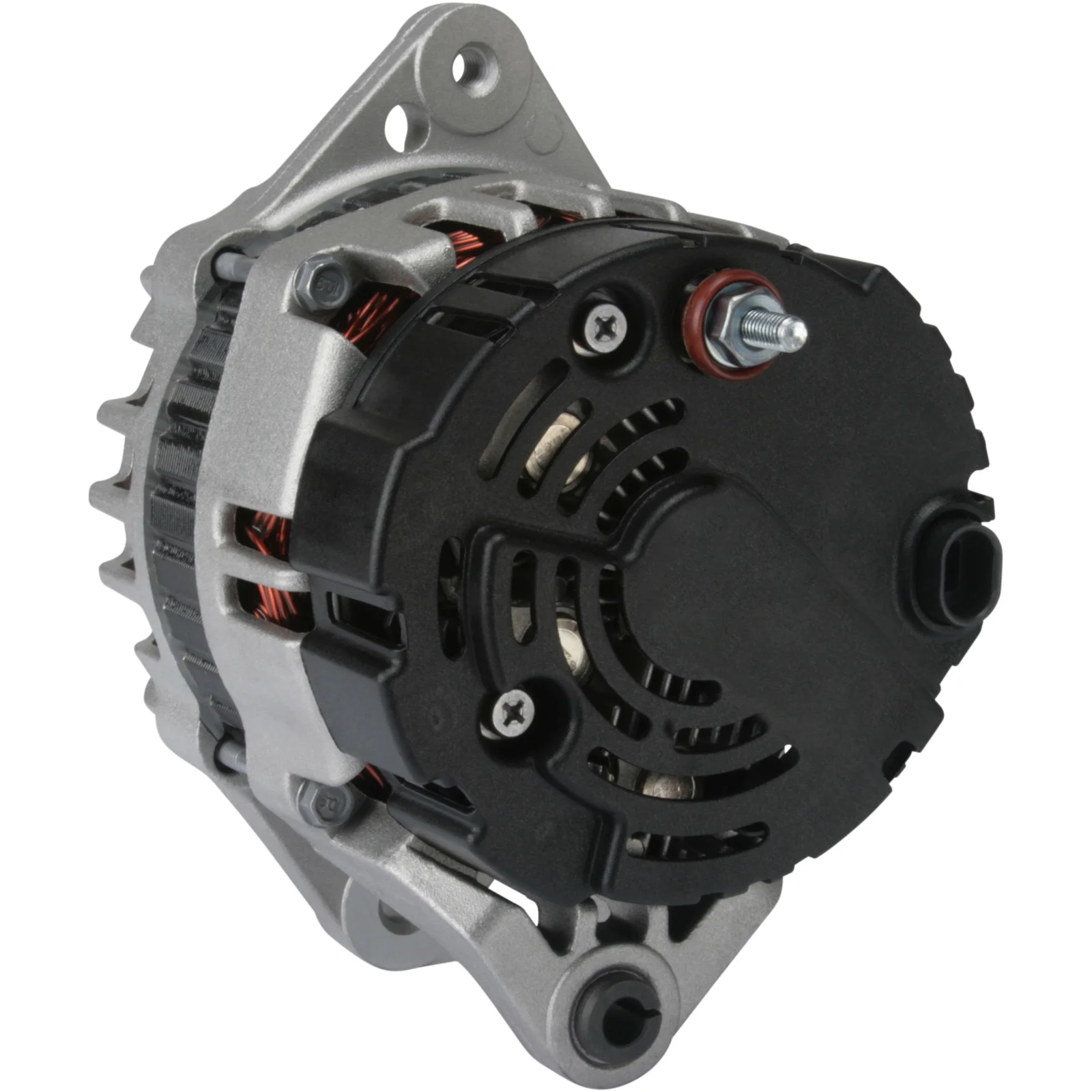

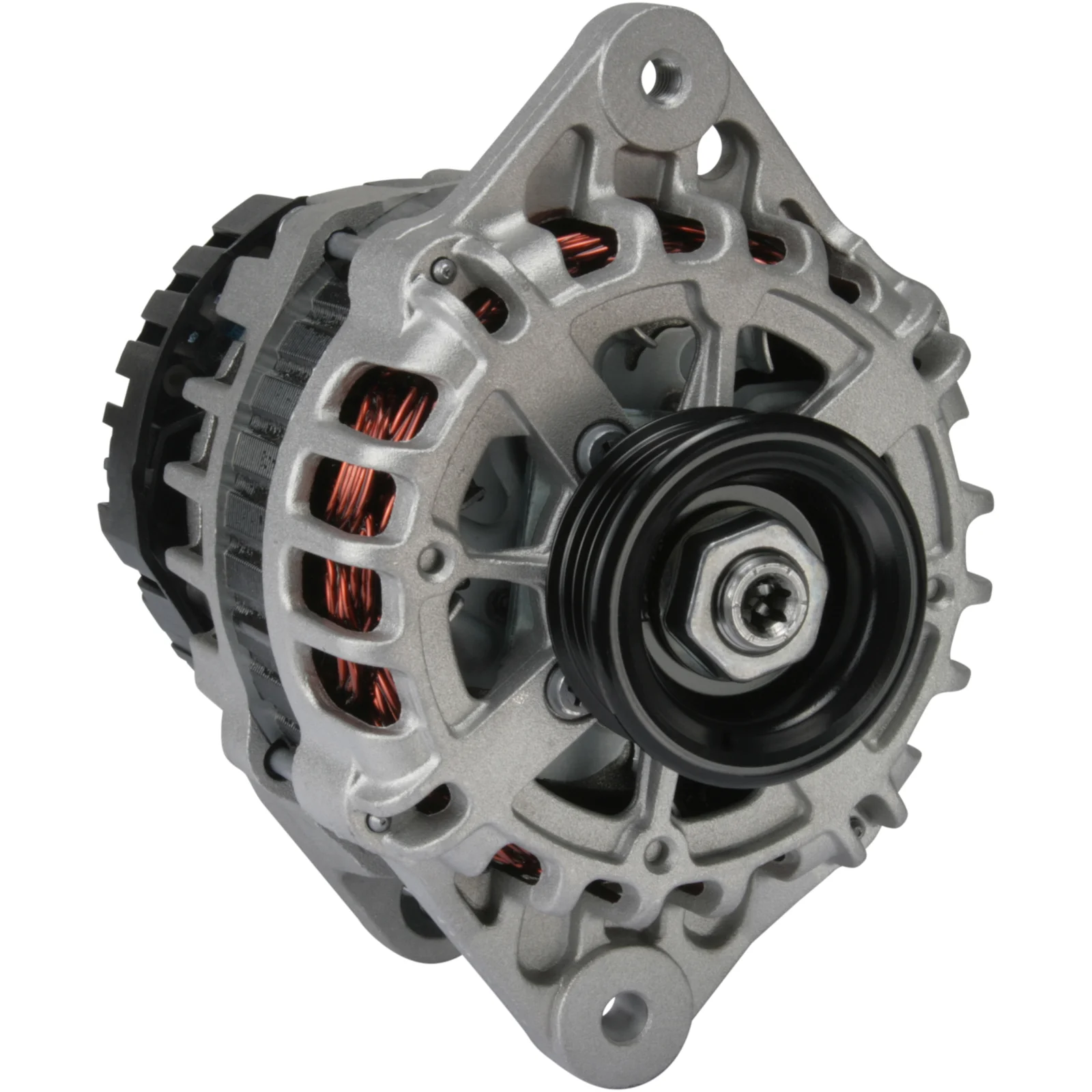

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115366

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 80, Rotation: CW, Montering. bøjle fordeler: 64,50

Beskrivelse

Spænding: 14
Amp: 80
Remskive dist.: 40,00
Bredde/holderarm: 15,00
Monteringsbeslag dist.: 64,50
Beslagshul: 8,20
Bæltejustering beslagshul pos.: 60
Bæltejustering beslagshul 1: M8
Remskive dia.: 52,00
Riller/remskive: 4
Radius: 77,00
Radius 2: 79,00
B+: M6
Position/B+ i min.: 60
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL77
Remskive: SP
Regulator type: IR
Produktinfo: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 64.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL77
Bracket hole 8.20
Position/B+ in min. 60
Prod. info BN
Pulley SP
Pulley dia. 52.00
Pulley dist. 40.00
Radius 77.00
D+ Size Plug
Radius 2 79.00
Regulator type IR
Rotation CW
Grooves/pulley 4
Voltage 14
Width/holder arm 15.00
Amp 80

  • OEM
    F032115366, 2023ir, 2655866, 96404263, 96652100

  • Konkurrentreferens
    A9036, CAL46114, DRA0641, DRA0641N, 8EL012426-541, 8EL738213-121, 28-5685, 20340R, 210800, 210800A, 302023RI, 444359, 600100, 12060893, 0986084370

  • NormaliseratArtNr
    a9036, cal46114, dra0641, dra0641n, f032115366, 8el012426541, 8el738213121, 2023ir, 20340r, 210800, 210800a, 285685, 302023ri, 444359, 600100, 2655866, 12060893, 96404263, 96652100, 0986084370

  • Passar modeller
    Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: B12D1 Type description: KL1S Body: Hatchback From date: 01-04-2008 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: F12S3 Type description: KL1S From date: 01-03-2005 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: LMU Type description: KL1S Body: Hatchback From date: 01-04-2008 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: LQ5 Type description: KL1S From date: 01-03-2005 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Daewoo Model: Kalos Model series: Kalos Size of motor: 1.2 Brand of engine: B12S1 Type description: KLAS Body: Hatchback From date: 01-04-2003 To date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Daewoo Model: Kalos Model series: Kalos Size of motor: 1.2 Brand of engine: F12S3 Type description: KLAS Body: Hatchback From date: 01-04-2003 To date: 01-01-2005 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 80
    Remskive dist.: 40,00
    Bredde/holderarm: 15,00
    Monteringsbeslag dist.: 64,50
    Beslagshul: 8,20
    Bæltejustering beslagshul pos.: 60
    Bæltejustering beslagshul 1: M8
    Remskive dia.: 52,00
    Riller/remskive: 4
    Radius: 77,00
    Radius 2: 79,00
    B+: M6
    Position/B+ i min.: 60
    D+ Størrelse: Stik
    Rotation: med uret
    Stik nr.: PL77
    Remskive: SP
    Regulator type: IR
    Produktinfo: BN

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 64.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL77
    Bracket hole 8.20
    Position/B+ in min. 60
    Prod. info BN
    Pulley SP
    Pulley dia. 52.00
    Pulley dist. 40.00
    Radius 77.00
    D+ Size Plug
    Radius 2 79.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 4
    Voltage 14
    Width/holder arm 15.00
    Amp 80
  • Køretøjsmatchning

    • OEM
      F032115366, 2023ir, 2655866, 96404263, 96652100

    • Konkurrentreferens
      A9036, CAL46114, DRA0641, DRA0641N, 8EL012426-541, 8EL738213-121, 28-5685, 20340R, 210800, 210800A, 302023RI, 444359, 600100, 12060893, 0986084370

    • NormaliseratArtNr
      a9036, cal46114, dra0641, dra0641n, f032115366, 8el012426541, 8el738213121, 2023ir, 20340r, 210800, 210800a, 285685, 302023ri, 444359, 600100, 2655866, 12060893, 96404263, 96652100, 0986084370

    • Passar modeller
      Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: B12D1 Type description: KL1S Body: Hatchback From date: 01-04-2008 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: F12S3 Type description: KL1S From date: 01-03-2005 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: LMU Type description: KL1S Body: Hatchback From date: 01-04-2008 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: LQ5 Type description: KL1S From date: 01-03-2005 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
      Daewoo Model: Kalos Model series: Kalos Size of motor: 1.2 Brand of engine: B12S1 Type description: KLAS Body: Hatchback From date: 01-04-2003 To date: 01-01-2005 Fuel: Gasoline Approved: Yes
      Daewoo Model: Kalos Model series: Kalos Size of motor: 1.2 Brand of engine: F12S3 Type description: KLAS Body: Hatchback From date: 01-04-2003 To date: 01-01-2005 Fuel: Gasoline Approved: Yes
