Vare nr.: F032114043

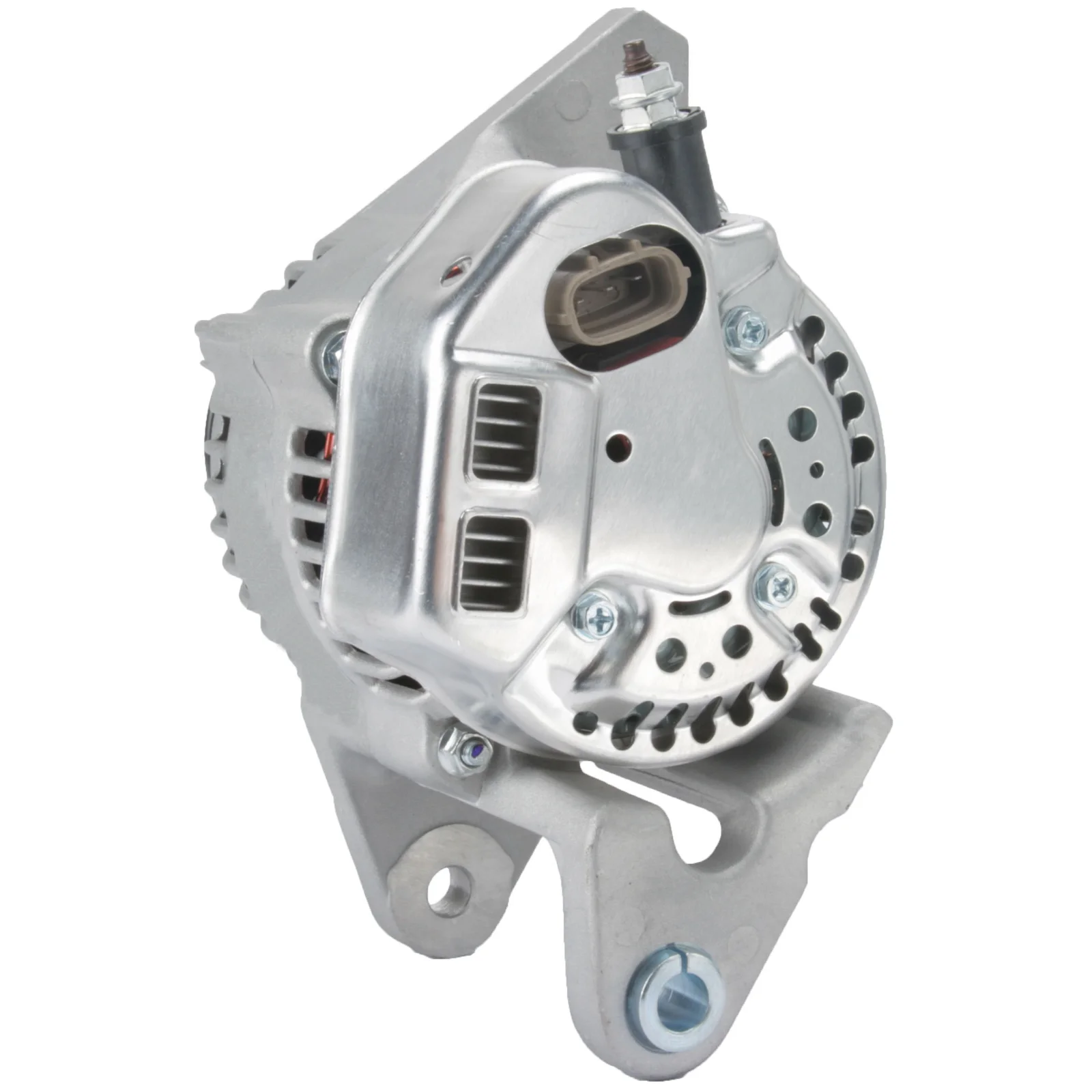

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 55, Rotation: CW, Monteringsbeslag afstand: 72.00

Beskrivelse

Spænding: 14
Amp: 55
Remskive dist.: 43,00
Bredde/holder arm: 12,00
Monteringsbeslag dist.: 72,00
Beslagshul: 10,50
Bæltejustering beslagshul pos.: 53
Bæltejustering beslagshul 1: M8
Remskive dia.: 70,00
Riller/remskive: 1
Radius: 88,00
Radius 2: 88,00
B+: M6
Position/B+ i min.: 5
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL128
W stik type: Stik
Samlet længde mm: 152,00
Remskive: P
Regulator type: IR

Specifikation

B+ M6
Mount. bracket dist. 72.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 53
Plug no. PL128
Bracket hole 10.50
Position/B+ in min. 5
Pulley P
Pulley dia. 70.00
Pulley dist. 43.00
Radius 88.00
D+ Size Plug
Radius 2 88.00
Regulator type IR
Rotation CW
Grooves/pulley 1
Voltage 14
W plug type Plug
Total length 152.00 mm
Width/holder arm 12.00
Amp 55
  • OEM

    0R9700, F032114043, 144-9954, 101211-2770, 101211-2771
  • Konkurrentreferens

    A6647S, CAL40151, DAN2031, dra0336, 28-7739, 11012N, 12470, 12470N, 12470R, 553190RI
  • NormaliseratArtNr

    0r9700, a6647s, cal40151, dan2031, dra0336, f032114043, 11012n, 12470, 12470n, 12470r, 287739, 553190ri, 1449954, 1012112770, 1012112771
  • Passar modeller

    Caterpillar Model: Engine Model series: C7 From date: 01-02-1993 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 55
    Remskive dist.: 43,00
    Bredde/holder arm: 12,00
    Monteringsbeslag dist.: 72,00
    Beslagshul: 10,50
    Bæltejustering beslagshul pos.: 53
    Bæltejustering beslagshul 1: M8
    Remskive dia.: 70,00
    Riller/remskive: 1
    Radius: 88,00
    Radius 2: 88,00
    B+: M6
    Position/B+ i min.: 5
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL128
    W stik type: Stik
    Samlet længde mm: 152,00
    Remskive: P
    Regulator type: IR
  • Specifikation
    B+ M6
    Mount. bracket dist. 72.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 53
    Plug no. PL128
    Bracket hole 10.50
    Position/B+ in min. 5
    Pulley P
    Pulley dia. 70.00
    Pulley dist. 43.00
    Radius 88.00
    D+ Size Plug
    Radius 2 88.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 1
    Voltage 14
    W plug type Plug
    Total length 152.00 mm
    Width/holder arm 12.00
    Amp 55
  • Køretøjsmatchning
    • OEM

      0R9700, F032114043, 144-9954, 101211-2770, 101211-2771
    • Konkurrentreferens

      A6647S, CAL40151, DAN2031, dra0336, 28-7739, 11012N, 12470, 12470N, 12470R, 553190RI
    • NormaliseratArtNr

      0r9700, a6647s, cal40151, dan2031, dra0336, f032114043, 11012n, 12470, 12470n, 12470r, 287739, 553190ri, 1449954, 1012112770, 1012112771
    • Passar modeller

      Caterpillar Model: Engine Model series: C7 From date: 01-02-1993 Fuel: Diesel Approved: Yes
