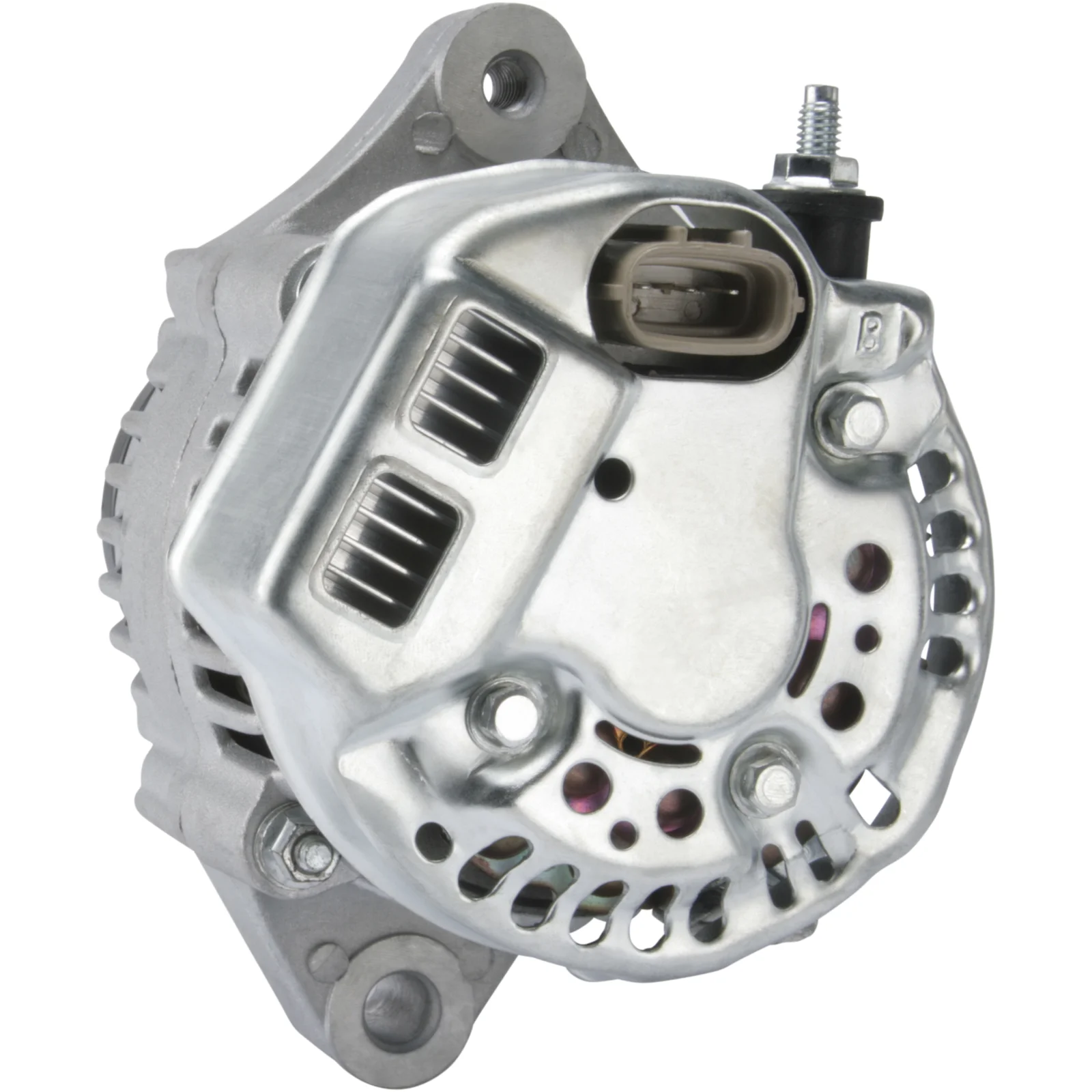

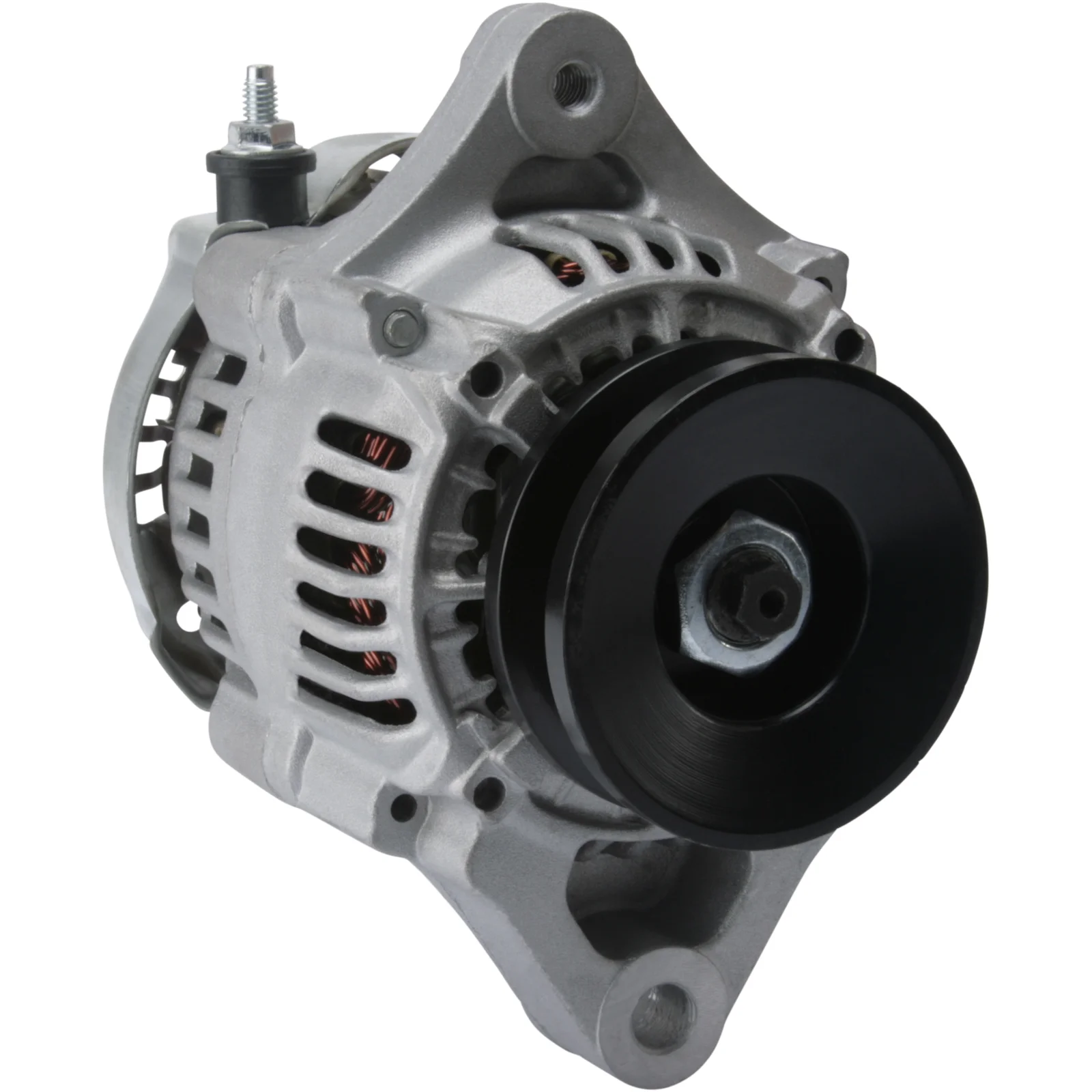

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114085

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14,amp.: 40, Rotation: CW, Remskiva diameter: 69.00

Beskrivelse

Spænding: 14
Ampere: 40
Remskiva dist.: 44.00
Bredde/holderarm: 24.00
Bøjlehul: 10.00
Bæltejustering bøjlehul position.: 60
Bæltejustering bøjlehul 1: M8
Remskivens dia.: 69.00
Riller/remskive: 1
Radius: 71.00
Radius 2: 68.00
B+: M6
Position/B+ i min.: 3
D+ Størrelse: Kontakt
Rotation: med uret
Kontaktnr.: PL128
Samlet længde mm: 145.00
Remskive: P
Regulator type: IR

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL128
Bracket hole 10.00
Position/B+ in min. 3
Pulley P
Pulley dia. 69.00
Pulley dist. 44.00
Radius 71.00
D+ Size Plug
Radius 2 68.00
Regulator type IR
Rotation CW
Grooves/pulley 1
Voltage 14
Total length 145.00 mm
Width/holder arm 24.00
Amp 40

  • OEM
    F032114085, 16404-64012, 101211-1030

  • Konkurrentreferens
    CAL40250, DAN2039, 28-6661, 12807, 12807N, 553409RI

  • NormaliseratArtNr
    cal40250, dan2039, f032114085, 12807, 12807n, 286661, 553409ri, 1012111030, 1640464012

  • Passar modeller
    Bobcat Model: E 32 Model series: E 32 Model type: Excavators Brand of engine: D1803-M-DI Approved: Yes
    Bobcat Model: E 35 Model series: E 35 Model type: Excavators Brand of engine: D1803-M-DI Approved: Yes
    Hitachi Model: ZW30 Model series: ZW30 Model type: Wheel Loaders and Dozers Brand of engine: D1803-M-DI Approved: Yes
    Kubota Model: AEROSTAR GP ARH430 Model series: AEROSTAR GP ARH430 Model type: Combines Brand of engine: D1803-M-DI Approved: Yes
    Kubota Model: Excavator Model series: RX502 Model type: Excavator Approved: Yes
    Kubota Model: KL31Z Model series: KL31Z Model type: Ag Tractors Brand of engine: D1803-M-DI Body: Tractor Approved: Yes
    Kubota Model: KL34Z Model series: KL34Z Model type: Ag Tractors Brand of engine: D1803-M-DI Body: Tractor Approved: Yes
    Kubota Model: R430E Model series: R430E Model type: Wheel Loaders and Dozers Brand of engine: D1803-M-DI Approved: Yes
    Kubota Model: R530E Model series: R530E Model type: Wheel Loaders and Dozers Brand of engine: D1803-M-DI Approved: Yes
    Kubota Model: R630E Model series: R630E Model type: Wheel Loaders and Dozers Brand of engine: D1803-M-DI Approved: Yes
    1 / 2
