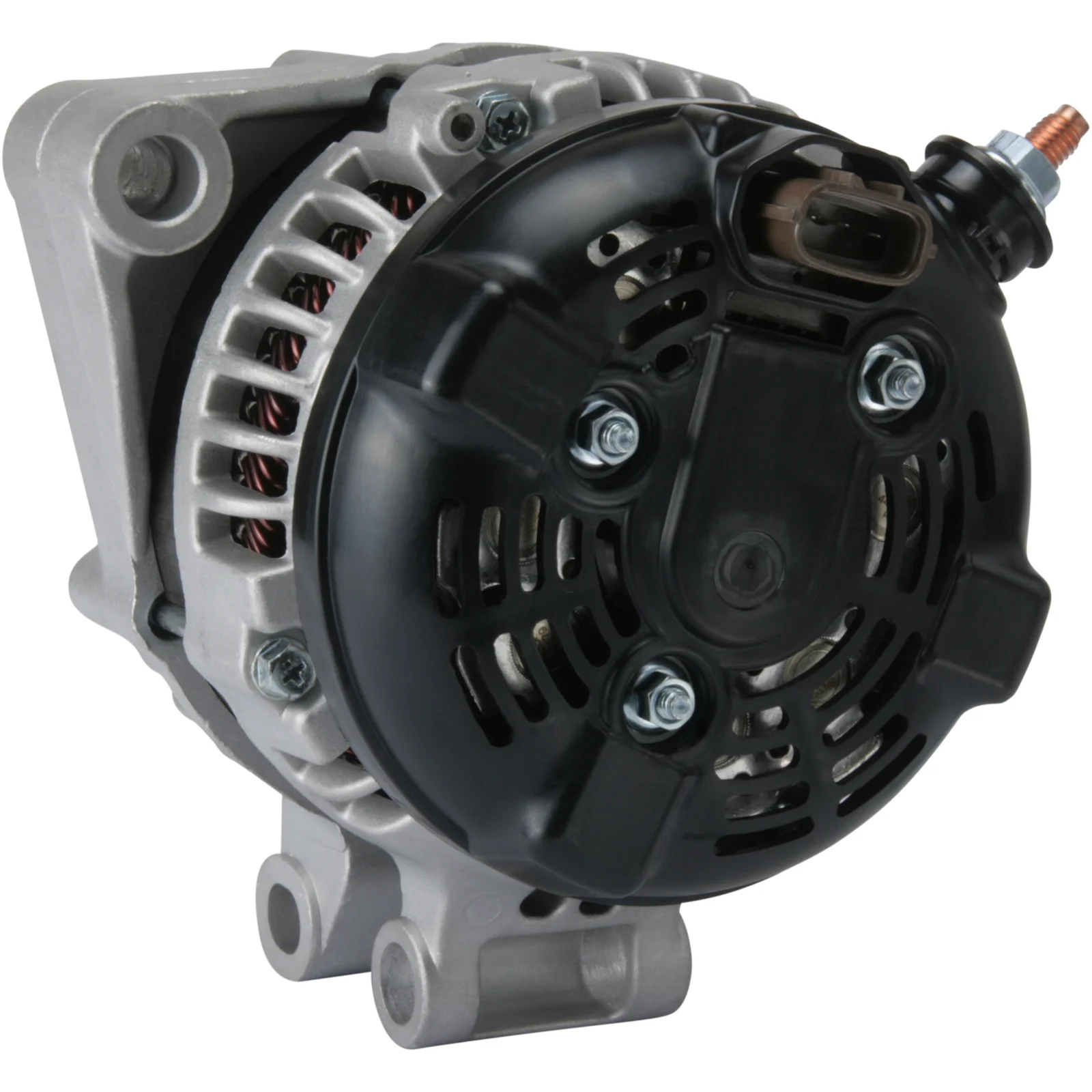

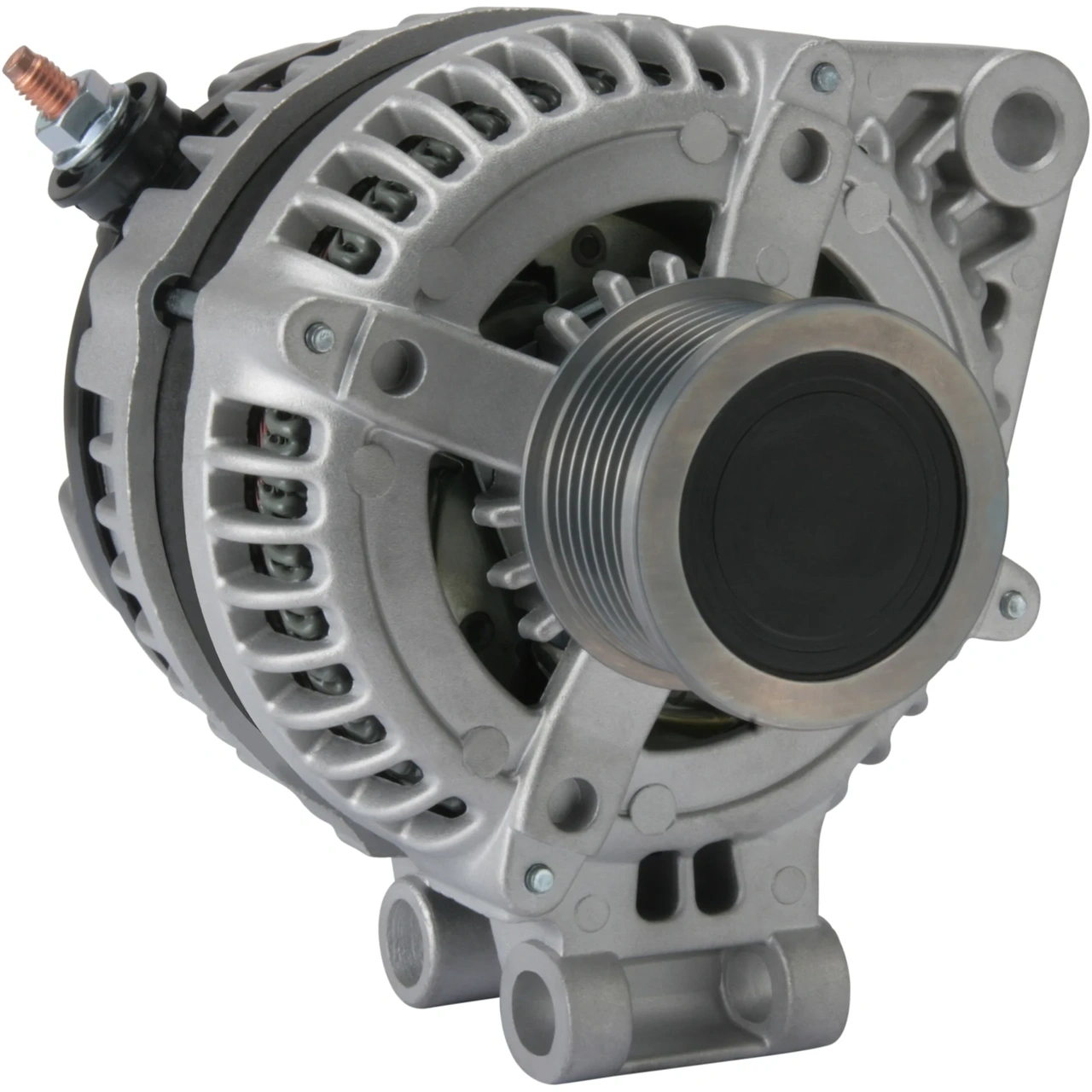

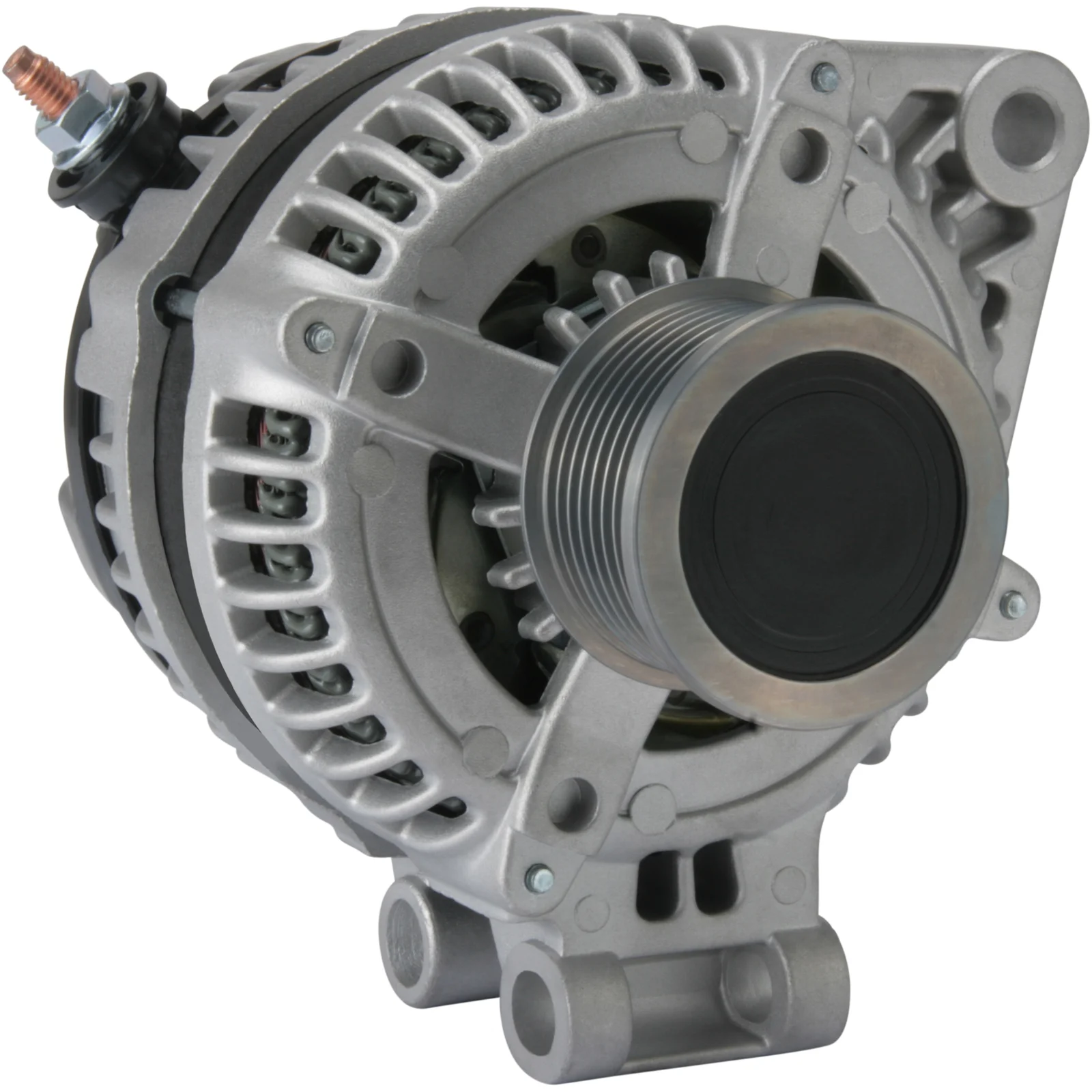

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114704

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbøsning for fordelingsbøsning: 47,00

Beskrivelse

Spænding: 14
Ampere: 150
Dreven m. fjeder dist.: 22,00
Bredde/Holder arm: 50,00
Montagebeslag dist.: 47,00
Beslagshul: 12,00x14,00
Bæltejustering beslagshul pos.: 10
Bæltejustering beslagshul 1: 11,00
Bæltejustering beslagshul 2: 11,40
Dreven diameter: 57,30
Riller/dreven: 8
Radius: 84,50
Radius 2: 86,00
B+: M8
Pos. / B+ i min.: 7
D+: Størrelse: Stik
Rotation: CW
Stik nr.: PL136
Samlet længde mm: 173,00
Terminaltype: LI-RC-BVS
Ladetyp: Inaktiv
Dreven: SP/FW
Kølevifte: IF
Regulator-type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 47.00
Belt. adj. bracket hole 1 11.00
Belt. adj. bracket hole 2 11.40
Belt. adj. brackethole pos. 10
Plug no. PL136
Bracket hole 12.00x14.00
Position/B+ in min. 7
Pulley SP/FW
Pulley dia. 57.30
Pulley dist. 22.00
Radius 84.50
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 8
Lamp type Inactive
Terminal type LI-RC-BVS
Voltage 14
Total length 173.00 mm
Width/holder arm 50.00
Amp 150

  • OEM
    A6080, A6080(DENSO), CAL40254, CAL40308, DAN987, DENDAN987, F032114704, F042205268, LR008861, LR078806, LRA03028, YLE500200, YLE500200E, YLE500400, 8EL012426-021, 8EL738212-901, 28-5640, 214.162.1502, 1986A01346, 9454, 24028CT-WB, 24028R, 104210-3710, 104210-3711, 112684, 210902, 210902A, 301958RI, 439984, 440765, 12090357, 32082400, 51993599, 0986082400, 5801837072, 063377525010

  • Konkurrentreferens
    A6080, A6080(DENSO), CAL40254, CAL40308, DAN987, DENDAN987, dra0342, F042205268, lea0700, LRA03028, 8EL012426-021, 8EL738212-901, 28-5640, 214.162.1502, 9454, 24028CT-WB, 24028R, 112684, 210902, 210902A, 301958RI, 439984, 440765, 12090357, 32082400, 0986082400, 063377525010

  • Bilmärken
    FIAT, LAND ROVER

  • NormaliseratArtNr
    a6080, a6080denso, cal40254, cal40308, dan987, dendan987, f032114704, f042205268, lr008861, lr078806, lra03028, yle500200, yle500200e, yle500400, 8el012426021, 8el738212901, 1986a01346, 9454, 24028ctwb, 24028r, 112684, 210902, 210902a, 285640, 301958ri, 439984, 440765, 12090357, 32082400, 51993599, 0986082400, 1042103710, 1042103711, 2141621502, 5801837072, 063377525010

  • Passar modeller
    FIAT DUCATO Flak/chassi (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411C Year: 12.15-
    FIAT DUCATO Skåp (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 12.15-
    LAND ROVER DISCOVERY III (L319) 2.7 TD 4x4 Engine volume: 2.7 Engine type: 276DT(TDV6) Year: 07.04-09.09
    LAND ROVER DISCOVERY III (L319) 4.0 V6 4x4 Engine volume: 4.0 Engine type: 406PN(COLOGNE V6) Year: 10.04-09.09
    LAND ROVER DISCOVERY III VAN (L319) 2.7 TD 4x4 Engine volume: 2.7 Engine type: 276DT(TDV6) Year: 01.07-07.09
    LAND ROVER RANGE ROVER SPORT I (L320) 2.7 D 4x4 Engine volume: 2.7 Engine type: 276DT(TDV6) Year: 02.05-03.13
