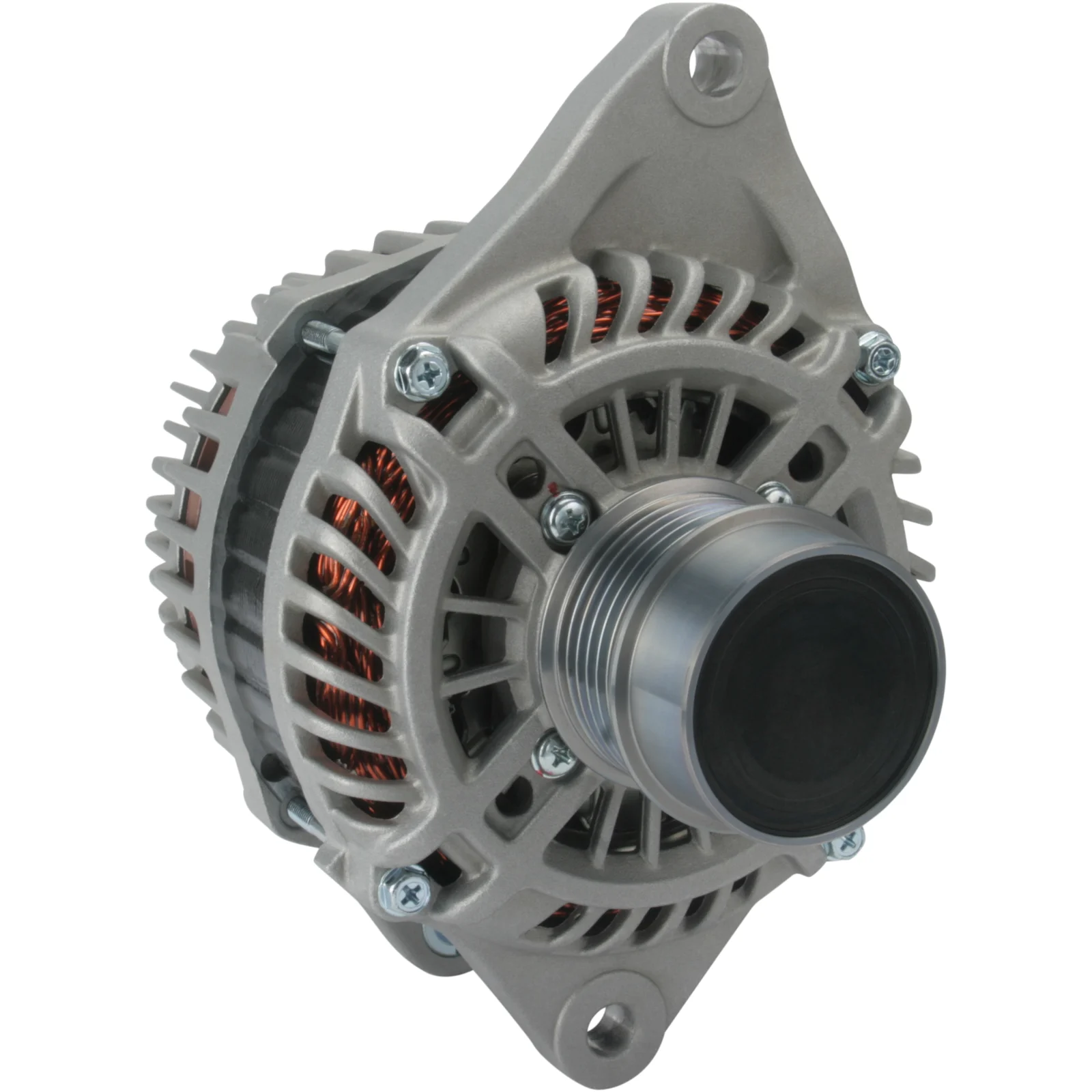

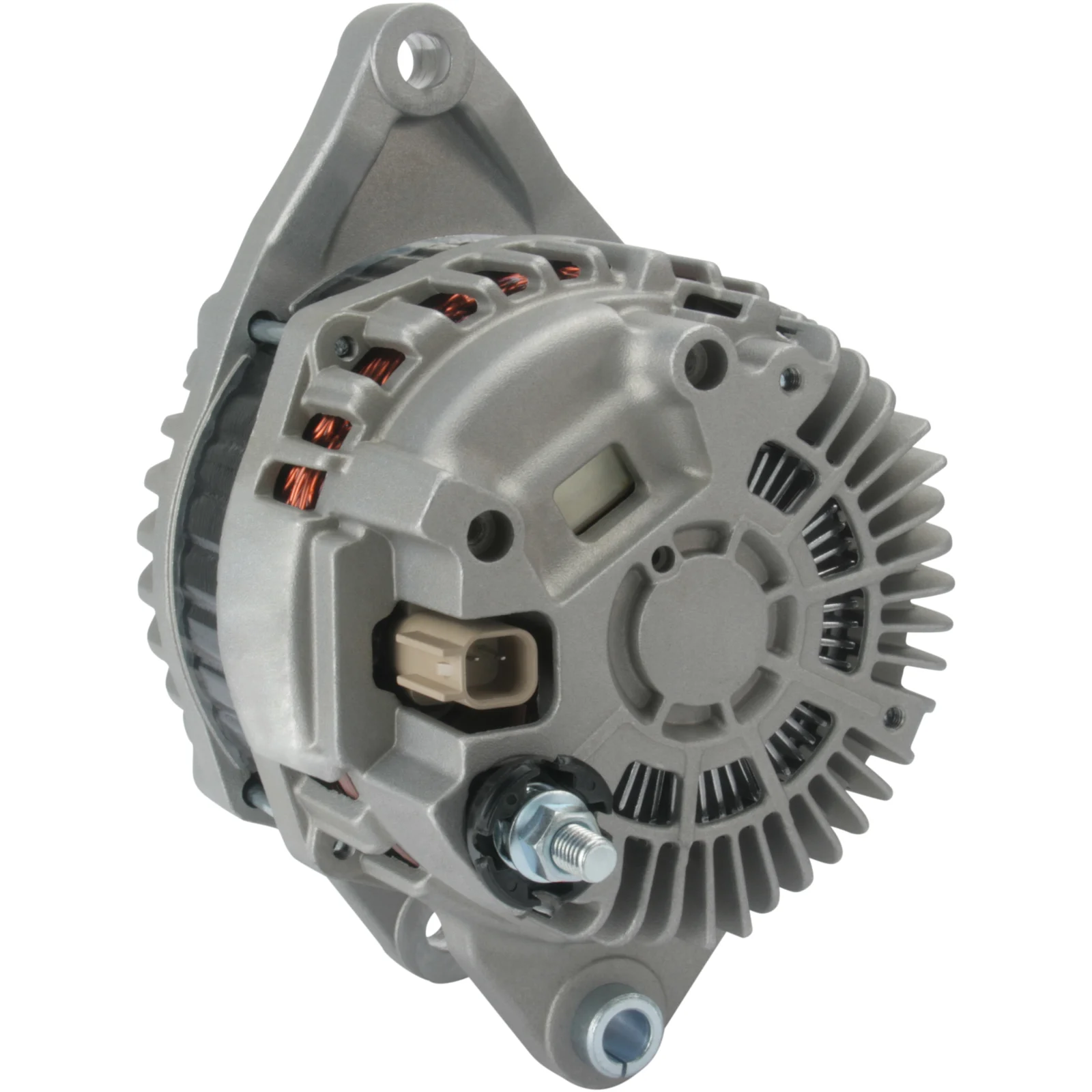

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115925

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 115, Rotation: CW, Monter. bøsning ford. : 53,80

Beskrivelse

Spænding: 14
Amp: 115
Remskive dist.: 34,00
Bredde/beslag arm: 12,70
Fastgørelsesbeslag dist.: 53,80
Beslaghul: 10,50
Bælte justering beslaghul pos.: 3
Bælte justering beslaghul 1: 11,50
Remskive diameter: 53,00
Spor/remskive: 6
Radius: 83,00
Radius 2: 102,00
B+: M8
Pos. / B+ i min.: 40
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL177
Samlet længde mm: 198,00
Remskive: SP/FW
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 53.80
Belt. adj. bracket hole 1 11.50
Belt. adj. brackethole pos. 3
Plug no. PL177
Bracket hole 10.50
Position/B+ in min. 40
Prod. info BN
Pulley SP/FW
Pulley dia. 53.00
Pulley dist. 34.00
Radius 83.00
D+ Size Plug
Radius 2 102.00
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 198.00 mm
Width/holder arm 12.70
Amp 115

  • OEM
    A002TJ0481, A002TJ0481ZC, A200TJ0481, A2TJ0481, A2TJ0481ZC, A2TJ0481ZD, F032115925, 1986A01872, 04801323ab, 04801323ac, 04801323ad, 4801323ab, 4801323ac, 4801323ad, 4801323AK

  • Konkurrentreferens
    A5065, CAL35265, DRA0392, LRA02932, 27-5546, 534.024.1152, 534.127.1152, 835.573.115, 0986UR0255, 11231, 11231N, 11231R, 113407, 12060996

  • NormaliseratArtNr
    a002tj0481, a002tj0481zc, a200tj0481, a2tj0481, a2tj0481zc, a2tj0481zd, a5065, cal35265, dra0392, f032115925, lra02932, 0986ur0255, 1986a01872, 11231, 11231n, 11231r, 113407, 275546, 04801323ab, 04801323ac, 04801323ad, 4801323ab, 4801323ac, 4801323ad, 4801323ak, 12060996, 835573115, 5340241152, 5341271152

  • Passar modeller
    Chrysler Model: Sebring Model series: Sebring Convertible Size of motor: 2.4 Brand of engine: EDG Type description: JS Body: Convertible From date: 01-05-2007 To date: 01-12-2010 Fuel: Petrol Approved: Yes
    Chrysler Model: Sebring Model series: Sebring Size of motor: 2.4 Brand of engine: EDZ Type description: JR From date: 01-04-2001 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
    Chrysler Model: Sebring Model series: Sebring Size of motor: 2.4 Type description: JS From date: 01-09-2006 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Chrysler Model: Sebring Model series: Sebring Type of engine: VVT Size of motor: 2.0 Brand of engine: ECN From date: 01-07-2007 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Chrysler Model: Sebring Model series: Sebring Type of engine: VVT Size of motor: 2.4 Brand of engine: ED3 Body: Convertible From date: 01-07-2007 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Chrysler Model: Sebring Model series: Sebring Type of engine: VVT Size of motor: 2.4 Brand of engine: ED3 From date: 01-07-2007 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Chrysler Model: Sebring Model series: Sebring Type of engine: VVT Size of motor: 2.4 Brand of engine: EDG From date: 01-07-2007 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Dodge Model: Avenger Model series: Avenger Size of motor: 2.0 Brand of engine: ECN From date: 01-06-2007 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    Dodge Model: Avenger Model series: Avenger Size of motor: 2.4 Brand of engine: ED3 From date: 01-06-2007 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Dodge Model: Avenger Model series: Avenger Size of motor: 2.4 Brand of engine: EDG From date: 01-06-2007 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Dodge Model: Caliber Model series: Caliber Model type: AWD Size of motor: 2.4 Brand of engine: ED3 Body: Hatchback From date: 01-10-2006 Fuel: Gasoline Approved: Yes
    Dodge Model: Caliber Model series: Caliber Size of motor: 1.8 Brand of engine: EBA Body: MPV From date: 01-06-2006 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
    Dodge Model: Caliber Model series: Caliber Size of motor: 2.0 Brand of engine: ECN Body: MPV From date: 01-06-2006 Fuel: Gasoline Approved: Yes
    Dodge Model: Caliber Model series: Caliber Size of motor: 2.4 Brand of engine: ED3 Body: Hatchback From date: 01-10-2006 Fuel: Gasoline Approved: Yes
    Dodge Model: Caliber Model series: Caliber Size of motor: 2.4 Brand of engine: ED3 Body: MPV From date: 01-10-2006 Fuel: Gasoline Approved: Yes
    Dodge Model: Caliber Model series: Caliber Size of motor: 2.4 Brand of engine: ED4 Body: Hatchback From date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Jeep Model: Compass Model series: Compass Model type: 4x4 Size of motor: 2.0 Brand of engine: ECN Type description: MK49 Body: SUV Fuel: Petrol Approved: Yes
    Jeep Model: Compass Model series: Compass Model type: 4x4 Size of motor: 2.4 Brand of engine: ED3 Type description: MK49 Body: SUV From date: 01-08-2006 Fuel: Petrol Approved: Yes
    Jeep Model: Compass Model series: Compass Size of motor: 2.0 Brand of engine: ECN Type description: MK49 Body: SUV From date: 01-08-2006 Fuel: Petrol Approved: Yes
    Jeep Model: Compass Model series: Compass Size of motor: 2.4 Brand of engine: ERZ From date: 01-09-2006 Fuel: Gasoline Approved: Yes
    Jeep Model: Compass Model series: Compass Size of motor: 2.4 Brand of engine: ERZ Type description: MK49 From date: 01-08-2006 Fuel: Gasoline Approved: Yes
    Jeep Model: Patriot Model series: Patriot Model type: 4x4 Size of motor: 2.0 Brand of engine: ECN Type description: MK74 Body: Closed Off-Road Vehicle Fuel: Petrol Approved: Yes
    Jeep Model: Patriot Model series: Patriot Model type: 4x4 Size of motor: 2.4 Brand of engine: ED3 Type description: MK74 Body: Closed Off-Road Vehicle From date: 01-02-2007 To date: 01-12-2017 Fuel: Petrol Approved: Yes
    Jeep Model: Patriot Model series: Patriot Model type: ECO+ Size of motor: 2.4 Brand of engine: ED3 From date: 01-07-2008 To date: 01-12-2017 Fuel: Gasoline/gas Approved: Yes
    Jeep Model: Patriot Model series: Patriot Size of motor: 2.0 Brand of engine: ECN From date: 01-01-2011 To date: 01-12-2017 Fuel: Gasoline Approved: Yes
    Jeep Model: Patriot Model series: Patriot Size of motor: 2.4 Brand of engine: ED3 From date: 01-01-2008 To date: 01-12-2017 Fuel: Gasoline Approved: Yes
    Jeep Model: Patriot Model series: Patriot Size of motor: 2.4 Brand of engine: ED3 Type description: MK74 Body: Closed Off-Road Vehicle From date: 01-02-2007 To date: 01-12-2017 Fuel: Petrol Approved: Yes
    Jeep Model: Patriot Model series: Patriot Size of motor: 2.4 Brand of engine: ED3 Type description: MK74 From date: 01-06-2009 To date: 01-12-2017 Fuel: Gasoline Approved: Yes
    1 / 6
  • Beskrivelse
    Spænding: 14
    Amp: 115
    Remskive dist.: 34,00
    Bredde/beslag arm: 12,70
    Fastgørelsesbeslag dist.: 53,80
    Beslaghul: 10,50
    Bælte justering beslaghul pos.: 3
    Bælte justering beslaghul 1: 11,50
    Remskive diameter: 53,00
    Spor/remskive: 6
    Radius: 83,00
    Radius 2: 102,00
    B+: M8
    Pos. / B+ i min.: 40
    D+ Størrelse: Stik
    Rotation: med uret
    Stik nr.: PL177
    Samlet længde mm: 198,00
    Remskive: SP/FW
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 53.80
    Belt. adj. bracket hole 1 11.50
    Belt. adj. brackethole pos. 3
    Plug no. PL177
    Bracket hole 10.50
    Position/B+ in min. 40
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 53.00
    Pulley dist. 34.00
    Radius 83.00
    D+ Size Plug
    Radius 2 102.00
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 198.00 mm
    Width/holder arm 12.70
    Amp 115
  • Køretøjsmatchning

    • OEM
      A002TJ0481, A002TJ0481ZC, A200TJ0481, A2TJ0481, A2TJ0481ZC, A2TJ0481ZD, F032115925, 1986A01872, 04801323ab, 04801323ac, 04801323ad, 4801323ab, 4801323ac, 4801323ad, 4801323AK

    • Konkurrentreferens
      A5065, CAL35265, DRA0392, LRA02932, 27-5546, 534.024.1152, 534.127.1152, 835.573.115, 0986UR0255, 11231, 11231N, 11231R, 113407, 12060996

    • NormaliseratArtNr
      a002tj0481, a002tj0481zc, a200tj0481, a2tj0481, a2tj0481zc, a2tj0481zd, a5065, cal35265, dra0392, f032115925, lra02932, 0986ur0255, 1986a01872, 11231, 11231n, 11231r, 113407, 275546, 04801323ab, 04801323ac, 04801323ad, 4801323ab, 4801323ac, 4801323ad, 4801323ak, 12060996, 835573115, 5340241152, 5341271152

    • Passar modeller
      Chrysler Model: Sebring Model series: Sebring Convertible Size of motor: 2.4 Brand of engine: EDG Type description: JS Body: Convertible From date: 01-05-2007 To date: 01-12-2010 Fuel: Petrol Approved: Yes
      Chrysler Model: Sebring Model series: Sebring Size of motor: 2.4 Brand of engine: EDZ Type description: JR From date: 01-04-2001 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
      Chrysler Model: Sebring Model series: Sebring Size of motor: 2.4 Type description: JS From date: 01-09-2006 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Chrysler Model: Sebring Model series: Sebring Type of engine: VVT Size of motor: 2.0 Brand of engine: ECN From date: 01-07-2007 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Chrysler Model: Sebring Model series: Sebring Type of engine: VVT Size of motor: 2.4 Brand of engine: ED3 Body: Convertible From date: 01-07-2007 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Chrysler Model: Sebring Model series: Sebring Type of engine: VVT Size of motor: 2.4 Brand of engine: ED3 From date: 01-07-2007 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Chrysler Model: Sebring Model series: Sebring Type of engine: VVT Size of motor: 2.4 Brand of engine: EDG From date: 01-07-2007 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Dodge Model: Avenger Model series: Avenger Size of motor: 2.0 Brand of engine: ECN From date: 01-06-2007 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
      Dodge Model: Avenger Model series: Avenger Size of motor: 2.4 Brand of engine: ED3 From date: 01-06-2007 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      Dodge Model: Avenger Model series: Avenger Size of motor: 2.4 Brand of engine: EDG From date: 01-06-2007 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      Dodge Model: Caliber Model series: Caliber Model type: AWD Size of motor: 2.4 Brand of engine: ED3 Body: Hatchback From date: 01-10-2006 Fuel: Gasoline Approved: Yes
      Dodge Model: Caliber Model series: Caliber Size of motor: 1.8 Brand of engine: EBA Body: MPV From date: 01-06-2006 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
      Dodge Model: Caliber Model series: Caliber Size of motor: 2.0 Brand of engine: ECN Body: MPV From date: 01-06-2006 Fuel: Gasoline Approved: Yes
      Dodge Model: Caliber Model series: Caliber Size of motor: 2.4 Brand of engine: ED3 Body: Hatchback From date: 01-10-2006 Fuel: Gasoline Approved: Yes
      Dodge Model: Caliber Model series: Caliber Size of motor: 2.4 Brand of engine: ED3 Body: MPV From date: 01-10-2006 Fuel: Gasoline Approved: Yes
      Dodge Model: Caliber Model series: Caliber Size of motor: 2.4 Brand of engine: ED4 Body: Hatchback From date: 01-12-2007 Fuel: Gasoline Approved: Yes
      Jeep Model: Compass Model series: Compass Model type: 4x4 Size of motor: 2.0 Brand of engine: ECN Type description: MK49 Body: SUV Fuel: Petrol Approved: Yes
      Jeep Model: Compass Model series: Compass Model type: 4x4 Size of motor: 2.4 Brand of engine: ED3 Type description: MK49 Body: SUV From date: 01-08-2006 Fuel: Petrol Approved: Yes
      Jeep Model: Compass Model series: Compass Size of motor: 2.0 Brand of engine: ECN Type description: MK49 Body: SUV From date: 01-08-2006 Fuel: Petrol Approved: Yes
      Jeep Model: Compass Model series: Compass Size of motor: 2.4 Brand of engine: ERZ From date: 01-09-2006 Fuel: Gasoline Approved: Yes
      Jeep Model: Compass Model series: Compass Size of motor: 2.4 Brand of engine: ERZ Type description: MK49 From date: 01-08-2006 Fuel: Gasoline Approved: Yes
      Jeep Model: Patriot Model series: Patriot Model type: 4x4 Size of motor: 2.0 Brand of engine: ECN Type description: MK74 Body: Closed Off-Road Vehicle Fuel: Petrol Approved: Yes
      Jeep Model: Patriot Model series: Patriot Model type: 4x4 Size of motor: 2.4 Brand of engine: ED3 Type description: MK74 Body: Closed Off-Road Vehicle From date: 01-02-2007 To date: 01-12-2017 Fuel: Petrol Approved: Yes
      Jeep Model: Patriot Model series: Patriot Model type: ECO+ Size of motor: 2.4 Brand of engine: ED3 From date: 01-07-2008 To date: 01-12-2017 Fuel: Gasoline/gas Approved: Yes
      Jeep Model: Patriot Model series: Patriot Size of motor: 2.0 Brand of engine: ECN From date: 01-01-2011 To date: 01-12-2017 Fuel: Gasoline Approved: Yes
      Jeep Model: Patriot Model series: Patriot Size of motor: 2.4 Brand of engine: ED3 From date: 01-01-2008 To date: 01-12-2017 Fuel: Gasoline Approved: Yes
      Jeep Model: Patriot Model series: Patriot Size of motor: 2.4 Brand of engine: ED3 Type description: MK74 Body: Closed Off-Road Vehicle From date: 01-02-2007 To date: 01-12-2017 Fuel: Petrol Approved: Yes
      Jeep Model: Patriot Model series: Patriot Size of motor: 2.4 Brand of engine: ED3 Type description: MK74 From date: 01-06-2009 To date: 01-12-2017 Fuel: Gasoline Approved: Yes
      1 / 6
