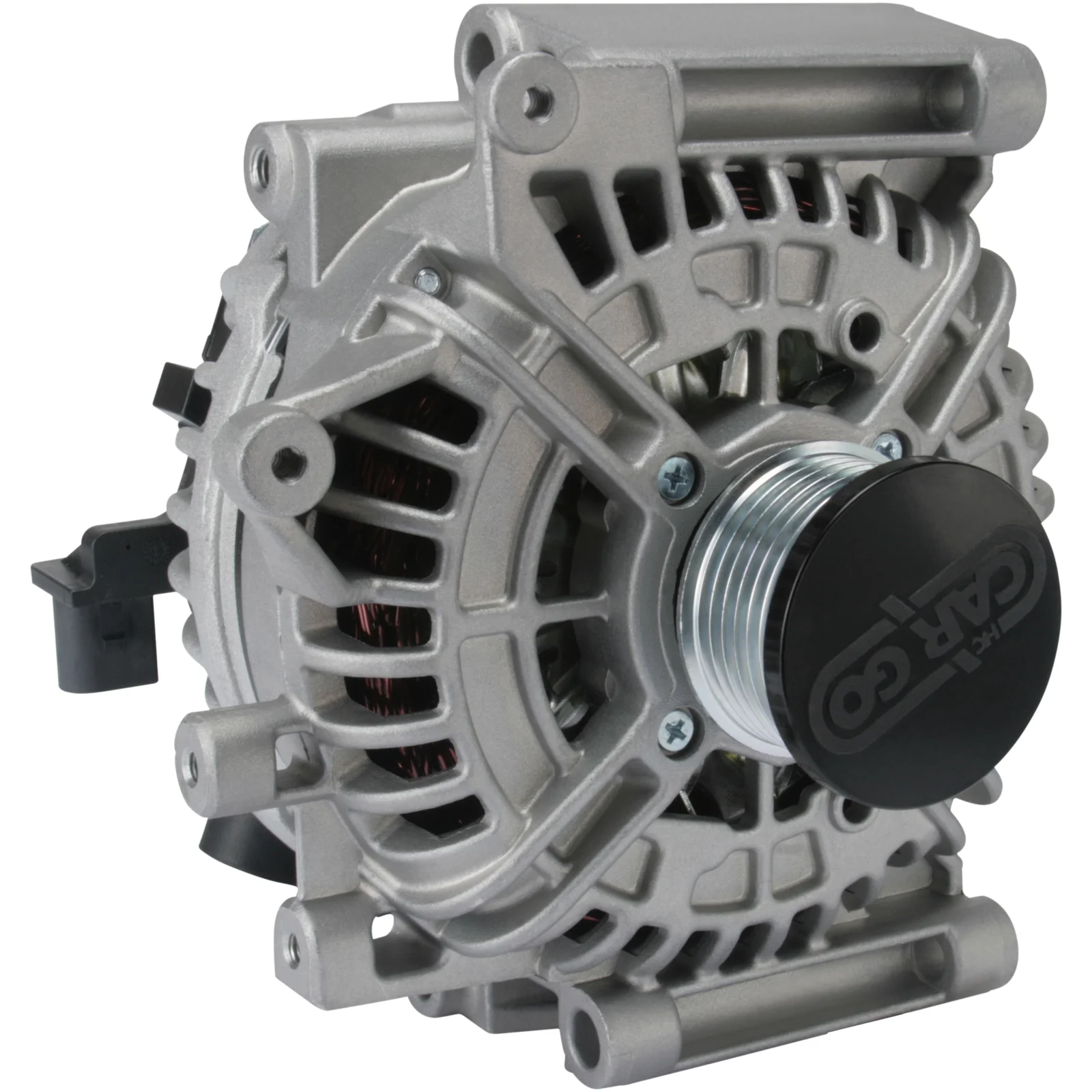

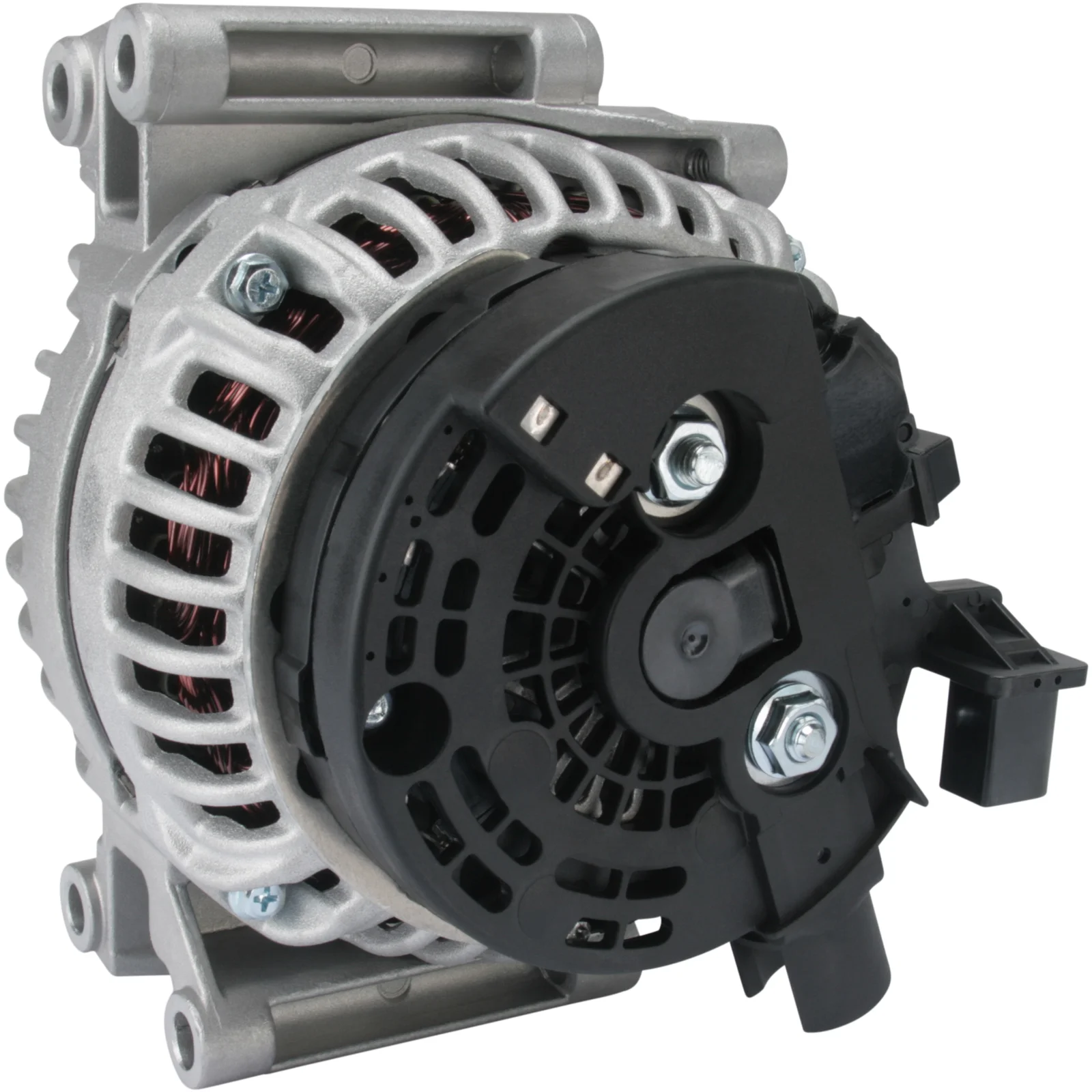

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032113944

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 200, Rotation: CW, Remskive dia.: 50.00

Beskrivelse

Mercedes Generator 12V-200A 12V - 200A, 6gr.frg (L-DFM) Friløbsremskive! 6gr. (L-DFM) Til Yourex produkt bestilling 90-365-4634

Spænding: 14
Amp: 200
Drevskive diameter: 31.00
Bredde/holderarm: 93.00
Bøsninghul: 9.00
Bøsninghul 2: 10.00
Bælte. just. bøjlehuls position: 60
Bælte. just. bøjlehuls 1: 9.00
Bælte. just. bøjlehuls 2: 10.00
Drevskive diameter: 50.00
Riller/drevskive: 6
B+: M8
Position/B+ i min.: 25
Rotation: CW
Stik nr.: PL103
Total længde mm: 160.00
Drevskive: SP/FW
Regulator type: IR
Produktinfo: BN

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 9.00
Belt. adj. bracket hole 2 10.00
Belt. adj. brackethole pos. 60
Plug no. PL103
Bracket hole 9.00
Bracket hole 2 10.00
Position/B+ in min. 25
Prod. info BN
Pulley SP/FW
Pulley dia. 50.00
Pulley dist. 31.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 160.00 mm
Width/holder arm 93.00
Amp 200

  • OEM
    A0111549802, A011154980280, A0121549802, A012154980280, F032113944, 011 154 9802, 012 154 9802, 0124 625 019, 0986 046 340, 1764ir, 1986A00541, 1986A00950, 113944, 0111549802, 0121549802, 0124625019, 0124625205, 011154980280, 012154980280

  • Konkurrentreferens
    A0201, A0201R, ALT-2422, CAL10141, DRB6340, F032UA0078, F042208039, F042A01195, LRA02250, 8EL012426-081, 28-4728, 225.146.2002, 4809, 23269N, 111576, 200035, 210273, 210273A, 301764RI, 9046340, 12046340, 32046340, 0986046340, 0986046343, 944390463400

  • Bilmärken
    Mercedes Benz

  • NormaliseratArtNr
    a0111549802, a011154980280, a0121549802, a012154980280, a0201, a0201r, alt2422, cal10141, drb6340, f032113944, f032ua0078, f042208039, f042a01195, lra02250, 8el012426081, 1764ir, 1986a00541, 1986a00950, 4809, 23269n, 111576, 113944, 200035, 210273, 210273a, 284728, 301764ri, 9046340, 12046340, 32046340, 0111549802, 0121549802, 0124625019, 0124625205, 0986046340, 0986046343, 2251462002, 011154980280, 012154980280, 944390463400

  • Passar modeller
    Mercedes Benz Series: E (S211) Model: 220 T CDI >mot 30085732 Engine volume: 2.2 Engine type: OM 646.961 Year: 03.03-
    Mercedes Benz Series: E (S211) Model: 220 T CDI >mot 30085732 Engine volume: 2.2 Engine type: OM 646.961 Year: 03.03-03.06
    Mercedes Benz Series: E (S211) Model: 270 T CDI mot 30070144> Engine volume: 2.7 Engine type: OM 647.961 Year: 03.03-03.05
    Mercedes Benz Series: E (S211) Model: 280 T CDI >mot 30042543 Engine volume: 3.2 Engine type: OM 648.961 Year: 05.04-03.05
    Mercedes Benz Series: E (S211) Model: 320 T CDI >mot 30042543 Engine volume: 3.2 Engine type: OM 648.961 Year: 03.03-03.05
    Mercedes Benz Series: E (W211) Model: 200 CDI mot 30085732 Engine volume: 2.2 Engine type: OM 646.951 Year: 07.02-
    Mercedes Benz Series: E (W211) Model: 200 CDI mot 30085732 Engine volume: 2.2 Engine type: OM 646.951 Year: 07.02-03.06
    Mercedes Benz Series: E (W211) Model: 220 CDI mot 30085732 Engine volume: 2.2 Engine type: OM 646.961 Year: 03.02-03.06
    Mercedes Benz Series: E (W211) Model: 220 CDI mot 30085732> Engine volume: 2.2 Engine type: OM 646.961 Year: 03.02-
    Mercedes Benz Series: E (W211) Model: 270 CDI mot 30070144 Engine volume: 2.7 Engine type: OM 647.961 Year: 03.02-03.05
    Mercedes Benz Series: E (W211) Model: 280 CDI >mot 30042543 Engine volume: 3.2 Engine type: OM 648.961 Year: 05.04-03.05
    Mercedes Benz Series: E (W211) Model: 320 CDI >mot 30042543 Engine volume: 3.2 Engine type: OM 648.961 Year: 11.02-03.05
    Mercedes Benz Series: S (W220) Model: 320 CDI Engine volume: 3.2 Engine type: OM 648.960 Year: 09.02-04.04
    Mercedes-Benz Model: 200 Model series: E 200 E Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.951 Type description: 211 From date: 01-07-2002 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.961 Type description: 211 Body: Estate From date: 01-03-2003 To date: 01-07-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.961 Type description: 211 From date: 01-03-2002 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDI Size of motor: 2.1 Brand of engine: OM646.961 Type description: VF211 Body: Platform / Chassis From date: 01-10-2003 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 270 Model series: E 270 Model type: E 270 CDI (2116) Type of engine: CDI Size of motor: 2.7 Brand of engine: OM647.961 Type description: VF211 Body: Platform/Chassis From date: 01-10-2003 To date: 01-07-2005 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 270 Model series: E 270 T Type of engine: CDI Size of motor: 2.7 Brand of engine: OM647.961 Type description: S211 Body: Estate From date: 01-03-2003 To date: 01-07-2009 Fuel: Diesel Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 270 Model series: E 270 Type of engine: CDi Size of motor: 2.7 Brand of engine: OM647.961 Body: Estate From date: 01-03-2003 To date: 01-07-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 270 Model series: E 270 Type of engine: CDi Size of motor: 2.7 Brand of engine: OM647.961 Type description: 211 From date: 01-03-2002 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 270 Model series: E 270 Type of engine: CDI Size of motor: 2.7 Brand of engine: OM647.961 Type description: VF211 Body: Platform / Chassis From date: 01-03-2003 To date: 01-07-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 270 Model series: E 270 Type of engine: CDI Size of motor: 2.7 Brand of engine: OM647.961 Type description: W211 From date: 01-03-2002 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 280 Model series: E 280 Type of engine: CDi Size of motor: 3.2 Brand of engine: OM648.961 Type description: 211 Body: Estate From date: 01-05-2004 To date: 01-07-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 280 Model series: E 280 Type of engine: CDi Size of motor: 3.2 Brand of engine: OM648.961 Type description: 211 From date: 01-05-2004 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: E 320 Type of engine: CDi Size of motor: 3.2 Brand of engine: OM648.961 Body: Estate From date: 01-03-2003 To date: 01-07-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: E 320 Type of engine: CDi Size of motor: 3.2 Brand of engine: OM648.961 From date: 01-11-2002 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: S 320 Type of engine: CDi Size of motor: 3.2 Brand of engine: OM648.960 Type description: 220 From date: 01-09-2002 To date: 01-08-2005 Fuel: Diesel Approved: Yes
    1 / 6
  • Beskrivelse
    Mercedes Generator 12V-200A 12V - 200A, 6gr.frg (L-DFM) Friløbsremskive! 6gr. (L-DFM) Til Yourex produkt bestilling 90-365-4634

    Spænding: 14
    Amp: 200
    Drevskive diameter: 31.00
    Bredde/holderarm: 93.00
    Bøsninghul: 9.00
    Bøsninghul 2: 10.00
    Bælte. just. bøjlehuls position: 60
    Bælte. just. bøjlehuls 1: 9.00
    Bælte. just. bøjlehuls 2: 10.00
    Drevskive diameter: 50.00
    Riller/drevskive: 6
    B+: M8
    Position/B+ i min.: 25
    Rotation: CW
    Stik nr.: PL103
    Total længde mm: 160.00
    Drevskive: SP/FW
    Regulator type: IR
    Produktinfo: BN

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 9.00
    Belt. adj. bracket hole 2 10.00
    Belt. adj. brackethole pos. 60
    Plug no. PL103
    Bracket hole 9.00
    Bracket hole 2 10.00
    Position/B+ in min. 25
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 50.00
    Pulley dist. 31.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 160.00 mm
    Width/holder arm 93.00
    Amp 200
  • Køretøjsmatchning

    • OEM
      A0111549802, A011154980280, A0121549802, A012154980280, F032113944, 011 154 9802, 012 154 9802, 0124 625 019, 0986 046 340, 1764ir, 1986A00541, 1986A00950, 113944, 0111549802, 0121549802, 0124625019, 0124625205, 011154980280, 012154980280

    • Konkurrentreferens
      A0201, A0201R, ALT-2422, CAL10141, DRB6340, F032UA0078, F042208039, F042A01195, LRA02250, 8EL012426-081, 28-4728, 225.146.2002, 4809, 23269N, 111576, 200035, 210273, 210273A, 301764RI, 9046340, 12046340, 32046340, 0986046340, 0986046343, 944390463400

    • Bilmärken
      Mercedes Benz

    • NormaliseratArtNr
      a0111549802, a011154980280, a0121549802, a012154980280, a0201, a0201r, alt2422, cal10141, drb6340, f032113944, f032ua0078, f042208039, f042a01195, lra02250, 8el012426081, 1764ir, 1986a00541, 1986a00950, 4809, 23269n, 111576, 113944, 200035, 210273, 210273a, 284728, 301764ri, 9046340, 12046340, 32046340, 0111549802, 0121549802, 0124625019, 0124625205, 0986046340, 0986046343, 2251462002, 011154980280, 012154980280, 944390463400

    • Passar modeller
      Mercedes Benz Series: E (S211) Model: 220 T CDI >mot 30085732 Engine volume: 2.2 Engine type: OM 646.961 Year: 03.03-
      Mercedes Benz Series: E (S211) Model: 220 T CDI >mot 30085732 Engine volume: 2.2 Engine type: OM 646.961 Year: 03.03-03.06
      Mercedes Benz Series: E (S211) Model: 270 T CDI mot 30070144> Engine volume: 2.7 Engine type: OM 647.961 Year: 03.03-03.05
      Mercedes Benz Series: E (S211) Model: 280 T CDI >mot 30042543 Engine volume: 3.2 Engine type: OM 648.961 Year: 05.04-03.05
      Mercedes Benz Series: E (S211) Model: 320 T CDI >mot 30042543 Engine volume: 3.2 Engine type: OM 648.961 Year: 03.03-03.05
      Mercedes Benz Series: E (W211) Model: 200 CDI mot 30085732 Engine volume: 2.2 Engine type: OM 646.951 Year: 07.02-
      Mercedes Benz Series: E (W211) Model: 200 CDI mot 30085732 Engine volume: 2.2 Engine type: OM 646.951 Year: 07.02-03.06
      Mercedes Benz Series: E (W211) Model: 220 CDI mot 30085732 Engine volume: 2.2 Engine type: OM 646.961 Year: 03.02-03.06
      Mercedes Benz Series: E (W211) Model: 220 CDI mot 30085732> Engine volume: 2.2 Engine type: OM 646.961 Year: 03.02-
      Mercedes Benz Series: E (W211) Model: 270 CDI mot 30070144 Engine volume: 2.7 Engine type: OM 647.961 Year: 03.02-03.05
      Mercedes Benz Series: E (W211) Model: 280 CDI >mot 30042543 Engine volume: 3.2 Engine type: OM 648.961 Year: 05.04-03.05
      Mercedes Benz Series: E (W211) Model: 320 CDI >mot 30042543 Engine volume: 3.2 Engine type: OM 648.961 Year: 11.02-03.05
      Mercedes Benz Series: S (W220) Model: 320 CDI Engine volume: 3.2 Engine type: OM 648.960 Year: 09.02-04.04
      Mercedes-Benz Model: 200 Model series: E 200 E Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.951 Type description: 211 From date: 01-07-2002 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.961 Type description: 211 Body: Estate From date: 01-03-2003 To date: 01-07-2009 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.961 Type description: 211 From date: 01-03-2002 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDI Size of motor: 2.1 Brand of engine: OM646.961 Type description: VF211 Body: Platform / Chassis From date: 01-10-2003 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 270 Model series: E 270 Model type: E 270 CDI (2116) Type of engine: CDI Size of motor: 2.7 Brand of engine: OM647.961 Type description: VF211 Body: Platform/Chassis From date: 01-10-2003 To date: 01-07-2005 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 270 Model series: E 270 T Type of engine: CDI Size of motor: 2.7 Brand of engine: OM647.961 Type description: S211 Body: Estate From date: 01-03-2003 To date: 01-07-2009 Fuel: Diesel Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 270 Model series: E 270 Type of engine: CDi Size of motor: 2.7 Brand of engine: OM647.961 Body: Estate From date: 01-03-2003 To date: 01-07-2009 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 270 Model series: E 270 Type of engine: CDi Size of motor: 2.7 Brand of engine: OM647.961 Type description: 211 From date: 01-03-2002 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 270 Model series: E 270 Type of engine: CDI Size of motor: 2.7 Brand of engine: OM647.961 Type description: VF211 Body: Platform / Chassis From date: 01-03-2003 To date: 01-07-2009 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 270 Model series: E 270 Type of engine: CDI Size of motor: 2.7 Brand of engine: OM647.961 Type description: W211 From date: 01-03-2002 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 280 Model series: E 280 Type of engine: CDi Size of motor: 3.2 Brand of engine: OM648.961 Type description: 211 Body: Estate From date: 01-05-2004 To date: 01-07-2009 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 280 Model series: E 280 Type of engine: CDi Size of motor: 3.2 Brand of engine: OM648.961 Type description: 211 From date: 01-05-2004 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 320 Model series: E 320 Type of engine: CDi Size of motor: 3.2 Brand of engine: OM648.961 Body: Estate From date: 01-03-2003 To date: 01-07-2009 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 320 Model series: E 320 Type of engine: CDi Size of motor: 3.2 Brand of engine: OM648.961 From date: 01-11-2002 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 320 Model series: S 320 Type of engine: CDi Size of motor: 3.2 Brand of engine: OM648.960 Type description: 220 From date: 01-09-2002 To date: 01-08-2005 Fuel: Diesel Approved: Yes
      1 / 6
