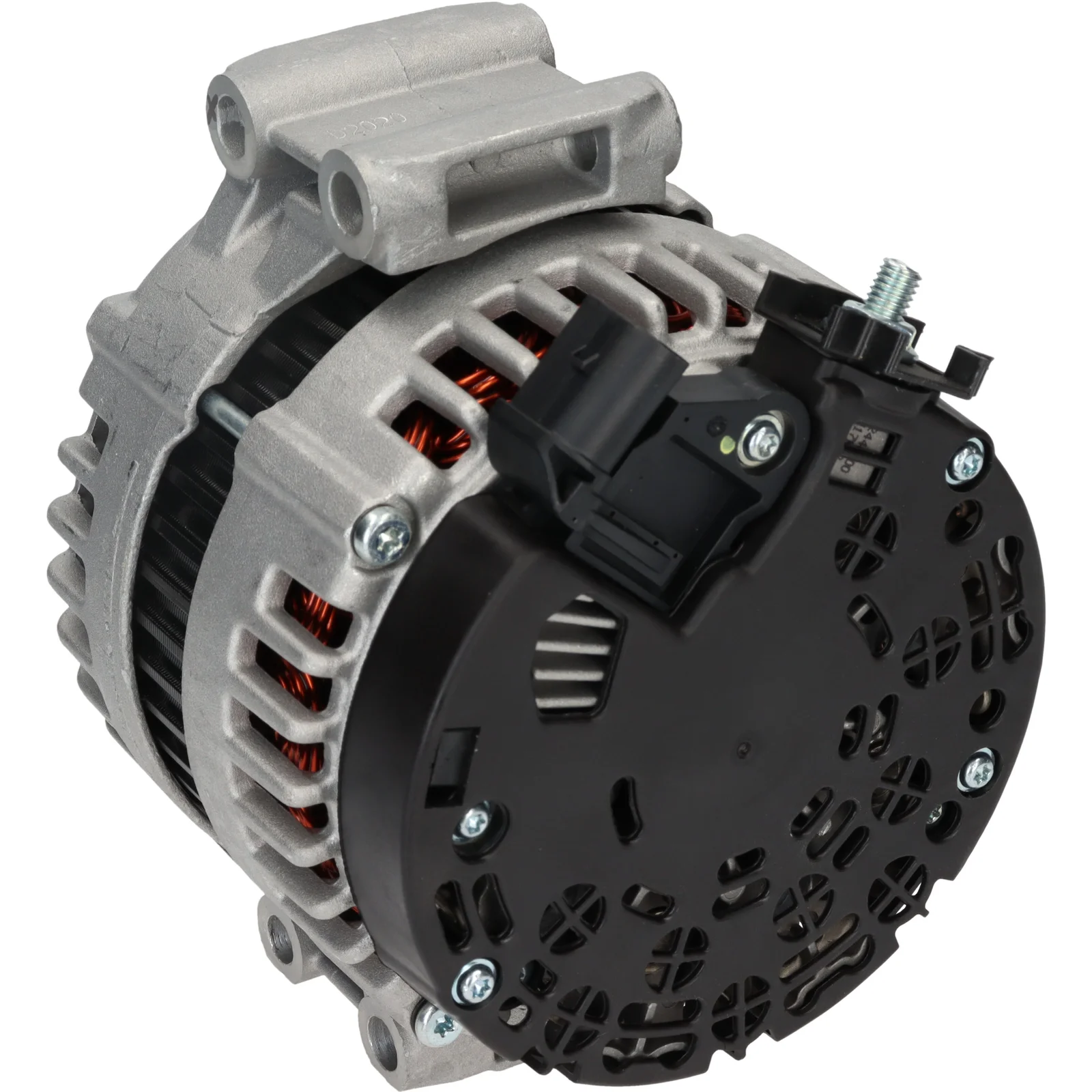

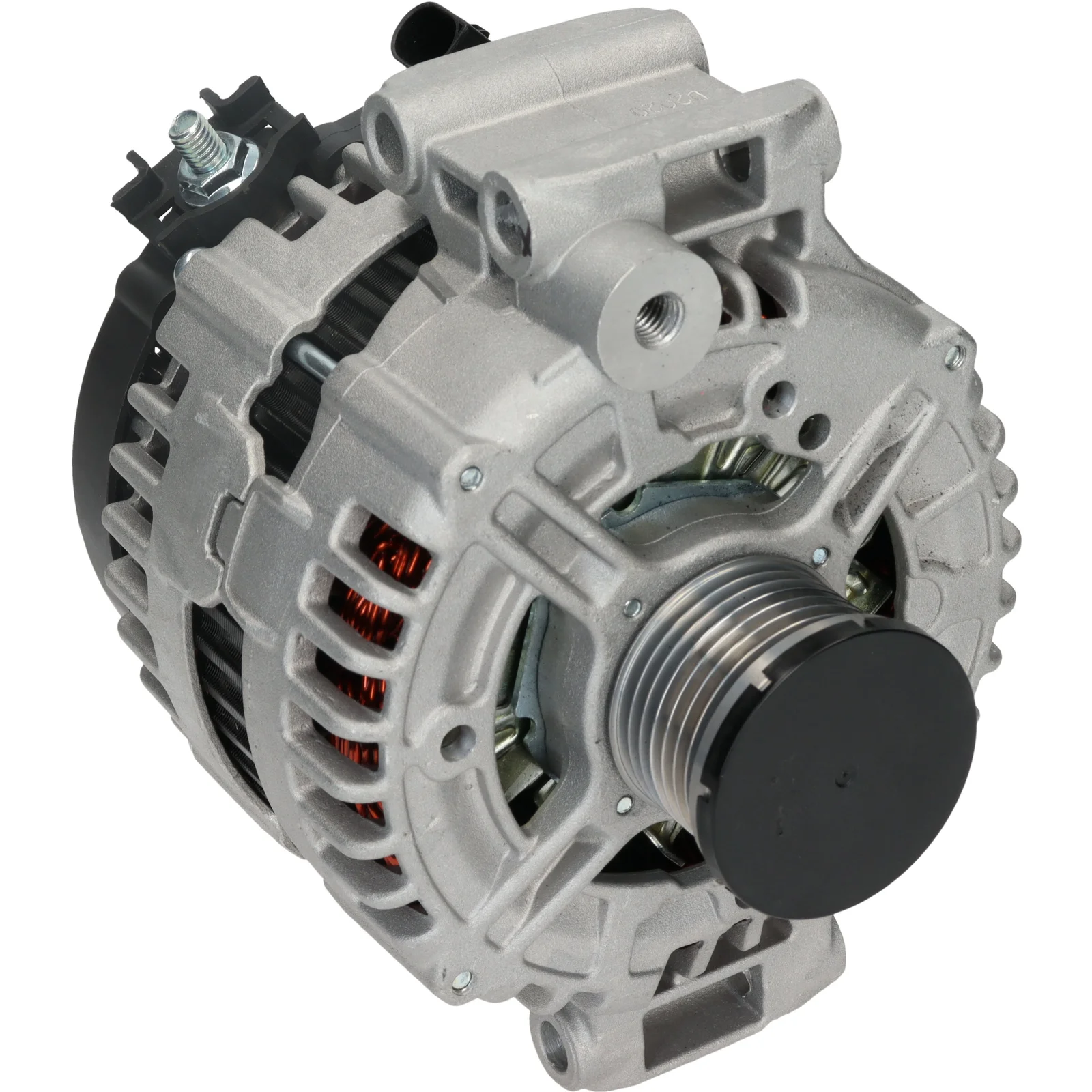

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116198

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 180, Rotation: CW, Monteringsbeslag for fordeling: 40,80

Beskrivelse

Spænding: 14
Amp: 180
Remskive dist.: 30.00
Bredde/holderarm: 63.00
Montagebøjning dist.: 40.80
Bøjninghul: 10.80
Bæltejustering bøjninghul 1: 10.00
Bæltejustering bøjninghul 2: 10.50
Remskivediameter: 49.00
Ribber/remskive: 7
Radius: 87.00
Radius 2: 87.00
B+: M8
Position/B+ i min.: 35
Rotation:cw
Stik nr.: PL86
Total længde mm: 175.00
Terminaltype: COM
Remskive: SP/FW
Regulator type: IR
Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnetheden, inden bestilling.

Filer

Specifikation

B+ M8
Mount. bracket dist. 40.80
Belt. adj. bracket hole 1 10.00
Belt. adj. bracket hole 2 10.50
Plug no. PL86
Bracket hole 10.80
Position/B+ in min. 35
Pulley SP/FW
Pulley dia. 49.00
Pulley dist. 30.00
Radius 87.00
Radius 2 87.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 175.00 mm
Width/holder arm 63.00
Amp 180

  • OEM
    F032116198, 7542351, 7550469, 7582699, 0121715017, 0121715117, 12317542351, 12317550469, 12317582699

  • Konkurrentreferens
    A0758S, DRA0306, 8EL011712-581, 8EL738213-201, 28-6518, 20446N, 440835, 12048840, 32048840, 0986048840, 0986048843

  • NormaliseratArtNr
    a0758s, dra0306, f032116198, 8el011712581, 8el738213201, 20446n, 286518, 440835, 7542351, 7550469, 7582699, 12048840, 32048840, 0121715017, 0121715117, 0986048840, 0986048843, 12317542351, 12317550469, 12317582699

  • Passar modeller
    BMW Model: 1 Model series: 120 Type of engine: i Size of motor: 2.0 Brand of engine: N43B20A Type description: E87 Body: Hatchback From date: 01-03-2007 To date: 01-06-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 120 Type of engine: i Size of motor: 2.0 Brand of engine: N46B20B Type description: E87 Body: Hatchback From date: 01-03-2007 To date: 01-06-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 120 Type of engine: i Size of motor: 2.0 Brand of engine: N46B20BD Type description: E87 Body: Hatchback From date: 01-03-2007 To date: 01-06-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 120 Type of engine: i Size of motor: 2.0 Brand of engine: N46B20C Type description: E87 Body: Hatchback From date: 01-03-2007 To date: 01-06-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 120 Type of engine: i Size of motor: 2.0 Brand of engine: N46B20CC Type description: E87 Body: Hatchback From date: 01-03-2007 To date: 01-06-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 120 Type of engine: i Size of motor: 2.0 Brand of engine: N46B20CD Type description: E87 Body: Hatchback From date: 01-03-2007 To date: 01-06-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 320 i Model type: 320 i Size of motor: 2.0 Brand of engine: N46B20B Type description: E92 Body: Coupe From date: 01-01-2010 To date: 01-06-2013 Fuel: Petrol Approved: Yes
    BMW Model: 3 Touring Model series: 318 I Model type: 318 i Size of motor: 2.0 Brand of engine: N43B20A Type description: E91 Body: Estate Fuel: Petrol Approved: Yes Manufacture type: Touring
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 180
    Remskive dist.: 30.00
    Bredde/holderarm: 63.00
    Montagebøjning dist.: 40.80
    Bøjninghul: 10.80
    Bæltejustering bøjninghul 1: 10.00
    Bæltejustering bøjninghul 2: 10.50
    Remskivediameter: 49.00
    Ribber/remskive: 7
    Radius: 87.00
    Radius 2: 87.00
    B+: M8
    Position/B+ i min.: 35
    Rotation:cw
    Stik nr.: PL86
    Total længde mm: 175.00
    Terminaltype: COM
    Remskive: SP/FW
    Regulator type: IR
    Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnetheden, inden bestilling.

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 40.80
    Belt. adj. bracket hole 1 10.00
    Belt. adj. bracket hole 2 10.50
    Plug no. PL86
    Bracket hole 10.80
    Position/B+ in min. 35
    Pulley SP/FW
    Pulley dia. 49.00
    Pulley dist. 30.00
    Radius 87.00
    Radius 2 87.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 7
    Terminal type COM
    Voltage 14
    Total length 175.00 mm
    Width/holder arm 63.00
    Amp 180
  • Køretøjsmatchning

    • OEM
      F032116198, 7542351, 7550469, 7582699, 0121715017, 0121715117, 12317542351, 12317550469, 12317582699

    • Konkurrentreferens
      A0758S, DRA0306, 8EL011712-581, 8EL738213-201, 28-6518, 20446N, 440835, 12048840, 32048840, 0986048840, 0986048843

    • NormaliseratArtNr
      a0758s, dra0306, f032116198, 8el011712581, 8el738213201, 20446n, 286518, 440835, 7542351, 7550469, 7582699, 12048840, 32048840, 0121715017, 0121715117, 0986048840, 0986048843, 12317542351, 12317550469, 12317582699

    • Passar modeller
      BMW Model: 1 Model series: 120 Type of engine: i Size of motor: 2.0 Brand of engine: N43B20A Type description: E87 Body: Hatchback From date: 01-03-2007 To date: 01-06-2011 Fuel: Gasoline Approved: Yes
      BMW Model: 1 Model series: 120 Type of engine: i Size of motor: 2.0 Brand of engine: N46B20B Type description: E87 Body: Hatchback From date: 01-03-2007 To date: 01-06-2011 Fuel: Gasoline Approved: Yes
      BMW Model: 1 Model series: 120 Type of engine: i Size of motor: 2.0 Brand of engine: N46B20BD Type description: E87 Body: Hatchback From date: 01-03-2007 To date: 01-06-2011 Fuel: Gasoline Approved: Yes
      BMW Model: 1 Model series: 120 Type of engine: i Size of motor: 2.0 Brand of engine: N46B20C Type description: E87 Body: Hatchback From date: 01-03-2007 To date: 01-06-2011 Fuel: Gasoline Approved: Yes
      BMW Model: 1 Model series: 120 Type of engine: i Size of motor: 2.0 Brand of engine: N46B20CC Type description: E87 Body: Hatchback From date: 01-03-2007 To date: 01-06-2011 Fuel: Gasoline Approved: Yes
      BMW Model: 1 Model series: 120 Type of engine: i Size of motor: 2.0 Brand of engine: N46B20CD Type description: E87 Body: Hatchback From date: 01-03-2007 To date: 01-06-2011 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 320 i Model type: 320 i Size of motor: 2.0 Brand of engine: N46B20B Type description: E92 Body: Coupe From date: 01-01-2010 To date: 01-06-2013 Fuel: Petrol Approved: Yes
      BMW Model: 3 Touring Model series: 318 I Model type: 318 i Size of motor: 2.0 Brand of engine: N43B20A Type description: E91 Body: Estate Fuel: Petrol Approved: Yes Manufacture type: Touring
      1 / 2
