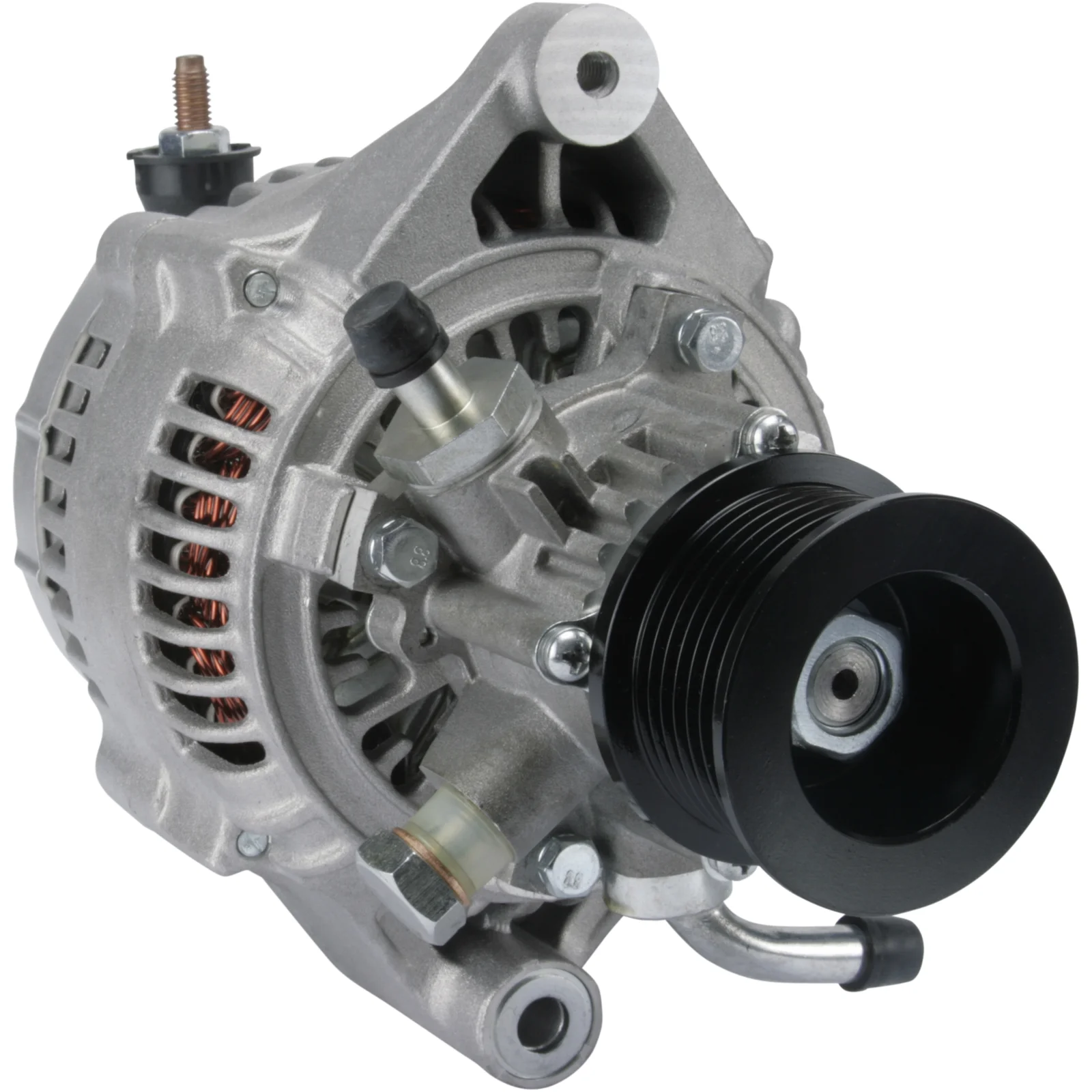

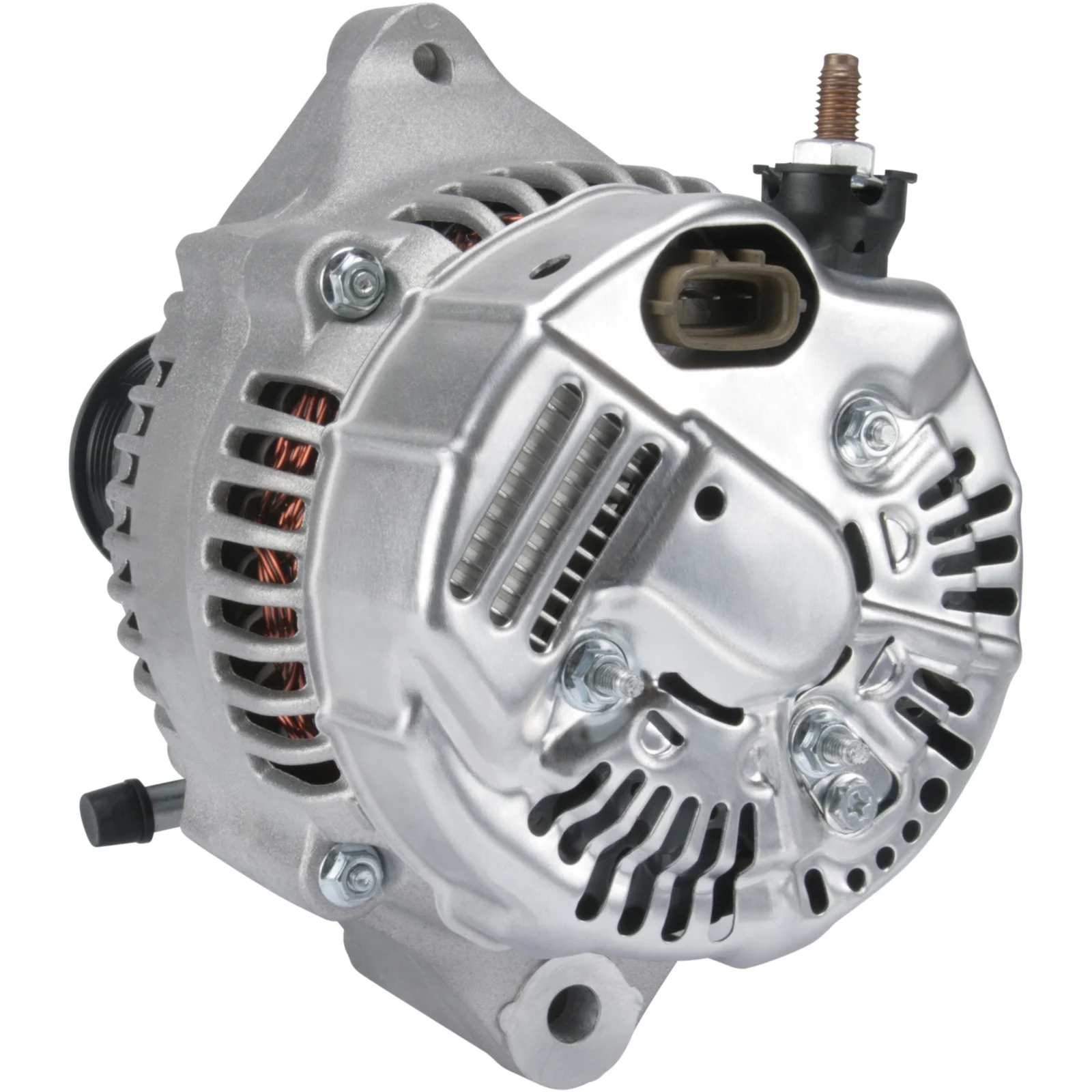

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114300

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 120, Rotation: CW, Remskive diameter: 55.30

Beskrivelse

Spænding: 14
Amp: 120
Remskive dist.: 143,00
Bredde/holderarm: 69,70
Bøsning hul: 10,60
Køler. justering bøsningpos.: 60
Køler. justering bøsning hul 1: M8
Remskive dia.: 55,30
Riller/remskive: 7
Række: 85,00
Række 2: 82,00
B+: M8
Position/B+ i min.: 5
Rotation: CW
Stik nr.: PL58
W stiktype: Stik
Total længde mm: 236,00
Remskive: SP
Regler. type: IR
Kølevas. pumpe: Ja
Prod. info: BN

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL58
Bracket hole 10.60
Position/B+ in min. 5
Prod. info BN
Pulley SP
Pulley dia. 55.30
Pulley dist. 143.00
Radius 85.00
Radius 2 82.00
Regulator type IR
Rotation CW
Grooves/pulley 7
Vac. pump Yes
Voltage 14
W plug type Plug
Total length 236.00 mm
Width/holder arm 69.70
Amp 120

  • OEM
    err6999, F032114300, ja1710ir, LR006190, 100213-2391, 100213-2530, 38522267F

  • Konkurrentreferens
    A6230, A6230(DENSO), ALT-H212, CAL40121, DAN670, DENDAN670, DRA3856, F042A0H212, 8EL015630-771, 8EL738079-001, 28-3882, 214.123.1202, 9190, 21369N, 21369R, 119994, 119995, 210961, 210961A, 401710RI, 440980, 12090146, 20110369WP, 32201202, 0986046541, 063377497010

  • NormaliseratArtNr
    a6230, a6230denso, alth212, cal40121, dan670, dendan670, dra3856, err6999, f032114300, f042a0h212, ja1710ir, lr006190, 8el015630771, 8el738079001, 9190, 21369n, 21369r, 119994, 119995, 210961, 210961a, 283882, 401710ri, 440980, 12090146, 20110369wp, 32201202, 38522267f, 0986046541, 1002132391, 1002132530, 2141231202, 063377497010

  • Passar modeller
    Land Rover Model: Defender Model series: Defender Model type: 4WD Size of motor: 2.5 Brand of engine: 10P Type description: LD From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Land Rover Model: Defender Model series: Defender Model type: 4WD Size of motor: 2.5 Brand of engine: 15P Type description: LD From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Land Rover Model: Defender Model series: Defender Model type: 4WD Type of engine: TD5 Size of motor: 2.5 Brand of engine: 10P Type description: LD Body: Convertible From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Land Rover Model: Defender Model series: Defender Model type: 4WD Type of engine: TD5 Size of motor: 2.5 Brand of engine: 10P Type description: LD_ Body: Pick Up From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Land Rover Model: Defender Model series: Defender Model type: 4WD Type of engine: TD5 Size of motor: 2.5 Brand of engine: 14P Type description: LD Body: Convertible From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Land Rover Model: Defender Model series: Defender Model type: 4WD Type of engine: TD5 Size of motor: 2.5 Brand of engine: 15P Type description: LD Body: Convertible From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery II Model series: Discovery II Model type: 4x4 Size of motor: 2.5 Brand of engine: 10P Type description: LJ, LT From date: 01-11-1998 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Type of engine: TD Size of motor: 2.5 Brand of engine: 15 P From date: 01-11-1998 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 120
    Remskive dist.: 143,00
    Bredde/holderarm: 69,70
    Bøsning hul: 10,60
    Køler. justering bøsningpos.: 60
    Køler. justering bøsning hul 1: M8
    Remskive dia.: 55,30
    Riller/remskive: 7
    Række: 85,00
    Række 2: 82,00
    B+: M8
    Position/B+ i min.: 5
    Rotation: CW
    Stik nr.: PL58
    W stiktype: Stik
    Total længde mm: 236,00
    Remskive: SP
    Regler. type: IR
    Kølevas. pumpe: Ja
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL58
    Bracket hole 10.60
    Position/B+ in min. 5
    Prod. info BN
    Pulley SP
    Pulley dia. 55.30
    Pulley dist. 143.00
    Radius 85.00
    Radius 2 82.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 7
    Vac. pump Yes
    Voltage 14
    W plug type Plug
    Total length 236.00 mm
    Width/holder arm 69.70
    Amp 120
  • Køretøjsmatchning

    • OEM
      err6999, F032114300, ja1710ir, LR006190, 100213-2391, 100213-2530, 38522267F

    • Konkurrentreferens
      A6230, A6230(DENSO), ALT-H212, CAL40121, DAN670, DENDAN670, DRA3856, F042A0H212, 8EL015630-771, 8EL738079-001, 28-3882, 214.123.1202, 9190, 21369N, 21369R, 119994, 119995, 210961, 210961A, 401710RI, 440980, 12090146, 20110369WP, 32201202, 0986046541, 063377497010

    • NormaliseratArtNr
      a6230, a6230denso, alth212, cal40121, dan670, dendan670, dra3856, err6999, f032114300, f042a0h212, ja1710ir, lr006190, 8el015630771, 8el738079001, 9190, 21369n, 21369r, 119994, 119995, 210961, 210961a, 283882, 401710ri, 440980, 12090146, 20110369wp, 32201202, 38522267f, 0986046541, 1002132391, 1002132530, 2141231202, 063377497010

    • Passar modeller
      Land Rover Model: Defender Model series: Defender Model type: 4WD Size of motor: 2.5 Brand of engine: 10P Type description: LD From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
      Land Rover Model: Defender Model series: Defender Model type: 4WD Size of motor: 2.5 Brand of engine: 15P Type description: LD From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
      Land Rover Model: Defender Model series: Defender Model type: 4WD Type of engine: TD5 Size of motor: 2.5 Brand of engine: 10P Type description: LD Body: Convertible From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
      Land Rover Model: Defender Model series: Defender Model type: 4WD Type of engine: TD5 Size of motor: 2.5 Brand of engine: 10P Type description: LD_ Body: Pick Up From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
      Land Rover Model: Defender Model series: Defender Model type: 4WD Type of engine: TD5 Size of motor: 2.5 Brand of engine: 14P Type description: LD Body: Convertible From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
      Land Rover Model: Defender Model series: Defender Model type: 4WD Type of engine: TD5 Size of motor: 2.5 Brand of engine: 15P Type description: LD Body: Convertible From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery II Model series: Discovery II Model type: 4x4 Size of motor: 2.5 Brand of engine: 10P Type description: LJ, LT From date: 01-11-1998 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery Model series: Discovery Type of engine: TD Size of motor: 2.5 Brand of engine: 15 P From date: 01-11-1998 To date: 01-06-2004 Fuel: Diesel Approved: Yes
