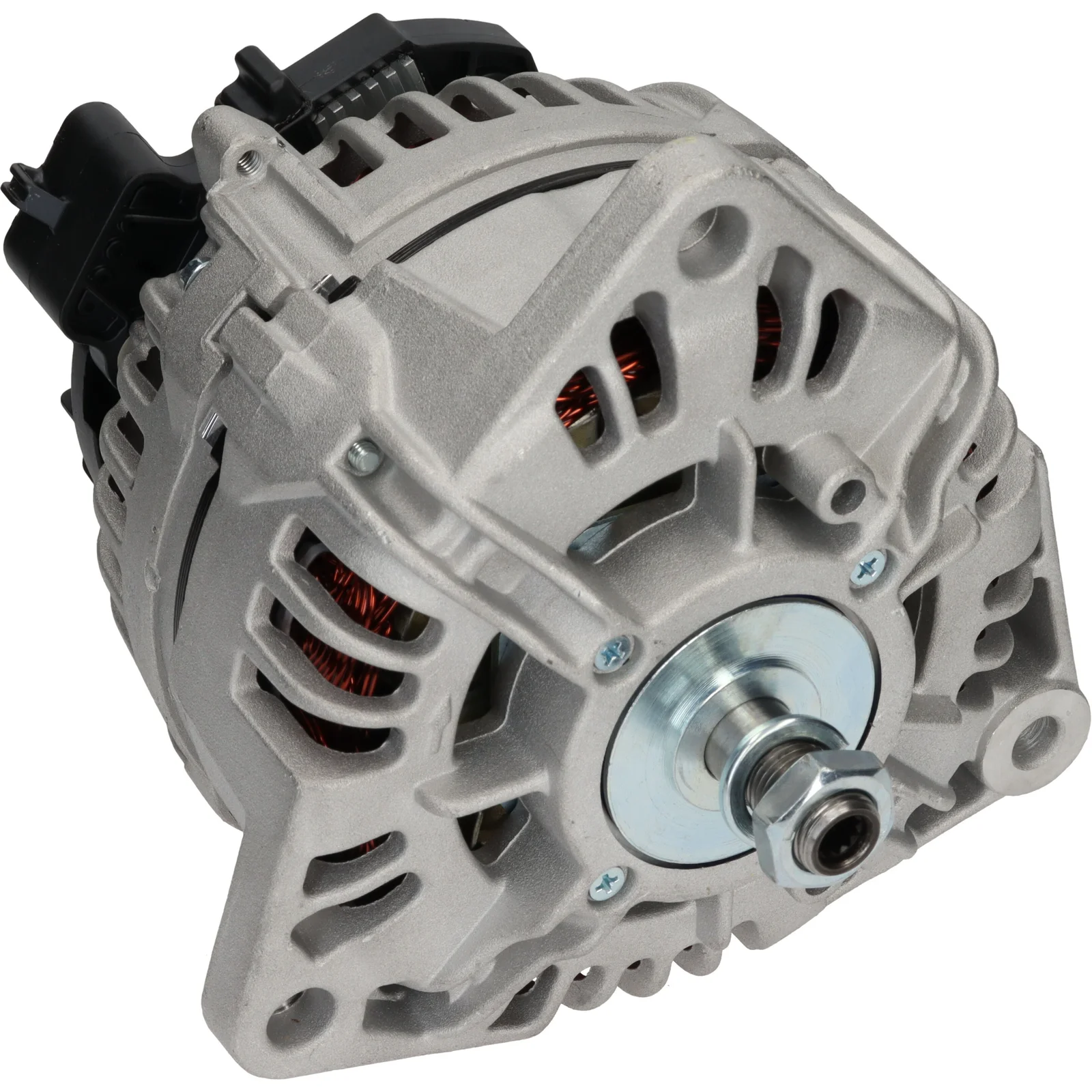

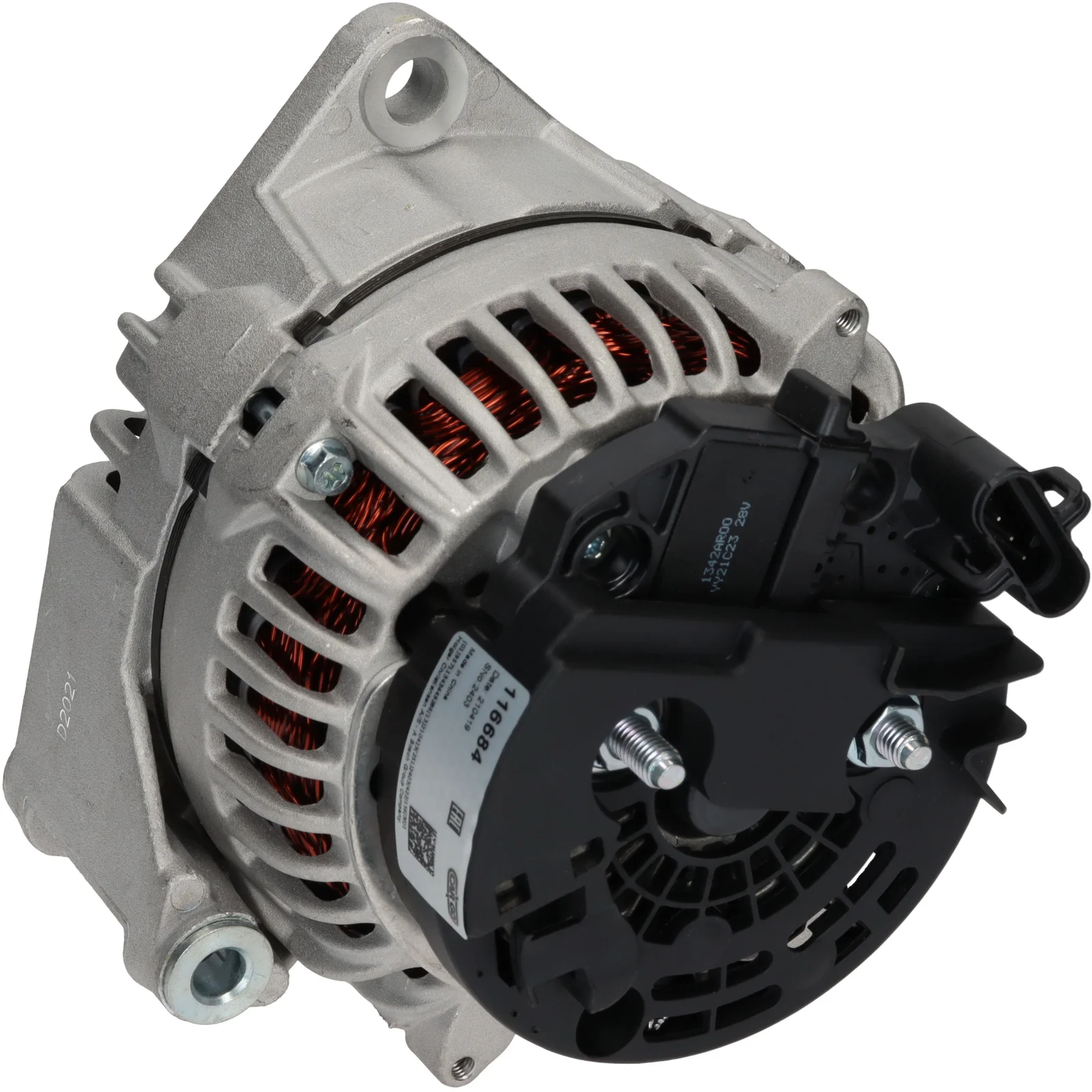

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116684

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 28, Amp: 150, Rotation: CW, Radius: 93.00

Beskrivelse

Generator 24V-150A , MB Buss 24V - 150A, ( - LIN - - - ) For Yourex produktordre 90-365-6550

Spænding: 28
Amp: 150
Bredde/holderarm: 80,00
Bøsning til beslag: 10,00
Bælte justering beslag bøsning position: 10
Bælte justering beslag bøsning position 2: 50
Bælte justering beslag bøsning position 1: 12,50
Bælte justering beslag bøsning position 2: 12,50
Radius: 93,00
Radius 2: 90,00
Radius 3: 90,00
B+: M8
Rotation: med uret
Stik nr.: PL190
Samlet længde mm: 199,00
Terminaltype: COM
Drivskive: uden
Kølevifte: IF
Regulator- type: IR
Bemærkninger: Denne Generator har en COM terminal på regulatoren. Det anbefales at anvende OEM-nummeret til at kontrollere egnetheden før bestilling.

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 12.50
Belt. adj. bracket hole 2 12.50
Belt. adj. brackethole pos. 10
Belt. adj. brackethole pos. 2 50
Plug no. PL190
Bracket hole 10.00
Pulley w/o
Radius 93.00
Radius 2 90.00
Radius 3 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Terminal type COM
Voltage 28
Total length 199.00 mm
Width/holder arm 80.00
Amp 150

  • OEM
    000 150 6550, A000 1506550, A0001506550, F032116684, 0124 655 125, 0124 655 161, 0986 085 300, 1986A00989, 116684, 0001506550, 0124655125, 0124655161

  • Konkurrentreferens
    A0669(BOSCH), A0669S, CAL10673, dra1445, LRA04299, 8EL012584-921, 48-7908, 555.514.150, 556.514.150, 20550N, 209503, 209503A, 443508, 444442, 554445RI, 12091003, 0986085300

  • Bilmärken
    Mercedes Benz Trucks & Buses

  • NormaliseratArtNr
    a0001506550, a0669bosch, a0669s, cal10673, dra1445, f032116684, lra04299, 8el012584921, 1986a00989, 20550n, 116684, 209503, 209503a, 443508, 444442, 487908, 554445ri, 0001506550, 12091003, 0124655125, 0124655161, 555514150, 556514150, 0986085300

  • Passar modeller
    Mercedes Benz Trucks & Buses Series: Citaro (O 530) Model: Ü Engine volume: 7.7 Year: 05.12-
    Mercedes Benz Trucks & Buses Series: Citaro 2 Model: G Engine volume: 7.7
    Mercedes Benz Trucks & Buses Series: Citaro 2 Model: GU Engine volume: 7.7
    Mercedes Benz Trucks & Buses Series: Citaro 2 Model: K Engine volume: 7.7
    Mercedes Benz Trucks & Buses Series: Citaro 2 Model: LE Engine volume: 7.7
    Mercedes Benz Trucks & Buses Series: Citaro 2 Model: U Engine volume: 7.7
    Mercedes Benz Trucks & Buses Series: Conecto Engine volume: 7.7 Year: 09.16-
    Mercedes-Benz Model: Actros Model series: 2045 LS Size of motor: 12.8 Brand of engine: OM460.984 Type description: Actros MP4 Body: Truck Tractor From date: 01-01-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Citaro Model series: Citaro (O 530) Size of motor: 10.7 Type description: Citaro Body: Bus From date: 01-05-2012 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Citaro Model series: Citaro (O 530) Size of motor: 7.7 Type description: Citaro Body: Bus From date: 01-05-2012 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Generator 24V-150A , MB Buss 24V - 150A, ( - LIN - - - ) For Yourex produktordre 90-365-6550

    Spænding: 28
    Amp: 150
    Bredde/holderarm: 80,00
    Bøsning til beslag: 10,00
    Bælte justering beslag bøsning position: 10
    Bælte justering beslag bøsning position 2: 50
    Bælte justering beslag bøsning position 1: 12,50
    Bælte justering beslag bøsning position 2: 12,50
    Radius: 93,00
    Radius 2: 90,00
    Radius 3: 90,00
    B+: M8
    Rotation: med uret
    Stik nr.: PL190
    Samlet længde mm: 199,00
    Terminaltype: COM
    Drivskive: uden
    Kølevifte: IF
    Regulator- type: IR
    Bemærkninger: Denne Generator har en COM terminal på regulatoren. Det anbefales at anvende OEM-nummeret til at kontrollere egnetheden før bestilling.

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 12.50
    Belt. adj. bracket hole 2 12.50
    Belt. adj. brackethole pos. 10
    Belt. adj. brackethole pos. 2 50
    Plug no. PL190
    Bracket hole 10.00
    Pulley w/o
    Radius 93.00
    Radius 2 90.00
    Radius 3 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Terminal type COM
    Voltage 28
    Total length 199.00 mm
    Width/holder arm 80.00
    Amp 150
  • Køretøjsmatchning

    • OEM
      000 150 6550, A000 1506550, A0001506550, F032116684, 0124 655 125, 0124 655 161, 0986 085 300, 1986A00989, 116684, 0001506550, 0124655125, 0124655161

    • Konkurrentreferens
      A0669(BOSCH), A0669S, CAL10673, dra1445, LRA04299, 8EL012584-921, 48-7908, 555.514.150, 556.514.150, 20550N, 209503, 209503A, 443508, 444442, 554445RI, 12091003, 0986085300

    • Bilmärken
      Mercedes Benz Trucks & Buses

    • NormaliseratArtNr
      a0001506550, a0669bosch, a0669s, cal10673, dra1445, f032116684, lra04299, 8el012584921, 1986a00989, 20550n, 116684, 209503, 209503a, 443508, 444442, 487908, 554445ri, 0001506550, 12091003, 0124655125, 0124655161, 555514150, 556514150, 0986085300

    • Passar modeller
      Mercedes Benz Trucks & Buses Series: Citaro (O 530) Model: Ü Engine volume: 7.7 Year: 05.12-
      Mercedes Benz Trucks & Buses Series: Citaro 2 Model: G Engine volume: 7.7
      Mercedes Benz Trucks & Buses Series: Citaro 2 Model: GU Engine volume: 7.7
      Mercedes Benz Trucks & Buses Series: Citaro 2 Model: K Engine volume: 7.7
      Mercedes Benz Trucks & Buses Series: Citaro 2 Model: LE Engine volume: 7.7
      Mercedes Benz Trucks & Buses Series: Citaro 2 Model: U Engine volume: 7.7
      Mercedes Benz Trucks & Buses Series: Conecto Engine volume: 7.7 Year: 09.16-
      Mercedes-Benz Model: Actros Model series: 2045 LS Size of motor: 12.8 Brand of engine: OM460.984 Type description: Actros MP4 Body: Truck Tractor From date: 01-01-2019 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Citaro Model series: Citaro (O 530) Size of motor: 10.7 Type description: Citaro Body: Bus From date: 01-05-2012 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Citaro Model series: Citaro (O 530) Size of motor: 7.7 Type description: Citaro Body: Bus From date: 01-05-2012 Fuel: Diesel Approved: Yes
