Vare nr.: F032111381

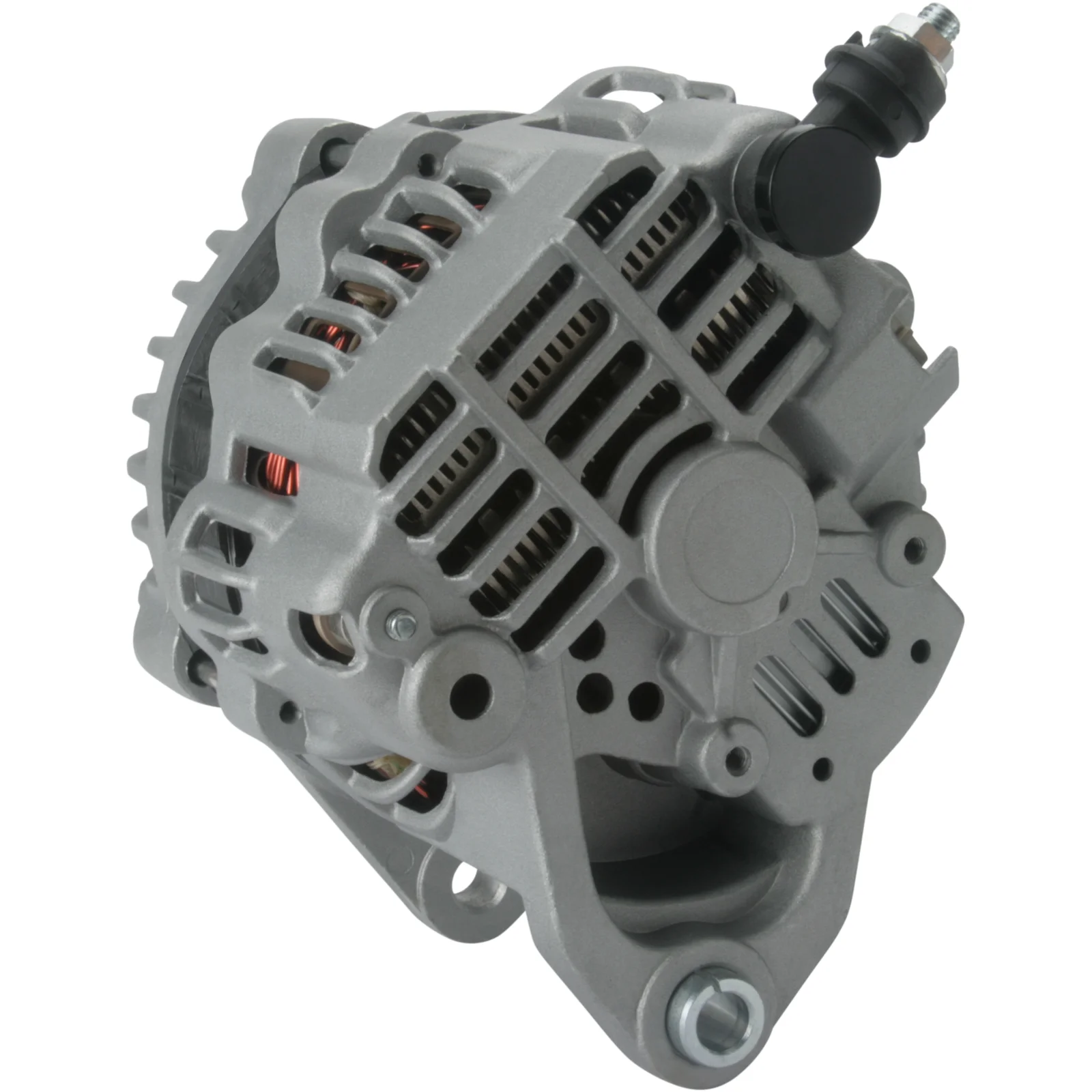

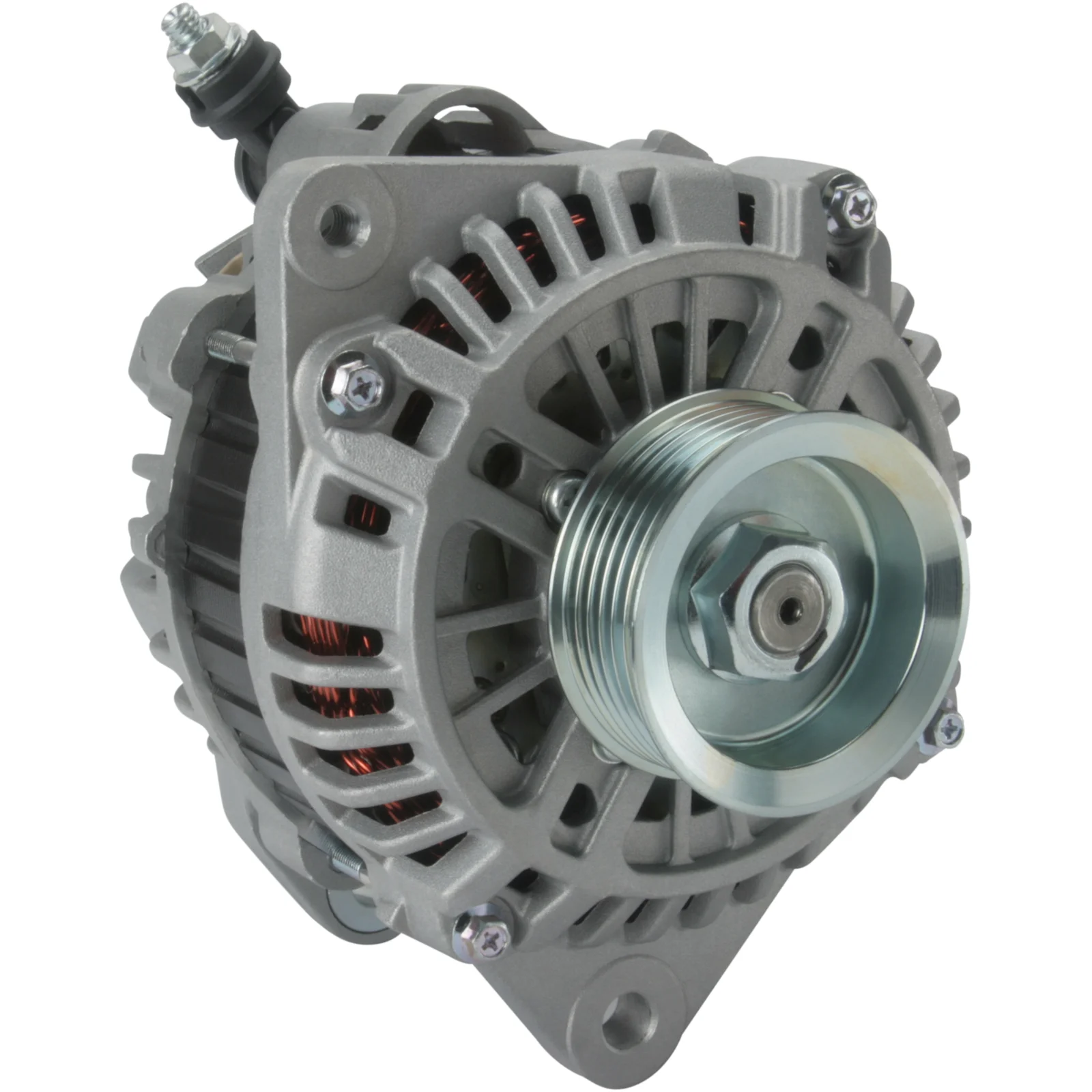

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 110, Rotation: CW, Monteringsbeslag forfordeling: 80,50

Beskrivelse

Nissan Maxima Generator | Gen. 12V-110A 12V - 110A, 6gr. (S, L) For Yourex produkt ordre 90-400-1705

Spænding: 14
Amp.: 110
Remskive afst.: 38.40
Bredde/holderarm: 13.20
Monteringsbeslag afst.: 80.50
Beslagshul: 10.30
Bæltejustering beslagshul pos.: 53
Bæltejustering beslagshul 1: M8
Remskive dia.: 62.70
Riller/remskive: 6
Radius: 84.50
Radius 2: 85.00
B+: M8
Position/B+ i min.: 60
Rotation: CW
Stik nr.: PL39
Samlet længde mm: 183.50
Remskive: SP
Regulator type: IR
Produktinfo: BN
Service: Nissan

Specifikation

B+ M8
Mount. bracket dist. 80.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 53
Plug no. PL39
Bracket hole 10.30
Position/B+ in min. 60
Prod. info BN
Pulley SP
Pulley dia. 62.70
Pulley dist. 38.40
Radius 84.50
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 6
Voltage 14
Total length 183.50 mm
Width/holder arm 13.20
Amp 110
  • OEM

    F032111381, ja990ir, lr1100-703, lr1100-703b, lr1100-711, lr1100-711b, lr1100-725, lr1100-725b, lr1100-725c, LR1110-705, lr1110-705, lr1110-705b, LR1110-705C, LR1110-705E, LR1110-705F, lr1110-709, LR1110-709B, lr1110-709b, LR1110-710, lr1110-710b, lr1110-710c, lr1110-710e, LR1110-710F, lr1110-720, LR1110-723, LR1110-723B, LR1110-723C, lr1110-723e, 1986A01894, 23100-0l700, 23100-0L701, 23100-0l701, 23100-2y000, 23100-2Y005, 23100-2y006, 23100-2y900, 23100-31u00, 23100-31U01, 23100-31u01, 23100-5y700, 23100-9y500, 23100-cn100, 23100-CN10C, 111381
  • Konkurrentreferens

    a-8567, A2008, ad-00151r, ad-00152r, ahi0028, ALT-3209, ALT-3212, ALT-3511, ALT3511, CAL20141, CAL20143, DRA0576, DRB5621, F042205097, F042305022, F042305024, F042A05022, F042A05024, J5111076, LRA01643, 1-2098-01HI, 1-2231-01HI, 1-2828-01HI, 8el737065-001, 8el737525-001, 28-2839, 28-3547, 227.155.1102, 5480, 5995, 13639, 13657, 13657N, 13657R, 13826N, 13901, 13901N, 13901R, 40990RI, 56497, 119479, 119691, 401357RI, 437683, 12060663, 12060664, 12060736, 12060782, 12060783, 12060854, 0986045621, 0986045661, 0986081440
  • Bilmärken

    Nissan
  • NormaliseratArtNr

    a2008, a8567, ad00151r, ad00152r, ahi0028, alt3209, alt3212, alt3511, cal20141, cal20143, dra0576, drb5621, f032111381, f042205097, f042305022, f042305024, f042a05022, f042a05024, j5111076, ja990ir, lr1100703, lr1100703b, lr1100711, lr1100711b, lr1100725, lr1100725b, lr1100725c, lr1110705, lr1110705b, lr1110705c, lr1110705e, lr1110705f, lr1110709, lr1110709b, lr1110710, lr1110710b, lr1110710c, lr1110710e, lr1110710f, lr1110720, lr1110723, lr1110723b, lr1110723c, lr1110723e, lra01643, 8el737065001, 8el737525001, 1986a01894, 5480, 5995, 13639, 13657, 13657n, 13657r, 13826n, 13901, 13901n, 13901r, 23100cn100, 23100cn10c, 40990ri, 56497, 111381, 119479, 119691, 231000l700, 231000l701, 231002y000, 231002y005, 231002y006, 231002y900, 231005y700, 231009y500, 282839, 283547, 401357ri, 437683, 1209801hi, 1223101hi, 1282801hi, 2310031u00, 2310031u01, 12060663, 12060664, 12060736, 12060782, 12060783, 12060854, 0986045621, 0986045661, 0986081440, 2271551102
  • Passar modeller

    Infiniti Model: I 30 Model series: I 30 Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Infiniti Model: I 30 Model series: I 30 Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Infiniti Model: I 30 Model series: I 30 Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
    Nissan Model: Maxima Model series: Maxima Model type: GLE Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1995 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Nissan Model: Maxima Model series: Maxima Model type: GXE Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1995 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Nissan Model: Maxima Model series: Maxima Model type: SE Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1995 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Nissan Model: Maxima Model series: Maxima Model type: SE Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Nissan Model: Maxima Model series: Maxima QX Size of motor: 2.0 Brand of engine: VQ20DE Type description: A32 Body: Estate From date: 01-10-1997 To date: 01-12-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Maxima Model series: Maxima QX Size of motor: 3.0 Brand of engine: VQ30DE Type description: A32 Body: Estate From date: 01-10-1997 To date: 01-12-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Maxima Model series: Maxima QX Size of motor: 3.0 Brand of engine: VQ30DE Type description: A32 From date: 01-01-1995 To date: 01-08-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Maxima Model series: Maxima Size of motor: 2.0 Brand of engine: VQ20DE Type description: A32 From date: 01-02-1995 To date: 01-08-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Maxima Model series: Maxima Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
    Nissan Model: Murano Model series: Murano Model type: 4WD Size of motor: 3.5 Brand of engine: VQ35DE Type description: Z50 Body: SUV From date: 01-08-2003 To date: 01-09-2008 Fuel: Gasoline Approved: Yes
    Nissan Model: Murano Model series: Murano Model type: 4X4 Size of motor: 3.5 Brand of engine: VQ35DE Type description: Z50 Body: SUV From date: 01-01-2006 To date: 01-09-2008 Fuel: Petrol Approved: Yes
    Nissan Series: Maxima QX (A32) Model: 2.0 AC Engine volume: 2.0 Engine type: VQ 20 DE Year: 02.95-08.00
    Nissan Series: Maxima QX (A32) Model: 3.0 Engine volume: 3.0 Engine type: VQ 30 DE Year: 01.95-08.00
    Nissan Series: Murano Model: 3.5 V6 Engine volume: 3.5 Engine type: VQ35DE Year: 01.03-
    Toyota Model: Supra Model series: Supra Type of engine: i Size of motor: 2.8 Brand of engine: 5M-GE Type description: MA61 Body: Coupe From date: 01-08-1981 To date: 01-12-1985 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivelse
    Nissan Maxima Generator | Gen. 12V-110A 12V - 110A, 6gr. (S, L) For Yourex produkt ordre 90-400-1705

    Spænding: 14
    Amp.: 110
    Remskive afst.: 38.40
    Bredde/holderarm: 13.20
    Monteringsbeslag afst.: 80.50
    Beslagshul: 10.30
    Bæltejustering beslagshul pos.: 53
    Bæltejustering beslagshul 1: M8
    Remskive dia.: 62.70
    Riller/remskive: 6
    Radius: 84.50
    Radius 2: 85.00
    B+: M8
    Position/B+ i min.: 60
    Rotation: CW
    Stik nr.: PL39
    Samlet længde mm: 183.50
    Remskive: SP
    Regulator type: IR
    Produktinfo: BN
    Service: Nissan
  • Specifikation
    B+ M8
    Mount. bracket dist. 80.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 53
    Plug no. PL39
    Bracket hole 10.30
    Position/B+ in min. 60
    Prod. info BN
    Pulley SP
    Pulley dia. 62.70
    Pulley dist. 38.40
    Radius 84.50
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Servicing Nissan
    Grooves/pulley 6
    Voltage 14
    Total length 183.50 mm
    Width/holder arm 13.20
    Amp 110
  • Køretøjsmatchning
    • OEM

      F032111381, ja990ir, lr1100-703, lr1100-703b, lr1100-711, lr1100-711b, lr1100-725, lr1100-725b, lr1100-725c, LR1110-705, lr1110-705, lr1110-705b, LR1110-705C, LR1110-705E, LR1110-705F, lr1110-709, LR1110-709B, lr1110-709b, LR1110-710, lr1110-710b, lr1110-710c, lr1110-710e, LR1110-710F, lr1110-720, LR1110-723, LR1110-723B, LR1110-723C, lr1110-723e, 1986A01894, 23100-0l700, 23100-0L701, 23100-0l701, 23100-2y000, 23100-2Y005, 23100-2y006, 23100-2y900, 23100-31u00, 23100-31U01, 23100-31u01, 23100-5y700, 23100-9y500, 23100-cn100, 23100-CN10C, 111381
    • Konkurrentreferens

      a-8567, A2008, ad-00151r, ad-00152r, ahi0028, ALT-3209, ALT-3212, ALT-3511, ALT3511, CAL20141, CAL20143, DRA0576, DRB5621, F042205097, F042305022, F042305024, F042A05022, F042A05024, J5111076, LRA01643, 1-2098-01HI, 1-2231-01HI, 1-2828-01HI, 8el737065-001, 8el737525-001, 28-2839, 28-3547, 227.155.1102, 5480, 5995, 13639, 13657, 13657N, 13657R, 13826N, 13901, 13901N, 13901R, 40990RI, 56497, 119479, 119691, 401357RI, 437683, 12060663, 12060664, 12060736, 12060782, 12060783, 12060854, 0986045621, 0986045661, 0986081440
    • Bilmärken

      Nissan
    • NormaliseratArtNr

      a2008, a8567, ad00151r, ad00152r, ahi0028, alt3209, alt3212, alt3511, cal20141, cal20143, dra0576, drb5621, f032111381, f042205097, f042305022, f042305024, f042a05022, f042a05024, j5111076, ja990ir, lr1100703, lr1100703b, lr1100711, lr1100711b, lr1100725, lr1100725b, lr1100725c, lr1110705, lr1110705b, lr1110705c, lr1110705e, lr1110705f, lr1110709, lr1110709b, lr1110710, lr1110710b, lr1110710c, lr1110710e, lr1110710f, lr1110720, lr1110723, lr1110723b, lr1110723c, lr1110723e, lra01643, 8el737065001, 8el737525001, 1986a01894, 5480, 5995, 13639, 13657, 13657n, 13657r, 13826n, 13901, 13901n, 13901r, 23100cn100, 23100cn10c, 40990ri, 56497, 111381, 119479, 119691, 231000l700, 231000l701, 231002y000, 231002y005, 231002y006, 231002y900, 231005y700, 231009y500, 282839, 283547, 401357ri, 437683, 1209801hi, 1223101hi, 1282801hi, 2310031u00, 2310031u01, 12060663, 12060664, 12060736, 12060782, 12060783, 12060854, 0986045621, 0986045661, 0986081440, 2271551102
    • Passar modeller

      Infiniti Model: I 30 Model series: I 30 Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1997 Fuel: Gasoline Approved: Yes
      Infiniti Model: I 30 Model series: I 30 Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
      Infiniti Model: I 30 Model series: I 30 Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
      Nissan Model: Maxima Model series: Maxima Model type: GLE Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1995 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
      Nissan Model: Maxima Model series: Maxima Model type: GXE Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1995 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
      Nissan Model: Maxima Model series: Maxima Model type: SE Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1995 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
      Nissan Model: Maxima Model series: Maxima Model type: SE Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
      Nissan Model: Maxima Model series: Maxima QX Size of motor: 2.0 Brand of engine: VQ20DE Type description: A32 Body: Estate From date: 01-10-1997 To date: 01-12-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Maxima Model series: Maxima QX Size of motor: 3.0 Brand of engine: VQ30DE Type description: A32 Body: Estate From date: 01-10-1997 To date: 01-12-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Maxima Model series: Maxima QX Size of motor: 3.0 Brand of engine: VQ30DE Type description: A32 From date: 01-01-1995 To date: 01-08-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Maxima Model series: Maxima Size of motor: 2.0 Brand of engine: VQ20DE Type description: A32 From date: 01-02-1995 To date: 01-08-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Maxima Model series: Maxima Size of motor: 3.0 Brand of engine: VQ30DE From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
      Nissan Model: Murano Model series: Murano Model type: 4WD Size of motor: 3.5 Brand of engine: VQ35DE Type description: Z50 Body: SUV From date: 01-08-2003 To date: 01-09-2008 Fuel: Gasoline Approved: Yes
      Nissan Model: Murano Model series: Murano Model type: 4X4 Size of motor: 3.5 Brand of engine: VQ35DE Type description: Z50 Body: SUV From date: 01-01-2006 To date: 01-09-2008 Fuel: Petrol Approved: Yes
      Nissan Series: Maxima QX (A32) Model: 2.0 AC Engine volume: 2.0 Engine type: VQ 20 DE Year: 02.95-08.00
      Nissan Series: Maxima QX (A32) Model: 3.0 Engine volume: 3.0 Engine type: VQ 30 DE Year: 01.95-08.00
      Nissan Series: Murano Model: 3.5 V6 Engine volume: 3.5 Engine type: VQ35DE Year: 01.03-
      Toyota Model: Supra Model series: Supra Type of engine: i Size of motor: 2.8 Brand of engine: 5M-GE Type description: MA61 Body: Coupe From date: 01-08-1981 To date: 01-12-1985 Fuel: Gasoline Approved: Yes
      1 / 4
