  • Välkommen till Yourex - Din Grossist på bilelektriska reservdelar.

Vare nr.: F032114258

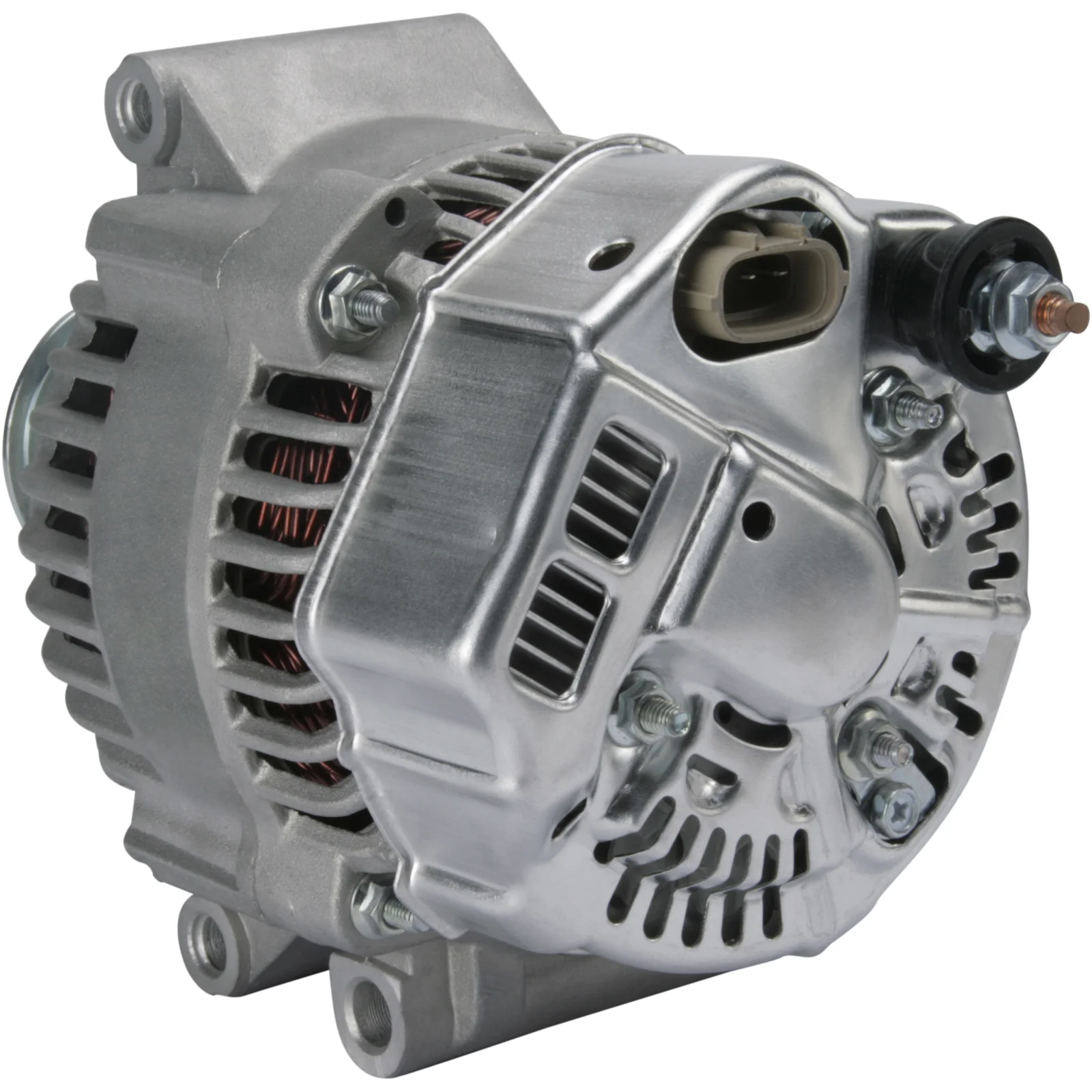

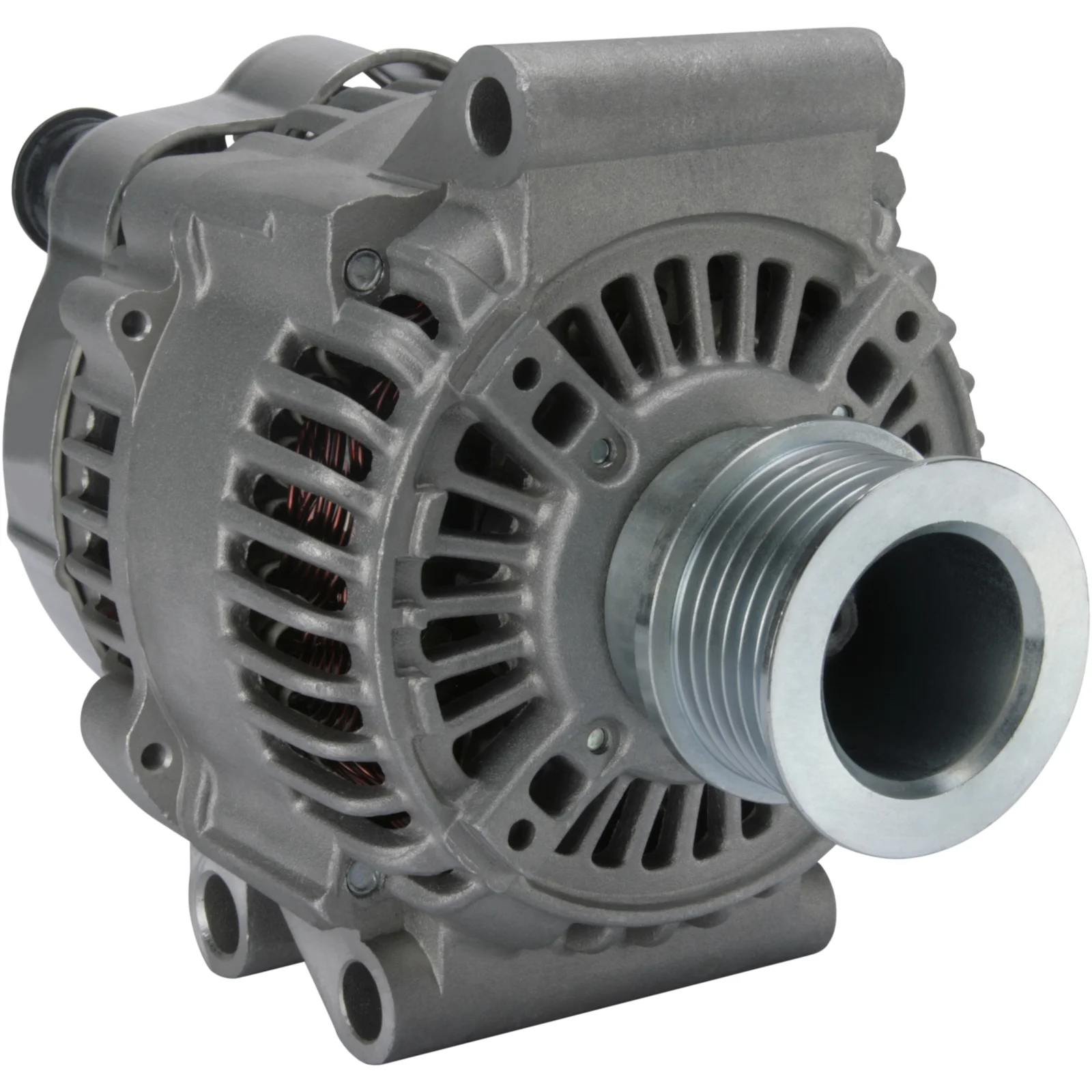

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 105, Rotation: CW, Monteringsbeslag afstands.: 43.00

Beskrivelse

Spænding: 14
Amp: 105
Remskive dist.: 55.00
Bredde/holder arm: 83.00
Montagebeslag dist.: 43.00
Beslagshul: 11.00
Bælte justering beslag hul 1: 11.00
Remskive dia.: 49.00
Riller/remskive: 6
B+: M6
Position/B+ i min.: 5
D+ Størrelse: Stik
Rotation: CW
Stik no.: PL74
Samlet længde mm: 200.00
Remskive: SP
Regulator type: IR

Specifikation

B+ M6
Mount. bracket dist. 43.00
Belt. adj. bracket hole 1 11.00
Plug no. PL74
Bracket hole 11.00
Position/B+ in min. 5
Pulley SP
Pulley dia. 49.00
Pulley dist. 55.00
D+ Size Plug
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 200.00 mm
Width/holder arm 83.00
Amp 105
  • OEM

    F032114258, 1869ir, 102211-2230, 102211-2231, 102211-2232, 102211-2233, 102211-2234, 1079452, 7515030, 12311079452, 12317515030
  • Konkurrentreferens

    A6034, ALT-H210, CAL40246, DRA0123, F042A0H210, LEA0627, LRA02548, 8EL011710-861, 8EL738211-041, 28-4892, 4854, 11049N, 11049R, 209302, 209302A, 301869RI, 444229, 12090172, 32080610, 0986080610
  • NormaliseratArtNr

    a6034, alth210, cal40246, dra0123, f032114258, f042a0h210, lea0627, lra02548, 8el011710861, 8el738211041, 1869ir, 4854, 11049n, 11049r, 209302, 209302a, 284892, 301869ri, 444229, 1079452, 7515030, 12090172, 32080610, 0986080610, 1022112230, 1022112231, 1022112232, 1022112233, 1022112234, 12311079452, 12317515030
  • Passar modeller

    Mini Model: Cooper Model series: Cooper S Size of motor: 1.6 Brand of engine: W11B16A Type description: R50, R53 Body: Hatchback From date: 01-03-2002 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
    Mini Model: Cooper Model series: Cooper S Size of motor: 1.6 Brand of engine: W11B16A Type description: R50, R53 Body: Hatchback From date: 01-07-2004 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
    Mini Model: Cooper Model series: Cooper S Size of motor: 1.6 Brand of engine: W11B16A Type description: R52 Body: Convertible From date: 01-07-2004 To date: 01-11-2007 Fuel: Gasoline Approved: Yes
    Mini Model: Mini Model series: Mini Size of motor: 1.6 Brand of engine: W11B16A Type description: R50, R53 Body: Hatchback From date: 01-11-2003 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
    Mini Model: Mini Model series: Mini Works Size of motor: 1.6 Brand of engine: W11B16A Type description: R50, R53 Body: Convertible From date: 01-07-2004 To date: 01-11-2007 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 105
    Remskive dist.: 55.00
    Bredde/holder arm: 83.00
    Montagebeslag dist.: 43.00
    Beslagshul: 11.00
    Bælte justering beslag hul 1: 11.00
    Remskive dia.: 49.00
    Riller/remskive: 6
    B+: M6
    Position/B+ i min.: 5
    D+ Størrelse: Stik
    Rotation: CW
    Stik no.: PL74
    Samlet længde mm: 200.00
    Remskive: SP
    Regulator type: IR
  • Specifikation
    B+ M6
    Mount. bracket dist. 43.00
    Belt. adj. bracket hole 1 11.00
    Plug no. PL74
    Bracket hole 11.00
    Position/B+ in min. 5
    Pulley SP
    Pulley dia. 49.00
    Pulley dist. 55.00
    D+ Size Plug
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 200.00 mm
    Width/holder arm 83.00
    Amp 105
  • Køretøjsmatchning
    • OEM

      F032114258, 1869ir, 102211-2230, 102211-2231, 102211-2232, 102211-2233, 102211-2234, 1079452, 7515030, 12311079452, 12317515030
    • Konkurrentreferens

      A6034, ALT-H210, CAL40246, DRA0123, F042A0H210, LEA0627, LRA02548, 8EL011710-861, 8EL738211-041, 28-4892, 4854, 11049N, 11049R, 209302, 209302A, 301869RI, 444229, 12090172, 32080610, 0986080610
    • NormaliseratArtNr

      a6034, alth210, cal40246, dra0123, f032114258, f042a0h210, lea0627, lra02548, 8el011710861, 8el738211041, 1869ir, 4854, 11049n, 11049r, 209302, 209302a, 284892, 301869ri, 444229, 1079452, 7515030, 12090172, 32080610, 0986080610, 1022112230, 1022112231, 1022112232, 1022112233, 1022112234, 12311079452, 12317515030
    • Passar modeller

      Mini Model: Cooper Model series: Cooper S Size of motor: 1.6 Brand of engine: W11B16A Type description: R50, R53 Body: Hatchback From date: 01-03-2002 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
      Mini Model: Cooper Model series: Cooper S Size of motor: 1.6 Brand of engine: W11B16A Type description: R50, R53 Body: Hatchback From date: 01-07-2004 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
      Mini Model: Cooper Model series: Cooper S Size of motor: 1.6 Brand of engine: W11B16A Type description: R52 Body: Convertible From date: 01-07-2004 To date: 01-11-2007 Fuel: Gasoline Approved: Yes
      Mini Model: Mini Model series: Mini Size of motor: 1.6 Brand of engine: W11B16A Type description: R50, R53 Body: Hatchback From date: 01-11-2003 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
      Mini Model: Mini Model series: Mini Works Size of motor: 1.6 Brand of engine: W11B16A Type description: R50, R53 Body: Convertible From date: 01-07-2004 To date: 01-11-2007 Fuel: Gasoline Approved: Yes
