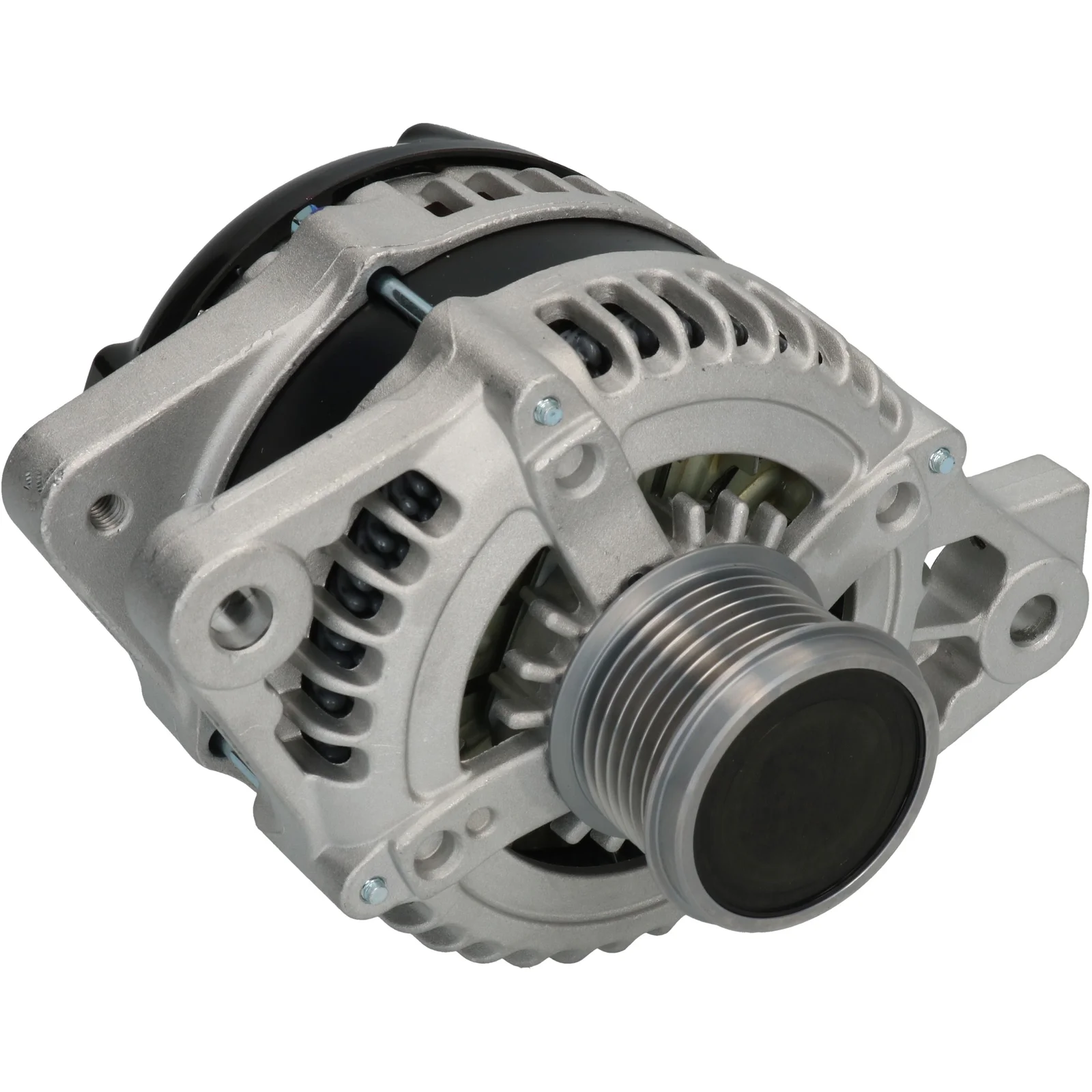

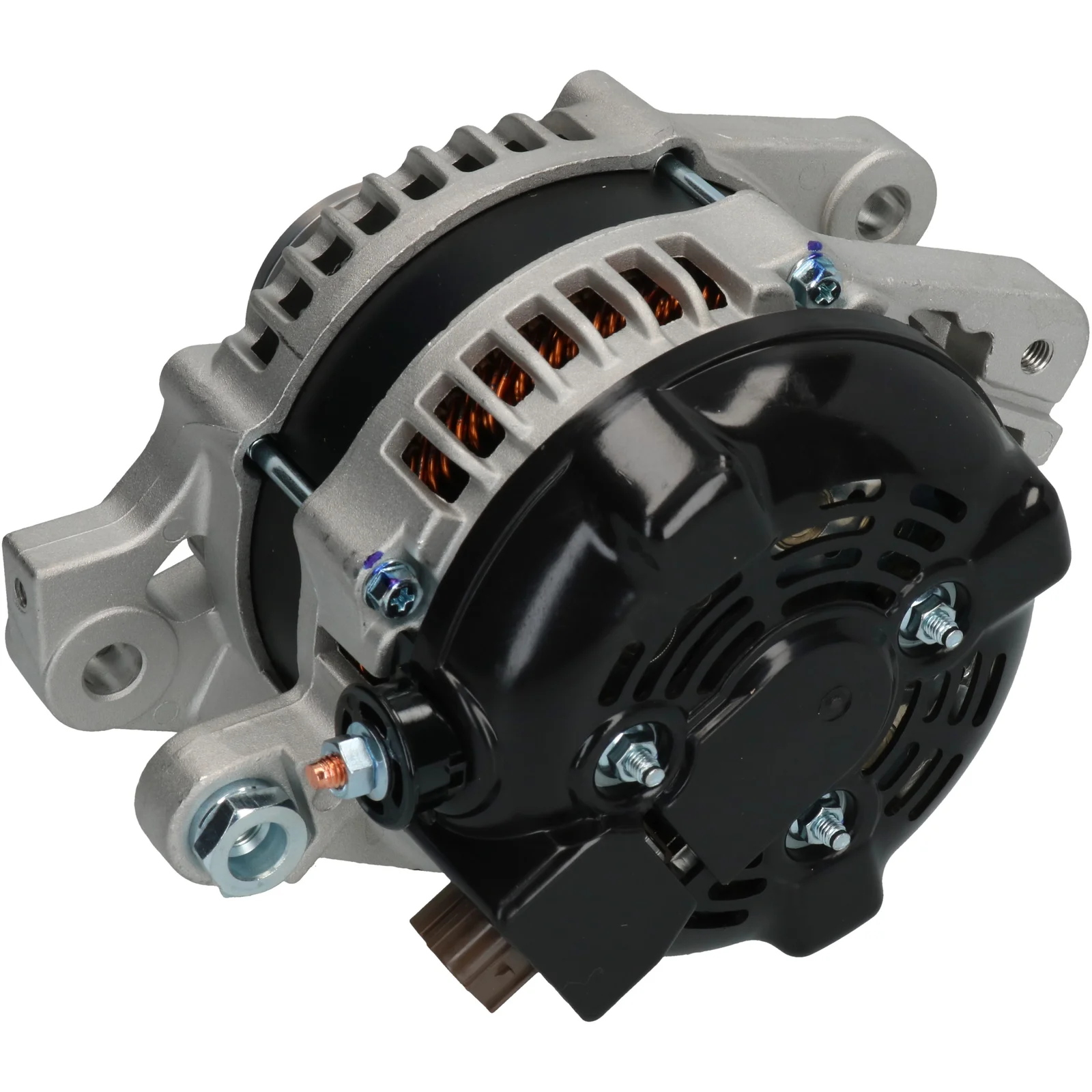

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116469

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbeslag fordeler. bræt.: 33.00

Beskrivelse

Lexus IS 250 Gen. 12V-150A 12V - 150A, 7gr.frg, (RLO, IG, L, M) Passer ikke biler direkteimporteret fra USA! For USA biler bestil 90-555-3106! For Yourex produkt bestil 90-555-3105

Spænding: 14
Ampere: 150
Puley afstand: 38.30
Bredde/holder arm: 18.00
Monteringsbeslag afstand: 33.00
Beslag hul: 11.00
Bælte justering beslag hul pos.: 57
Bælte justering beslag hul 1: 11.00
Bælte justering beslag hul 2: M10
Puley diameter: 52.50
Uddbøjninger/pulley: 7
Radius: 84.00
Radius 2: 90.00
B+: M6
Position/B+ i min.: 3
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL146
Samlet længde mm: 176.00
Terminaltype: RLO
Puley: SP/FW
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M6
Mount. bracket dist. 33.00
Belt. adj. bracket hole 1 11.00
Belt. adj. bracket hole 2 M10
Belt. adj. brackethole pos. 57
Plug no. PL146
Bracket hole 11.00
Position/B+ in min. 3
Pulley SP/FW
Pulley dia. 52.50
Pulley dist. 38.30
Radius 84.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type RLO
Voltage 14
Total length 176.00 mm
Width/holder arm 18.00
Amp 150

  • OEM
    F032116469, 1986A01689, 021080-2440, 27060-31050, 27060-31051, 27060-31052, 27060-31060, 27060-31062, 27060-31201, 27060-31212, 104210-1090, 104210-1091, 104210-2040, 104210-2041, 104210-2050, 104210-2051, 104210-2052, 104210-4670, 104210-4680, 104211-8090, 104211-8092, 116469

  • Konkurrentreferens
    A6323, A6522S, CAL40376, DAN1354, DAN1483, DRA0883, J5112163, LRA03669, LRA04156, 28-6809, 28-7765, 195.957.150, 195.989.150, 535.137.1502, 0986UR6016, 20490R, 113439, 113452, 553706RI, 553862RI, 12060984, 12061063

  • Bilmärken
    Lexus se Toyota, Toyota

  • NormaliseratArtNr
    a6323, a6522s, cal40376, dan1354, dan1483, dra0883, f032116469, j5112163, lra03669, lra04156, 0986ur6016, 1986a01689, 20490r, 113439, 113452, 116469, 286809, 287765, 553706ri, 553862ri, 12060984, 12061063, 195957150, 195989150, 0210802440, 1042101090, 1042101091, 1042102040, 1042102041, 1042102050, 1042102051, 1042102052, 1042104670, 1042104680, 1042118090, 1042118092, 2706031050, 2706031051, 2706031052, 2706031060, 2706031062, 2706031201, 2706031212, 5351371502

  • Passar modeller
    Lexus Model: IS Model series: IS 250 Size of motor: 2.5 Brand of engine: 4GR-FSE From date: 01-08-2005 To date: 01-03-2013 Fuel: Gasoline Approved: Yes
    Lexus Model: IS Model series: IS 250 Size of motor: 2.5 Brand of engine: 4GR-FSE Type description: _XE2_ From date: 01-11-2010 To date: 01-03-2013 Fuel: Gasoline Approved: Yes
    Lexus Model: IS Model series: IS 350 Size of motor: 3.5 Brand of engine: 2GR-FSE Type description: _XE2_ From date: 01-01-2008 To date: 01-03-2013 Fuel: Gasoline Approved: Yes
    Lexus Model: IS Model series: IS Model type: 250 (GSE20_) Size of motor: 2.5 Brand of engine: 4GR-FSE Type description: _E2_ Body: Saloon From date: 01-09-2010 To date: 01-03-2013 Fuel: Petrol Approved: Yes
    Lexus Model: LS Model series: LS 300 Model type: 300 (GSE22_) Size of motor: 3.0 Brand of engine: 3GR-FE Type description: _E2_ Body: Saloon Fuel: Petrol Approved: Yes
    Lexus Model: LS Model series: LS 350 Model type: AWD Size of motor: 3.5 Brand of engine: 2GR-FSE Type description: GSE2_, ALE2_, USE2_ From date: 01-09-2010 To date: 01-03-2013 Fuel: Gasoline Approved: Yes
    Toyota Series: Lexus GS II Model: 300 Engine volume: 3.0 Engine type: 3GR-FSE Year: 01.05-08.07
    Toyota Series: Lexus IS II Model: 250 Engine volume: 2.5 Engine type: 4GR-FSE Year: 08.05-07.08
    1 / 2
  • Beskrivelse
    Lexus IS 250 Gen. 12V-150A 12V - 150A, 7gr.frg, (RLO, IG, L, M) Passer ikke biler direkteimporteret fra USA! For USA biler bestil 90-555-3106! For Yourex produkt bestil 90-555-3105

    Spænding: 14
    Ampere: 150
    Puley afstand: 38.30
    Bredde/holder arm: 18.00
    Monteringsbeslag afstand: 33.00
    Beslag hul: 11.00
    Bælte justering beslag hul pos.: 57
    Bælte justering beslag hul 1: 11.00
    Bælte justering beslag hul 2: M10
    Puley diameter: 52.50
    Uddbøjninger/pulley: 7
    Radius: 84.00
    Radius 2: 90.00
    B+: M6
    Position/B+ i min.: 3
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL146
    Samlet længde mm: 176.00
    Terminaltype: RLO
    Puley: SP/FW
    Fan: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 33.00
    Belt. adj. bracket hole 1 11.00
    Belt. adj. bracket hole 2 M10
    Belt. adj. brackethole pos. 57
    Plug no. PL146
    Bracket hole 11.00
    Position/B+ in min. 3
    Pulley SP/FW
    Pulley dia. 52.50
    Pulley dist. 38.30
    Radius 84.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Terminal type RLO
    Voltage 14
    Total length 176.00 mm
    Width/holder arm 18.00
    Amp 150
  • Køretøjsmatchning

    • OEM
      F032116469, 1986A01689, 021080-2440, 27060-31050, 27060-31051, 27060-31052, 27060-31060, 27060-31062, 27060-31201, 27060-31212, 104210-1090, 104210-1091, 104210-2040, 104210-2041, 104210-2050, 104210-2051, 104210-2052, 104210-4670, 104210-4680, 104211-8090, 104211-8092, 116469

    • Konkurrentreferens
      A6323, A6522S, CAL40376, DAN1354, DAN1483, DRA0883, J5112163, LRA03669, LRA04156, 28-6809, 28-7765, 195.957.150, 195.989.150, 535.137.1502, 0986UR6016, 20490R, 113439, 113452, 553706RI, 553862RI, 12060984, 12061063

    • Bilmärken
      Lexus se Toyota, Toyota

    • NormaliseratArtNr
      a6323, a6522s, cal40376, dan1354, dan1483, dra0883, f032116469, j5112163, lra03669, lra04156, 0986ur6016, 1986a01689, 20490r, 113439, 113452, 116469, 286809, 287765, 553706ri, 553862ri, 12060984, 12061063, 195957150, 195989150, 0210802440, 1042101090, 1042101091, 1042102040, 1042102041, 1042102050, 1042102051, 1042102052, 1042104670, 1042104680, 1042118090, 1042118092, 2706031050, 2706031051, 2706031052, 2706031060, 2706031062, 2706031201, 2706031212, 5351371502

    • Passar modeller
      Lexus Model: IS Model series: IS 250 Size of motor: 2.5 Brand of engine: 4GR-FSE From date: 01-08-2005 To date: 01-03-2013 Fuel: Gasoline Approved: Yes
      Lexus Model: IS Model series: IS 250 Size of motor: 2.5 Brand of engine: 4GR-FSE Type description: _XE2_ From date: 01-11-2010 To date: 01-03-2013 Fuel: Gasoline Approved: Yes
      Lexus Model: IS Model series: IS 350 Size of motor: 3.5 Brand of engine: 2GR-FSE Type description: _XE2_ From date: 01-01-2008 To date: 01-03-2013 Fuel: Gasoline Approved: Yes
      Lexus Model: IS Model series: IS Model type: 250 (GSE20_) Size of motor: 2.5 Brand of engine: 4GR-FSE Type description: _E2_ Body: Saloon From date: 01-09-2010 To date: 01-03-2013 Fuel: Petrol Approved: Yes
      Lexus Model: LS Model series: LS 300 Model type: 300 (GSE22_) Size of motor: 3.0 Brand of engine: 3GR-FE Type description: _E2_ Body: Saloon Fuel: Petrol Approved: Yes
      Lexus Model: LS Model series: LS 350 Model type: AWD Size of motor: 3.5 Brand of engine: 2GR-FSE Type description: GSE2_, ALE2_, USE2_ From date: 01-09-2010 To date: 01-03-2013 Fuel: Gasoline Approved: Yes
      Toyota Series: Lexus GS II Model: 300 Engine volume: 3.0 Engine type: 3GR-FSE Year: 01.05-08.07
      Toyota Series: Lexus IS II Model: 250 Engine volume: 2.5 Engine type: 4GR-FSE Year: 08.05-07.08
      1 / 2
