Vare nr.: F032114364

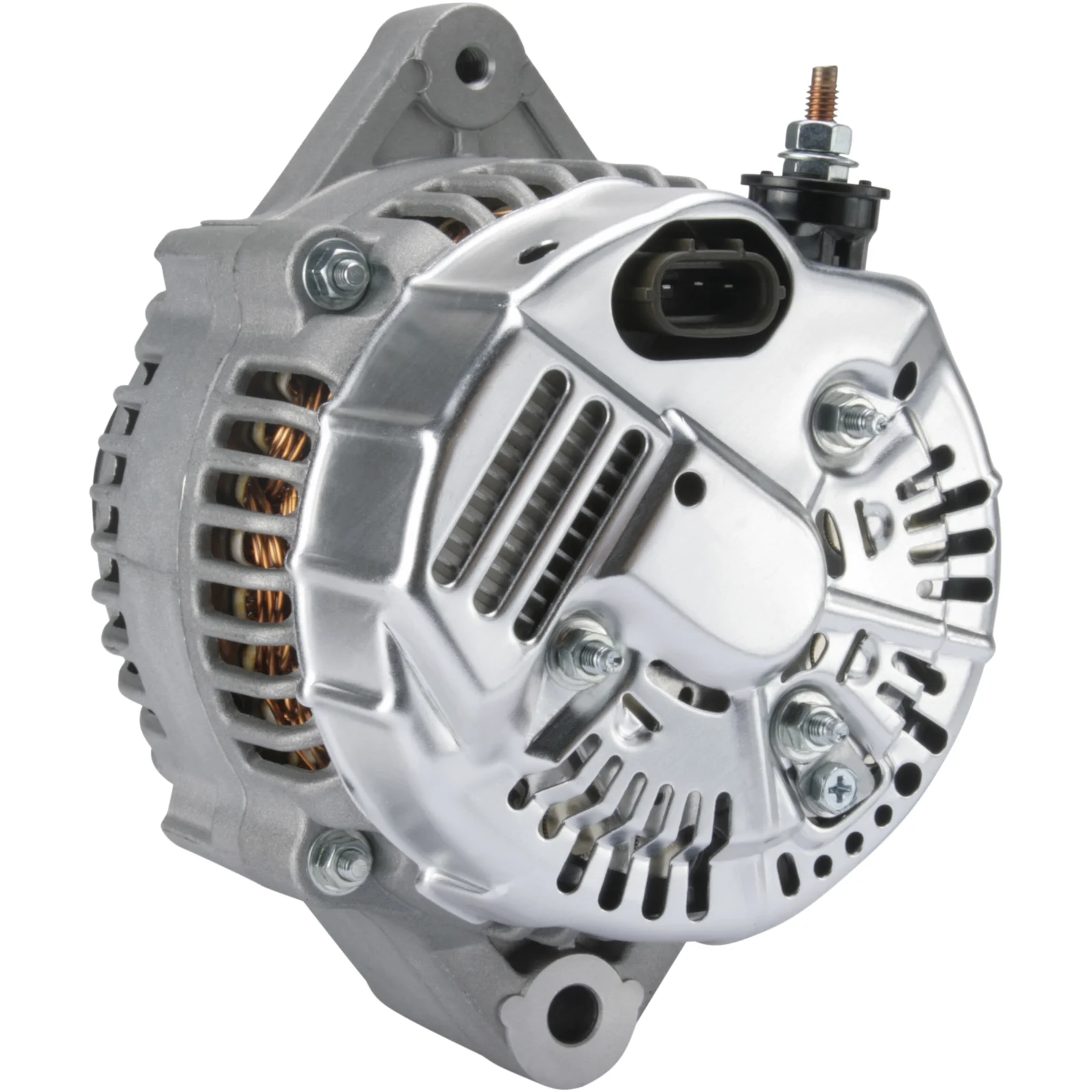

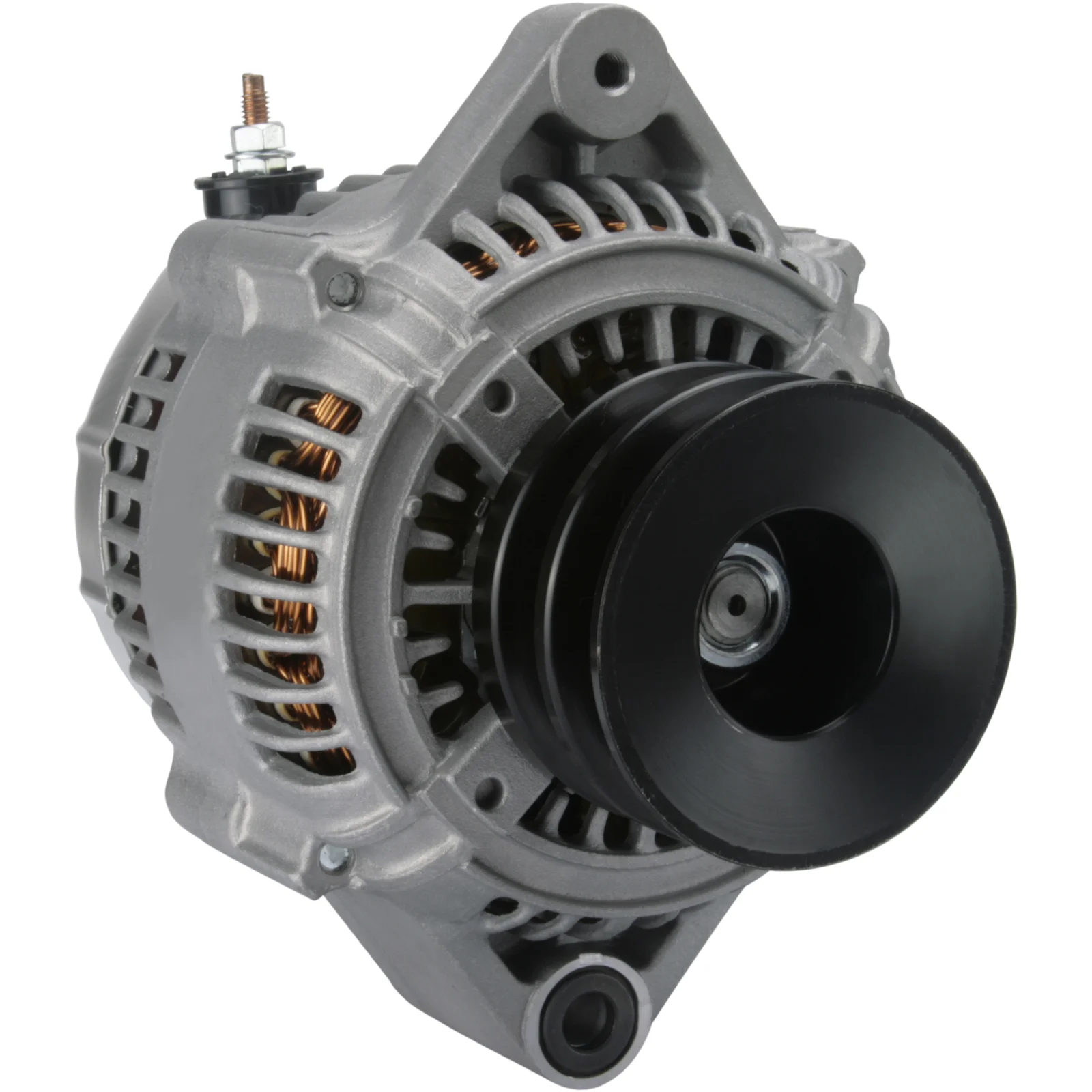

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 28, Amp: 70, Rotation: CW, Remskive diameter: 78,20

Beskrivelse

Spænding: 28
Amp: 70
Remskive dist.: 98.00
Bredde/bæring arm: 58.00
Bøjlehullet: 10.50
Remskivejustering bøjlehullet pos.: 60
Remskivejustering bøjlehullet 1: M8
Remskive dia.: 78.20
Riller/remskive: 2
Radius: 83.00
Radius 2: 86.00
B+: M6
Position/B+ i min.: 3
D+ Størrelse: Propper
Rotation: Med uret
Proppe nr.: PL128
Total længde mm: 184.00
Remskive: DP
Regulators_type: IR
Produktion info: BN

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL128
Bracket hole 10.50
Position/B+ in min. 3
Prod. info BN
Pulley DP
Pulley dia. 78.20
Pulley dist. 98.00
Radius 83.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Grooves/pulley 2
Voltage 28
Total length 184.00 mm
Width/holder arm 58.00
Amp 70
  • OEM

    0R9437, F032114364, or9437, 3E7772, 101211-7920
  • Konkurrentreferens

    A6706S, ALT-6182, DRA0261, F042302142, F042A02142, 12475N, 553028RI
  • NormaliseratArtNr

    0r9437, a6706s, alt6182, dra0261, f032114364, f042302142, f042a02142, or9437, 3e7772, 12475n, 553028ri, 1012117920
  • Passar modeller

    Caterpillar Model: 914G Model series: 914G Model type: Wheel Loader From date: 01-01-1995 To date: 01-01-2003 Approved: Yes
  • Beskrivelse
    Spænding: 28
    Amp: 70
    Remskive dist.: 98.00
    Bredde/bæring arm: 58.00
    Bøjlehullet: 10.50
    Remskivejustering bøjlehullet pos.: 60
    Remskivejustering bøjlehullet 1: M8
    Remskive dia.: 78.20
    Riller/remskive: 2
    Radius: 83.00
    Radius 2: 86.00
    B+: M6
    Position/B+ i min.: 3
    D+ Størrelse: Propper
    Rotation: Med uret
    Proppe nr.: PL128
    Total længde mm: 184.00
    Remskive: DP
    Regulators_type: IR
    Produktion info: BN
  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL128
    Bracket hole 10.50
    Position/B+ in min. 3
    Prod. info BN
    Pulley DP
    Pulley dia. 78.20
    Pulley dist. 98.00
    Radius 83.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 2
    Voltage 28
    Total length 184.00 mm
    Width/holder arm 58.00
    Amp 70
  • Køretøjsmatchning
    • OEM

      0R9437, F032114364, or9437, 3E7772, 101211-7920
    • Konkurrentreferens

      A6706S, ALT-6182, DRA0261, F042302142, F042A02142, 12475N, 553028RI
    • NormaliseratArtNr

      0r9437, a6706s, alt6182, dra0261, f032114364, f042302142, f042a02142, or9437, 3e7772, 12475n, 553028ri, 1012117920
    • Passar modeller

      Caterpillar Model: 914G Model series: 914G Model type: Wheel Loader From date: 01-01-1995 To date: 01-01-2003 Approved: Yes
