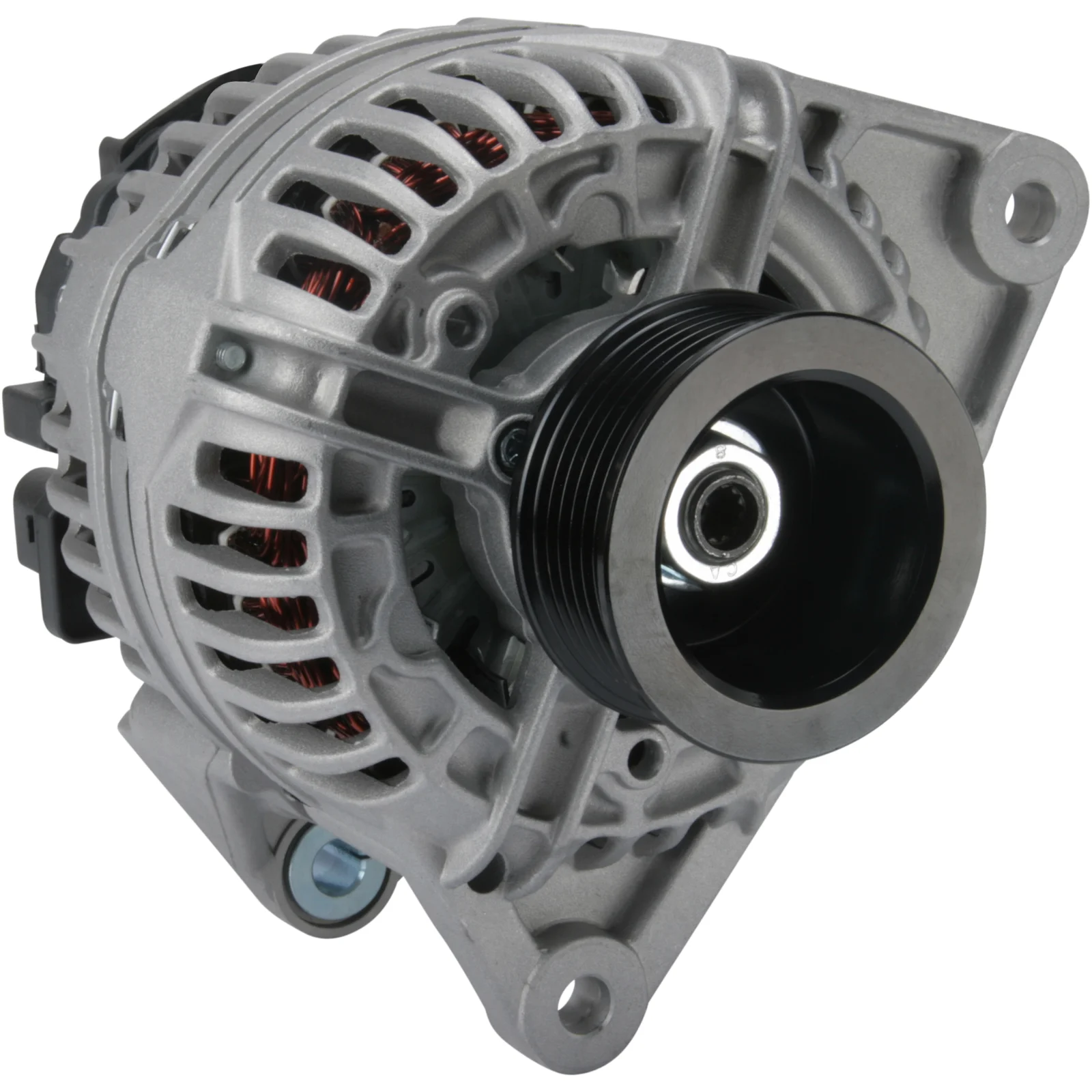

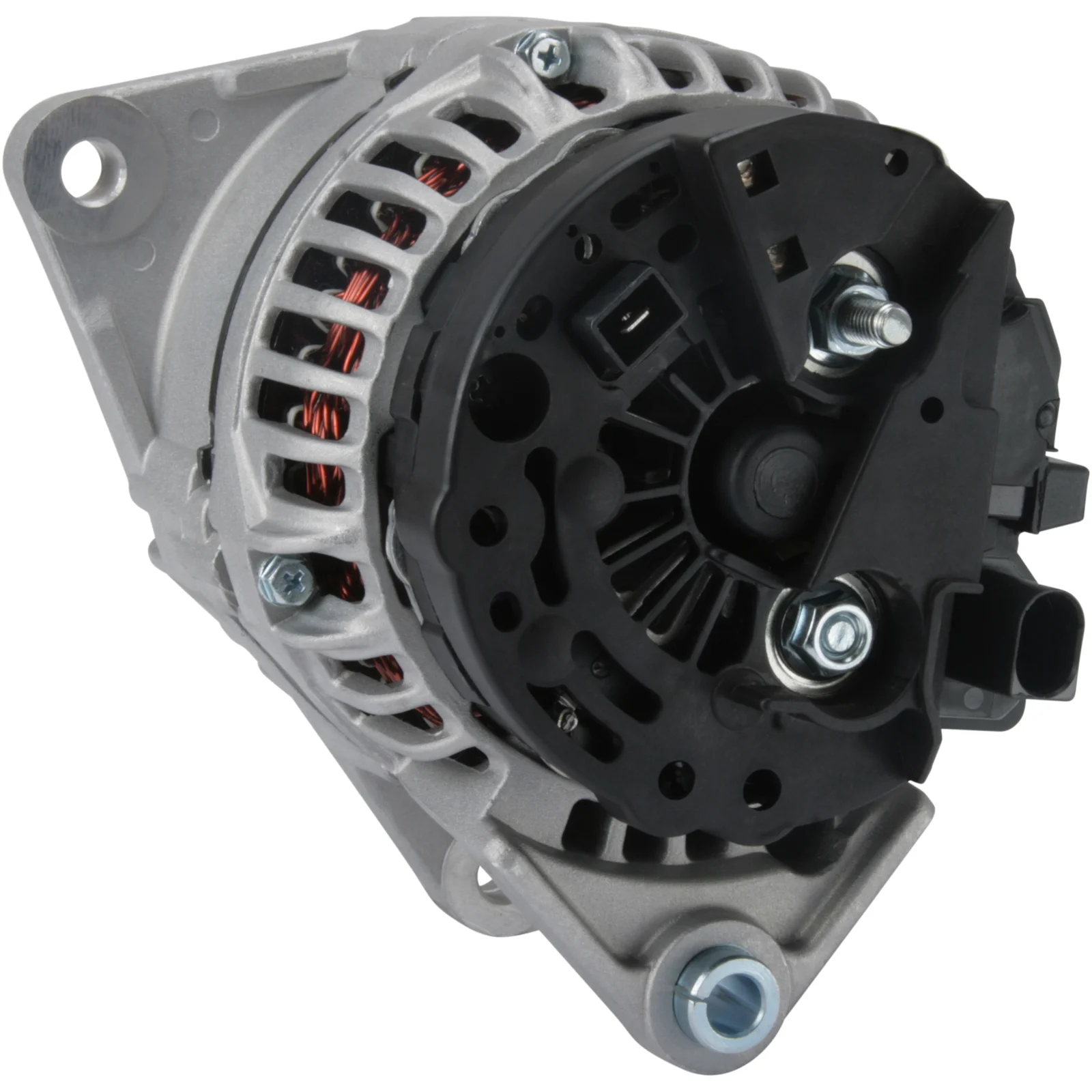

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114701

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 120, Rotation: CW, Montering. bøsning afstand: 80,00

Beskrivelse

N. Holland Generator 12V-120A 12V - 120A, (L, -), W, 8-grasp. skive For / For 2-polet / isoleret se 90-255-5506 For Yourex produkt bestilling 90-398-8007

Spænding: 14
Ampere: 120
Terminal: W
Skive afstand: 47.50
Bredde/holder arm: 14.00
Monteringsbeslag afstanden: 80.00
Beslagshul: 10.60
Bæltejusteringsbeslags hul position: 10
Bæltejusteringsbeslags hul 1: 10.60
Skive diameter: 67.50
Riller/skive: 6
Radius: 94.00
Radius 2: 96.00
B+: M8
Position/B+ i min.: 4
D+ Størrelse: Stik
Rotation: CW
Stik nummer: PL87
W stik type: 6.30
Samlet længde mm: 196.00
Skive: SP
Regulator type: IR
Produktinfo: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 80.00
Belt. adj. bracket hole 1 10.60
Belt. adj. brackethole pos. 10
Plug no. PL87
Bracket hole 10.60
Position/B+ in min. 4
Prod. info BN
Pulley SP
Pulley dia. 67.50
Pulley dist. 47.50
Radius 94.00
D+ Size Plug
Radius 2 96.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Terminal W
Voltage 14
W plug type 6.30
Total length 196.00 mm
Width/holder arm 14.00
Amp 120

  • OEM
    F032114701, 0124 515 113, 0124 515 120, 0986 080 070, 1854ir, 1986A00511, 1986A00530, 1986A00852, 1986A00853, 114701, 1524013R, 2855914, 47129299, 0124510001, 0124515113, 0124515120, 504071135, 504225815, 7700377091

  • Konkurrentreferens
    A0075, A0228, A0712S, CAL10305, CAL10319, CAL10502, DRA0042, DRB4890, 28-4625, 28-4881, 218.313.1202, 230.187.1202, 519.124.1202, 12579N, 111501, 112584, 112724, 202063, 209051, 209051A, 209084, 209084A, 301854RI, 440873, 443237, 553260RI, 12044890, 12090341, 0986044890, 0986080070, 0986080073

  • Bilmärken
    Case IH, Iveco Engines, New Holland

  • NormaliseratArtNr
    a0075, a0228, a0712s, cal10305, cal10319, cal10502, dra0042, drb4890, f032114701, 1854ir, 1986a00511, 1986a00530, 1986a00852, 1986a00853, 12579n, 111501, 112584, 112724, 114701, 202063, 209051, 209051a, 209084, 209084a, 284625, 284881, 301854ri, 440873, 443237, 553260ri, 1524013r, 2855914, 12044890, 12090341, 47129299, 0124510001, 0124515113, 0124515120, 504071135, 504225815, 0986044890, 0986080070, 0986080073, 2183131202, 2301871202, 5191241202, 7700377091

  • Passar modeller
    Case IH Series: Traktor Model: JX 1080U, 1090U, 1100U Year: 01.04-
    Case IH Series: Traktor Model: JX 1085C, 1095C Year: 10.05-
    New Holland Series: Traktor Model: TL 80A, 90A, 100A Year: 01.04-
    Renault Model: Mascott Model series: Mascott Model type: 110 Size of motor: 2.8 Brand of engine: S9W206 Type description: FH_ Body: Box From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault Model: Mascott Model series: Mascott Model type: 110 Size of motor: 2.8 Brand of engine: S9W206 Type description: UH_, HH_ Body: Platform / Chassis From date: 01-01-1999 To date: 01-06-2005 Fuel: Diesel Approved: Yes
    Renault Model: Mascott Model series: Mascott Platform/Chassis Model type: 150 Type of engine: Diesel Size of motor: 2.8 Brand of engine: S9W212 Type description: UH_, HH_ Body: Platform/Chassis From date: 01-08-2002 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault Model: Mascott Model series: Mascott Van Model type: 150 Type of engine: Diesel Size of motor: 2.8 Brand of engine: S9W212 Type description: FH_ Body: Van From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 110.35 Size of motor: 2.8 Brand of engine: 8140.43.B.3586 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 110.35 Size of motor: 2.8 Brand of engine: 8140.43.B.3588 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 110.35 Size of motor: 2.8 Brand of engine: 8140.43.C.2586 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 110.50 Size of motor: 2.8 Brand of engine: 8140.43.B.3586 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 110.50 Size of motor: 2.8 Brand of engine: 8140.43.B.3588 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 110.50 Size of motor: 2.8 Brand of engine: 8140.43.C.2586 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 110.55 Size of motor: 2.8 Brand of engine: 8140.43.B.3586 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 110.55 Size of motor: 2.8 Brand of engine: 8140.43.B.3588 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 110.55 Size of motor: 2.8 Brand of engine: 8140.43.C.2586 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 110.60 Size of motor: 2.8 Brand of engine: 8140.43.B.3586 Type description: Mascott Body: Platform / Chassis From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 110.60 Size of motor: 2.8 Brand of engine: 8140.43.B.3588 Type description: Mascott Body: Platform / Chassis From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 110.60 Size of motor: 2.8 Brand of engine: 8140.43.C.2586 Type description: Mascott Body: Platform / Chassis From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 130.35 Size of motor: 2.8 Brand of engine: 8140.43.S.2585 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 130.35 Size of motor: 2.8 Brand of engine: 8140.43.S.3585 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 130.55 Size of motor: 2.8 Brand of engine: 8140.43.S.2585 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 130.55 Size of motor: 2.8 Brand of engine: 8140.43.S.3585 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 130.65 Size of motor: 2.8 Brand of engine: 8140.43.S.2585 Type description: Mascott Body: Platform / Chassis From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 130.65 Size of motor: 2.8 Brand of engine: 8140.43.S.3585 Type description: Mascott Body: Platform / Chassis From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 140.35 Size of motor: 2.8 Brand of engine: 8140.43k Type description: Mascott Body: Platform / Chassis From date: 01-01-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 140.35 Size of motor: 2.8 Brand of engine: 8140.43k Type description: Mascott Body: Twin Cab From date: 01-01-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 140.55 Size of motor: 2.8 Brand of engine: 8140.43k Type description: Mascott Body: Twin Cab From date: 01-01-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 150.35 Size of motor: 2.8 Brand of engine: 8140.43N.3585 Type description: Mascott Body: Platform / Chassis From date: 01-10-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 150.35 Size of motor: 2.8 Brand of engine: 8140.43N.3585 Type description: Mascott Body: Twin Cab From date: 01-10-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 150.55 Size of motor: 2.8 Brand of engine: 8140.43N.3585 Type description: Mascott Body: Platform / Chassis From date: 01-10-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 150.55 Size of motor: 2.8 Brand of engine: 8140.43N.3585 Type description: Mascott Body: Twin Cab From date: 01-10-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 150.65 Size of motor: 2.8 Brand of engine: 8140.43N.3585 Type description: Mascott Body: Twin Cab From date: 01-10-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 90.35 Size of motor: 2.8 Brand of engine: 8140.63.2585 Type description: Mascott Body: Platform / Chassis From date: 01-01-1999 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 90.35 Size of motor: 2.8 Brand of engine: 8140.63.2585 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    1 / 7
  • Beskrivelse
    N. Holland Generator 12V-120A 12V - 120A, (L, -), W, 8-grasp. skive For / For 2-polet / isoleret se 90-255-5506 For Yourex produkt bestilling 90-398-8007

    Spænding: 14
    Ampere: 120
    Terminal: W
    Skive afstand: 47.50
    Bredde/holder arm: 14.00
    Monteringsbeslag afstanden: 80.00
    Beslagshul: 10.60
    Bæltejusteringsbeslags hul position: 10
    Bæltejusteringsbeslags hul 1: 10.60
    Skive diameter: 67.50
    Riller/skive: 6
    Radius: 94.00
    Radius 2: 96.00
    B+: M8
    Position/B+ i min.: 4
    D+ Størrelse: Stik
    Rotation: CW
    Stik nummer: PL87
    W stik type: 6.30
    Samlet længde mm: 196.00
    Skive: SP
    Regulator type: IR
    Produktinfo: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 80.00
    Belt. adj. bracket hole 1 10.60
    Belt. adj. brackethole pos. 10
    Plug no. PL87
    Bracket hole 10.60
    Position/B+ in min. 4
    Prod. info BN
    Pulley SP
    Pulley dia. 67.50
    Pulley dist. 47.50
    Radius 94.00
    D+ Size Plug
    Radius 2 96.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Terminal W
    Voltage 14
    W plug type 6.30
    Total length 196.00 mm
    Width/holder arm 14.00
    Amp 120
  • Køretøjsmatchning

    • OEM
      F032114701, 0124 515 113, 0124 515 120, 0986 080 070, 1854ir, 1986A00511, 1986A00530, 1986A00852, 1986A00853, 114701, 1524013R, 2855914, 47129299, 0124510001, 0124515113, 0124515120, 504071135, 504225815, 7700377091

    • Konkurrentreferens
      A0075, A0228, A0712S, CAL10305, CAL10319, CAL10502, DRA0042, DRB4890, 28-4625, 28-4881, 218.313.1202, 230.187.1202, 519.124.1202, 12579N, 111501, 112584, 112724, 202063, 209051, 209051A, 209084, 209084A, 301854RI, 440873, 443237, 553260RI, 12044890, 12090341, 0986044890, 0986080070, 0986080073

    • Bilmärken
      Case IH, Iveco Engines, New Holland

    • NormaliseratArtNr
      a0075, a0228, a0712s, cal10305, cal10319, cal10502, dra0042, drb4890, f032114701, 1854ir, 1986a00511, 1986a00530, 1986a00852, 1986a00853, 12579n, 111501, 112584, 112724, 114701, 202063, 209051, 209051a, 209084, 209084a, 284625, 284881, 301854ri, 440873, 443237, 553260ri, 1524013r, 2855914, 12044890, 12090341, 47129299, 0124510001, 0124515113, 0124515120, 504071135, 504225815, 0986044890, 0986080070, 0986080073, 2183131202, 2301871202, 5191241202, 7700377091

    • Passar modeller
      Case IH Series: Traktor Model: JX 1080U, 1090U, 1100U Year: 01.04-
      Case IH Series: Traktor Model: JX 1085C, 1095C Year: 10.05-
      New Holland Series: Traktor Model: TL 80A, 90A, 100A Year: 01.04-
      Renault Model: Mascott Model series: Mascott Model type: 110 Size of motor: 2.8 Brand of engine: S9W206 Type description: FH_ Body: Box From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault Model: Mascott Model series: Mascott Model type: 110 Size of motor: 2.8 Brand of engine: S9W206 Type description: UH_, HH_ Body: Platform / Chassis From date: 01-01-1999 To date: 01-06-2005 Fuel: Diesel Approved: Yes
      Renault Model: Mascott Model series: Mascott Platform/Chassis Model type: 150 Type of engine: Diesel Size of motor: 2.8 Brand of engine: S9W212 Type description: UH_, HH_ Body: Platform/Chassis From date: 01-08-2002 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault Model: Mascott Model series: Mascott Van Model type: 150 Type of engine: Diesel Size of motor: 2.8 Brand of engine: S9W212 Type description: FH_ Body: Van From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 110.35 Size of motor: 2.8 Brand of engine: 8140.43.B.3586 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 110.35 Size of motor: 2.8 Brand of engine: 8140.43.B.3588 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 110.35 Size of motor: 2.8 Brand of engine: 8140.43.C.2586 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 110.50 Size of motor: 2.8 Brand of engine: 8140.43.B.3586 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 110.50 Size of motor: 2.8 Brand of engine: 8140.43.B.3588 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 110.50 Size of motor: 2.8 Brand of engine: 8140.43.C.2586 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 110.55 Size of motor: 2.8 Brand of engine: 8140.43.B.3586 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 110.55 Size of motor: 2.8 Brand of engine: 8140.43.B.3588 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 110.55 Size of motor: 2.8 Brand of engine: 8140.43.C.2586 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 110.60 Size of motor: 2.8 Brand of engine: 8140.43.B.3586 Type description: Mascott Body: Platform / Chassis From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 110.60 Size of motor: 2.8 Brand of engine: 8140.43.B.3588 Type description: Mascott Body: Platform / Chassis From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 110.60 Size of motor: 2.8 Brand of engine: 8140.43.C.2586 Type description: Mascott Body: Platform / Chassis From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 130.35 Size of motor: 2.8 Brand of engine: 8140.43.S.2585 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 130.35 Size of motor: 2.8 Brand of engine: 8140.43.S.3585 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 130.55 Size of motor: 2.8 Brand of engine: 8140.43.S.2585 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 130.55 Size of motor: 2.8 Brand of engine: 8140.43.S.3585 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 130.65 Size of motor: 2.8 Brand of engine: 8140.43.S.2585 Type description: Mascott Body: Platform / Chassis From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 130.65 Size of motor: 2.8 Brand of engine: 8140.43.S.3585 Type description: Mascott Body: Platform / Chassis From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 140.35 Size of motor: 2.8 Brand of engine: 8140.43k Type description: Mascott Body: Platform / Chassis From date: 01-01-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 140.35 Size of motor: 2.8 Brand of engine: 8140.43k Type description: Mascott Body: Twin Cab From date: 01-01-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 140.55 Size of motor: 2.8 Brand of engine: 8140.43k Type description: Mascott Body: Twin Cab From date: 01-01-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 150.35 Size of motor: 2.8 Brand of engine: 8140.43N.3585 Type description: Mascott Body: Platform / Chassis From date: 01-10-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 150.35 Size of motor: 2.8 Brand of engine: 8140.43N.3585 Type description: Mascott Body: Twin Cab From date: 01-10-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 150.55 Size of motor: 2.8 Brand of engine: 8140.43N.3585 Type description: Mascott Body: Platform / Chassis From date: 01-10-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 150.55 Size of motor: 2.8 Brand of engine: 8140.43N.3585 Type description: Mascott Body: Twin Cab From date: 01-10-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 150.65 Size of motor: 2.8 Brand of engine: 8140.43N.3585 Type description: Mascott Body: Twin Cab From date: 01-10-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 90.35 Size of motor: 2.8 Brand of engine: 8140.63.2585 Type description: Mascott Body: Platform / Chassis From date: 01-01-1999 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 90.35 Size of motor: 2.8 Brand of engine: 8140.63.2585 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      1 / 7
