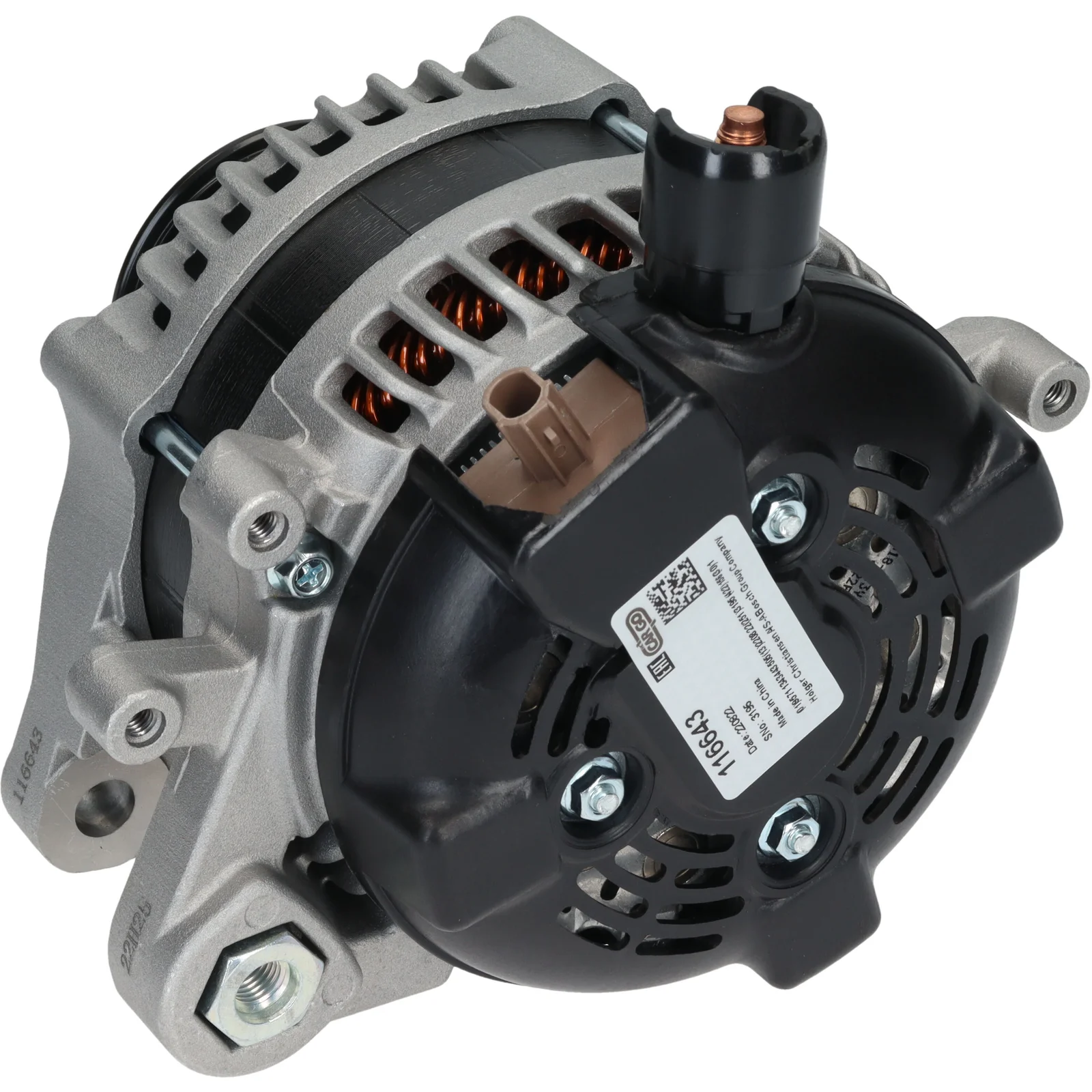

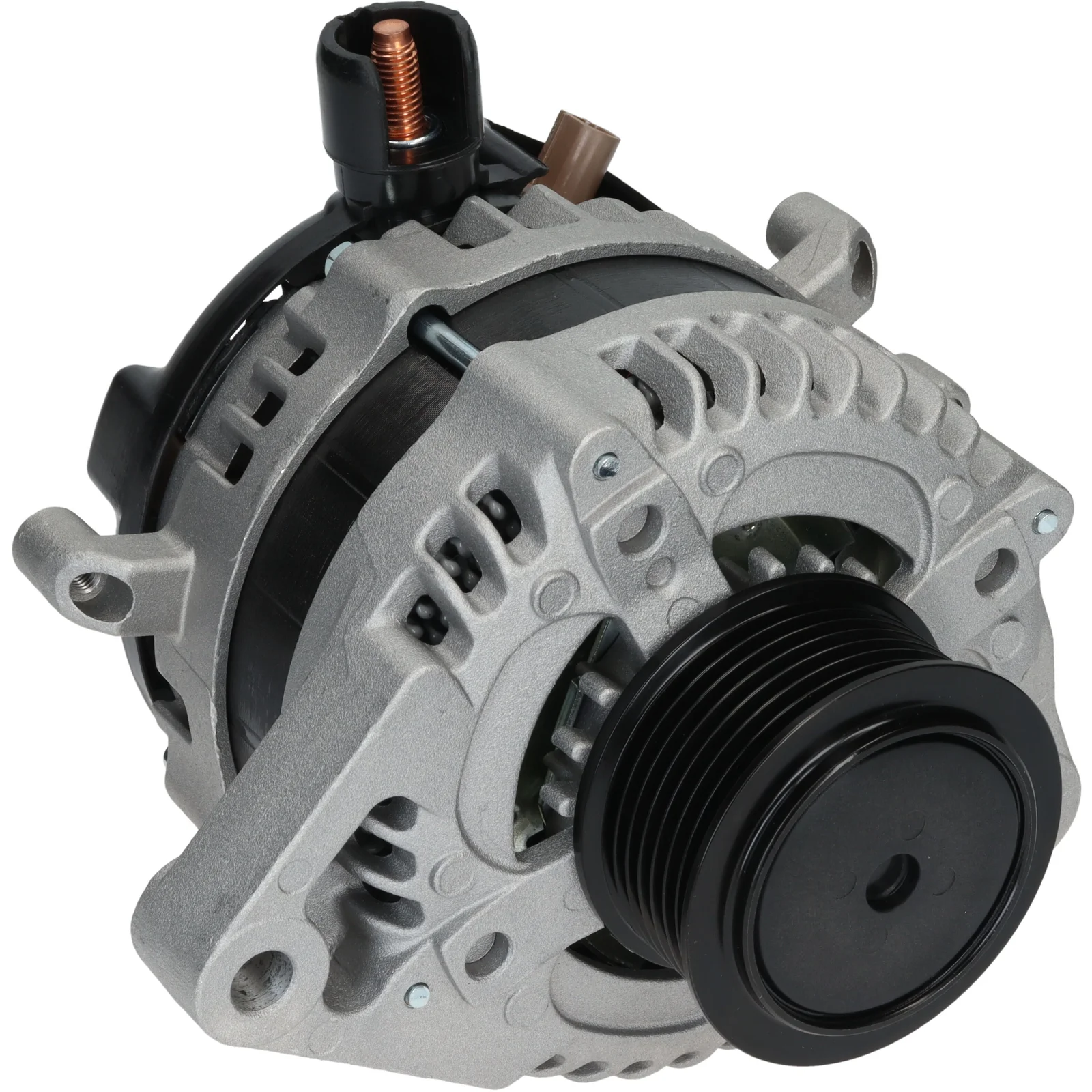

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116643

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbeslag afstand: 35.00

Beskrivelse

Generator 12V-150A 12V - 150A, 7gr.frg, (LIN) ID-kode 244 Til Yourex produktordre 90-222-4828

Spænding: 14
Ampere: 150
Remskiven afstand: 42,50
Bredde/holder arm: 15,00
Montagebeslag afstand: 35,00
Beslagshul: 11,00
Bælte just. beslagshul pos.: 53
Bælte just. beslagshul 1: 10,50
Remskive dia.: 65,00
Riller/remskive: 7
Radius: 86,00
Radius 2: 87,50
B+: M8
Position/B+ i min.: 50
Rotation: CW
Stik nr.: PL205
Total længde mm: 165,00
Terminaltype: COM
Communication: LIN
Køler: IF
Regulator type: IR
Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at tjekke egnethed, inden der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 35.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 53
Plug no. PL205
Bracket hole 11.00
Position/B+ in min. 50
Pulley dia. 65.00
Pulley dist. 42.50
Radius 86.00
Radius 2 87.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 165.00 mm
Width/holder arm 15.00
Amp 150

  • OEM
    CSK 04, CSK 28, CSK04, CSK28, F032116643, MAN 7587, 31100-59N-G01, 31100-RSX-G01, 31100-RSXG01, 31100-RZ0-G01, 31100-RZ0G01, 104211-8040, 104211-8280, 116643, 19084020, 63377587

  • Konkurrentreferens
    A6667S, CAL40401, CAL40401GS, CAL40438, DAN1122, DAN1326, DRA1352, DRA1483, LRA03992, 8EL015630-821, 28-7602, 125.568.150, 222.168.1502, 209300, 209300A, 554201RI, 554201RID, 554464RI, 12061214, 0986085000

  • Bilmärken
    Honda

  • NormaliseratArtNr
    a6667s, cal40401, cal40401gs, cal40438, csk04, csk28, dan1122, dan1326, dra1352, dra1483, f032116643, lra03992, man7587, 8el015630821, 31100rsxg01, 31100rz0g01, 116643, 209300, 209300a, 287602, 554201ri, 554201rid, 554464ri, 3110059ng01, 12061214, 19084020, 63377587, 125568150, 0986085000, 1042118040, 1042118280, 2221681502

  • Passar modeller
    Honda Model: Civic Model series: Civic Type of engine: i-DTEC Size of motor: 1.6 Brand of engine: N16A1 Type description: FK Body: Estate From date: 01-01-2014 Fuel: Diesel Approved: Yes Manufacture type: Tourer
    Honda Model: Civic Model series: Civic Type of engine: i-DTEC Size of motor: 1.6 Brand of engine: N16A1 Type description: FK, FB, FG Body: Hatchback From date: 01-02-2013 Fuel: Diesel Approved: Yes
    Honda Model: CR-V Model series: CR-V Model type: 4WD Type of engine: Diesel Size of motor: 1.6 Brand of engine: N16A4 Type description: RE From date: 01-02-2015 Fuel: Diesel Approved: Yes
    Honda Model: CR-V Model series: CR-V Type of engine: i-DTEC Size of motor: 1.6 Brand of engine: N16A1 Type description: RE, RM_ Body: SUV From date: 01-10-2013 Fuel: Diesel Approved: Yes
    Honda Model: HR-V Model series: HR-V Type of engine: i-DTEC Size of motor: 1.6 Brand of engine: N16A3 Type description: RU From date: 01-08-2015 Fuel: Diesel Approved: Yes
    Honda Series: Civic IX Model: 1.6 i-DTEC Engine volume: 1.6 Engine type: N 16 A 1 Year: 02.13-
    Honda Series: Civic IX Tourer Model: 1.6 i-DTEC Engine volume: 1.6 Engine type: N 16 A 1 Year: 01.14-
    Honda Series: CR-V IV Model: 1.6 i-DTEC Engine volume: 1.6 Engine type: N 16 A 1 Year: 10.13-
    Honda Series: CR-V IV Model: 1.6i-DTEC 4WD Engine volume: 1.6 Engine type: N16A4 Year: 02.15-
    Honda Series: HR-V (RU) Model: 1.6 i-DTEC (RU8) Engine volume: 1.6 Engine type: N16A3 Year: 8.15-
