Vare nr.: F032110168

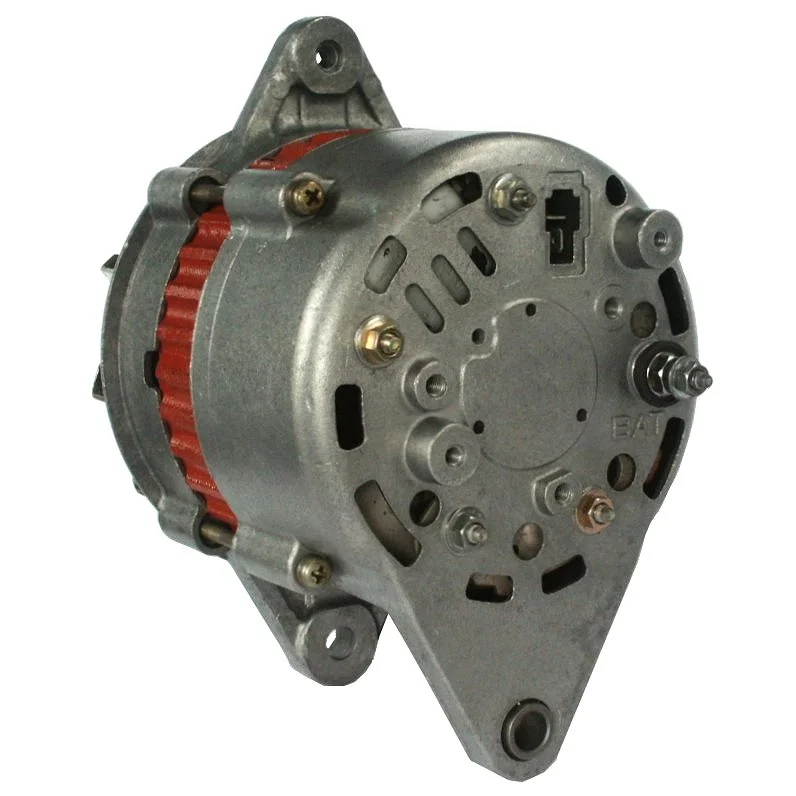

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 50, Rotation: CW, Monteringsbeslag fordeler: 81,00

Beskrivelse

Nissan Generator 12V-50A 12V - 50A, 1V remskive. (S, L) For Yourex produktbestilling 90-400-0017

Spænding: 14
Ampere: 50
Remskivesp. afstand: 42,50
Bredde/holderarm: 13,00
Monteringsbeslag afstand: 81,00
Beslagshul: 10,00
Remjusteringsbeslag hulpos.: 60
Remjusteringsbeslag hul 1: M8
Remskive dia.: 72,00
Riller/remskive: 1
Radii: 88,50
Radius 2: 85,00
B+: M5
Position/B+ i min.: 15
Rotation: CW
Stiknummer: PL08
Samlet længde mm: 171,00
Remskive: P
Regulator type: IR
Produktinfo: BN
Service: Nissan

Specifikation

B+ M5
Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL08
Bracket hole 10.00
Position/B+ in min. 15
Prod. info BN
Pulley P
Pulley dia. 72.00
Pulley dist. 42.50
Radius 88.50
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 1
Voltage 14
Total length 171.00 mm
Width/holder arm 13.00
Amp 50
  • OEM

    A002T22871, A002T24172, A002T24272, A002T24971, A002T24972, A005T00272, A005T20374, A005T20871, A005T20872, A005T20972, A005T21871, a2t17172, a2t22871, a2t24072, a2t24172, a2t24272, a2t24372, a2t24971, a2t24972, A5T-00272, a5t00272, a5t20374, a5t20871, a5t20872, a5t20972, a5t21871, AQ 2050, AQ 2250C, aq2050a24, aq2050n12, aq2250c2, aq2250d32, B310M10B10EX, F032110168, F032110267, ja104ir, LR 150-125, LR 150-125A, LR 150-36, LR 150-50, LR 150-66, LR 150-67, LR135-44, lr150-100, lr150-101, LR150-101B, lr150-101b, lr150-125, lr150-125b, lr150-177, lr150-31, lr150-35, lr150-36, lr150-50, lr150-52, lr150-53, lr150-58, lr150-66, lr150-67, LR150-98, lr150-98, LR150-98B, lr150-98b, lr150-98e, LR150-99, lr150-99, LR150-99B, lr150-99b, LR160-46, LRA 348, N221-18-300, N221-18-300C, N221-18-300XA, 0986 032 651, 23100-01N13, 23100-05b10, 23100-10B10, 23100-10b10, 23100-10W01, 23100-27g00, 23100-27g10, 23100-h7700, 23100-h7701, 23100-h7702, 23100-h7703, 23100-h7710, 23100-h7711, 23100-m5960, 23100-M6600, 23100-m6600, 23100-M6601, 23100-m6601, 23100-M6610, 23100-m6610, 23100-N8500, 23100-n9500, 23100-N9501, 23100-n9502, 23100-n9510, 23100-n9511, 23100-N9512, 23100-n9512, 23100-P2506, 23100-Q4500, 23100-q4501, 23100-q4511, 23100-R2003, 23100-r9011, 23100-U6505, 23100-u9500, 23100-u9501, 23100-u9502, 23100-u9503, 23100-u9510, 23100-u9511, 23100-u9512, 23100-u9513, 23100-V5803, 23100-V5811, 23100-W1705, 23100-W1706, 23100-W1708, 23100-W1806, 23100-W1807, 23100-w5800, 23100-w5801, 23100-w5802, 23100-w5803, 23100-w5805, 23100-w5806, 23100-w5807, 23100-w5807l, 23100-w5807r, 23100-w5810, 23100-w5811, 23100-w5816, 23100-w7015, 23100-w7100, 23100-w7101, 23100-w7110, 23100-w7111, 110168, 110267, 1516835R, 1516878R
  • Konkurrentreferens

    A2036, A2065, a382, a8072, ad-0023r, ada-324, ada-327, ada-331, ahi0043, AL238X, ALT31021, ALT32050, ama-362, BAO3071, BAO3071R, CAL45100, da14255, da14300, da14587, dra2651, dra2661, dra2681, dra3471, dra5161, FRA623, lra00251, lra00348, lra00349, lra00399, lra00452, lra00516, LRA01176, QA0449, va221, va225, va226, va227, va230, 1-1109-01HI, 1-1567-01HI, 8el726260-001, 13-8179, 13-8181, 13-8501, 24-51.305, 28-0522, 28-0563, 28-0696, 28-0827, 28-0857, 28-1534, 28-51.103, 28-51.111, 28-51.116, 28-51.122, 29-1530, 90-25-1011, 224.102.502, 227.101.502, 227.102.502, 227.102.552, 227.102.602, 3171, 12079, 14092R, 14185, 14255N, 14255R, 14299, 14303, 14587, 14589, 14647, 21337, 40104RI, 55783, 55793, 55794, 56203, 118137, 118140, 118172, 118283, 210105, 210105A, 436505, 436506, 436549, 12060218, 12060221, 12060294, 0986032621, 0986032651, 0986032661, 0986032681, 0986033431, 0986035401, 943346080010, 943356932010
  • Bilmärken

    Nissan
  • NormaliseratArtNr

    a002t22871, a002t24172, a002t24272, a002t24971, a002t24972, a005t00272, a005t20374, a005t20871, a005t20872, a005t20972, a005t21871, a2036, a2065, a2t17172, a2t22871, a2t24072, a2t24172, a2t24272, a2t24372, a2t24971, a2t24972, a382, a5t00272, a5t20374, a5t20871, a5t20872, a5t20972, a5t21871, a8072, ad0023r, ada324, ada327, ada331, ahi0043, al238x, alt31021, alt32050, ama362, aq2050, aq2050a24, aq2050n12, aq2250c, aq2250c2, aq2250d32, b310m10b10ex, bao3071, bao3071r, cal45100, da14255, da14300, da14587, dra2651, dra2661, dra2681, dra3471, dra5161, f032110168, f032110267, fra623, ja104ir, lr13544, lr150100, lr150101, lr150101b, lr150125, lr150125a, lr150125b, lr150177, lr15031, lr15035, lr15036, lr15050, lr15052, lr15053, lr15058, lr15066, lr15067, lr15098, lr15098b, lr15098e, lr15099, lr15099b, lr16046, lra00251, lra00348, lra00349, lra00399, lra00452, lra00516, lra01176, lra348, n22118300, n22118300c, n22118300xa, qa0449, va221, va225, va226, va227, va230, 8el726260001, 3171, 12079, 14092r, 14185, 14255n, 14255r, 14299, 14303, 14587, 14589, 14647, 21337, 23100h7700, 23100h7701, 23100h7702, 23100h7703, 23100h7710, 23100h7711, 23100m5960, 23100m6600, 23100m6601, 23100m6610, 23100n8500, 23100n9500, 23100n9501, 23100n9502, 23100n9510, 23100n9511, 23100n9512, 23100p2506, 23100q4500, 23100q4501, 23100q4511, 23100r2003, 23100r9011, 23100u6505, 23100u9500, 23100u9501, 23100u9502, 23100u9503, 23100u9510, 23100u9511, 23100u9512, 23100u9513, 23100v5803, 23100v5811, 23100w1705, 23100w1706, 23100w1708, 23100w1806, 23100w1807, 23100w5800, 23100w5801, 23100w5802, 23100w5803, 23100w5805, 23100w5806, 23100w5807, 23100w5807l, 23100w5807r, 23100w5810, 23100w5811, 23100w5816, 23100w7015, 23100w7100, 23100w7101, 23100w7110, 23100w7111, 40104ri, 55783, 55793, 55794, 56203, 110168, 110267, 118137, 118140, 118172, 118283, 138179, 138181, 138501, 210105, 210105a, 280522, 280563, 280696, 280827, 280857, 281534, 291530, 436505, 436506, 436549, 1110901hi, 1156701hi, 1516835r, 1516878r, 2310001n13, 2310005b10, 2310010b10, 2310010w01, 2310027g00, 2310027g10, 2451305, 2851103, 2851111, 2851116, 2851122, 12060218, 12060221, 12060294, 90251011, 224102502, 227101502, 227102502, 227102552, 227102602, 0986032621, 0986032651, 0986032661, 0986032681, 0986033431, 0986035401, 943346080010, 943356932010
  • Passar modeller

    Nissan Model: 200 Model series: 200SX Size of motor: 2.0 Brand of engine: Z20E From date: 01-01-1980 To date: 01-01-1981 Fuel: Gasoline Approved: Yes
    Nissan Model: 200 Model series: 200SX Size of motor: 2.2 Brand of engine: Z22E From date: 01-01-1982 To date: 01-01-1983 Fuel: Gasoline Approved: Yes
    Nissan Model: 510 Model series: 510 Size of motor: 2.0 Brand of engine: L20B From date: 01-01-1978 To date: 01-01-1979 Fuel: Gasoline Approved: Yes
    Nissan Model: 510 Model series: 510 Size of motor: 2.0 Brand of engine: Z20S From date: 01-01-1980 To date: 01-01-1981 Fuel: Gasoline Approved: Yes
    Nissan Model: 720 Model series: 720 Size of motor: 2.0 Brand of engine: Z20 Body: Pick Up From date: 01-01-1983 To date: 01-01-1985 Fuel: Gasoline Approved: Yes
    Nissan Model: 720 Model series: 720 Size of motor: 2.2 Brand of engine: Z22 Body: Pick Up From date: 01-01-1981 To date: 01-01-1982 Fuel: Gasoline Approved: Yes
    Nissan Model: 720 Model series: 720 Size of motor: 2.2 Brand of engine: Z22 Body: Pick Up From date: 01-01-1983 Fuel: Gasoline Approved: Yes
    Nissan Model: 720 Model series: 720 Size of motor: 2.4 Brand of engine: Z24 Body: Pick Up From date: 01-01-1983 To date: 01-01-1985 Fuel: Gasoline Approved: Yes
    Nissan Model: Bluebird Model series: Bluebird Size of motor: 1.8 Brand of engine: L18S Type description: 910 From date: 01-01-1980 To date: 01-12-1983 Fuel: Gasoline Approved: Yes
    Nissan Model: Bluebird Model series: Bluebird Size of motor: 1.8 Brand of engine: L18S Type description: W910 Body: Estate From date: 01-01-1980 To date: 01-05-1984 Fuel: Gasoline Approved: Yes
    Nissan Model: Bluebird Model series: Bluebird Size of motor: 1.8 Brand of engine: L18T Type description: 910 Body: Coupe From date: 01-01-1980 To date: 01-05-1984 Fuel: Gasoline Approved: Yes
    Nissan Model: Bluebird Model series: Bluebird Type of engine: i Size of motor: 2.0 Brand of engine: Z20E Type description: 910 From date: 01-01-1982 To date: 01-12-1983 Fuel: Gasoline Approved: Yes
    Nissan Model: Cherry Model series: Cherry Size of motor: 1.0 Brand of engine: A10S Type description: N10 Body: Hatchback From date: 01-08-1978 To date: 01-07-1981 Fuel: Gasoline Approved: Yes
    Nissan Model: Cherry Model series: Cherry Size of motor: 1.0 Brand of engine: E10 Type description: N12 Body: Hatchback From date: 01-05-1982 To date: 01-05-1986 Fuel: Gasoline Approved: Yes
    Nissan Model: Cherry Model series: Cherry Size of motor: 1.3 Brand of engine: E13 Type description: N10 Body: Coupe From date: 01-08-1981 To date: 01-09-1982 Fuel: Gasoline Approved: Yes
    Nissan Model: Cherry Model series: Cherry Size of motor: 1.3 Brand of engine: E13 Type description: N10 Body: Hatchback From date: 01-08-1981 To date: 01-09-1982 Fuel: Gasoline Approved: Yes
    Nissan Model: Cherry Model series: Cherry Size of motor: 1.3 Brand of engine: E13 Type description: N12 Body: Hatchback From date: 01-05-1982 To date: 01-10-1986 Fuel: Gasoline Approved: Yes
    Nissan Model: Cherry Model series: Cherry Size of motor: 1.3 Brand of engine: E13 Type description: VN10 Body: Estate From date: 01-09-1981 To date: 01-12-1983 Fuel: Gasoline Approved: Yes
    Nissan Model: Cherry Model series: Cherry Size of motor: 1.4 Brand of engine: A14S Type description: N10 Body: Coupe From date: 01-08-1980 To date: 01-07-1981 Fuel: Gasoline Approved: Yes
    Nissan Model: Cherry Model series: Cherry Size of motor: 1.4 Brand of engine: A14S Type description: VN10 Body: Estate From date: 01-08-1980 To date: 01-07-1981 Fuel: Gasoline Approved: Yes
    Nissan Model: Cherry Model series: Cherry Size of motor: 1.5 Brand of engine: E15 Type description: N10 Body: Hatchback From date: 01-08-1981 To date: 01-12-1982 Fuel: Gasoline Approved: Yes
    Nissan Model: Cherry Model series: Cherry Size of motor: 1.5 Brand of engine: E15S Type description: N12 Body: Hatchback From date: 01-11-1983 To date: 01-10-1986 Fuel: Gasoline Approved: Yes
    Nissan Model: Cherry Model series: Cherry Type of engine: i.e. Size of motor: 1.4 Brand of engine: A14S Type description: N10 Body: Hatchback From date: 01-08-1980 To date: 01-07-1981 Fuel: Gasoline Approved: Yes
    Nissan Model: King Cab Model series: King Cab Size of motor: 1.6 Brand of engine: Z16 Type description: FG21 From date: 01-01-1989 Fuel: Gasoline Approved: Yes
    Nissan Model: King Cab Model series: King Cab Size of motor: 2.0 Brand of engine: Z20 Type description: D21 From date: 01-09-1985 To date: 01-02-1998 Fuel: Gasoline Approved: Yes
    Nissan Model: King Cab Model series: King Cab Size of motor: 2.0 Brand of engine: Z20 Type description: FG21 From date: 01-01-1989 Fuel: Gasoline Approved: Yes
    Nissan Model: King Cab Model series: King Cab Type of engine: Diesel Size of motor: 2.4 Brand of engine: Z24 Type description: D21 From date: 01-09-1985 To date: 01-04-1992 Fuel: Gasoline Approved: Yes
    Nissan Model: King Van Model series: King Van Size of motor: 2.0 Brand of engine: Z20 Type description: E24 From date: 01-11-1986 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Size of motor: 1.0 Brand of engine: MA10S Type description: K10 Body: Hatchback From date: 01-12-1982 To date: 01-05-1989 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Size of motor: 1.0 Brand of engine: MA10S Type description: K10 Body: Hatchback From date: 01-12-1982 To date: 01-12-1989 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Size of motor: 1.2 Brand of engine: MA12S Type description: K10 Body: Hatchback From date: 01-07-1986 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    Nissan Model: Pick-Up Model series: Pick-Up Model type: 4WD Size of motor: 2.2 Brand of engine: Z22 Type description: 720 Body: Pick Up From date: 01-04-1983 To date: 01-03-1986 Fuel: Gasoline Approved: Yes
    Nissan Model: Pick-Up Model series: Pick-Up Model type: 4WD Size of motor: 2.4 Brand of engine: Z24 Type description: D21 From date: 01-09-1985 To date: 01-04-1992 Fuel: Gasoline Approved: Yes
    Nissan Model: Pick-Up Model series: Pick-Up Size of motor: 1.8 Brand of engine: L18 Type description: 720 Body: Pick Up From date: 01-01-1983 To date: 01-03-1986 Fuel: Gasoline Approved: Yes
    Nissan Model: Pick-Up Model series: Pick-Up Size of motor: 2.0 Brand of engine: Z20 Type description: D21 Body: Pick Up From date: 01-09-1985 To date: 01-07-1988 Fuel: Gasoline Approved: Yes
    Nissan Model: Pick-Up Model series: Pick-Up Size of motor: 2.0 Brand of engine: Z20 Type description: D21 Body: Pick Up From date: 01-09-1988 To date: 01-12-1997 Fuel: Gasoline Approved: Yes
    Nissan Model: Prairie Model series: Prairie Model type: S Size of motor: 1.5 Brand of engine: E15S Type description: M10 Body: MPV From date: 01-01-1984 To date: 01-12-1987 Fuel: Gasoline Approved: Yes
    Nissan Model: Sunny Model series: Sunny Model type: 4WD Type of engine: i Size of motor: 1.6 Brand of engine: E16i Type description: B12A Body: Estate From date: 01-06-1986 To date: 01-05-1989 Fuel: Gasoline Approved: Yes
    Nissan Model: Sunny Model series: Sunny Size of motor: 1.3 Brand of engine: E13 Type description: B11 Body: Coupe From date: 01-04-1982 To date: 01-09-1986 Fuel: Gasoline Approved: Yes
    Nissan Model: Sunny Model series: Sunny Size of motor: 1.3 Brand of engine: E13 Type description: B11 Body: Estate From date: 01-08-1982 To date: 01-08-1990 Fuel: Gasoline Approved: Yes Manufacture type: traveller
    Nissan Model: Sunny Model series: Sunny Size of motor: 1.3 Brand of engine: E13 Type description: B11 From date: 01-03-1982 To date: 01-09-1987 Fuel: Gasoline Approved: Yes
    Nissan Model: Sunny Model series: Sunny Size of motor: 1.3 Type description: B11 Body: Box Body / Estate From date: 01-02-1982 To date: 01-08-1990 Fuel: Gasoline Approved: Yes
    Nissan Model: Sunny Model series: Sunny Size of motor: 1.4 Brand of engine: A14 Type description: B310 From date: 01-01-1970 To date: 01-02-1982 Fuel: Gasoline Approved: Yes
    Nissan Model: Sunny Model series: Sunny Size of motor: 1.5 Brand of engine: A15 Type description: B310 From date: 01-06-1979 To date: 01-02-1982 Fuel: Gasoline Approved: Yes
    Nissan Model: Sunny Model series: Sunny Size of motor: 1.5 Brand of engine: E15S Type description: B11 Body: Coupe From date: 01-03-1982 To date: 01-10-1986 Fuel: Gasoline Approved: Yes
    Nissan Model: Sunny Model series: Sunny Size of motor: 1.5 Brand of engine: E15S Type description: B11 Body: Estate From date: 01-03-1982 To date: 01-10-1986 Fuel: Gasoline Approved: Yes
    Nissan Model: Sunny Model series: Sunny Size of motor: 1.5 Brand of engine: E15S Type description: B11 From date: 01-03-1982 To date: 01-10-1986 Fuel: Gasoline Approved: Yes
    Nissan Model: Urvan Model series: Urvan Size of motor: 2.0 Brand of engine: H20 Type description: E23 Body: Van From date: 01-07-1981 To date: 01-11-1982 Fuel: Gasoline Approved: Yes
    Nissan Model: Urvan Model series: Urvan Size of motor: 2.0 Brand of engine: Z20 Type description: E23 Body: Bus From date: 01-12-1982 To date: 01-11-1988 Fuel: Gasoline Approved: Yes
    Nissan Model: Urvan Model series: Urvan Size of motor: 2.0 Brand of engine: Z20 Type description: E24 Body: Van From date: 01-05-1987 To date: 01-05-1997 Fuel: Gasoline Approved: Yes
    Nissan Model: Vanette Model series: King Vanette Size of motor: 1.5 Brand of engine: A15S Type description: GC22 From date: 01-09-1986 To date: 01-07-1995 Fuel: Gasoline Approved: Yes
    Nissan Model: Vanette Model series: King Vanette Size of motor: 2.0 Brand of engine: Z20S Type description: GC22 From date: 01-09-1986 To date: 01-04-1993 Fuel: Gasoline Approved: Yes
    Nissan Model: Vanette Model series: Vanette Size of motor: 1.5 Brand of engine: A15 Type description: KC120 Body: Bus From date: 01-01-1983 To date: 01-12-1987 Fuel: Gasoline Approved: Yes
    Nissan Model: Vanette Model series: Vanette Size of motor: 1.5 Brand of engine: A15S Type description: C22 Body: Bus From date: 01-10-1986 To date: 01-12-1995 Fuel: Gasoline Approved: Yes
    Nissan Model: Vanette Model series: Vanette Size of motor: 1.5 Brand of engine: A15S Type description: C22 Body: Van From date: 01-10-1986 To date: 01-12-1995 Fuel: Gasoline Approved: Yes
    Nissan Series: Bluebird (910) Model: 1.8 Engine volume: 1.8 Engine type: L 18 S Year: 01.80-05.84
    Nissan Series: Bluebird (910) Model: 1.8 Engine volume: 1.8 Engine type: L 18 S Year: 01.80-12.83
    Nissan Series: Bluebird (910) Model: 2.0i Engine volume: 2.0 Engine type: Z 20 E Year: 01.82-05.84
    Nissan Series: Cabstar (F22) Model: 2.0 Engine volume: 2.0 Engine type: Z 20 Year: 01.82-10.92
    Nissan Series: Cherry (N10) Model: 1.3 Engine volume: 1.3 Engine type: E 13 Year: 08.81-05.82
    Nissan Series: Cherry (N10) Model: 1.4 Engine volume: 1.4 Engine type: A 14 S Year: 08.80-07.81
    Nissan Series: Cherry (N10) Model: 1.5 Engine volume: 1.5 Engine type: E 15 Year: 08.81-12.82
    Nissan Series: Cherry (N12) Model: 1.3 Engine volume: 1.3 Engine type: E 13 Year: 05.82-05.86
    Nissan Series: Cherry (N12) Model: 1.5 Engine volume: 1.5 Engine type: E 15 S Year: 11.83-05.86
    Nissan Series: King-Van Model: 2.0 Engine volume: 2.0 Year: 12.88-
    Nissan Series: King-Vanette Model: 1.5 (GC22) Engine volume: 1.5 Engine type: A15S Year: 09.86-
    Nissan Series: King-Vanette Model: 2.0 (GC22) Engine volume: 2.0 Engine type: Z20S Year: 09.86-
    Nissan Series: Micra (K10) Model: 1.0 Engine volume: 1.0 Engine type: MA 10 S Year: 02.85-10.88
    Nissan Series: Pick-Up (720) Model: 1.8 Engine volume: 1.8 Engine type: L 18 Year: 01.83-09.85
    Nissan Series: Pick-Up (720) Model: 2.2 4WD Engine volume: 2.2 Engine type: Z 22 Year: 04.83-03.86
    Nissan Series: Pick-Up (D21) Model: 2.0 Engine volume: 2.0 Engine type: Z 20 Year: 09.85-07.88
    Nissan Series: Pick-Up (D21) Model: 2.0 Engine volume: 2.0 Engine type: Z 20 Year: 09.88-08.91
    Nissan Series: Pick-Up (D21) Model: 2.4i 4WD Engine volume: 2.4 Engine type: Z 24i Year: 03.86-04.92
    Nissan Series: Pick-Up Model: 1600, 1800 (720) Year: 12.81-08.85
    Nissan Series: Prairie (M/NM 10) Model: 1.5 S Engine volume: 1.5 Engine type: E 15 S Year: 01.84-12.87
    Nissan Series: Sunny I (B11) Model: 1.5 Engine volume: 1.5 Engine type: E 15 S Year: 03.82-10.86
    Nissan Series: Sunny II (B12/N13) Model: 1.6i 4X4 Engine volume: 1.6 Engine type: E 16 i Year: 06.86-10.90
    Nissan Series: Urvan (E23) Model: 2.0 Engine volume: 2.0 Engine type: H 20 Year: 07.81-11.82
    Nissan Series: Urvan (E23) Model: 2.0 Engine volume: 2.0 Engine type: Z 20 Year: 07.80-11.88
    Nissan Series: Vanette (KC120) Model: 1.5 Engine volume: 1.5 Engine type: A 15 Year: 01.83-12.87
