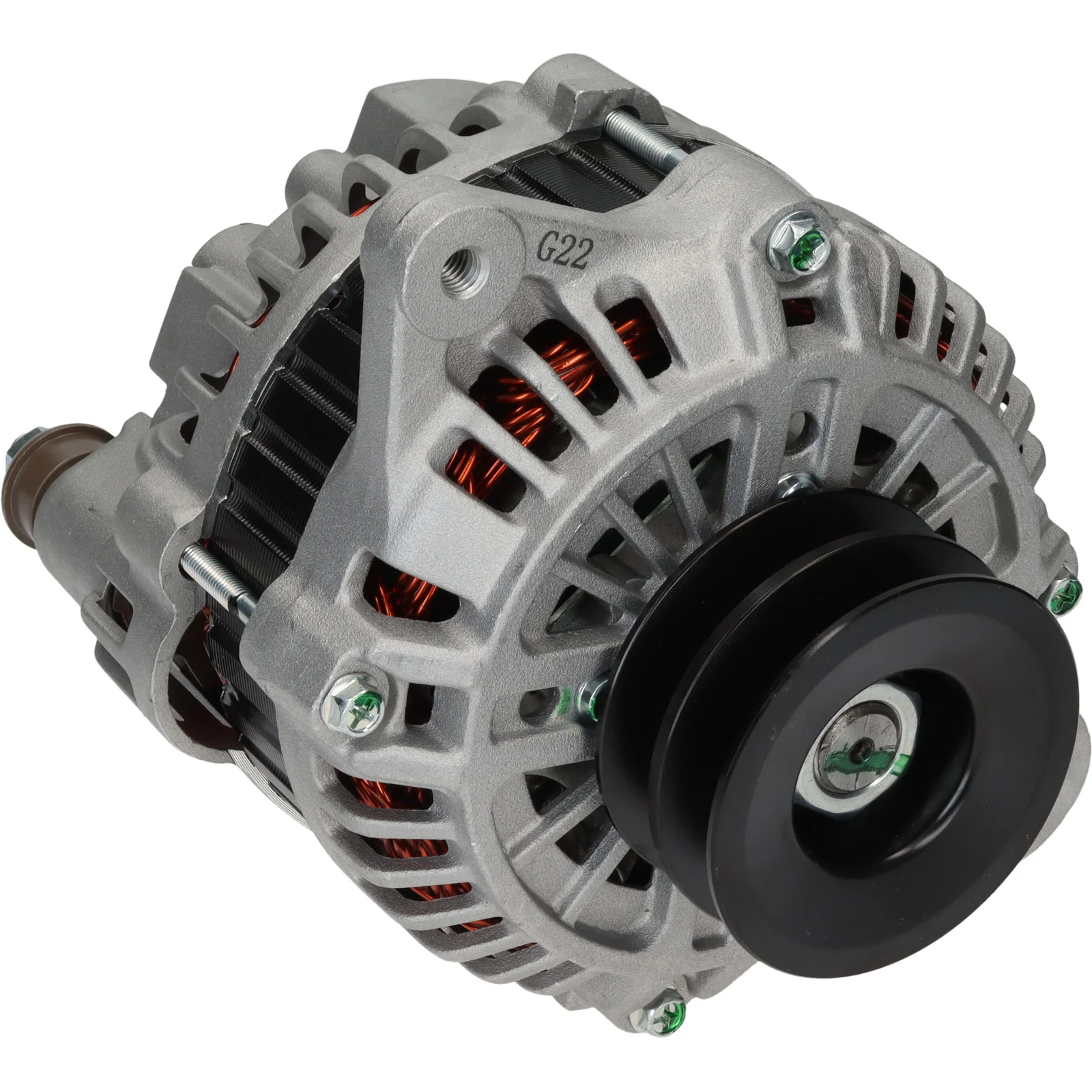

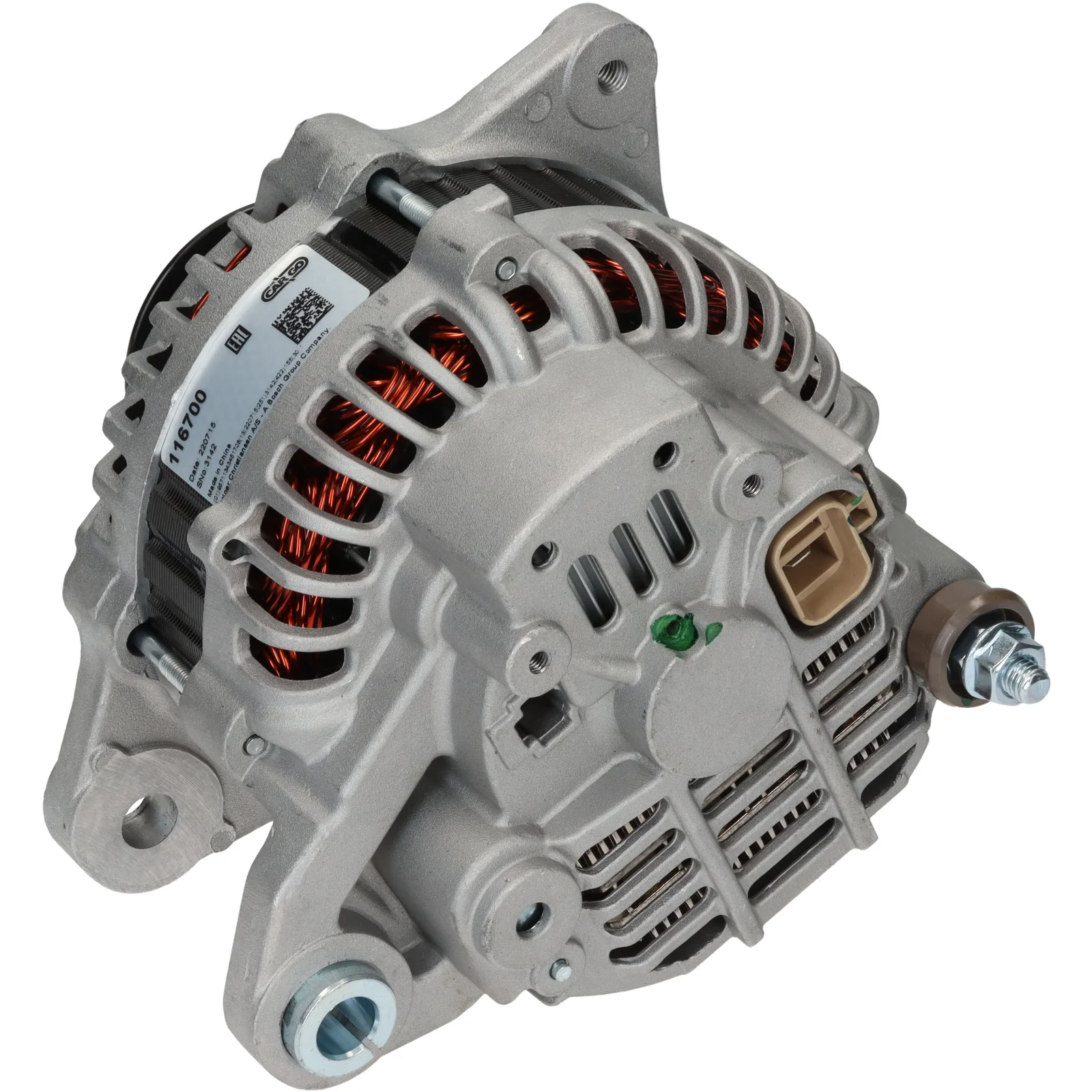

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116700

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 140, Rotation: CW, Monteringsbeslag forfordelingsdæksel: 60,50

Beskrivelse

Spænding: 14
Amp: 140
Dreven male: 43,50
Bredde/holder arm: 13,50
Montagebeslag afstand: 60,50
Beslaghul: 12,50
Bæltejusteringsbeslag hul pos.: 3
Bæltejusteringsbeslag hul 1: M8
Drev diameter: 70,00
Groove/dreven: 2
Radius: 90,00
Radius 2: 87,50
B+: M8
Posicion/B+ i min.: 8
D+ Størrelse: Pluggede
Rotation: med uret
Plug nr.: PL07
Total længde mm: 184,00
Dreven: DP
Vifte: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 60.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 3
Plug no. PL07
Bracket hole 12.50
Position/B+ in min. 8
Pulley DP
Pulley dia. 70.00
Pulley dist. 43.50
Radius 90.00
D+ Size Plug
Radius 2 87.50
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 2
Voltage 14
Total length 184.00 mm
Width/holder arm 13.50
Amp 140

  • OEM
    A004TA0499, A4TA0499, F032116700, me191048

  • Konkurrentreferens
    A5188, CAL35239, DRA0556, J5115074, LRA03130, 28-5742, 226.168.1402, 209365, 209365A, 401617RI, 12061064

  • NormaliseratArtNr
    a004ta0499, a4ta0499, a5188, cal35239, dra0556, f032116700, j5115074, lra03130, me191048, 209365, 209365a, 285742, 401617ri, 12061064, 2261681402

  • Passar modeller
    Mitsubishi Model: Pajero Model series: Pajero Model type: 4x4 Size of motor: 3.2 Brand of engine: 4M41 Type description: V60, V70 From date: 01-04-2000 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Model type: 4x4 Size of motor: 3.2 Brand of engine: 4M41 Type description: V60, V70 From date: 01-04-2000 To date: 01-12-2006 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: DI-D Size of motor: 3.2 Brand of engine: 4M41 Type description: V60 Body: Convertible From date: 01-10-2001 To date: 01-12-2006 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 140
    Dreven male: 43,50
    Bredde/holder arm: 13,50
    Montagebeslag afstand: 60,50
    Beslaghul: 12,50
    Bæltejusteringsbeslag hul pos.: 3
    Bæltejusteringsbeslag hul 1: M8
    Drev diameter: 70,00
    Groove/dreven: 2
    Radius: 90,00
    Radius 2: 87,50
    B+: M8
    Posicion/B+ i min.: 8
    D+ Størrelse: Pluggede
    Rotation: med uret
    Plug nr.: PL07
    Total længde mm: 184,00
    Dreven: DP
    Vifte: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 60.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 3
    Plug no. PL07
    Bracket hole 12.50
    Position/B+ in min. 8
    Pulley DP
    Pulley dia. 70.00
    Pulley dist. 43.50
    Radius 90.00
    D+ Size Plug
    Radius 2 87.50
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 2
    Voltage 14
    Total length 184.00 mm
    Width/holder arm 13.50
    Amp 140
  • Køretøjsmatchning

    • OEM
      A004TA0499, A4TA0499, F032116700, me191048

    • Konkurrentreferens
      A5188, CAL35239, DRA0556, J5115074, LRA03130, 28-5742, 226.168.1402, 209365, 209365A, 401617RI, 12061064

    • NormaliseratArtNr
      a004ta0499, a4ta0499, a5188, cal35239, dra0556, f032116700, j5115074, lra03130, me191048, 209365, 209365a, 285742, 401617ri, 12061064, 2261681402

    • Passar modeller
      Mitsubishi Model: Pajero Model series: Pajero Model type: 4x4 Size of motor: 3.2 Brand of engine: 4M41 Type description: V60, V70 From date: 01-04-2000 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Model type: 4x4 Size of motor: 3.2 Brand of engine: 4M41 Type description: V60, V70 From date: 01-04-2000 To date: 01-12-2006 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: DI-D Size of motor: 3.2 Brand of engine: 4M41 Type description: V60 Body: Convertible From date: 01-10-2001 To date: 01-12-2006 Fuel: Diesel Approved: Yes
